ASM: Universal
KEY: Mishimoto Universal Intercooler J-Line
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 500
TechSpec Overall Length (in): 29.5
TechSpec Overall Height (in): 7.5
TechSpec Overall Width (in): 3.75
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.5
TechSpec Core Length (in): 22
TechSpec Core Height (in): 7.2
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 18.7
TechSpec Includes: (1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
constructed with 6061 aluminum
Available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver
ASM: Universal
KEY: Mishimoto Universal Intercooler J-Line, Black
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 500
TechSpec Overall Length (in): 29.5
TechSpec Overall Height (in): 7.5
TechSpec Overall Width (in): 3.75
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.5
TechSpec Core Length (in): 22
TechSpec Core Height (in): 7.2
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 18.7
TechSpec Includes: (1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
constructed with 6061 aluminum
Available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty
OptionLabel: Black
ASM: Universal
KEY: Mishimoto Universal Intercooler J-Line, Gold
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 500
TechSpec Overall Length (in): 29.5
TechSpec Overall Height (in): 7.5
TechSpec Overall Width (in): 3.75
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.5
TechSpec Core Length (in): 22
TechSpec Core Height (in): 7.2
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 18.7
TechSpec Includes: (1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
constructed with 6061 aluminum
Available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Gold

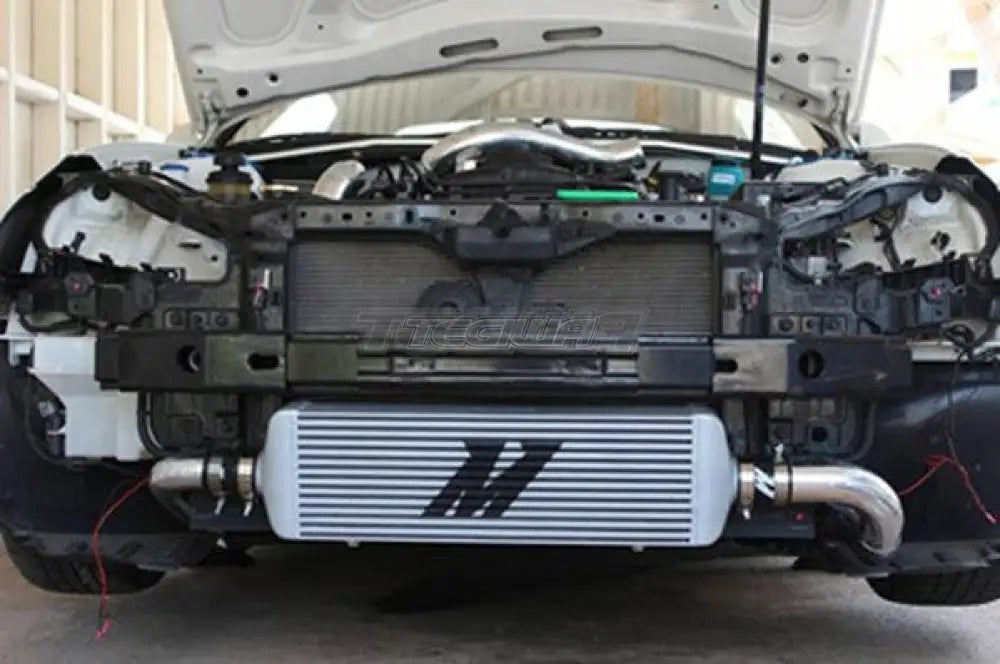

A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size.Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space.In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar.Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.
