TechSpec Rows: 25
TechSpec Core Length (in): 11
TechSpec Core Height (in): 7.32
TechSpec Core Thickness (in): 1.97
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: 25-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--5ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--M20 Thermostatic Sandwich Plate---10AN Fittings--Dowty Oil Seals--Large O-Ring--1/8-in NPT Allen Key Plugs--Sandwich plate adapters--Mishimoto Lifetime Warranty
Note: No dashes = M20 x 1.5--M20 x 1.5--2 dashes = 3/4" -16UNF--3/4" -16UNF
Features:
Universal fitment
25 row stacked plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss

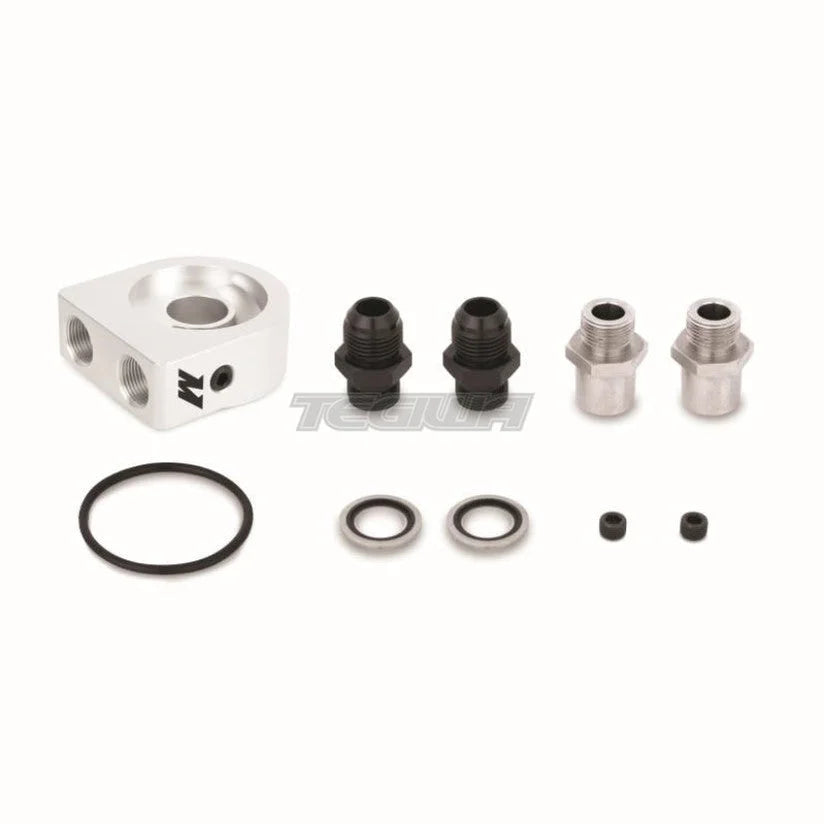

Includes billet anodized aluminum sandwich plate in either standard or thermostatic form
Includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections
Includes both a 3/4-in -16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models
Lifetime Warranty
Install Difficulty: 3

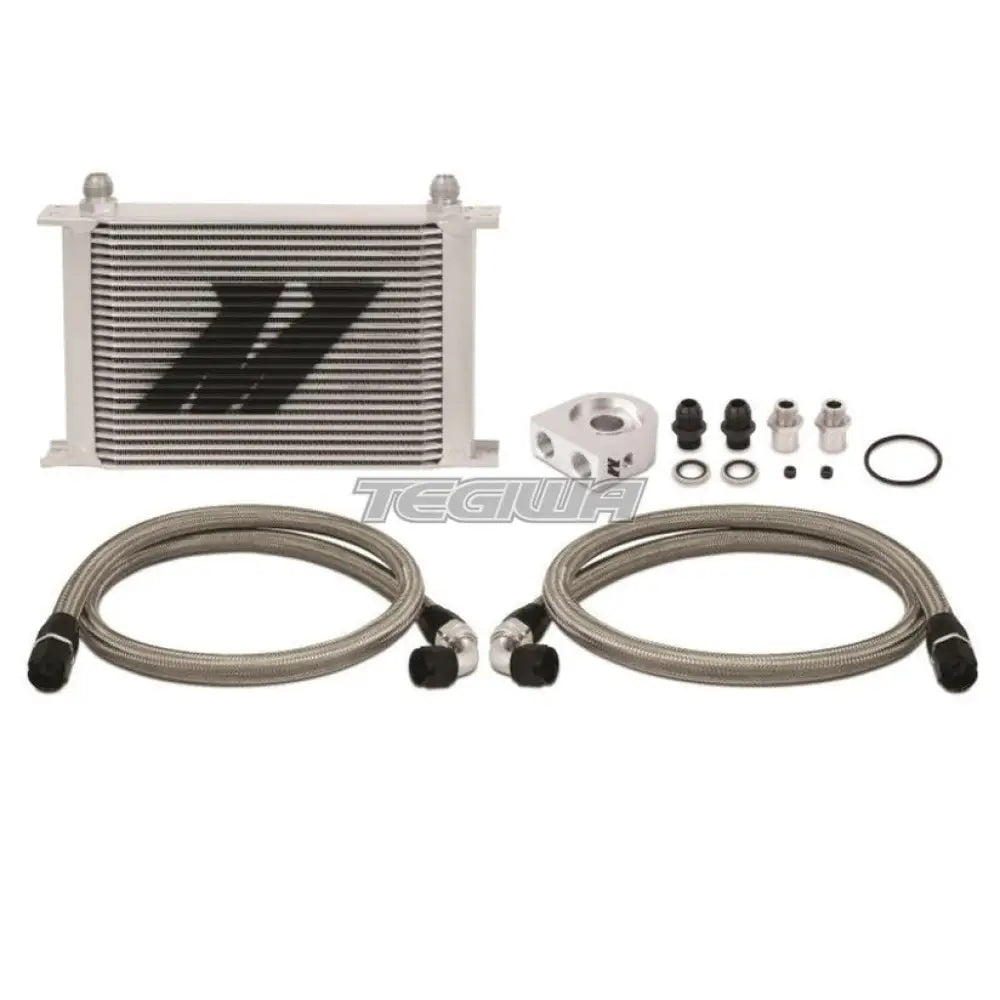

OptionLabel: Silver Cooler, Non-Thermostatic
TechSpec Rows: 25
TechSpec Core Length (in): 11
TechSpec Core Height (in): 7.32
TechSpec Core Thickness (in): 1.97
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: 25-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--5ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--M20 Thermostatic Sandwich Plate---10AN Fittings--Dowty Oil Seals--Large O-Ring--1/8-in NPT Allen Key Plugs--Sandwich plate adapters--Mishimoto Lifetime Warranty
Note: No dashes = M20 x 1.5--M20 x 1.5--2 dashes = 3/4" -16UNF--3/4" -16UNF
Features:
Universal fitment
25 row stacked plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
Includes billet anodized aluminum sandwich plate in either standard or thermostatic form
Includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections
Includes both a 3/4-in -16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models
Lifetime Warranty
Install Difficulty: 3

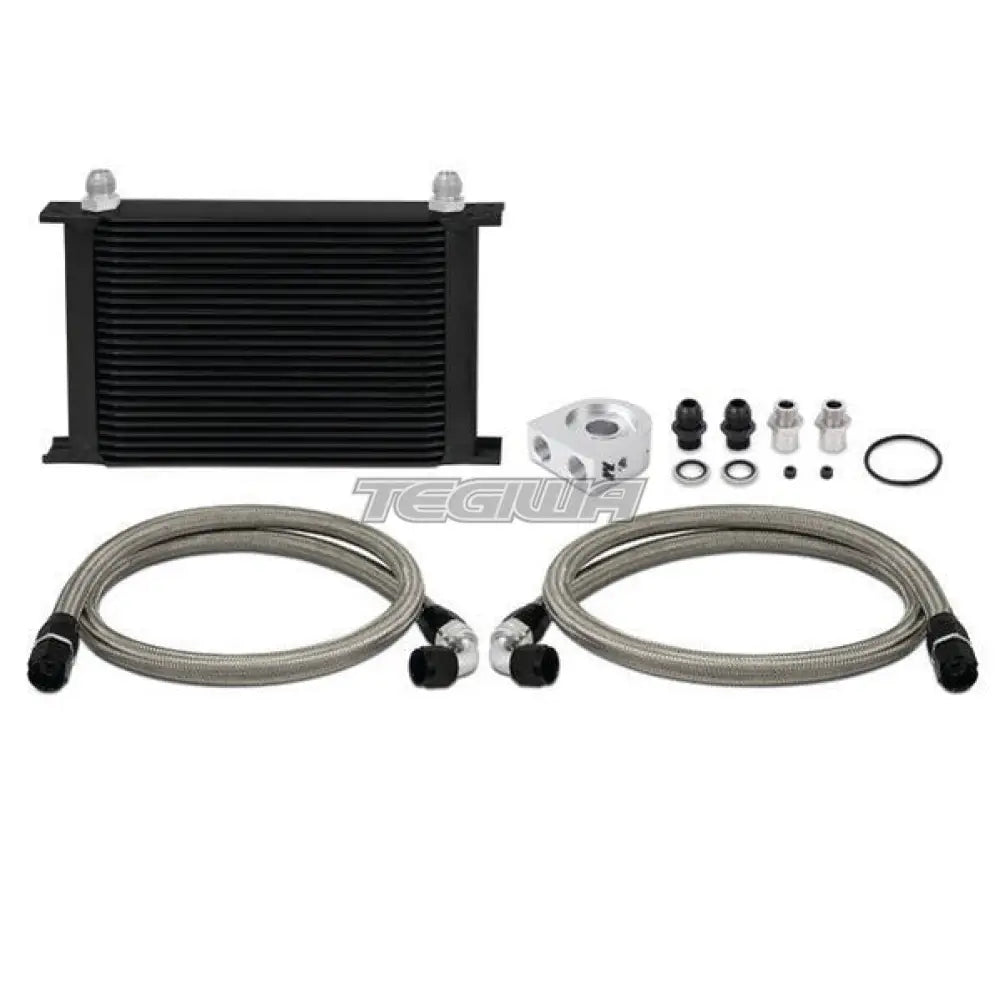

OptionLabel: Black Cooler, Non-Thermostatic
TechSpec Rows: 25
TechSpec Core Length (in): 11
TechSpec Core Height (in): 7.32
TechSpec Core Thickness (in): 1.97
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: 25-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--5ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--M20 Thermostatic Sandwich Plate---10AN Fittings--Dowty Oil Seals--Large O-Ring--1/8-in NPT Allen Key Plugs--Sandwich plate adapters--Mishimoto Lifetime Warranty
Note: No dashes = M20 x 1.5--M20 x 1.5--2 dashes = 3/4" -16UNF--3/4" -16UNF
Features:
Universal fitment
25 row stacked plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
Includes billet anodized aluminum sandwich plate in either standard or thermostatic form
Includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections
Includes both a 3/4-inch -16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models
Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler, Thermostatic
TechSpec Rows: 25
TechSpec Core Length (in): 11
TechSpec Core Height (in): 7.32
TechSpec Core Thickness (in): 1.97
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Includes: 25-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--5ft Stainless Steel Braided Hose w/ -10AN fittings--One straight fitting and one 90 degree swivel fitting--M20 Thermostatic Sandwich Plate---10AN Fittings--Dowty Oil Seals--Large O-Ring--1/8-in NPT Allen Key Plugs--Sandwich plate adapters--Mishimoto Lifetime Warranty
Note: No dashes = M20 x 1.5--M20 x 1.5--2 dashes = 3/4" -16UNF--3/4" -16UNF
Features:
Universal fitment
25 row stacked plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
Includes billet anodized aluminum sandwich plate in either standard or thermostatic form
Includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections
Includes both a 3/4-16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models
Lifetime Warranty
Install Difficulty: 3

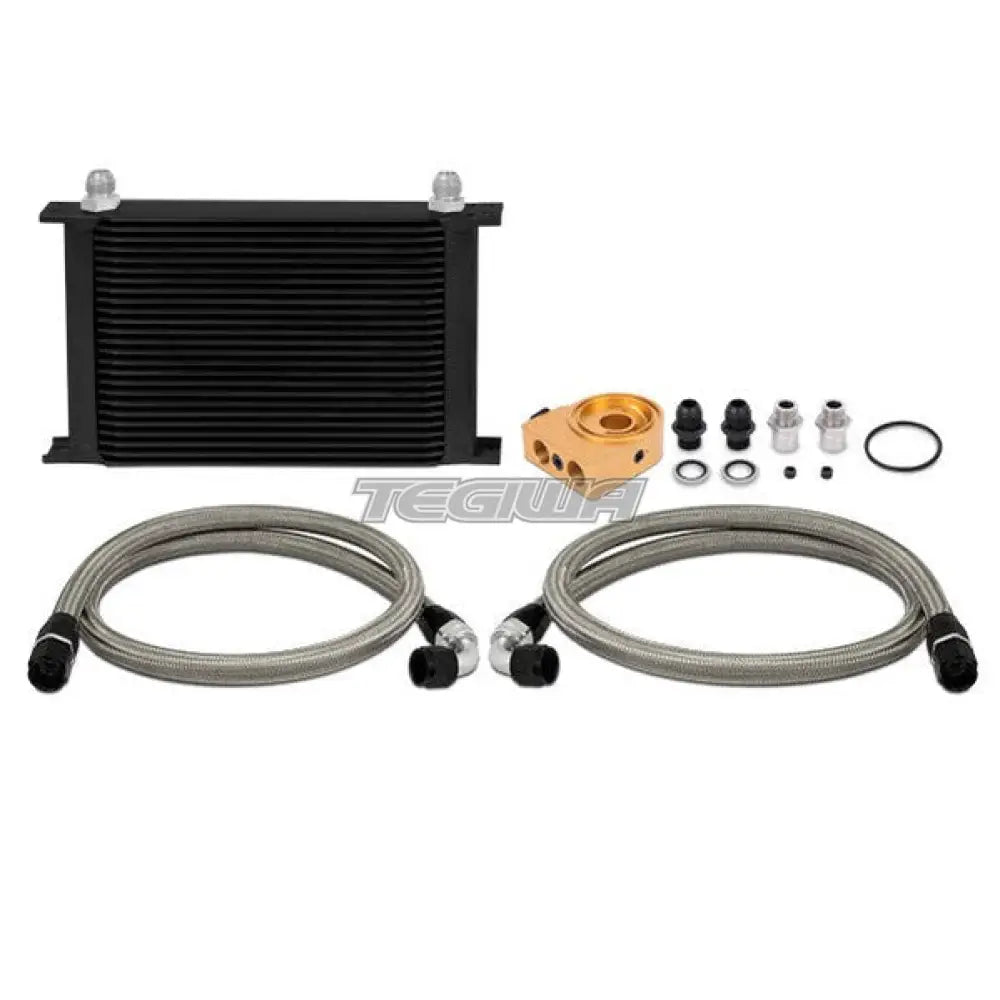

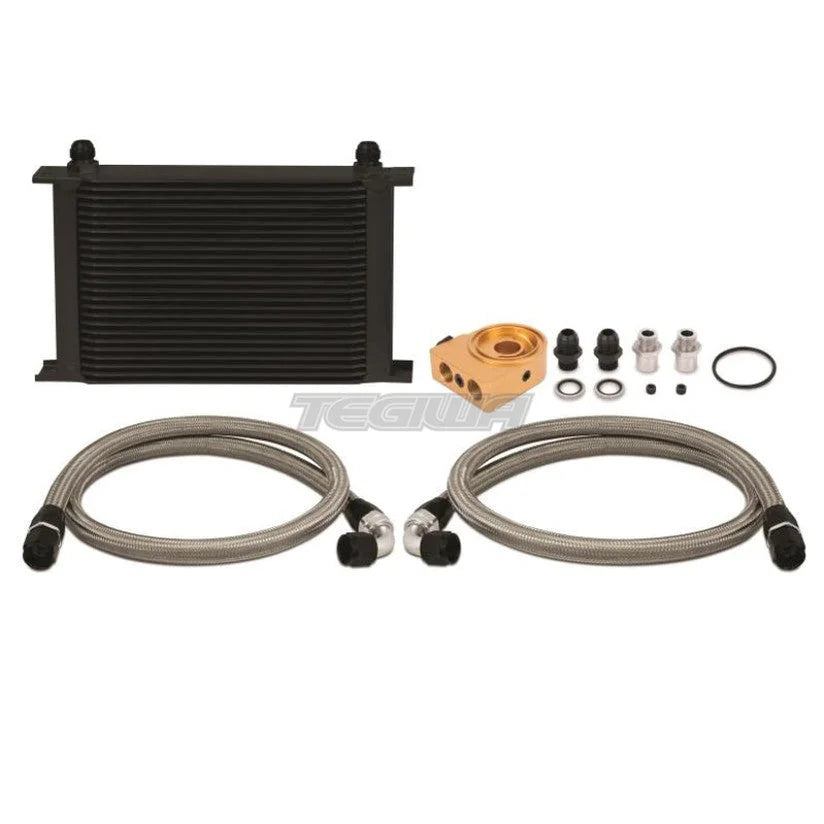

OptionLabel: Black Cooler, Thermostatic
Proper oil temperature regulation is key to extending and preserving the life of your stock or high performance engine.Keep your temperatures in check with the 25-Row Mishimoto Universal Oil Cooler Kit.This kit is applicable for most vehicles and includes all key components for reducing oil temperatures and providing your engine with extra protection against oil degradation.This kit includes a billet anodized aluminum sandwich plate in either standard or thermostatic form.The optional Mishimoto Thermostatic Sandwich Plate provides additional temperature control and will limit oil flow to the cooler until optimal temperatures are reached, making it ideal for those in cooler climates.The included core is our proven Mishimoto 25-row stacked-plate cooler which can wIt'stand high fluid pressures and significantly reduce oil temperatures while exhibiting minimal pressure loss.This kit includes both a 3/4-16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models.This kit also includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections.Whether you are piloting a boosted rotary or a blown small block, the Mishimoto Universal Oil Cooler Kit will provide the efficiency you need to stay on the track and out of the shop.As with all our products this kit includes the Mishimoto Limited Lifetime Warranty.
