ASM: Universal

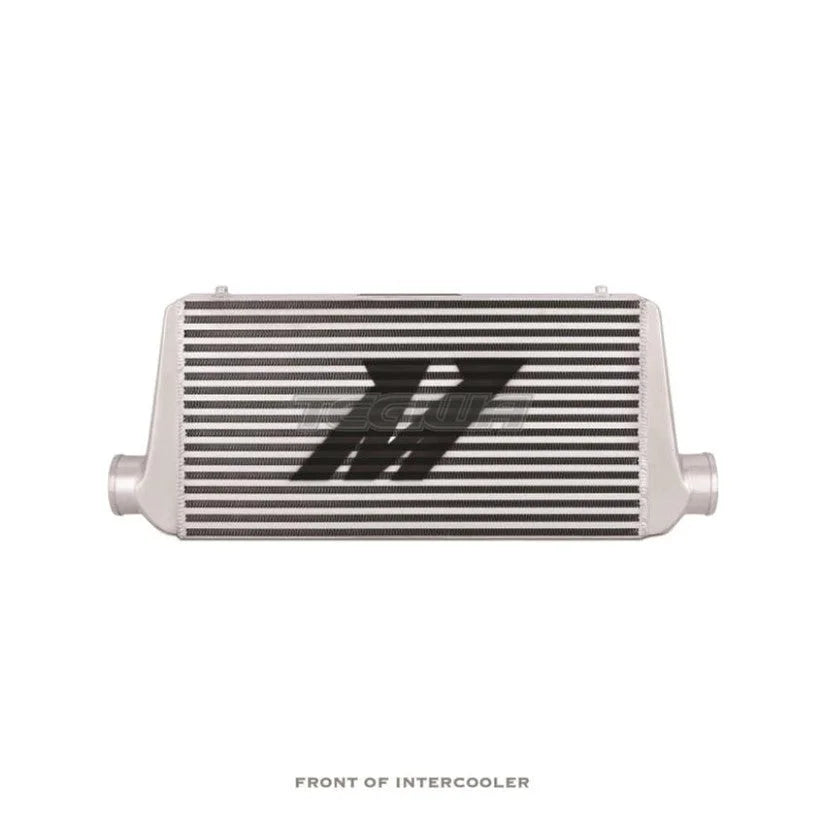

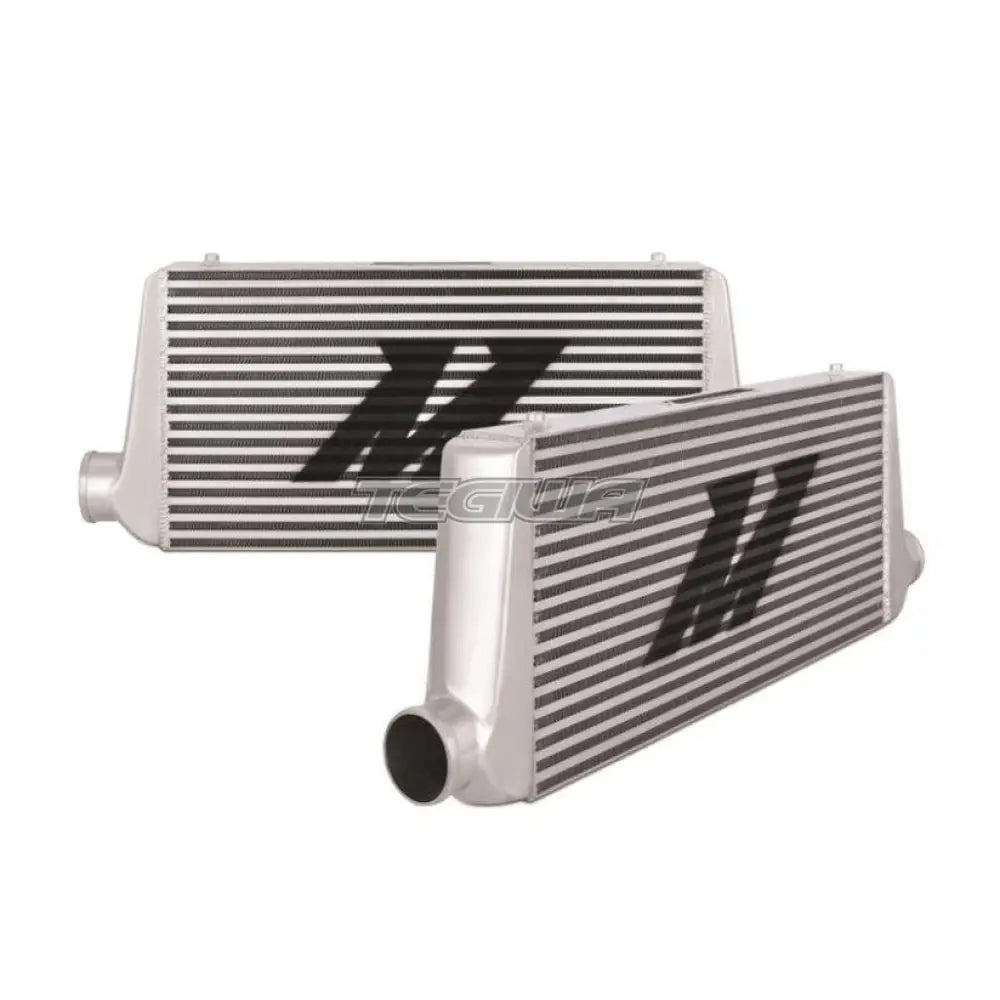

KEY: Mishimoto Universal Intercooler R-Line
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Overall Length (in): 31
TechSpec Overall Height (in): 12
TechSpec Overall Width (in): 4
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4
TechSpec Core Length (in): 24
TechSpec Core Height (in): 12
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Massive 4-in thick core and 3-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver
ASM: Universal

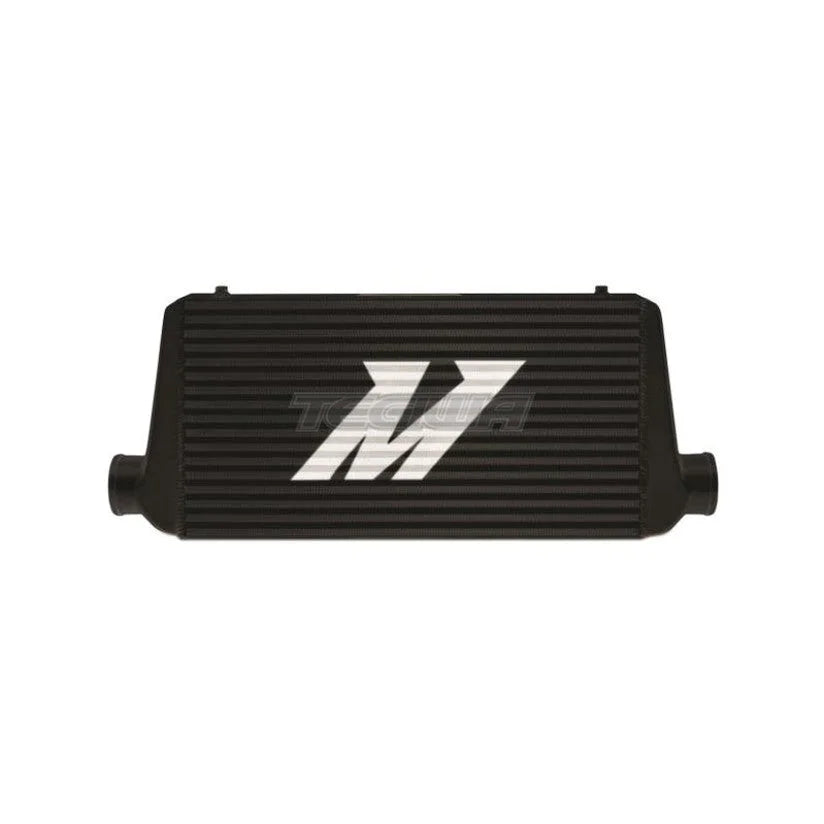

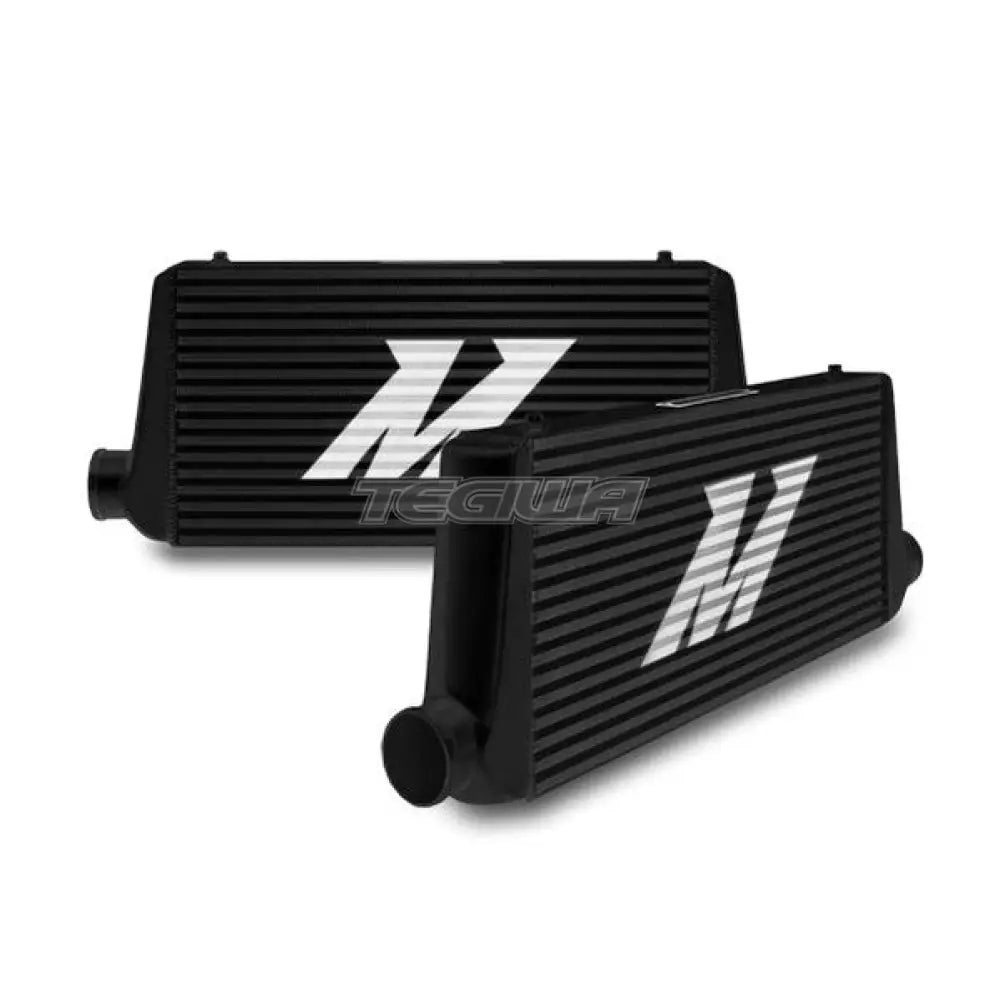

KEY: Mishimoto Universal Intercooler R-Line, Black
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Overall Length (in): 31
TechSpec Overall Height (in): 12
TechSpec Overall Width (in): 4
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4
TechSpec Core Length (in): 24
TechSpec Core Height (in): 12
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Massive 4-in thick core and 3-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
Mishimoto Lifetime Warranty
OptionLabel: Black
ASM: Universal

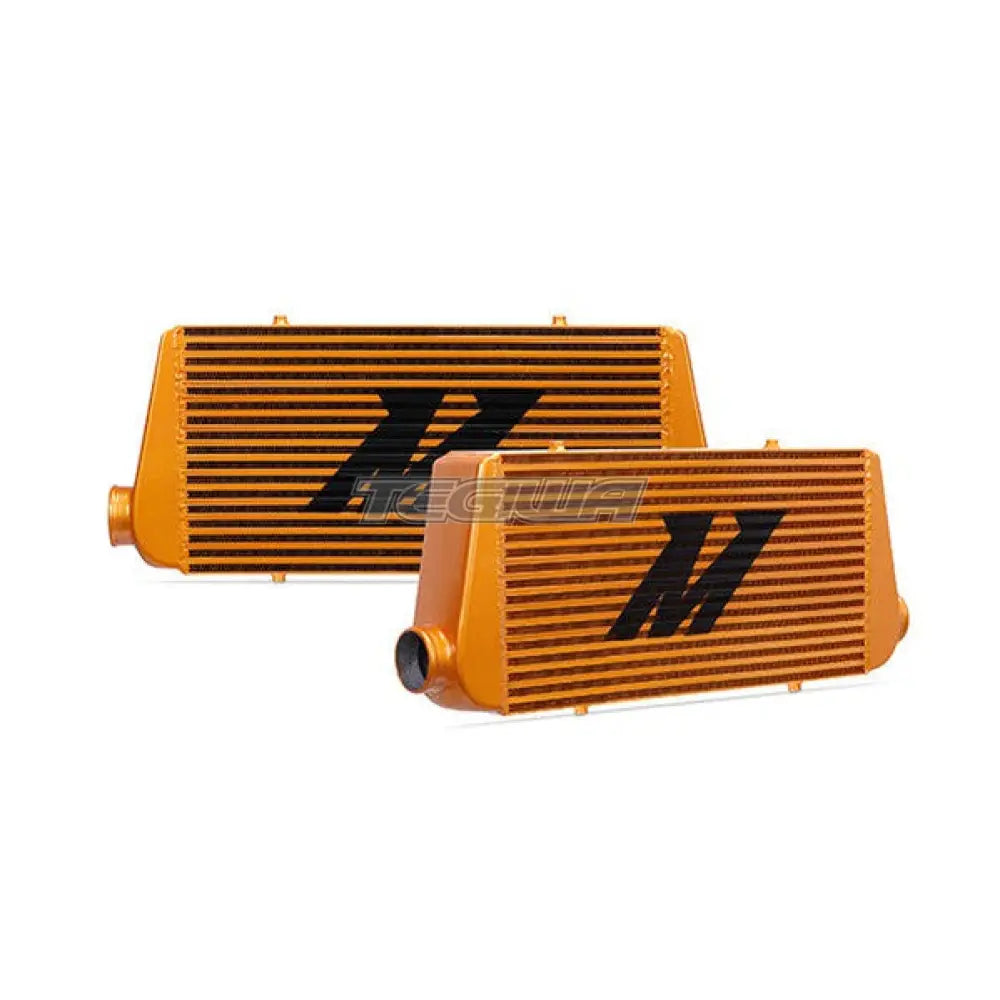

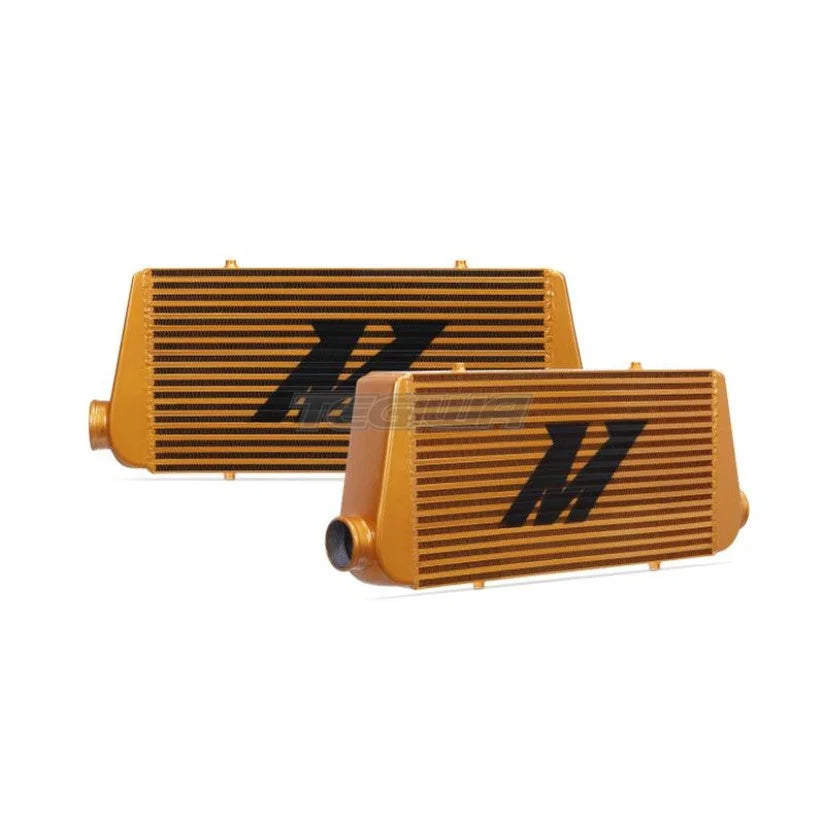

KEY: Mishimoto Universal Intercooler R-Line, Gold
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Overall Length (in): 31
TechSpec Overall Height (in): 12
TechSpec Overall Width (in): 4
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4
TechSpec Core Length (in): 24
TechSpec Core Height (in): 12
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Massive 4-in thick core and 3-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Gold
The Mishimoto R-Line intercooler provides the perfect cooling capacity needed for supercharged and turbo charged vehicles.Constructed of 6061 aircraft-quality aluminum for extreme durability, the Mishimoto R-Line intercooler will efficiently reduce induction air temperatures, while significantly improving engine output.Mishimoto front-mount intercoolers are precision TIG welded, offering an enhanced level of performance.The R-Line intercooler will provide the ideal cooling capacity, while safely increasing horsepower and giving that extra boost that every driver appreciates.Note: For your taste, only one side of the intercooler has the Mishimoto logo.
