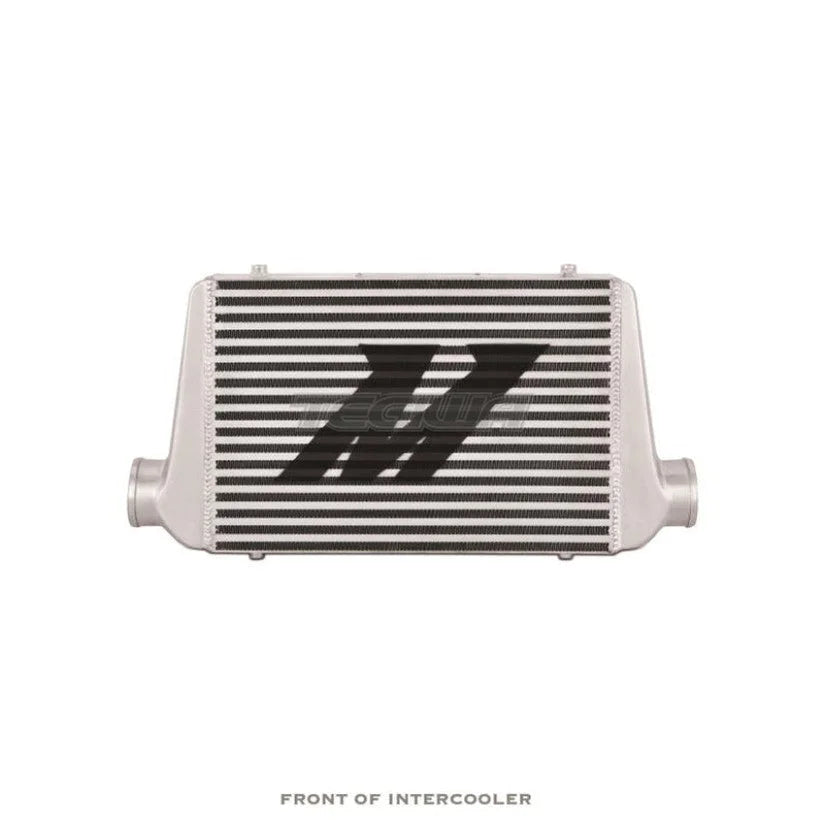

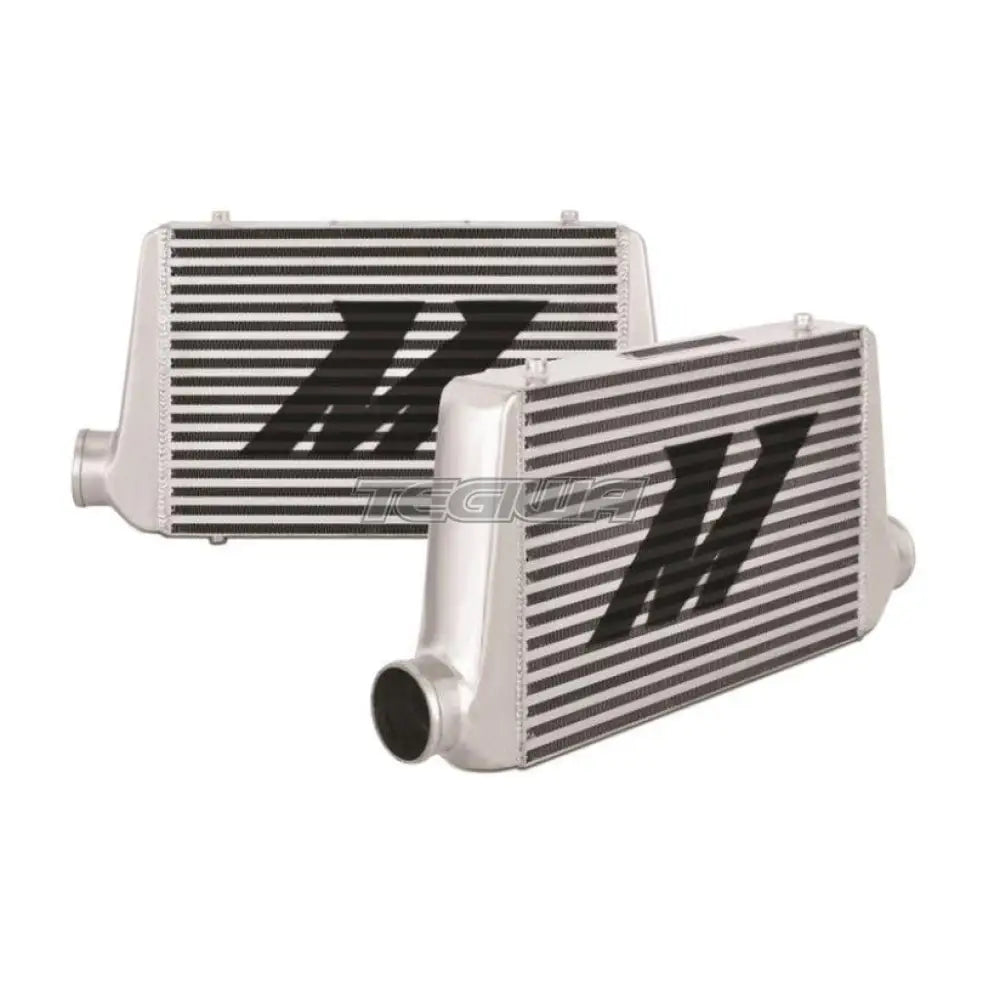

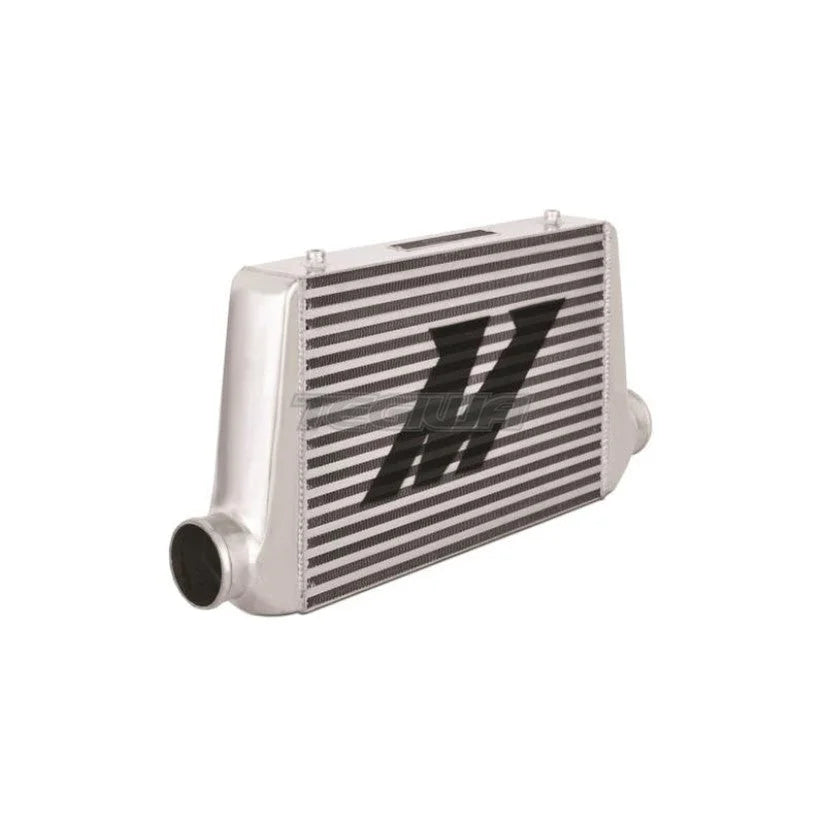

Mishimoto Universal Intercooler G-Line

ASM: Universal
KEY: Mishimoto Universal Intercooler G-Line
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Overall Length (in): 24.5
TechSpec Overall Height (in): 13.1
TechSpec Overall Width (in): 3
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.76
TechSpec Core Length (in): 17.5
TechSpec Core Height (in): 11.75
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Four M8 x 1.25 threaded universal mounting points for a universal fit
Constructed from durable 6061-aluminum
Precision TIG-welded joints won't crack under pressure
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver

ASM: Universal

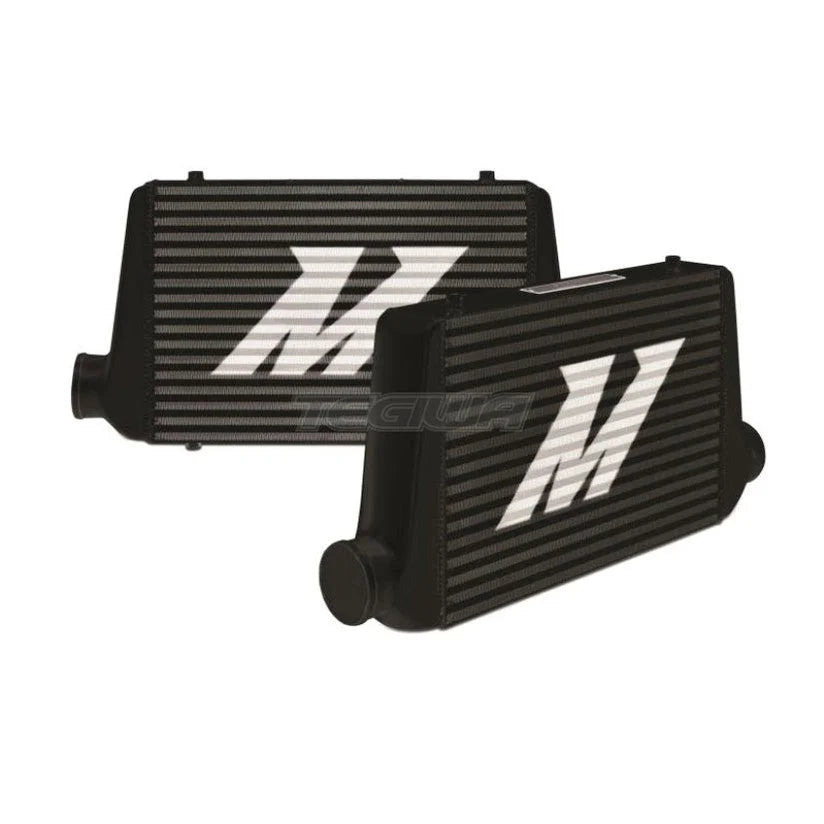

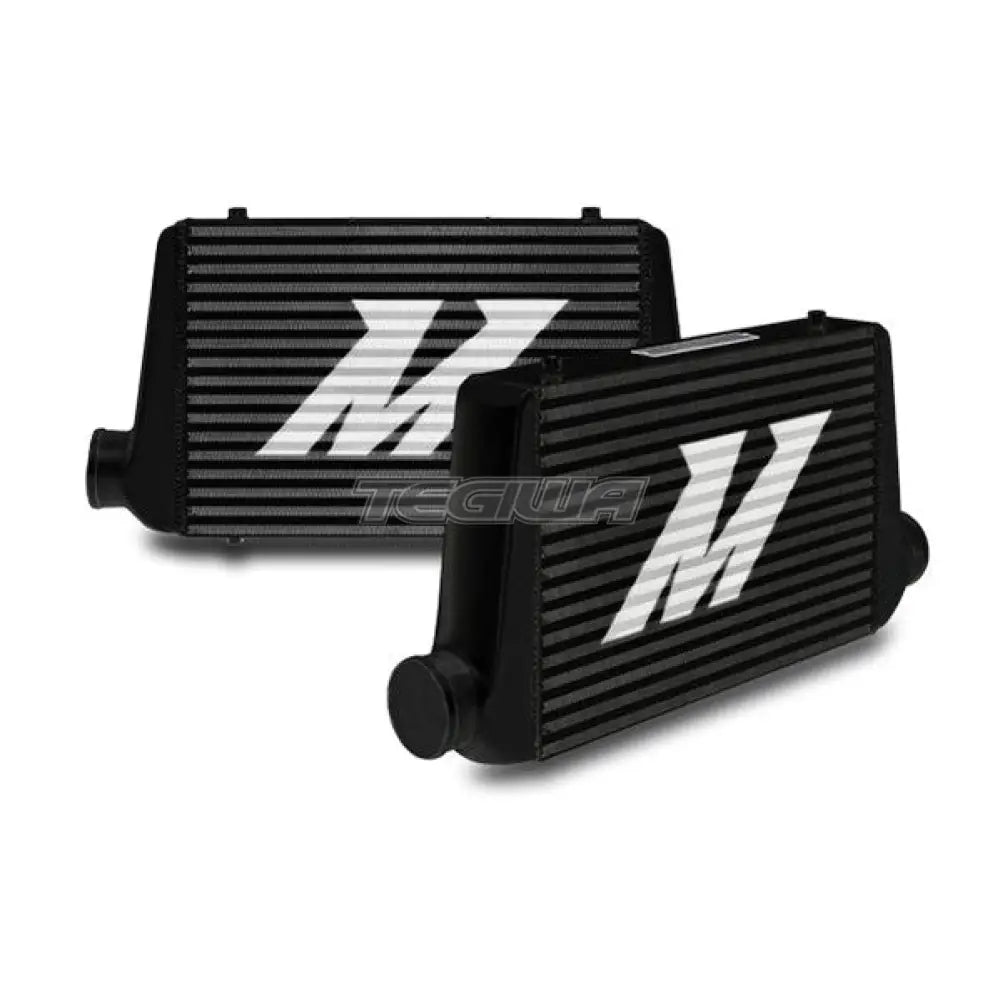

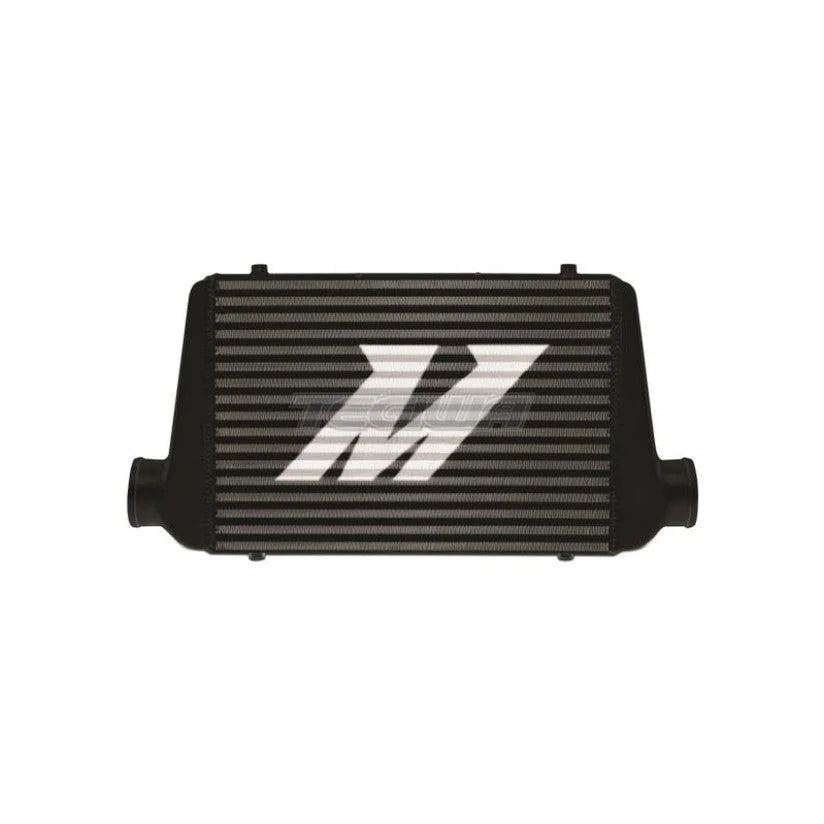

KEY: Mishimoto Universal Intercooler G-Line, Black
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Overall Length (in): 24.5
TechSpec Overall Height (in): 13.1
TechSpec Overall Width (in): 3
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.76
TechSpec Core Length (in): 17.5
TechSpec Core Height (in): 11.75
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Four M8 x 1.25 threaded universal mounting points for a universal fit
Constructed from durable 6061-aluminum
Precision TIG-welded joints won't crack under pressure
Mishimoto Lifetime Warranty
OptionLabel: Black

ASM: Universal
KEY: Mishimoto Universal Intercooler G-Line, Gold
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Overall Length (in): 24.5
TechSpec Overall Height (in): 13.1
TechSpec Overall Width (in): 3
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.76
TechSpec Core Length (in): 17.5
TechSpec Core Height (in): 11.75
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust, one-piece cast aluminum end tanks withstand high boost pressures
Four M8 x 1.25 threaded universal mounting points
constructed with 6061 aluminum
Tig welded to perfection
Mishimoto Lifetime Warranty
OptionLabel: Gold
