TechSpec Rows: 17
TechSpec Core Length (in): 10.47
TechSpec Core Height (in): 7.79
TechSpec Core Thickness (in): 2.55
TechSpec Caution: It is the installer's responsibility to check all line fittings and connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 7.79
TechSpec Overall Length (in): 13.85
TechSpec Overall Width (in): 2.55
TechSpec Inlet: -16 ORB
TechSpec Outlet: -16 ORB
TechSpec Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 1.4
Features:
Universal fit for any high-performance application
Large 17-row core measures 10-inL x 7.5-inH x 2.5-inT to provide ample cooling in any situation
1.4-quart capacity for increased cooling potential
Bar-and-plate core for extreme durability and cooling
Turbulated fins circulate fluid throughout the core for even and efficient cooling
-16 ORB female threaded inlet and outlet for high flow and versatility
Cast aluminum end tanks are precision TIG welded to core for maximum durability
Eight M8 flush mounting hole with steel threaded inserts secure the cooler to any custom bracket
Opposite-side inlet and outlet for easy line routing

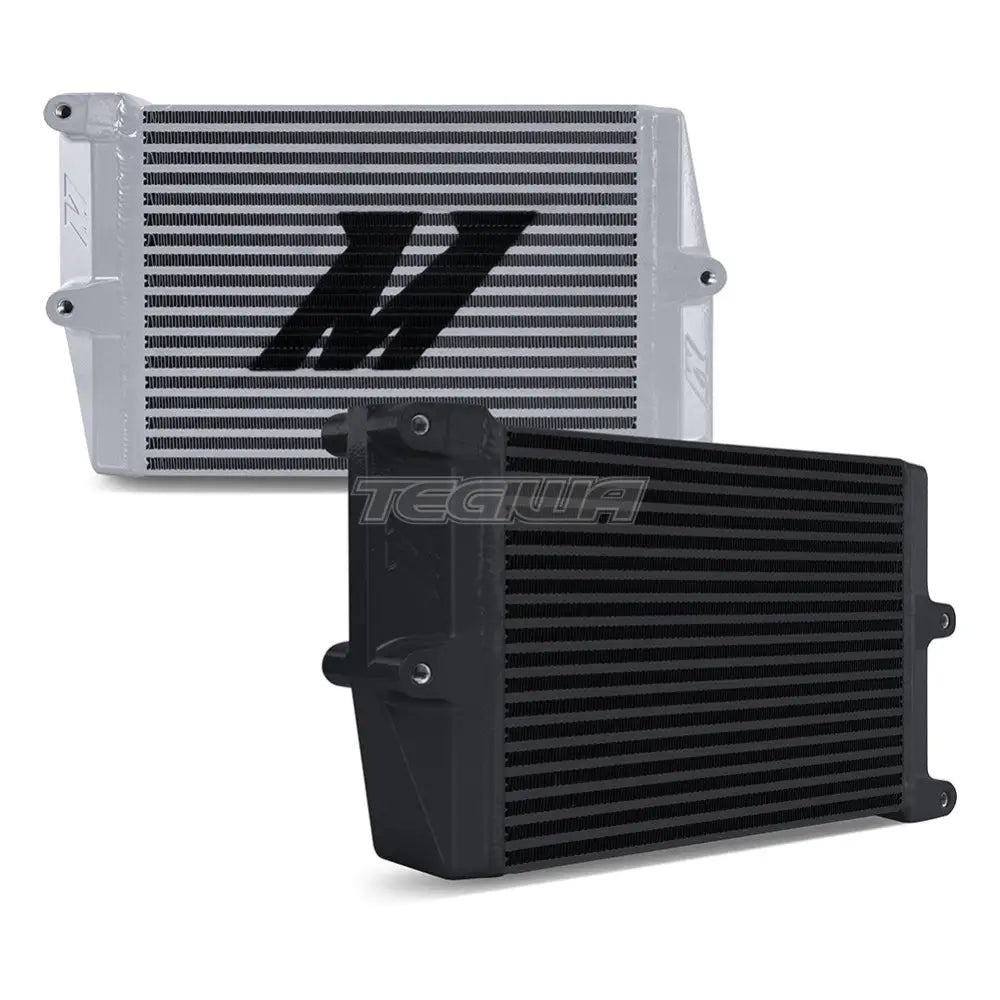

Available in durable stealth black or sleek silver powder coat
Mishimoto Lifetime Warranty
Install Difficulty: 3

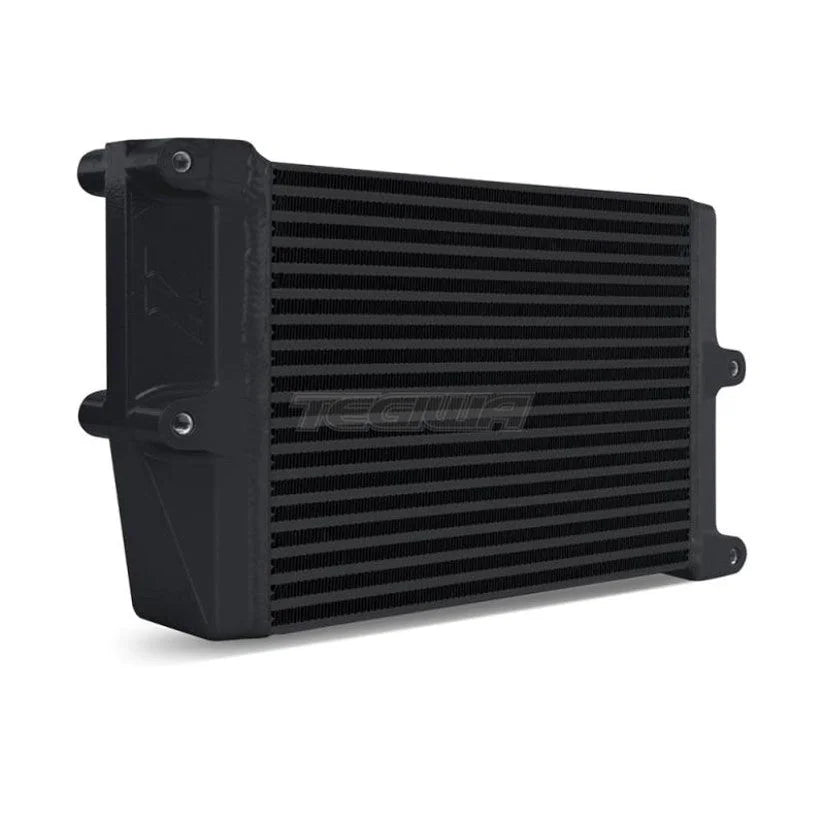

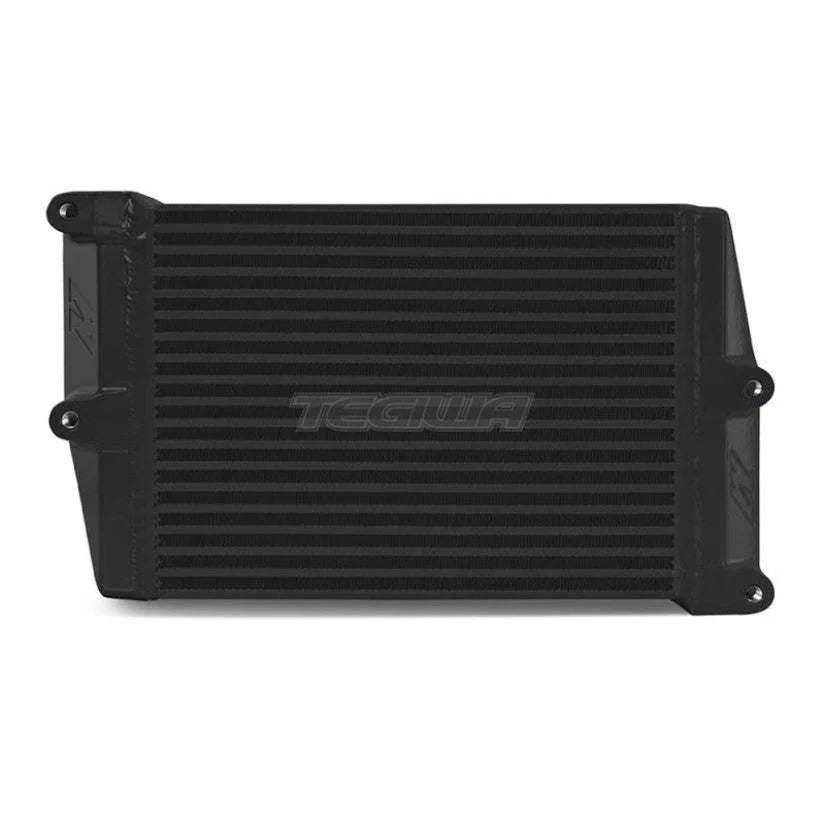

OptionLabel: Black
TechSpec Rows: 17
TechSpec Core Length (in): 10.47
TechSpec Core Height (in): 7.79
TechSpec Core Thickness (in): 2.55
TechSpec Caution: It is the installer's responsibility to check all line fittings and connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 7.79
TechSpec Overall Length (in): 13.85
TechSpec Overall Width (in): 2.55
TechSpec Inlet: -16 ORB
TechSpec Outlet: -16 ORB
TechSpec Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 1.4
Features:
Universal fit for any high-performance application
Large 17-row core measures 10-inL x 7.5-inH x 2.5-inT to provide ample cooling in any situation
1.4-quart capacity for increased cooling potential
Bar-and-plate core for extreme durability and cooling
Turbulated fins circulate fluid throughout the core for even and efficient cooling
-16 ORB female threaded inlet and outlet for high flow and versatility
Cast aluminum end tanks are precision TIG welded to core for maximum durability
Eight M8 flush mounting hole with steel threaded inserts secure the cooler to any custom bracket
Opposite-side inlet and outlet for easy line routing
Available in durable stealth black or sleek silver powder coat
Mishimoto Lifetime Warranty
Install Difficulty: 3

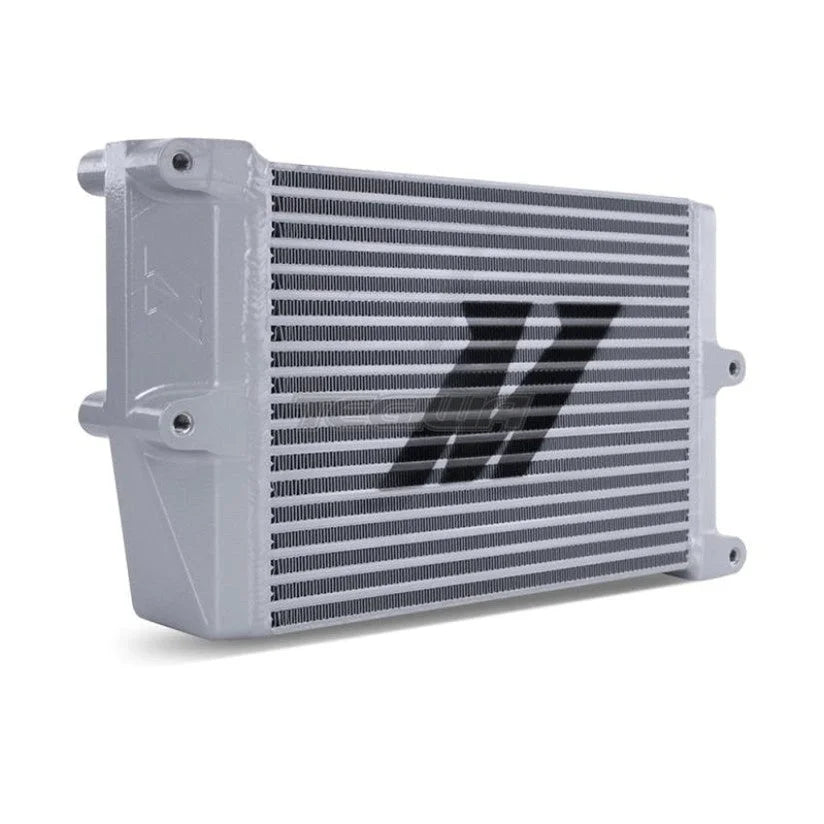

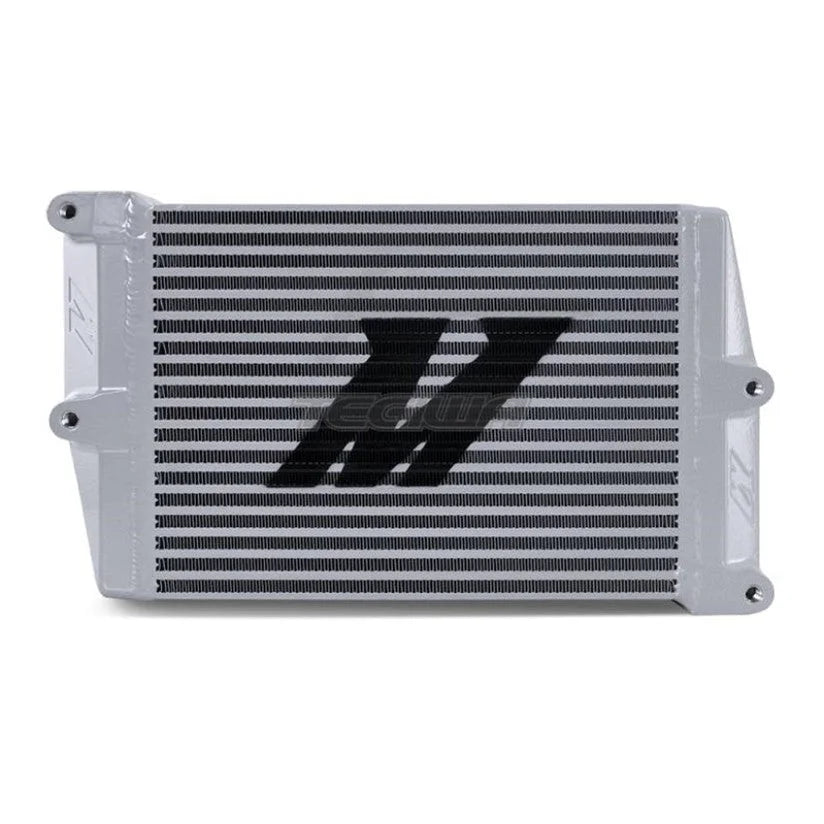

OptionLabel: Silver
No street, track, or trail build would be complete without an oil cooler that can keep your engine safe through it all. This Mishimoto heavy-duty oil cooler is designed to keep your oil cool in even the most extreme situations. The 17-row core is 10in long, 7.5" tall, and 2.5" thick with a 1.4-quart capacity for effective cooling on any high-performance application. This oil cooler features turbulated fins to evenly circulate oil within the cooler and make the most of the full core. Large -16AN ports ensure ample flow for even the most demanding engines. The durable cast-aluminum end tanks are precision TIG welded to the bar-and-plate core for an oil cooler that can endure the stresses of racing or everyday driving. The end tanks feature eight M8 flush mounting points with steel threaded inserts for a secure connection to any custom bracket, while the opposite-side inlet and outlet make routing lines simple. The available silver or black powder coat protects this cooler against the elements and complements any design. Like all our universal oil coolers, this 10in heavy-duty bar-and-plate oil cooler is backed by our Mishimoto Lifetime Warranty for a lifetime of worry-free performance.
