TechSpec Core Height (in): 5.51
TechSpec Core Thickness (in): 1.57
TechSpec Overall Height (in): 6.3
TechSpec Overall Length (in): 12.48
TechSpec Overall Width (in): 1.57
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN
TechSpec Includes: (1) Oil Cooler--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 0.5
Note: For your taste, only one side of the silver oil coolers has the Mishimoto "M" Logo, the stealth black option does not have a logo
Features:
Durable Bar and Plate cooler design for use in custom applications
Dual Pass design for optimal fluid temperature reduction
M8x1.25 Welded bungs to use for attaching brackets
10AN fittings for attaching oil lines
100-percent aluminum construction with CNC end tanks
Reduces oil temperatures with minimal pressure loss
Increased oil system capacity for increased cooling capability
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
OptionLabel: Black
TechSpec Core Height (in): 5.51
TechSpec Core Thickness (in): 1.57
TechSpec Overall Height (in): 6.3
TechSpec Overall Length (in): 12.48
TechSpec Overall Width (in): 1.57
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN
TechSpec Includes: (1) Oil Cooler--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 0.5
Note: For your taste, only one side of the silver oil coolers has the Mishimoto "M" Logo, the stealth black option does not have a logo
Features:
Durable Bar and Plate cooler design for use in custom applications
Dual Pass design for optimal fluid temperature reduction
M8x1.25 Welded bungs to use for attaching brackets
10AN fittings for attaching oil lines
100-percent aluminum construction with CNC end tanks
Reduces oil temperatures with minimal pressure loss
Increased oil system capacity for increased cooling capability
Available in Sleek Silver or Stealth Black
Mishimoto Lifetime Warranty
OptionLabel: Silver

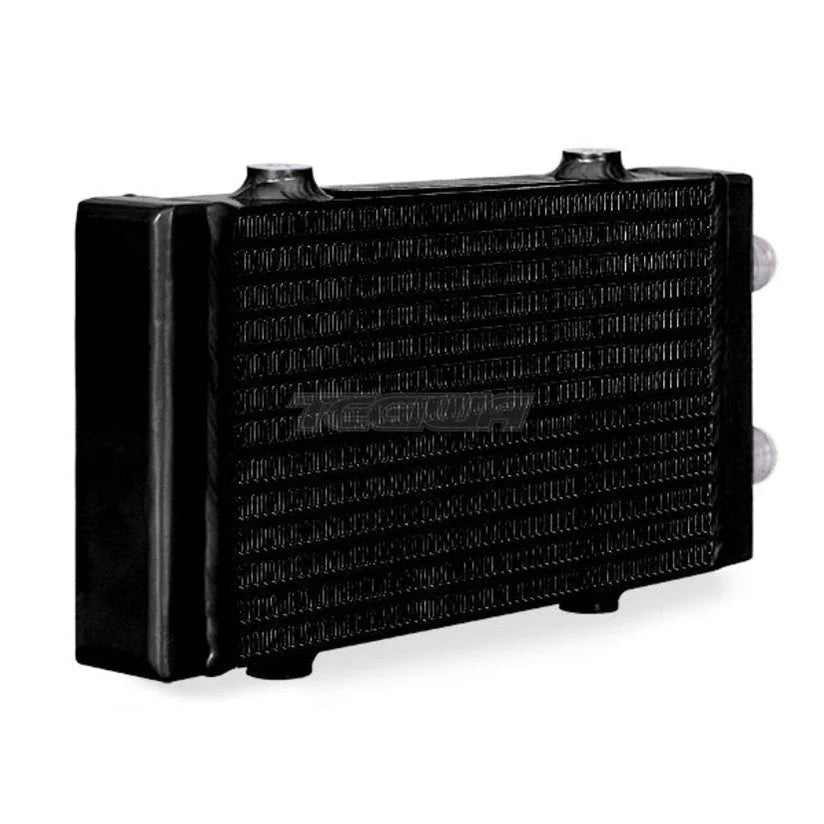

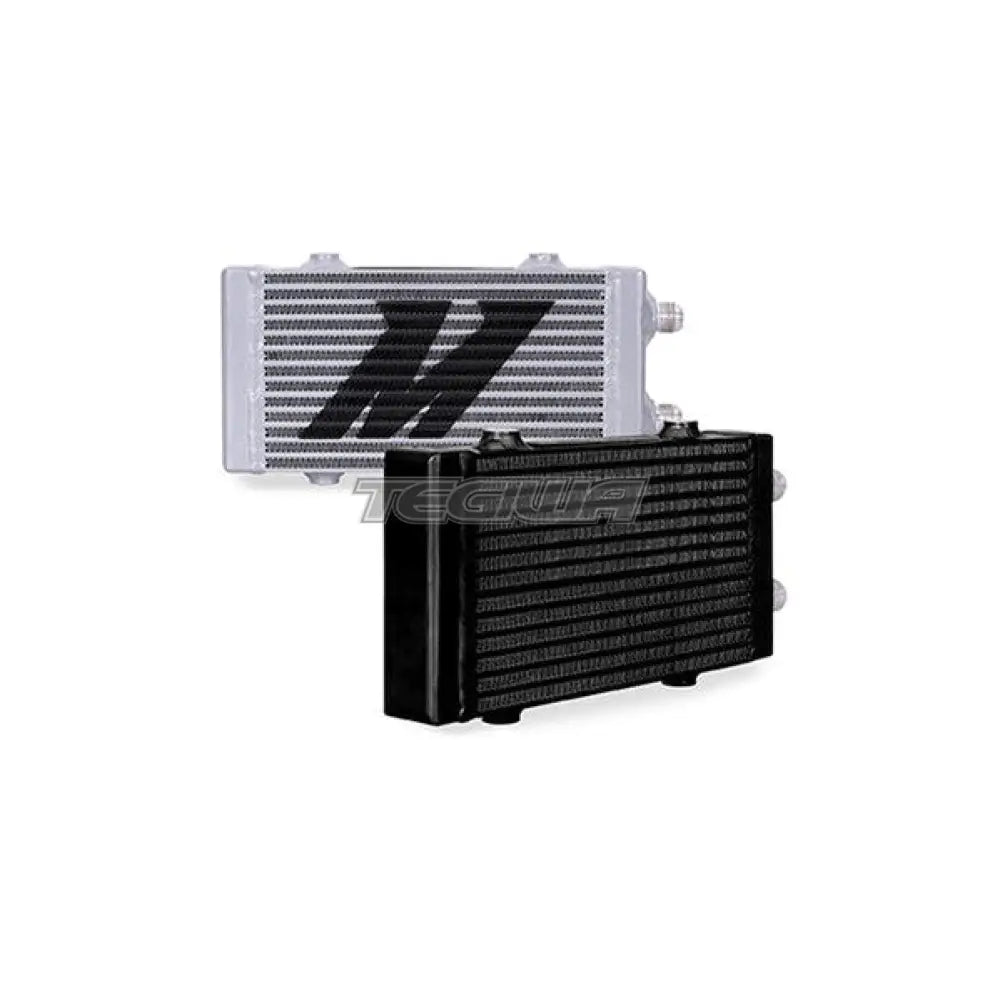

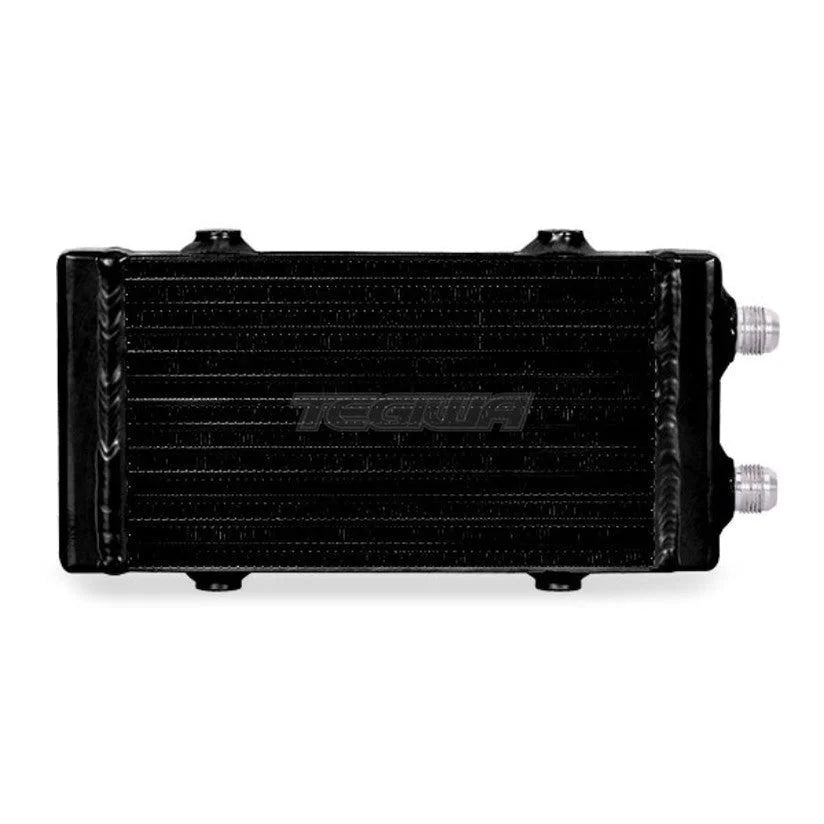

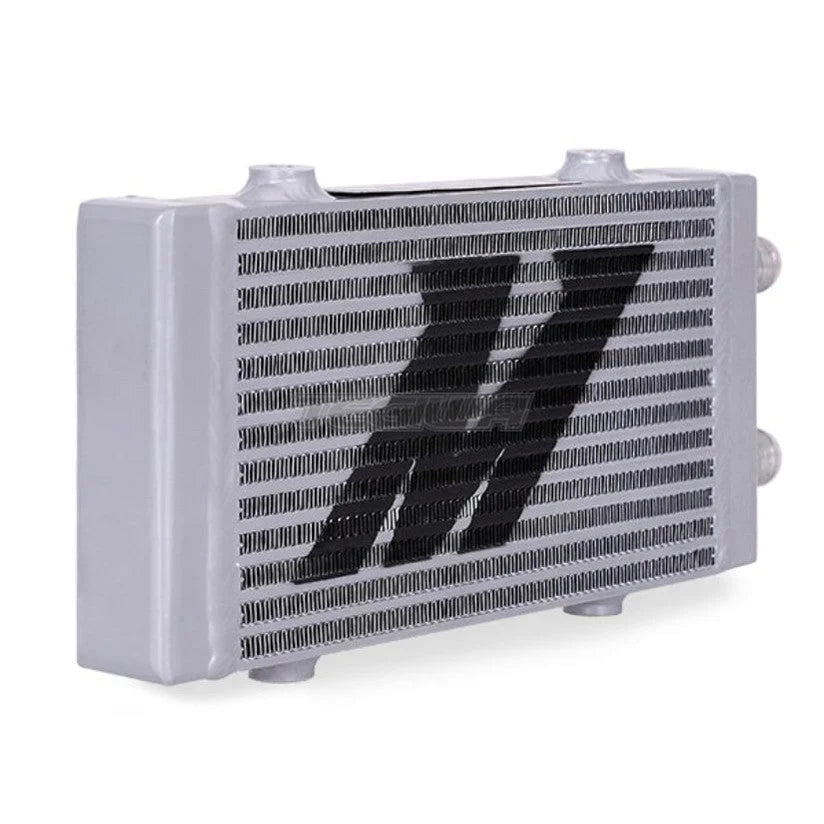

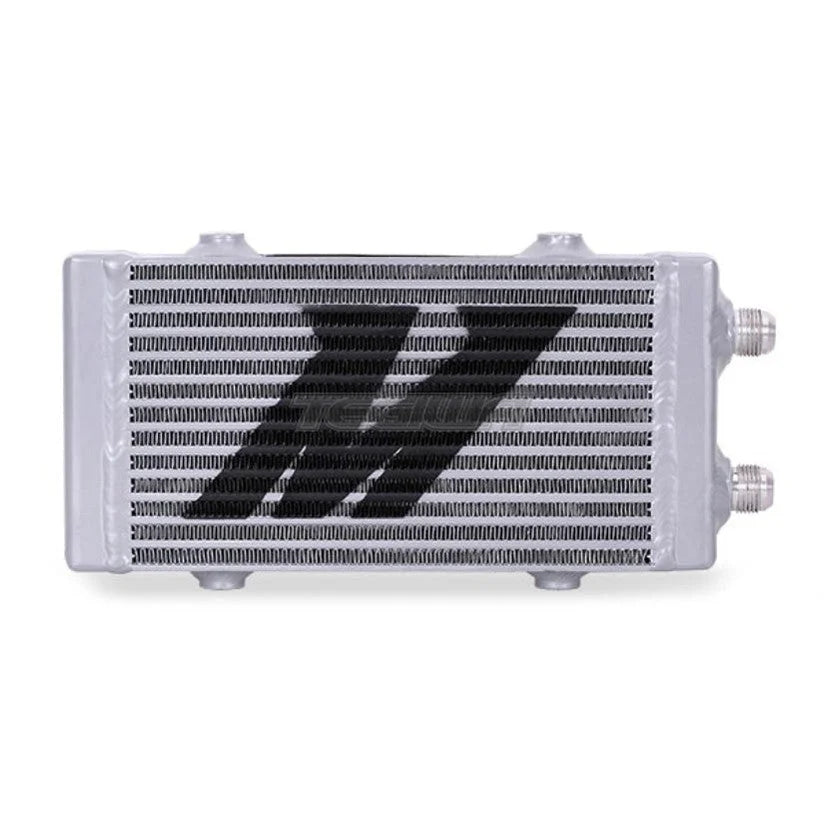

As anyone who's spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core ? oil enters one side, travels around the core, and exits again on the same side. Ideal for tight situations, Mishimoto's small dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.
