TechSpec Rows: 10
TechSpec Core Length (in): 33
TechSpec Core Height (in): 3.6
TechSpec Core Thickness (in): 1.25
TechSpec Engine Codes: 2.7L V6 EcoBoost w/ 6R80 Transmission--3.5L V6 EcoBoost w/ 6R80 Transmission--3.3L V6 w/ 6R80 Transmission--3.7L V6 w/ 6R80 Transmission--5.0L V8 w/ 6R80 Transmission
TechSpec Includes: Mishimoto Tube-and-Fin Transmission Cooler--Direct-Fit Mounting Brackets--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2017+ Ford F-150 Raptor w/ 3.5L EcoBoost V6--2018+ Ford F-150 w/ 3.3L V6
TechSpec Fluid Capacity (qts): 0.39
Note: This cooler is designed to fit vehicles with the factory-installed liquid-to-air transmission cooler.----Vehicles without this transmission cooler may require additional hoses to connect this cooler to the factory transmission cooling circuit. Please see our guide for which hoses your vehicle needs or contact our customer service team.
Features:Direct fit for all 2015-2017 Ford F-150s
Repositionable design fits both V8 and V6 models
Tube-and-fin construction for maximum cooling and flow
184-percent increase in fluid capacity over stock cooler
Increases core volume by 105-percent
Increases tube surface area by 212-percent and fin surface area by 132-percent
Retains stock hoses for quick and easy installation
Patent number D892,878
Mishimoto Lifetime Warranty
Install Difficulty: 2

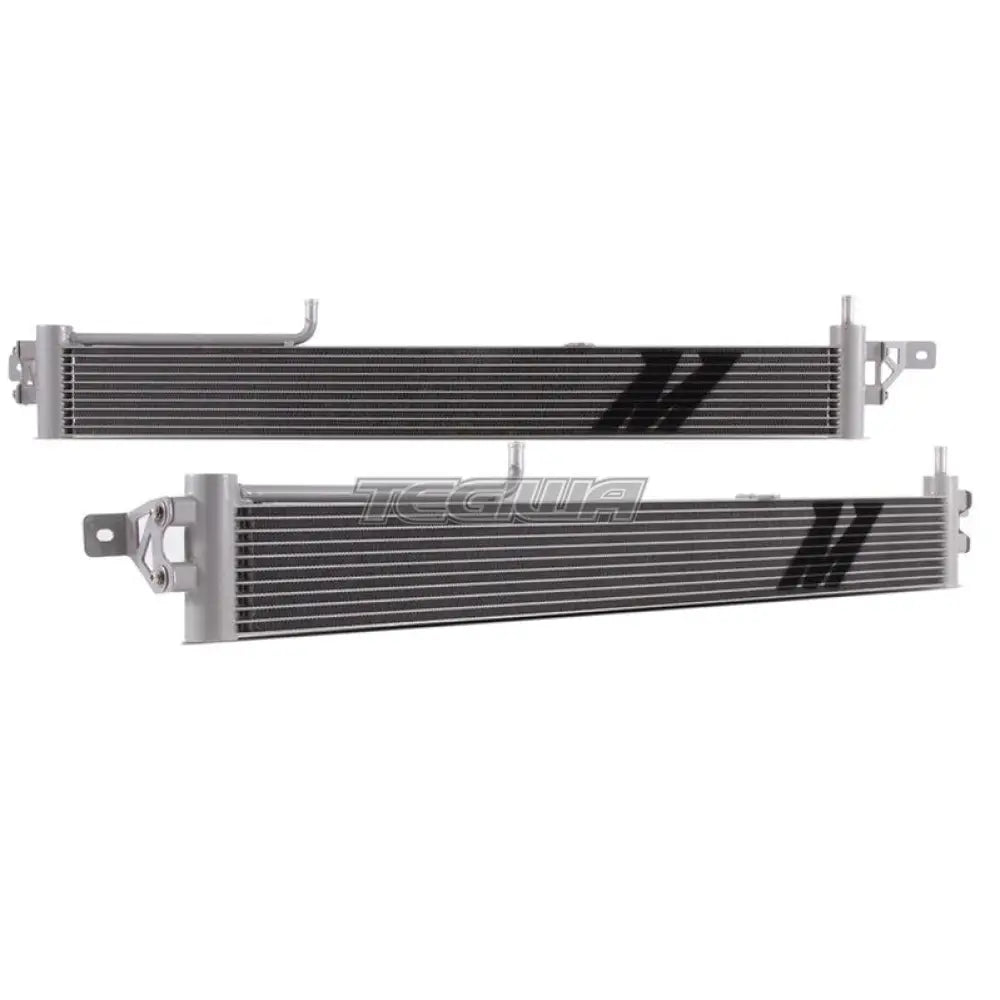

Heavy loads are no match for a 2015-2021 Ford F-150 equipped with a Mishimoto Transmission Cooler. The Ford F-150 is renowned for being incredibly capable for the money. With up to 12,000 lbs of towing capacity, it’s certainly no slouch. But every powertrain has its limits. With the Mishimoto 2015-2021 F-150 transmission cooler, you’ll be able to push those limits knowing that your transmission is protected. The 10-row tube-and-fin cooler provides a 212% larger tube surface area and 132% fin surface area over stock. Cooling potential is increased even more by a 105% greater core volume and 184% greater fluid capacity. No modifications are necessary for installation, and, just like all Mishimoto F-150 parts, this 2015-2021 Ford F-150 transmission cooler comes with the Mishimoto Lifetime Warranty.
