TechSpec Rows: 14
TechSpec Core Length (in): 27
TechSpec Core Height (in): 6
TechSpec Core Thickness (in): 1.25

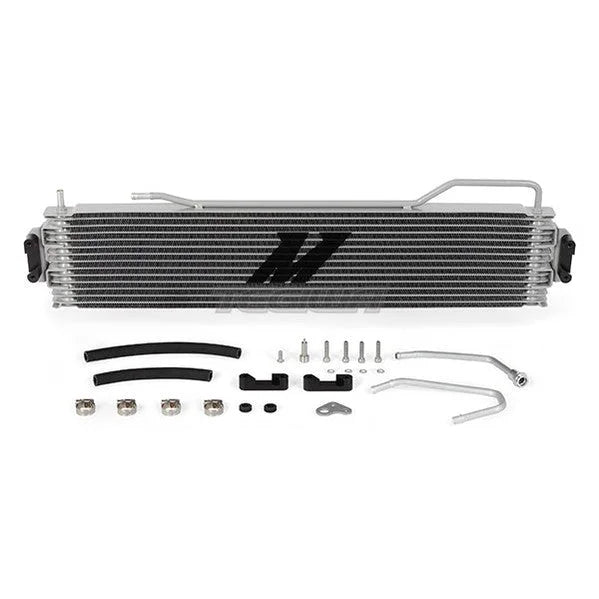

TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler--High-Pressure Transmission Cooler Lines--High-Strength Aluminum Transmission Cooler Adapter Lines--Pre-Installed CNC-Machined Aluminum Mounting Brackets--CNC-Machined Aluminum Mounting Brackets--Removable Thermal Bypass Valve Delete--Ambient Air Temperature Sensor Relocation Bracket--Stick-On Drilling Template--Installation Note Card--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications: 2015+ Cadillac Escalade 6.2L V8--2015+ Cadillac Escalade 6.2L V8--2014-2018 Chevrolet Silverado 1500 5.3L V8--2014-2018 Chevrolet Silverado 1500 6.2L V8--2015+ Chevrolet Suburban 5.3L V8--2015+ Chevrolet Tahoe 5.3L V8--2014-2018 GMC Sierra 1500 5.3L V8--2014-2018 GMC Sierra 1500 6.2L V8--2015+ GMC Yukon 5.3L V8--2015+ GMC Yukon 6.2L V8--2015+ GMC Yukon XL 5.3L V8--2015+ GMC Yukon XL 6.2L V8
TechSpec Fluid Capacity (qts): 0.65
Note: Minor drilling is required to install the adapter lines for this cooler. Please see the included drilling template and installation instructions for a detailed guide.----2014 model year vehicles require relocation of the ambient air temperature sensor. Please see the included installation note card for detailed instructions.
Features:Fits all 2014-2018 Chevrolet Silverado and GMC Sierra 1500 V8
Stacked-plate construction for maximum durability and superior cooling
Adds an extra 0.65 quarts of transmission fluid and over 3,000 square-inches of cooling surface area
Durable aluminum adapter lines and CNC-machined brackets make installation easy
Includes ambient air temp sensor relocation bracket for 2014 models
Included thermal bypass valve delete allows fluid flow to the cooler at all times for vehicles in hot climates
Patent numberD905,116
Mishimoto Lifetime Warranty
Install Difficulty: 3
There's no greater enemy for a transmission than heat. Whether your 2014-2018 Chevy Silverado/GMC Sierra 1500 V8 is a dedicated tow vehicle, hardworking fleet truck, or a daily driver, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a cooler to do just that. Our 2014-2018 Chevy Silverado/GMC Sierra 1500 V8 transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. The Mishimoto transmission cooler mounts inline with the factory cooling system to add an extra 0.65 quarts of transmission fluid and over 3,000 square-inches of surface area for a significant increase in cooling potential. Included with the Mishimoto transmission cooler are adapter lines that connect directly to the stock cooling system and a relocation bracket for the ambient air temperature sensor. CNC-machined mounting brackets and high-grade transmission cooler hoses make installing this transmission cooler a breeze. Also provided with this kit is a thermal bypass valve delete that allows fluid to flow to the cooler at all times making this cooler ideal for drivers in hot climates. Like all Mishimoto products, our 2014-2018 Chevy Silverado/GMC Sierra 1500 V8 transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry-free cooling as long as you own it.
