TechSpec Rows: 12
TechSpec Core Length (in): 18.5
TechSpec Engine Codes: 5.0 Coyote
TechSpec Chassis Codes: S-550
TechSpec Caution: This kit is for Right-Hand Drive Mustangs only----Requires the removal of the stock coolant based oil cooler----Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Overall Length (in): 31.7
TechSpec Overall Width (in): 10.5
TechSpec Inlet: -10AN
TechSpec Outlet: -10AN

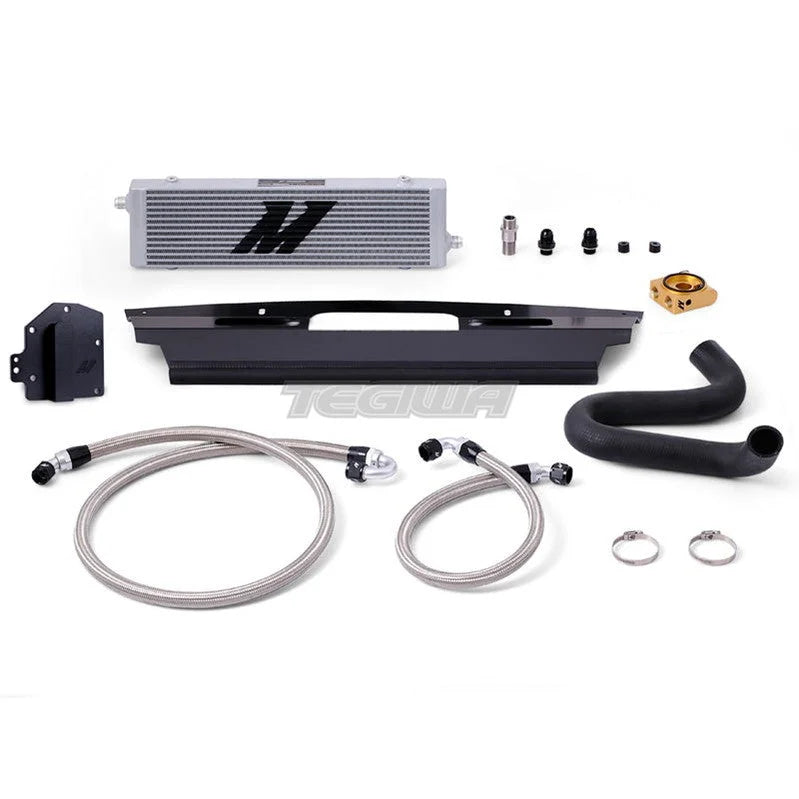

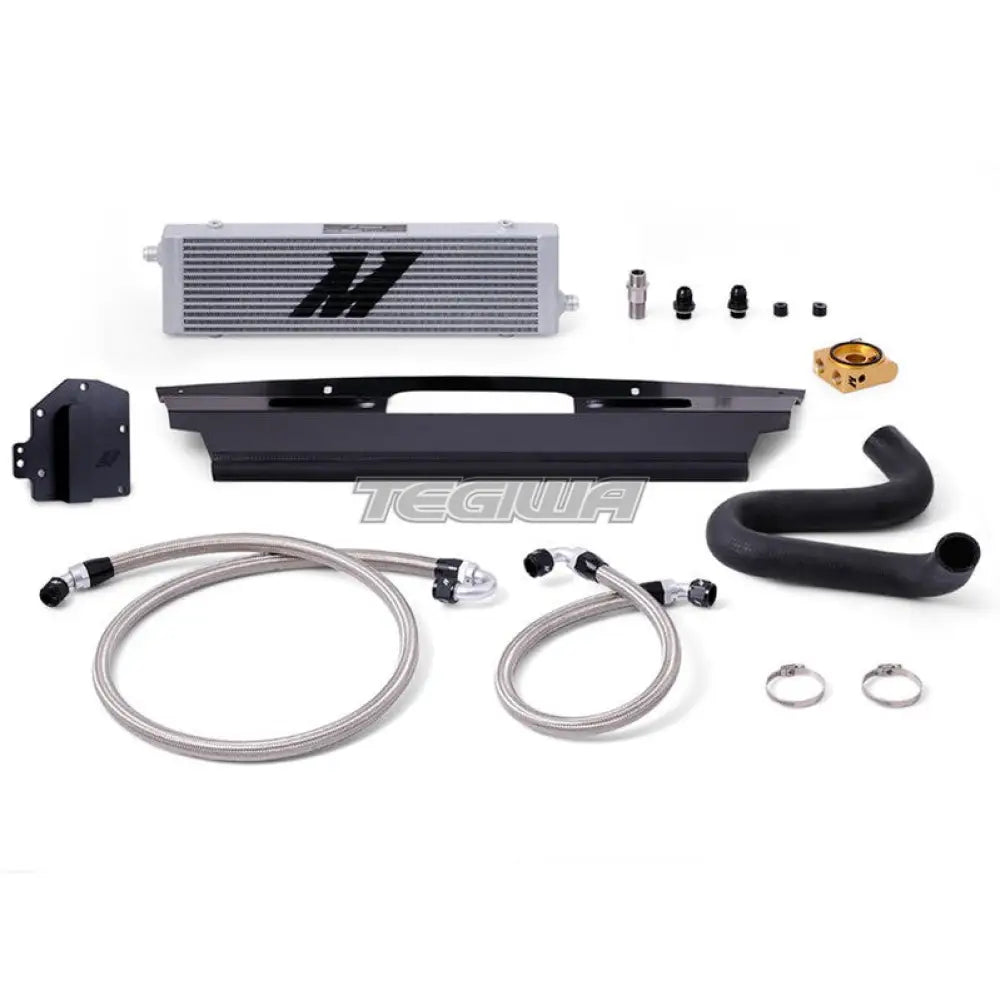

TechSpec Includes: Application-Specific Mounting Bracket / Air Diversion Shield--Bar-and-Plate Oil Cooler--Right-Hand Drive Oil Cooler Block Off Plate--2ft 5in Stainless Steel Braided Hose w/ -10AN Fittings--4ft 11in Stainless Steel Braided Hose w/ -10AN Fittings--M22 Thermostatic Sandwich Plate--Application-Specific, M22 x 1.5 extended length center bolt--M20 x -10AN Straight Fittings--1/8-in NPT Plugs--Large O-ring--Lower Radiator Hose w/ worm gear clamps--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Applications: 2015-2017 Right-Hand Drive Ford Mustang GT
Features:Direct fit for the 2015+ Ford Mustang GT
Innovative bar-and-plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers
Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
Pre-made stainless steel braided oil lines with durable -AN fittings
Comes with replacement lower radiator hose to bypass the stock fluid-based oil cooler
Removes the stock fluid-based oil cooler for less stress on the engine's cooling system
Billet aluminum thermostatic oil sandwich plate
Increases oil capacity by 1qt
Fits with most aftermarket supercharger kits
Mishimoto Lifetime Warranty
OptionLabel: Silver, Thermostatic
Nobody likes being sidelined at the track due to high engine oil temperatures. Mishimoto is here to help with a new line of efficient Mustang GT parts. Forced induction setups and some track miles can significantly overheat your oil and wear out your engine, so our engineers have developed an oil cooling solution for your Mustang GT! The Mishimoto engineers designed the heat exchanger for this project from scratch to create the largest oil cooler that we offer, and mounted it in the front of the vehicle where it receives the most airflow. Application-specific braided stainless steel lines transfer the oil from the cooler to the engine and feature -10AN fittings for an easy installation. This 2015 Mustang GT oil cooler kit is available with either a Sleek Silver or Stealth Black cooler and the Mishimoto Thermostatic Oil Sandwich Plate. As with all our 2015 Mustang parts, the Mishimoto Mustang GT Oil Cooler Kit includes the Mishimoto Lifetime Warranty.
