TechSpec Rows: 12
ASM: 2018+ Ford Mustang GT
KEY: Mishimoto 2018+ Ford Mustang GT Oil Cooler Kit
TechSpec Core Length (in): 18.5
TechSpec Engine Codes: 5.0 Coyote III
TechSpec Chassis Codes: S-550
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 2.5
TechSpec Overall Length (in): 28.6
TechSpec Overall Width (in): 12.3

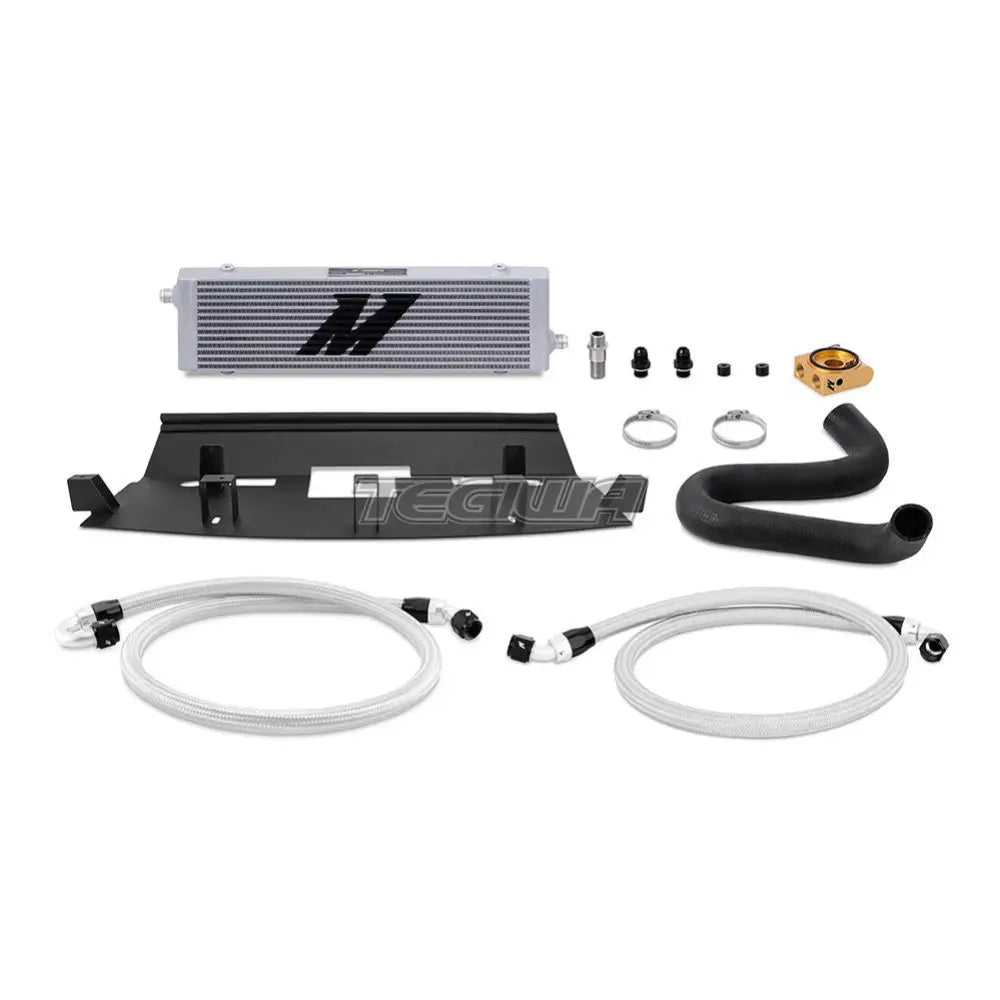

TechSpec Includes: Application Specific Mounting Bracket / Air Diversion Shield--Bar and Plate Oil Cooler--2ft 3in Stainless Steel Braided Hose w/ -10AN Fittings--4ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--M22 Thermostatic Sandwich Plate--Application - Specific, M22 x 1.5 extended length center bolt--M20 x -10AN Straight Fittings--1/8-in NPT Plugs--Large O-ring--Lower Radiator Hose w/ worm gear clamps--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 1
Note: Requires the removal of the stock coolant based oil cooler.----Installation requires the removal of the active grill shutters. Removal without tuning can cause a check engine light.----Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct fit for the 2015+ Ford Mustang GT
Reduces oil temperatures by up to xxF (xxC)
Innovative bar-and-plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers

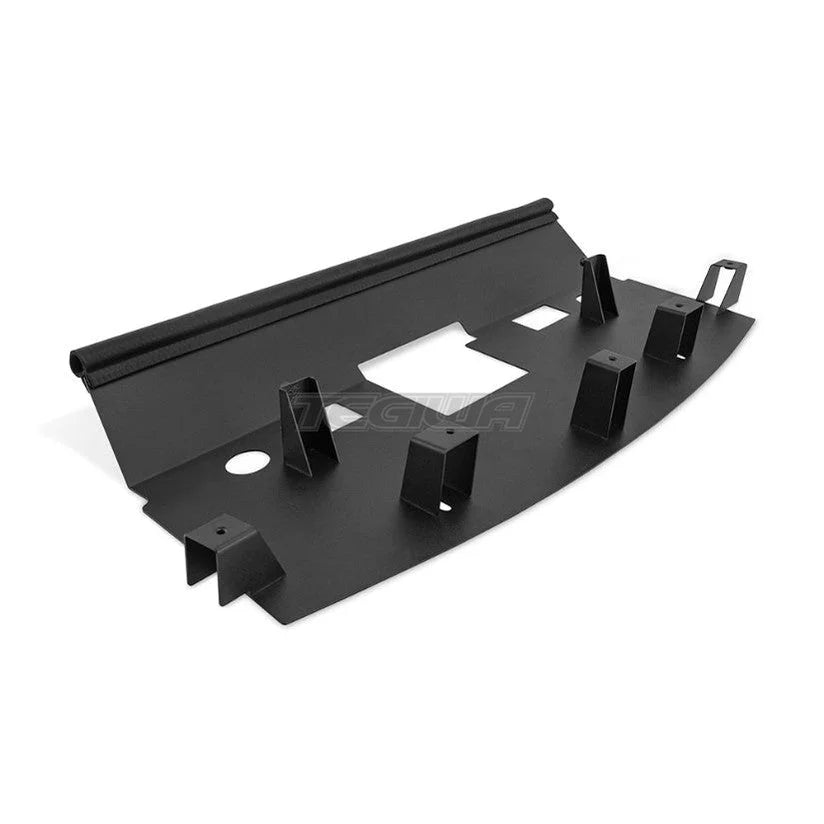

Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
Pre-made stainless steel braided oil lines with durable -AN fittings

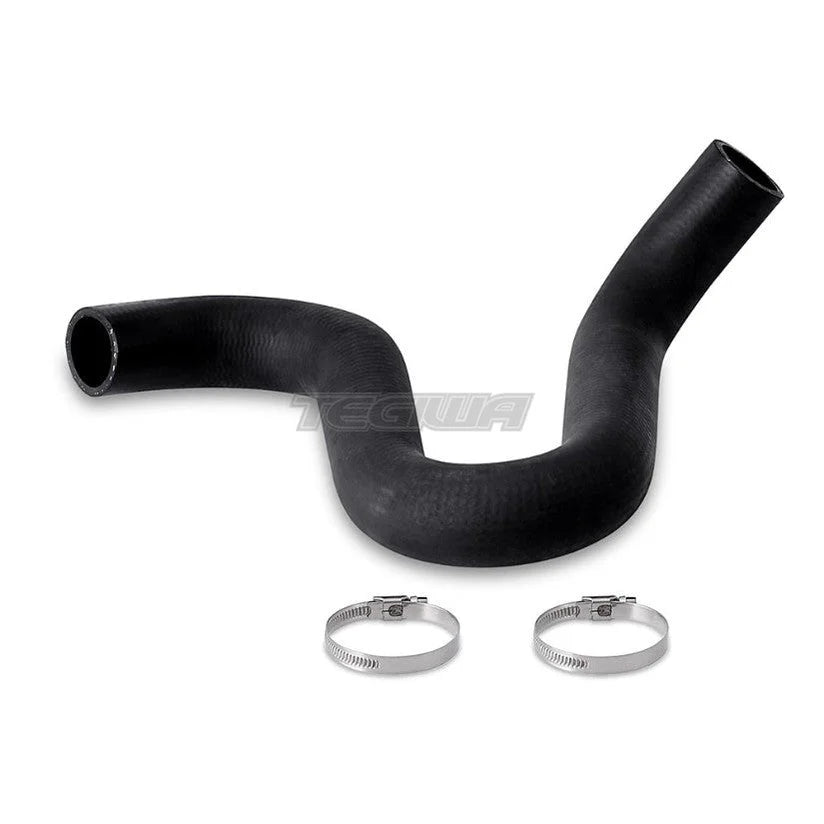

Comes with replacement lower radiator hose to bypass the stock fluid-based oil cooler
Removes the stock fluid-based oil cooler for less stress on the engine's cooling system

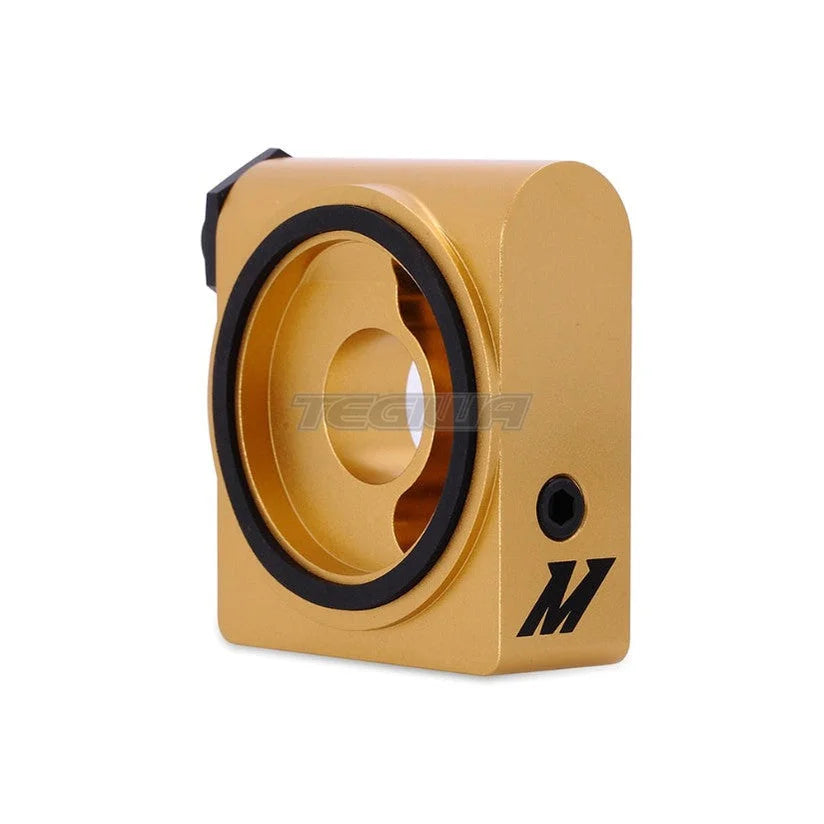

Billet aluminum thermostatic oil sandwich plate
Increases oil capacity by 1qt
Fits with most aftermarket supercharger kits
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: Silver, Thermostatic
TechSpec Rows: 12
ASM: 2018+ Ford Mustang GT
KEY: Ford Mustang GT 2018+ Oil Cooler Kit
TechSpec Core Length (in): 18.5
TechSpec Engine Codes: 5.0 Coyote III
TechSpec Chassis Codes: S-550
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 2.5
TechSpec Overall Length (in): 28.6
TechSpec Overall Width (in): 12.3

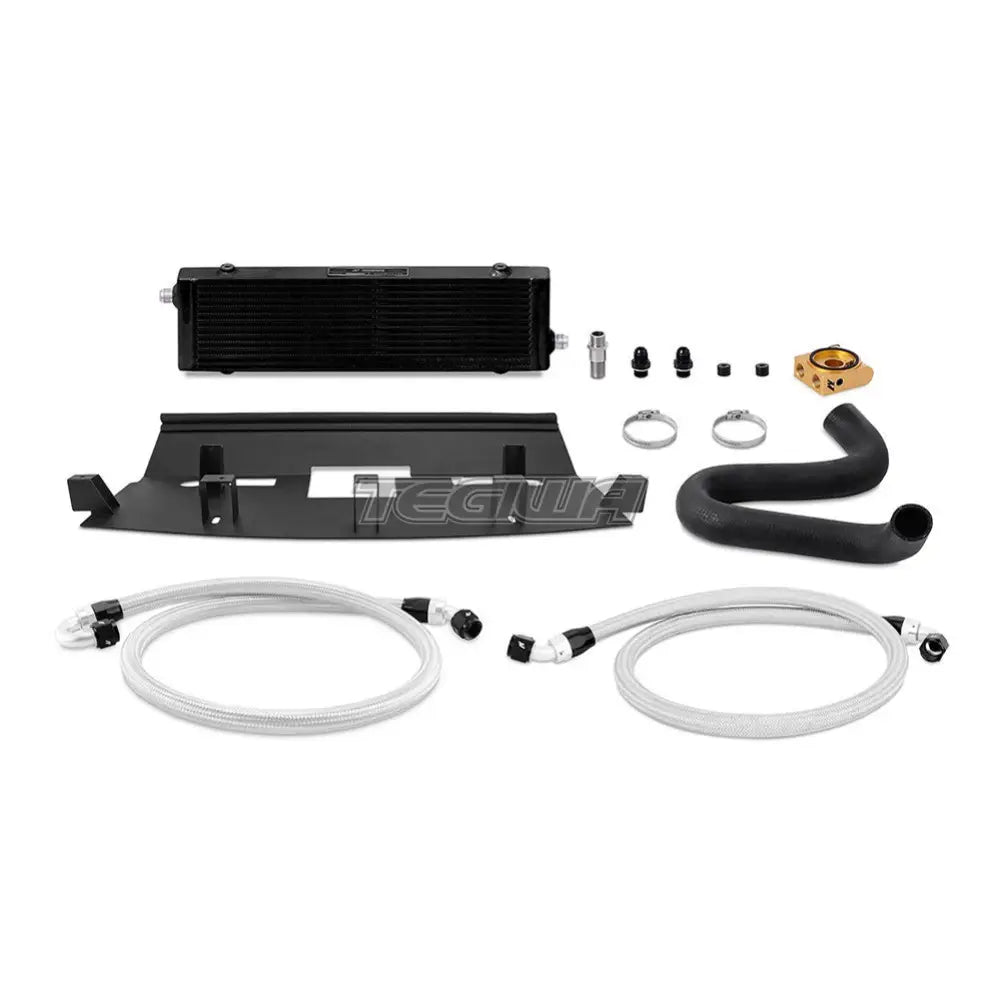

TechSpec Includes: Application Specific Mounting Bracket / Air Diversion Shield--Bar and Plate Oil Cooler--2ft 3in Stainless Steel Braided Hose w/ -10AN Fittings--4ft 8in Stainless Steel Braided Hose w/ -10AN Fittings--M22 Thermostatic Sandwich Plate--Application - Specific, M22 x 1.5 extended length center bolt--M20 x -10AN Straight Fittings--1/8-in NPT Plugs--Large O-ring--Lower Radiator Hose w/ worm gear clamps--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Fluid Capacity (qts): 1
Note: Requires the removal of the stock coolant based oil cooler.----Installation requires the removal of the active grill shutters. Removal without tuning can cause a check engine light.----Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
Features:
Direct fit for the 2015+ Ford Mustang GT
Reduces oil temperatures by up to xxF (xxC)
Innovative bar-and-plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers
Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
Pre-made stainless steel braided oil lines with durable -AN fittings
Comes with replacement lower radiator hose to bypass the stock fluid-based oil cooler
Removes the stock fluid-based oil cooler for less stress on the engine's cooling system
Billet aluminum thermostatic oil sandwich plate
Increases oil capacity by 1qt
Fits with most aftermarket supercharger kits
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: Black, Thermostatic
Add some extra cooling power to your 2018+ Mustang GT with the Mishimoto Oil Cooler Kit. In 2018, Ford evolved their staple muscle car with a fresh and even more futuristic look on the S550. As the Mustang evolved, we evolved along with it to provide optimal cooling for your modern Mustang. Our engineers started with designing a heat exchanger from the ground up, to provide the largest oil cooler we have to offer and mounted directly to the front of the vehicle for optimal airflow. From there, we also developed an application specific mounting bracket that also serves as a diversion panel to further improve the airflow through the cooler. Our kit also includes a set of direct fit stainless-steel braided lines for a secure conduit to and from the cooler completed with -10AN fittings for a simplified installation. Finally, the Mishimoto 2018+ Ford Mustang GT Oil Cooler Kit includes our trusted thermostatic oil sandwich plate to protect against the overcooling of your engine oil. Our kit is available with the option of a silver or black cooler, and is protected under the Mishimoto Lifetime Warranty for a worry-free installation. The Mishimoto engineers designed the heat exchanger for this project from scratch to create the largest oil cooler that we offer, and mounted it in the front of the vehicle where it receives the most airflow. Application-specific braided stainless steel lines transfer the oil from the cooler to the engine and feature -10AN fittings for an easy installation. This 2015 Mustang GT oil cooler kit is available with either a Sleek Silver or Stealth Black cooler and the Mishimoto Thermostatic Oil Sandwich Plate. As with all our 2015 Mustang parts, the Mishimoto Mustang GT Oil Cooler Kit includes the Mishimoto Lifetime Warranty.
