TechSpec Clamp Style: Stainless Steel V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 1.5
TechSpec Maximum Clamp Diameter (in): 1.5
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-2250

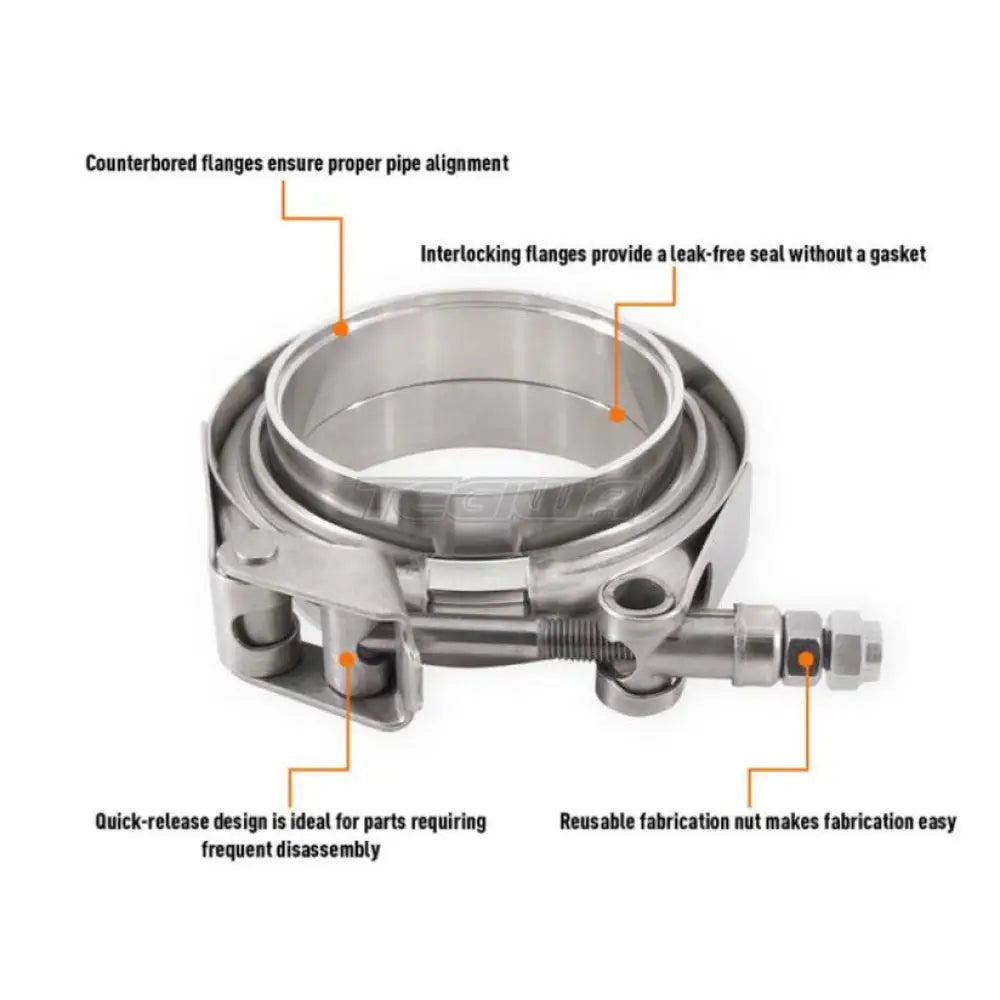

Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 1.5 (38.1mm) pipes
Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Stainless-steel construction resists rust and corrosion in even the harshest environments
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Stainless Steel V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 1.75
TechSpec Maximum Clamp Diameter (in): 1.75
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-2259
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 1.75-in (44.45mm) pipes
Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Stainless-steel construction resists rust and corrosion in even the harshest environments
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Stainless Steel V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 2
TechSpec Maximum Clamp Diameter (in): 2
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-SS-2251
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 2-in (50.8mm) pipes
Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Stainless-steel construction resists rust and corrosion in even the harshest environments
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Stainless Steel V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 2.5
TechSpec Maximum Clamp Diameter (in): 2.5
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Note: If using this clamp, we recommend purchasing:--MMICP-AL-2750----MMICP-AL-2759----MMICP-AL-2751----MMICP-AL-40----MMICP-AL-30----MMICP-AL-39----MMICP-AL-31
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 2.5-in (63.5mm) pipes
Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Stainless-steel construction resists rust and corrosion in even the harshest environments
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Stainless Steel V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 3
TechSpec Maximum Clamp Diameter (in): 3
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 3-in (76.2mm) pipes
Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Stainless-steel construction resists rust and corrosion in even the harshest environments
Mishimoto Lifetime Warranty
Install Difficulty: 1
TechSpec Clamp Style: Stainless Steel V-Band Flange with Clamp
TechSpec Minimum Clamp Diameter (in): 3.5
TechSpec Maximum Clamp Diameter (in): 3.5
TechSpec Material: Stainless Steel
TechSpec Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp--(1) Reusable Fabrication Nut--(1) Self-Locking Nut--Mishimoto Lifetime Warranty
TechSpec Band Width (in): 0.91
Features:
Includes V-band clamp and male/female flanges
Provides a rigid and secure connection between 3.5-in (88.9mm) pipes
Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
Counterbored flanges ensure proper pipe alignment for easy welding
Interlocking flanges provide a leak-free seal without a gasket
Reusable fabrication nut makes fabrication easy
Provides stronger retention than other coupling methods
Quick-release design is ideal for parts requiring frequent disassembly
Stainless-steel construction resists rust and corrosion in even the harshest environments
Mishimoto Lifetime Warranty
Install Difficulty: 1
Mishimoto'stainless Steel V-Band Clamps are some of the strongest and most reliable clamps on the market. Tailored especially for the fabricator, this stainless steel V-band clamps provide a rigid and secure connection between intake, intercooler pipes, and exhaust pipes. The V-band design makes assembly and disassembly a breeze, and the included fabrication nut makes mock-up easy. Simply assemble the V-band clamp with the reusable nut, tack-weld your pipes in place and disassemble for final welding. Once you?re done welding, assemble the clamp with the provided locking nut and never worry about loosening. The stainless steel construction resists heat and corrosion, while the 360-degree clamp ensures leak-free running. Like all our clamps, this stainless-steel V-band clamp is backed by our Mishimoto Lifetime Warranty.
