TechSpec Core Length (in): 26.25
TechSpec Core Height (in): 15
TechSpec Rows: 1
TechSpec Inlet (in): 1.3125
TechSpec Outlet (in): 1.5625
TechSpec Core Thickness (in): 1.375
TechSpec DPI: R1826
TechSpec Material: Plastic and Aluminum
TechSpec Applications: 1996-2005 Chevrolet Blazer 4.3L--1996-2004 Chevrolet S10 4.3L--1996-2001 GMC Jimmy 4.3L--1996-2004 GMC Sonoma 4.3L--1997-2000 Isuzu Hombre 4.3L--1996-2001 Oldsmobile Bravada 4.3L
Note: Cooler Fitting Size(s):----M20x1.5 internal thread--1/2-inch internal thread with joint
TechSpec Includes: Mishimoto Replacement Radiator--Mishimoto Lifetime Warranty
Features:Direct fit for the 1996-2001 Oldsmobile Bravada 4.3L
Ideal replacement for an aged, clogged, or leaking stock radiator
Functions with all stock engine bay equipment
Mishimoto Lifetime Warranty
Install Difficulty: 3

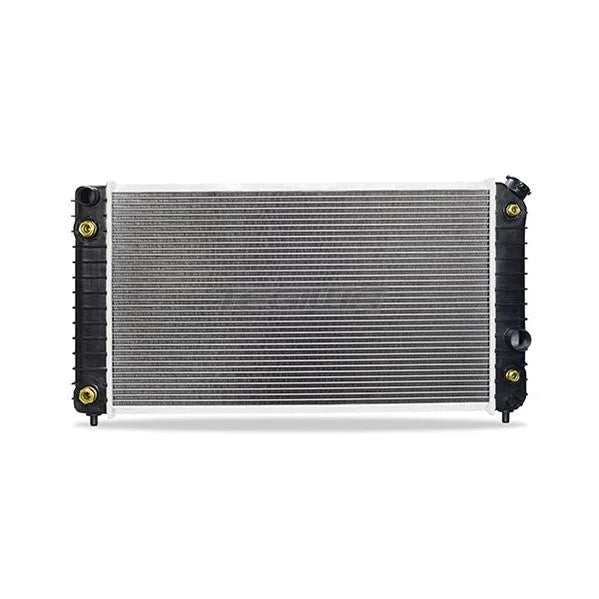

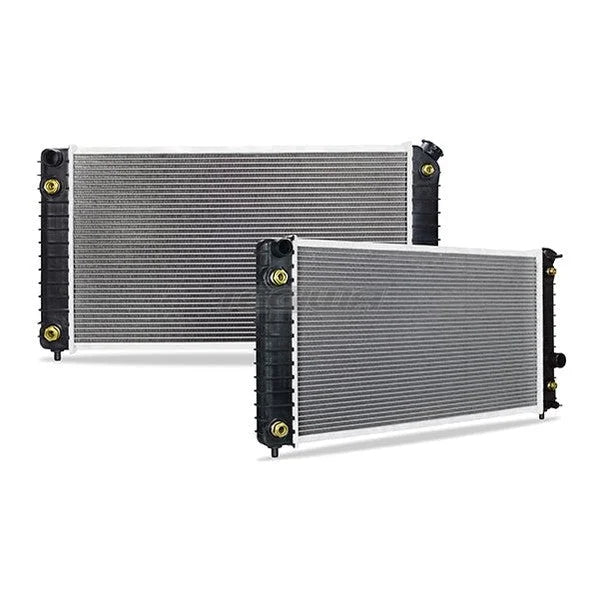

This 1996-2001 GMC Jimmy 4.3L radiator is a direct OEM replacement for your old stock unit. There is no need to bend, cut, or modify anything to ensure a proper fitment in your vehicle. This radiator features OEM spec plastic end tanks attached to an aluminum core for stock cooling efficiency. At some point the inevitable happens to original stock radiators. They either spring a leak, get clogged up, or a plastic inlet or outlet cracks due to years of constant clamp pressure. This GMC Jimmy radiator is a perfect replacement to keep your cooling system in top notch shape, and just like all Mishimoto parts, comes with the Mishimoto Lifetime Warranty.
