TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 1.75
TechSpec Overall Length (in): 3
TechSpec Overall Width (in): 3
TechSpec Inlet: M22 X 1.5 ORB
TechSpec Outlet: M22 X 1.5 ORB

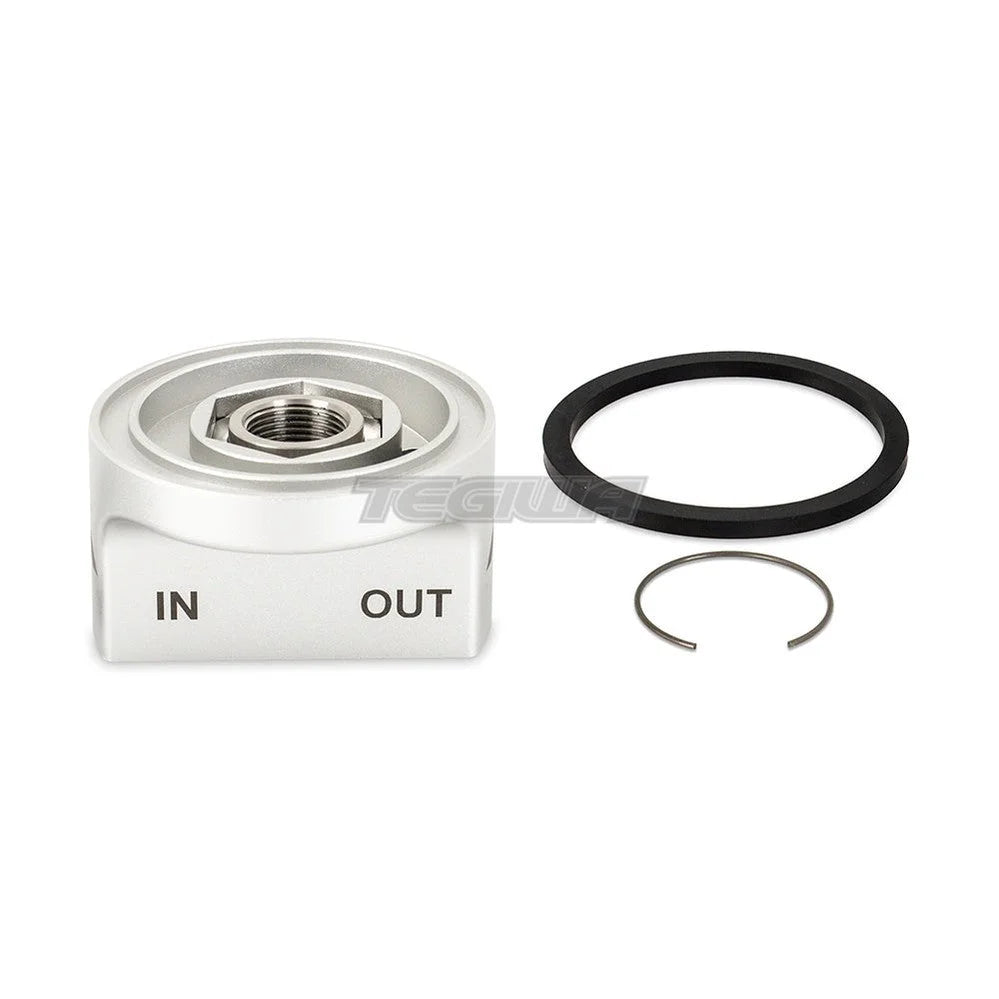

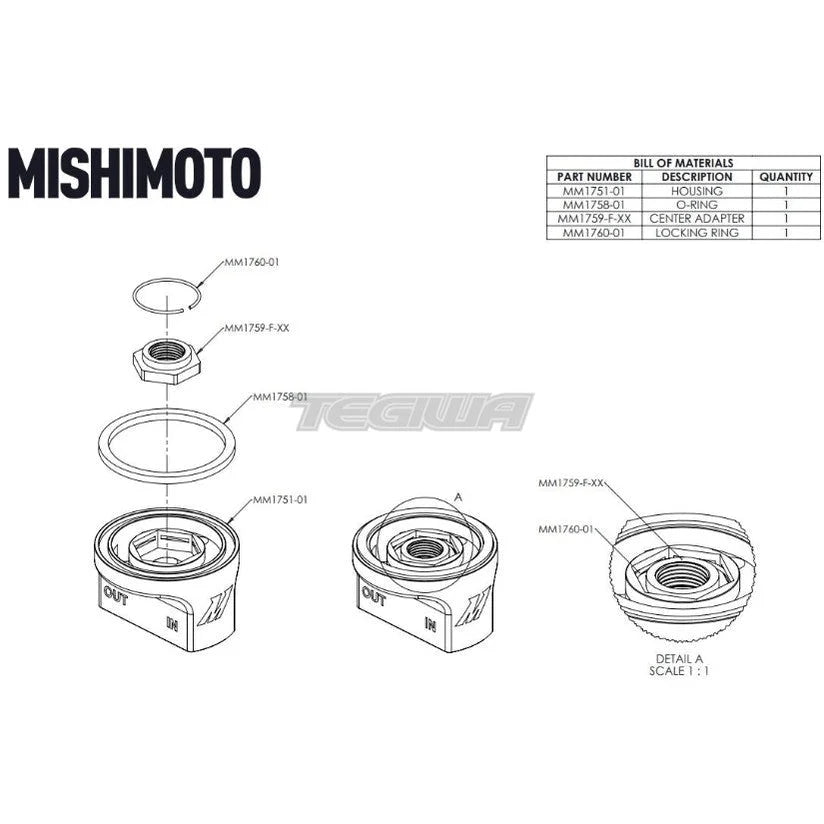

TechSpec Includes: Oil Filter Take-Off Plate--Pedestal O-ring--Center Adapter--Center Adapter Locking Ring--Mishimoto Lifetime Warranty
Note: Additional components are necessary to install a remote oil filter system:--Mishimoto Remote Oil Filter Mount--Mishimoto Remote Oil Filter Fittings--Mishimoto Braided Oil Lines----
Features:
Replaces engine oil filter and provides ports for adding a remote oil filter system
CNC-machined billet 6061 aluminum

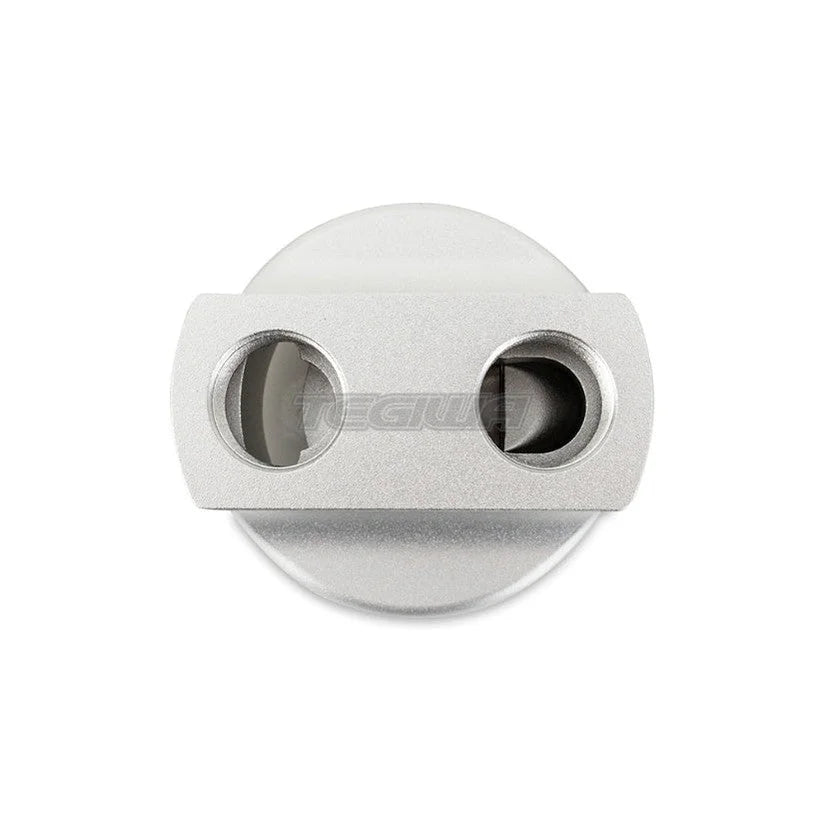

Female M22 X 1.5 ORB inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings
Features a robust nitrile O-ring for leak-free operation

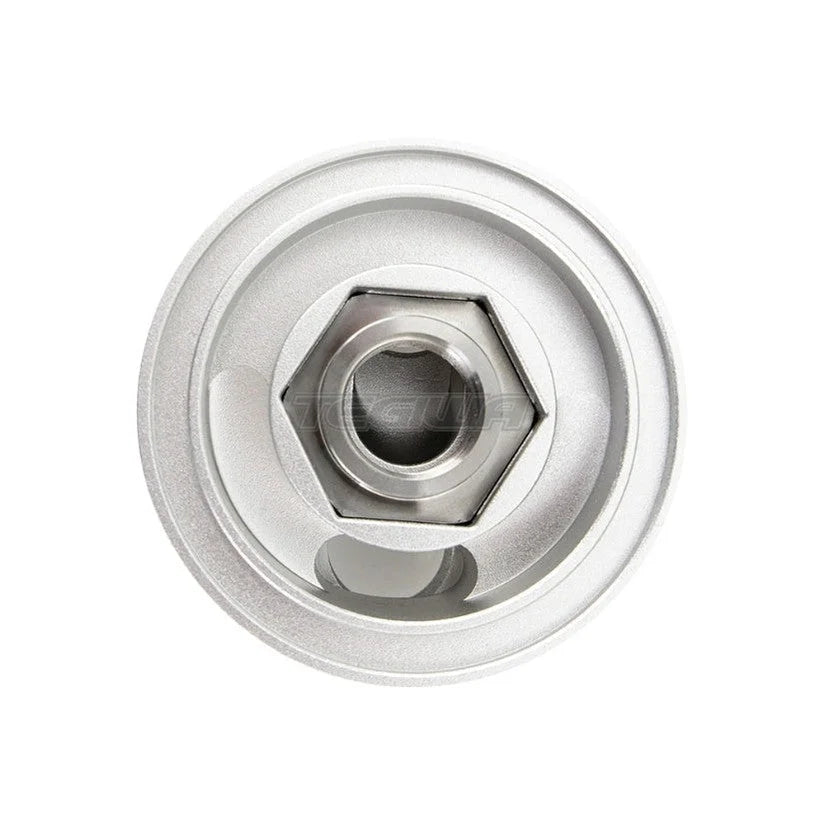

Available with multiple center adapter threads to fit most oil filter housings
Designed using the latest in 3D printing and CAD modeling software
Silver anodized finish prevents corrosion
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: 3/4-16
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 1.75
TechSpec Overall Length (in): 3
TechSpec Overall Width (in): 3
TechSpec Inlet: M22 X 1.5 ORB
TechSpec Outlet: M22 X 1.5 ORB
TechSpec Includes: Oil Filter Take-Off Plate--Pedestal O-ring--Center Adapter--Center Adapter Locking Ring--Mishimoto Lifetime Warranty
Note: Additional components are necessary to install a remote oil filter system:--Mishimoto Remote Oil Filter Mount--Mishimoto Remote Oil Filter Fittings--Mishimoto Braided Oil Lines----
Features:
Replaces engine oil filter and provides ports for adding a remote oil filter system
CNC-machined billet 6061 aluminum
Female M22 X 1.5 ORB inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings
Features a robust nitrile O-ring for leak-free operation
Available with multiple center adapter threads to fit most oil filter housings
Designed using the latest in 3D printing and CAD modeling software
Silver anodized finish prevents corrosion
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: M20 X 1.5
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
TechSpec Overall Height (in): 1.75
TechSpec Overall Length (in): 3
TechSpec Overall Width (in): 3
TechSpec Inlet: M22 X 1.5 ORB
TechSpec Outlet: M22 X 1.5 ORB
TechSpec Includes: Oil Filter Take-Off Plate--Pedestal O-ring--Center Adapter--Center Adapter Locking Ring--Mishimoto Lifetime Warranty
Note: Additional components are necessary to install a remote oil filter system:--Mishimoto Remote Oil Filter Mount--Mishimoto Remote Oil Filter Fittings--Mishimoto Braided Oil Lines----
Features:
Replaces engine oil filter and provides ports for adding a remote oil filter system
CNC-machined billet 6061 aluminum
Female M22 X 1.5 ORB inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings
Features a robust nitrile O-ring for leak-free operation
Available with multiple center adapter threads to fit most oil filter housings
Designed using the latest in 3D printing and CAD modeling software
Silver anodized finish prevents corrosion
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: M22 X 1.5

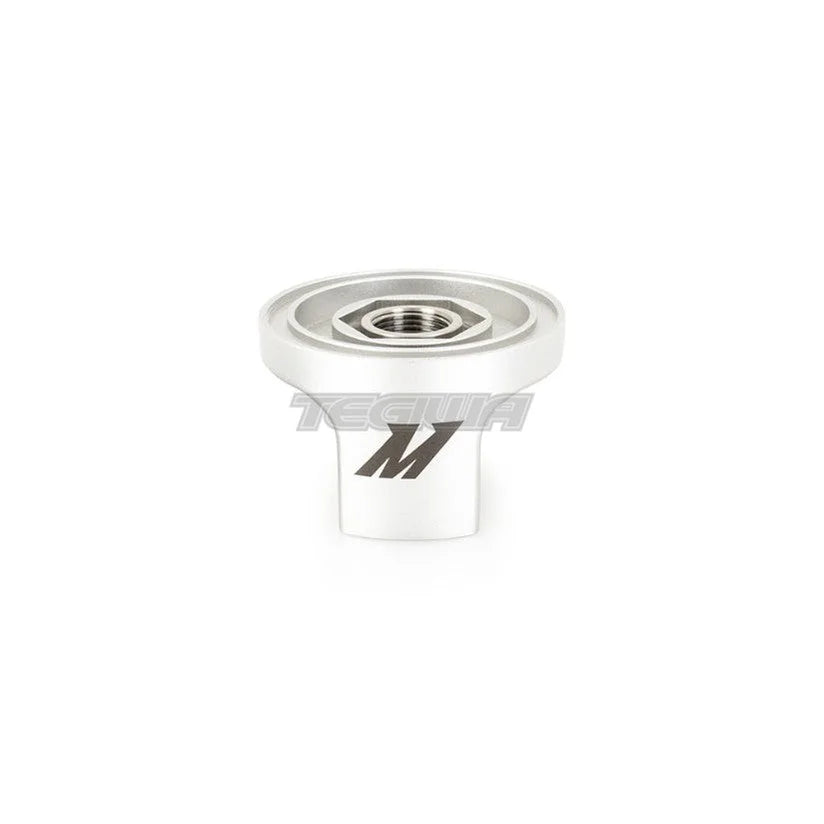

Oil filter relocation is a great way to address issues created by a confined engine bay, improve ground clearance to your filter, upgrade to a large-format filter, or simply make your oil changes more manageable. If you need components to relocate your filter, Mishimoto has everything needed to make the process simple. One of the core components needed for relocation is this Oil Filter Take-Off Plate. This vital piece of the puzzle replaces your existing oil filter with a housing that incorporates oil line ports to re-route oil to your new filter location. Mishimoto’s Remote Oil Filter Take-Off Plate was designed using the latest in 3D printing technology and CAD modeling, then precision CNC-machined from a billet of 6061 aluminum to create a versatile and durable take-off plate. This unit features M22 X 1.5 ORB inlet/outlet ports for use with our Mishimoto Remote Oil Filter Fittings . These ports utilize a robust O-ring seal, ensuring a leak-free connection. This Oil Filter Take-Off Plate is also available in most standard oil filter thread sizes. The Mishimoto Remote Oil Filter Take-Off Plate features a durable black anodized finish, ensuring maximum corrosion resistance in harsh environments. As with all our products, this take off plate includes our signature Mishimoto Lifetime Warranty.
