TechSpec Applications: 2011-2017 Ford Mustang V6 (3.7L)--2011+ Ford Mustang V8 (5.0L)--2015+ Ford Mustang V8 (5.2L)--2013-2018 Ford C-Max I4 (2.0L)--2013+ Ford Fusion I4 (2.0L)--2017-2019 Ford Fusion V6 (2.7L)--2015+ Ford Edge V6 (2.7L)--2011+ Ford F-150 V6 (3.5L)--2011-2014 Ford F-150 V6 (3.7L)--2011+ Ford F-150 V8 (5.0L)--2015+ Ford F-150 V6 (2.7L)--2018+ Ford F-150 V6 (3.0L) Diesel--2018+ Ford F-150 V6 (3.3L)--2015+ Ford Transit-150 V6 (3.5L)--2015+ Ford Transit-250 V6 (3.5L)--2015+ Ford Transit-350 V6 (3.5L)--2015+ Ford Transit-350 HD V6 (3.5L)--2020+ Ford Explorer V6 (3.3L)--2020+ Ford Explorer V6 (3.0L)--2015+ Ford Expedition V6 (3.5L)--2013+ Lincoln MKZ I4 (2.0L)--2017+ Lincoln MKZ V6 (3.0L)--2016-2018 Lincoln MKX V6 (2.7L)--2015+ Lincoln Navigator V6 (3.5L)--2017+ Lincoln Continental V6 (2.7L)--2017+ Lincoln Continental V6 (3.0L)--2019+ Lincoln Nautilus V6 (2.7L)--2020+ Lincoln Aviator V6 (3.0L)
TechSpec Engine Codes: 2.0L Duratec--2.7L EcoBoost--3.0L EcoBoost--3.5L EcoBoost--3.0L Powerstroke--3.3L Cyclone--3.5L Cyclone--3.7L Cyclone--5.0L Coyote--5.2L Voodoo
TechSpec Chassis Codes: S197--S550--C1--CD4--T3--D3--D4

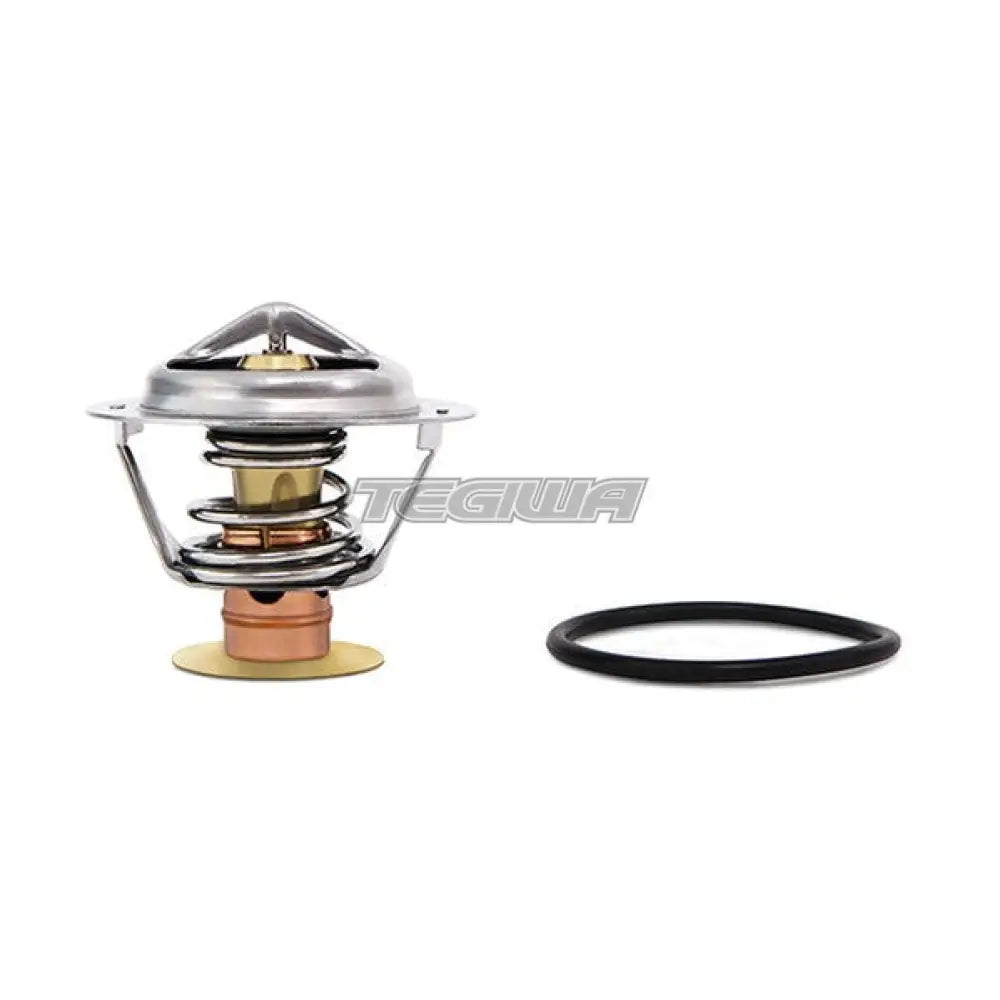

TechSpec Includes: (1) Mishimoto Thermostat--(1) Factory-Style O-Ring--Mishimoto Lifetime Warranty
TechSpec Mishimoto Activation Temperature (F): 160
TechSpec OEM Activation Temperature (F): 190
Features:Direct fit for the 2011+ Ford Mustang V6 and V8
Lower activation temperature allows coolant to flow through the engine earlier, maintaining lower temperatures
Mishimoto thermostat activates at 160 F vs. factory 190 F
Mishimoto Lifetime Warranty
Install Difficulty: 2
Hot days at the drag strip or road course will wreak havoc on the cooling system of your Mustang. An unreliable and inefficient setup can lead to overheating and potential engine damage. Mishimoto is proud to release an all-new racing thermostat specifically engineered for your 2011+ Ford Mustang V6/V8. Mishimoto racing thermostats promote greater cooling efficiency by significantly decreasing high engine temperatures. Once the engine is fully warmed up, the Mishimoto low-temperature racing thermostat will open at a lower temperature (160 F) compared to standard thermostats (180/188 F). This allows coolant to flow through the engine sooner, thus reducing and maintaining cooler engine temperatures. As with all our products, this thermostat includes the Mishimoto Lifetime Warranty.
