TechSpec Includes: (1) Mishimoto Fan--Mounting Kit:--(4) Heavy-Duty Plastic Fasteners--(8) Adhesive Foam Protective Pads--(4) Dampening Springs--(4) Fastener End Connectors--Mishimoto Lifetime Warranty
TechSpec CFM: 2200
TechSpec Depth (in): 4.35
TechSpec Diameter (in): 16
TechSpec RPM: 2000
TechSpec Amp Draw (Start): 22.1
TechSpec Blade Style: Curved
TechSpec Airflow Direction: Pull
TechSpec Reversible?: True
TechSpec Amp Draw (Running): 18
TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud and additional hardware in addition to the included mounting kit for a secure installation.
TechSpec Wiring Connection: Yazaki Tab Terminal
Features:High-flow fan provides increased airflow
Compact design with a housing diameter of 16-in and an overall thickness of 4.35-in provides sufficient clearance in the engine bay
Universal fitment
Many sizes available
Mishimoto Lifetime Warranty
Install Difficulty: 3

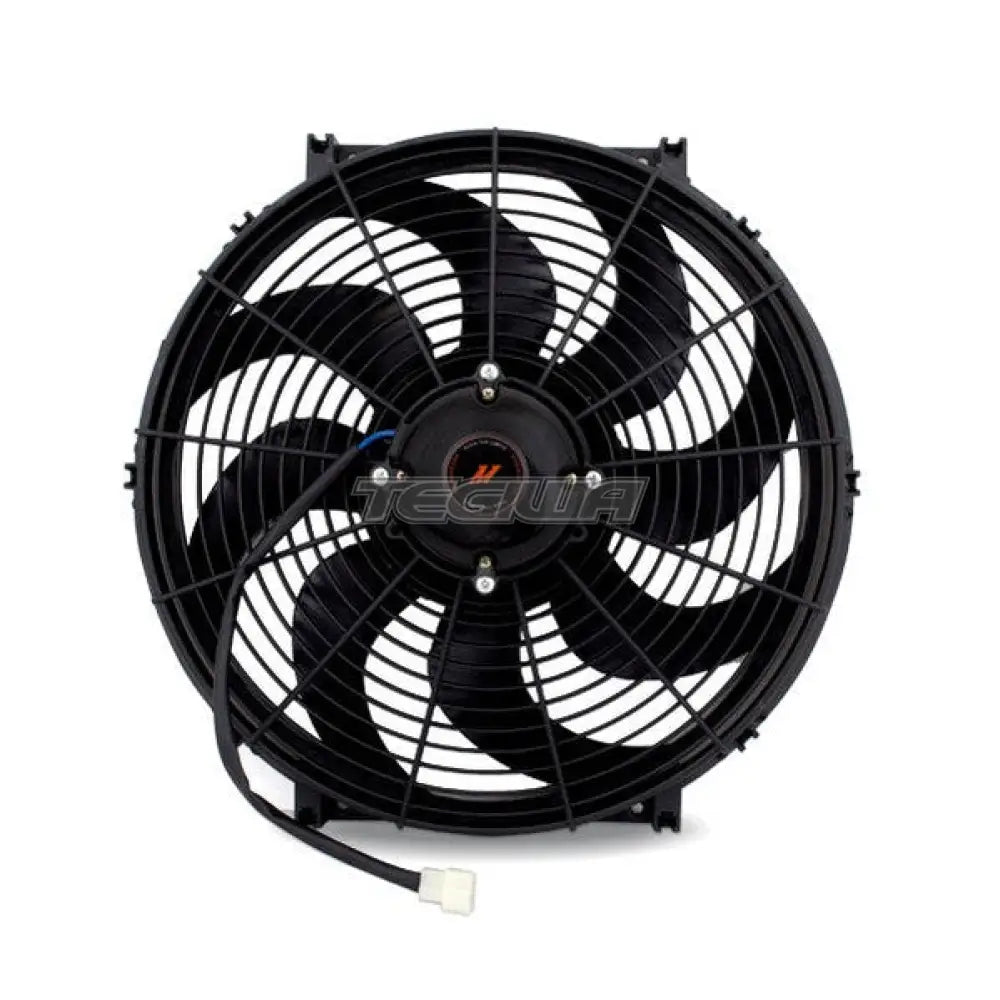

Provide your radiator with the maximum amount of airflow with our new 16in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 2200 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
