TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
TechSpec Engine Codes: 4G63
TechSpec Chassis Codes: CT9A
TechSpec Overall Length (in): 31.5
TechSpec Overall Height (in): 14.5
TechSpec Overall Width (in): 5.75
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 22
TechSpec Core Height (in): 11.65
TechSpec Inlet (in): 2.375
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 27
Note: This intercooler can be used with stock or aftermarket intercooler pipes. This intercooler is not universal and has application specific mounting points.
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the Mitsubishi Lancer Evolution 7/8/9
Large, 3.5-in thick bar-and-plate core with strategic core composition provides optimal cooling and minimal pressure loss
Provided 8 whp / 10 wtq and reduced intake temperatures by 28 F (16 C) compared to the factory cooler on a test vehicle making 350 whp
Provides efficient intake temperature reduction for vehicles from stock to 600 whp
Compatible with stock and Mishimoto intercooler pipes
All-aluminum cast end tanks provide improved airflow, superior air dispersion through the core, and exceptional strength

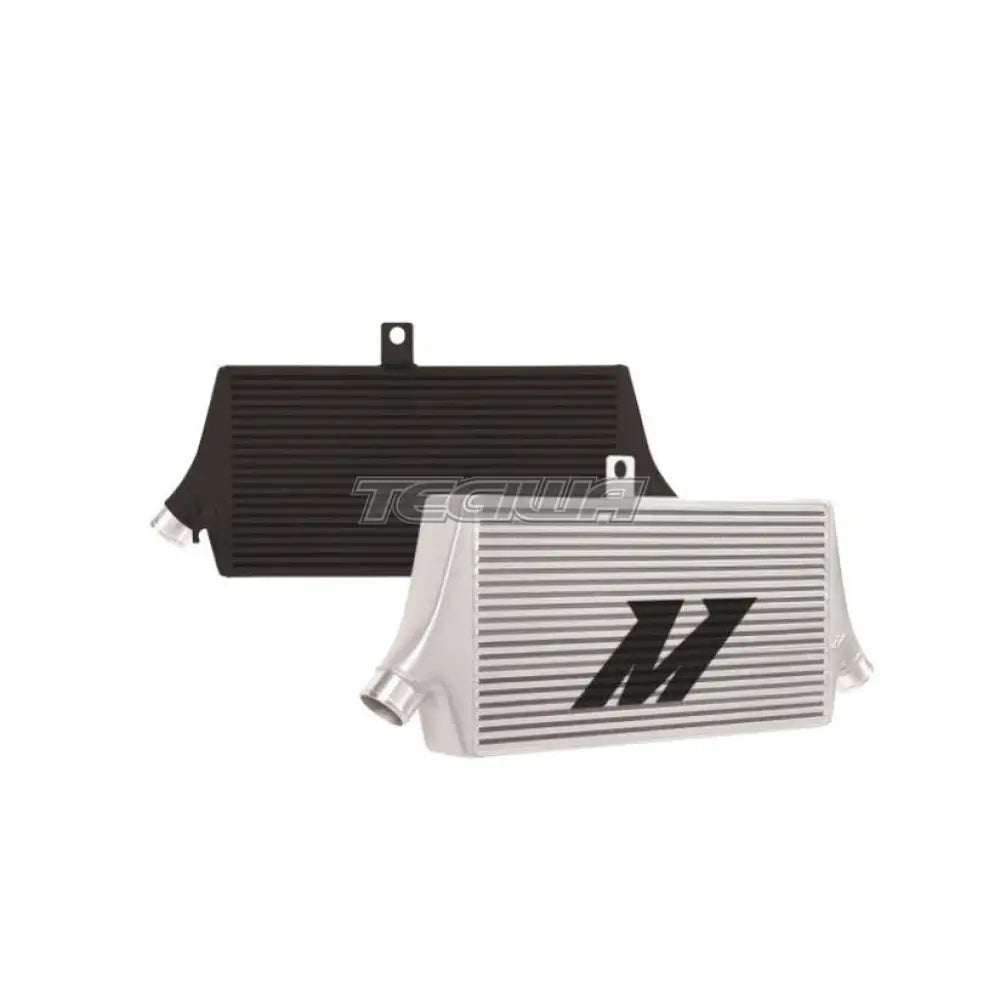

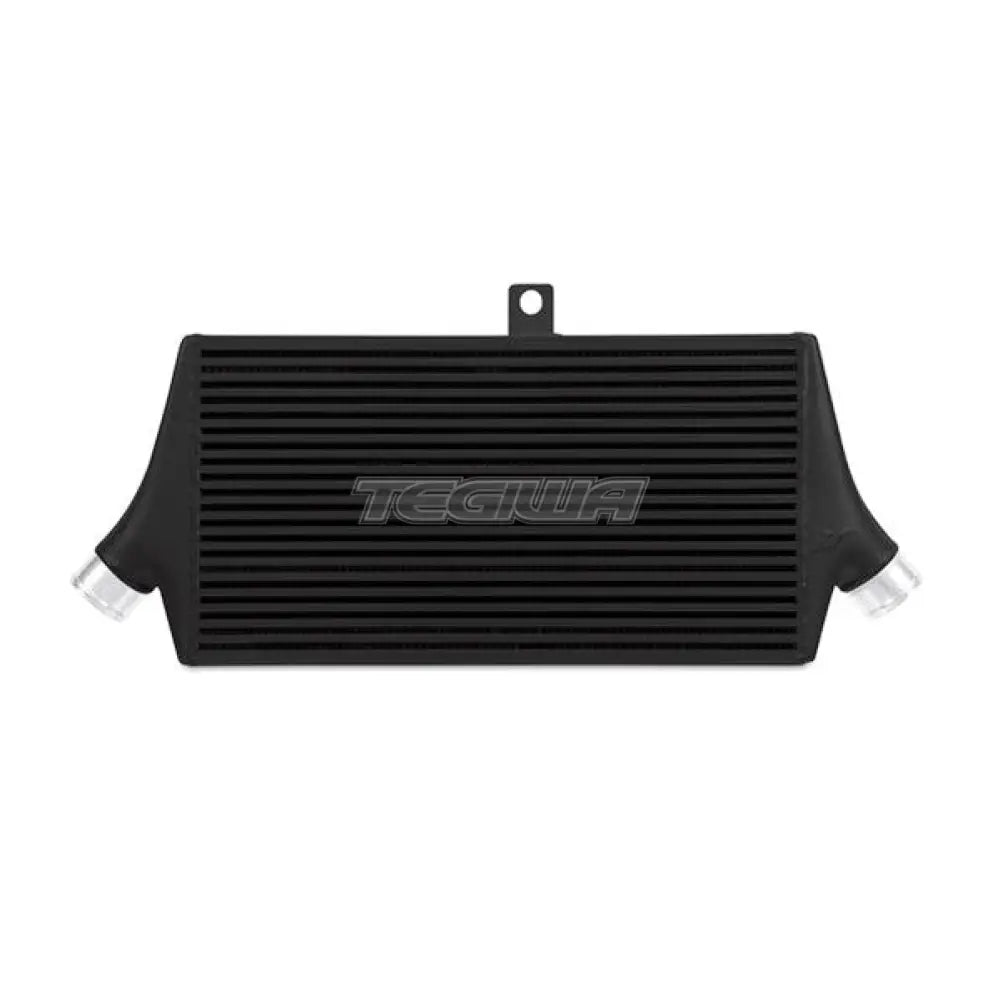

Available with a Sleek Silver or Stealth Black powder-coated finish for enhanced durability and protection against road debris
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Silver
TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
TechSpec Engine Codes: 4G63
TechSpec Chassis Codes: CT9A
TechSpec Overall Length (in): 31.5
TechSpec Overall Height (in): 14.5
TechSpec Overall Width (in): 5.75
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 22
TechSpec Core Height (in): 11.65
TechSpec Inlet (in): 2.375
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 27
Note: This intercooler can be used with stock or aftermarket intercooler pipes. This intercooler is not universal and has application specific mounting points.
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the Mitsubishi Lancer Evolution 7/8/9
Large, 3.5-in thick bar-and-plate core with strategic core composition provides optimal cooling and minimal pressure loss
Provided 8 whp / 10 wtq and reduced intake temperatures by 28 F (16 C) compared to the factory cooler on a test vehicle making 350 whp
Provides efficient intake temperature reduction for vehicles from stock to 600 whp
Compatible with stock and Mishimoto intercooler pipes
All-aluminum cast end tanks provide improved airflow, superior air dispersion through the core, and exceptional strength
Available with a Sleek Silver or Stealth Black powder-coated finish for enhanced durability and protection against road debris
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Black
Put an end to high AIt's with the Mishimoto Mitsubishi Lancer Evolution 7/8/9 Race Intercooler! This intercooler was precision engineered specifically for the Lancer Evolution and is a completely bolt-in upgrade. The intercooler utilizes a large, 3.5-inch thick bar-and-plate core, which has been designed with a strategic core composition to provide optimal reductions in intake temperatures and minimal pressure loss. The Mishimoto race intercooler is compatible with both stock and Mishimoto intercooler piping and will support vehicles from stock to 600 whp. Our 350 whp test vehicle showed an 8 whp / 10 wtq increase in power compared to the stock intercooler, and the Mishimoto intercooler was able to reduce temperatures by 28 degrees Fahrenheit. Not only was this intercooler designed with power and efficiency in mind, but our engineers also crafted smooth cast end tanks to promote proper air dispersion through the core, improved airflow, and exceptional durability. Air intake temperatures play a huge role in power output, tuning, and performance. Whether you are taking your Evo through a rally stage or making a pass at the strip, lower temperatures will be extremely beneficial. This intercooler is available with a silver or stealth black powder-coated finish for enhanced durability and protection against road debris. As with all our products, the Mishimoto Evolution Race Intercooler includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
