TechSpec Rows: 26
TechSpec Core Length (in): 21.25
TechSpec Core Height (in): 5.86
TechSpec Core Thickness (in): 2.5
TechSpec Engine Codes: S85
TechSpec Chassis Codes: E60--E63--E64
TechSpec Overall Height (in): 7.85
TechSpec Overall Length (in): 25.15
TechSpec Overall Width (in): 2.5

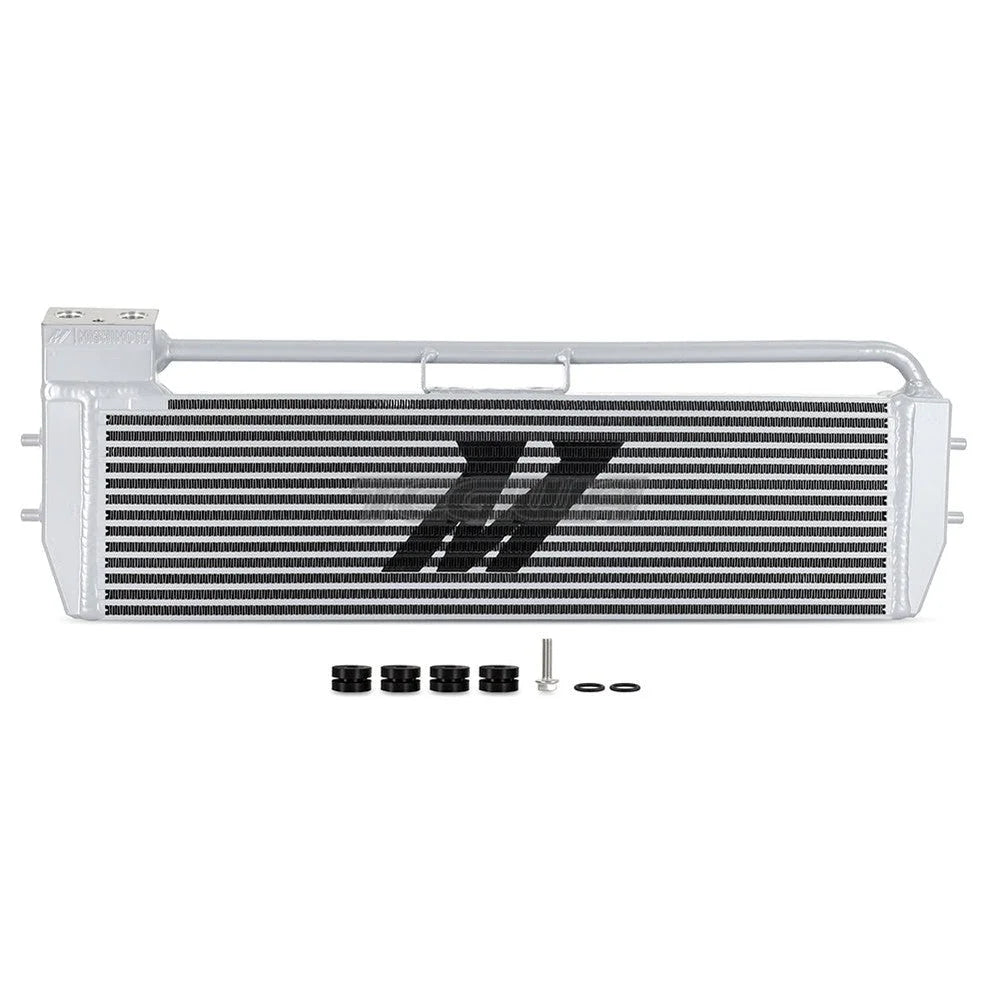

TechSpec Includes: Mishimoto Performance Oil Cooler--Oil Line O-rings--Mishimoto Lifetime Warranty
TechSpec Applications: BMW M5 V10 (5.0) 2006-2010--BMW M6 V10 (5.0) 2006-2010
Note: Requires minor trimming of plastic OEM oil cooler shrouding--
Features:Fits 2006-2010 BMW E60 M5 / E63 M6 / E64 M6
Replaces failure-prone factory oil cooler and provides improved cooling performance
40.3-percent increase in core volume for efficient cooling

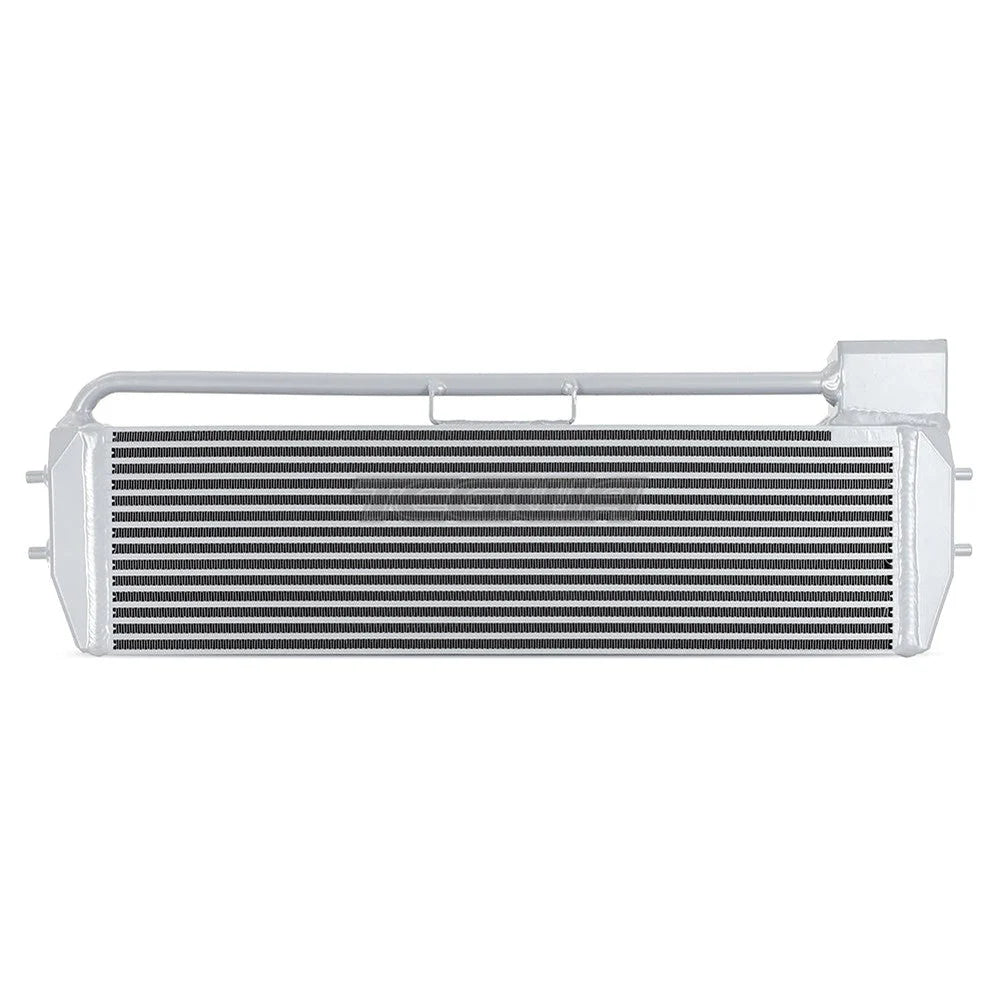

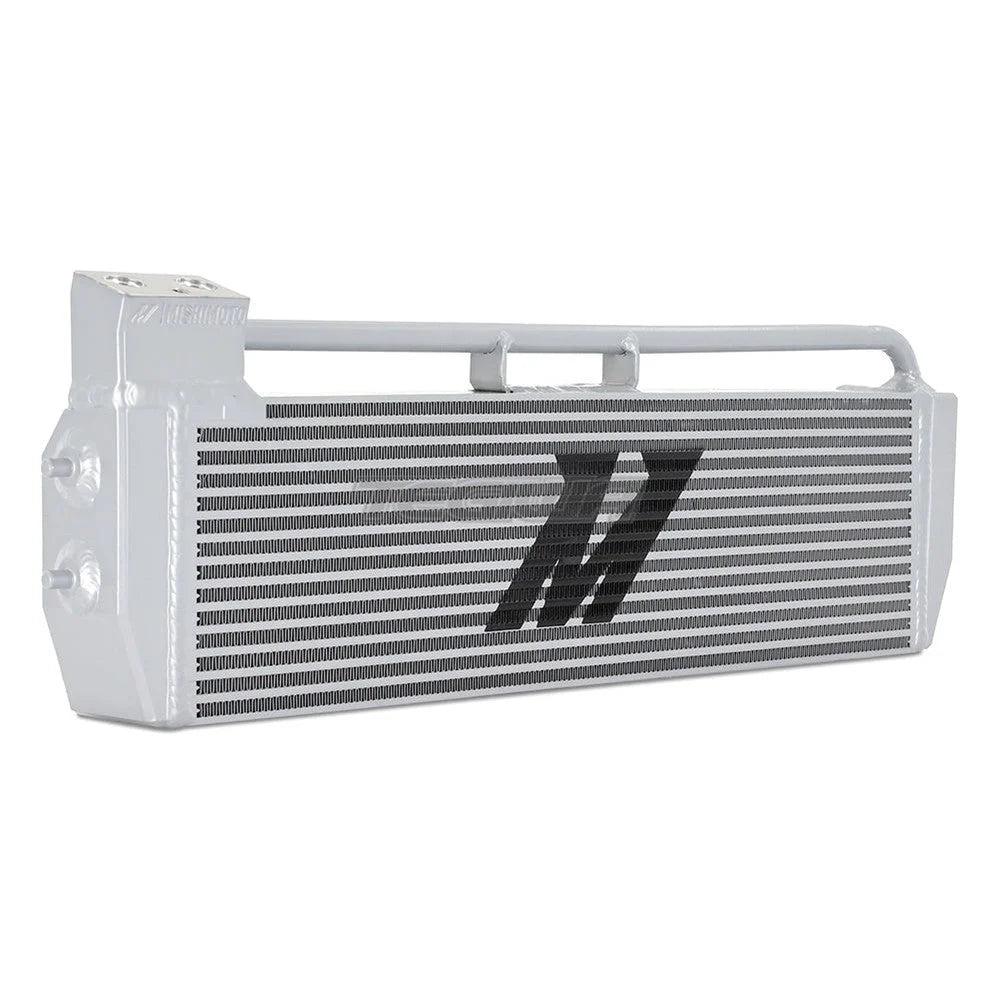

Robust bar-and-plate core provides improved pressure tolerance and durability
41-percent increase in external fin surface area for improved heat transfer
30-percent increase in internal fin surface area draws heat out of oil quickly and efficiently

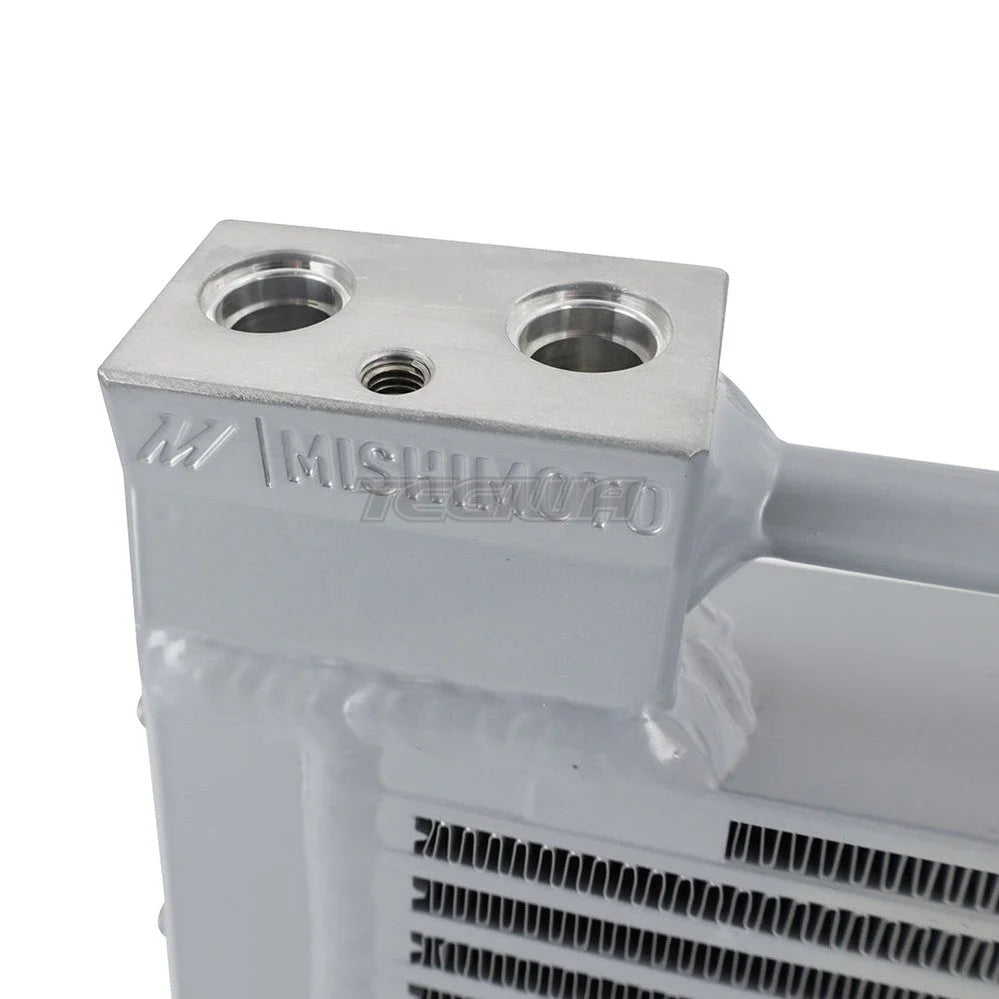

CNC-machined inlet/outlet mates perfectly with stock oil cooler lines

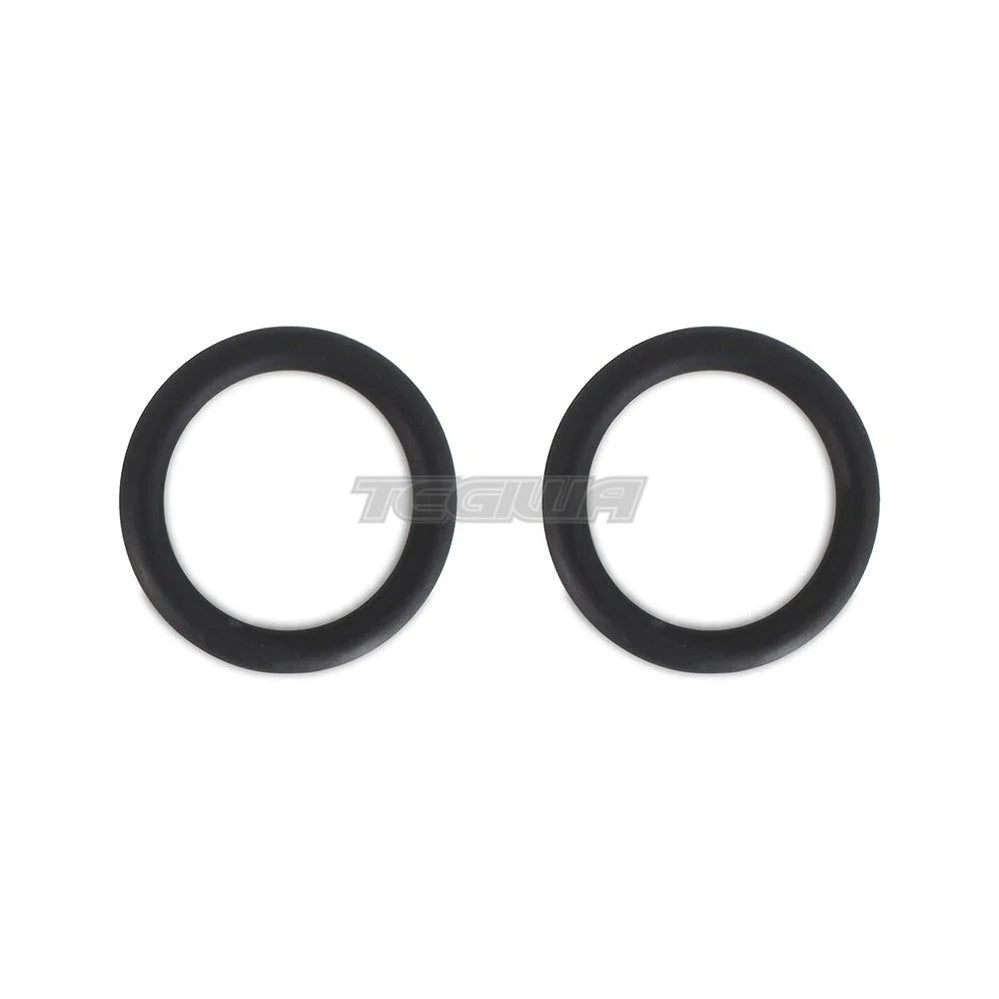

Includes OEM oil line O-rings
Durable silver powder coated finish provides optimal corrosion resistance
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 2
The 2006-2010 BMW E60 M5 combines the spacious practicality of a four-door sedan with a naturally aspirated V10 powerplant producing a hypnotic soundtrack of intake/exhaust noise. But after over a decade of use, some of the E60's components have begun to show their age. The factory engine oil cooler is a common leak point on the E60, typically from failed O-rings or cracked weld points. In addition, the location of the front-mounted cooler increases the chance of damage from road debris and general clogging of external fins, resulting in reduced cooling efficiency. That, combined with the high-strung engine and hefty chassis, means oil temperatures tend to rise during aggressive driving. That's why our engineering team set out to remedy both issues with this performance oil cooler. Drawing on our vast experience with BMW's and the latest in engineering tools, our team was able to create a direct-fit replacement oil cooler with substantial improvements in both durability and cooling efficiency. The Mishimoto Performance Oil Cooler features a robust bar-and-plate core, which provides improved durability and aids in heat rejection. Our core utilizes a strategic fin design which provides a 41-percent increase in external fin surface area and a 30-percent increase in internal fin surface area to help draw heat out of the oil and dissipate it into the air. Our oil cooler features CNC-machined inlet/outlet ports and includes new OEM O-rings for a seamless and leak-free installation. This cooler is finished in a silver powder coat, ensuring long term durability and corrosion resistance. And, as with all our BMW performance products, this oil cooler includes our signature Mishimoto Lifetime Warranty.
