TechSpec Applications: 2006-2014 Volkswagen GTI--2012-2014 Volkswagen Golf R--2006-2010 Volkwagen Jetta GLI--2007-2015 Volkswagen EOS--2006-2013 Audi A3--2008-2010 Audi TT
TechSpec Chassis Codes: MK5--MK6--8J--8P
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 1.7
TechSpec Core Length (in): 9.79
TechSpec Core Height (in): 3.94
Note: This intercooler does not fit on vehicles equipped with the CBFA radiators. Please ensure that your vehicles does not have the CBFA temperature sensor before installing.

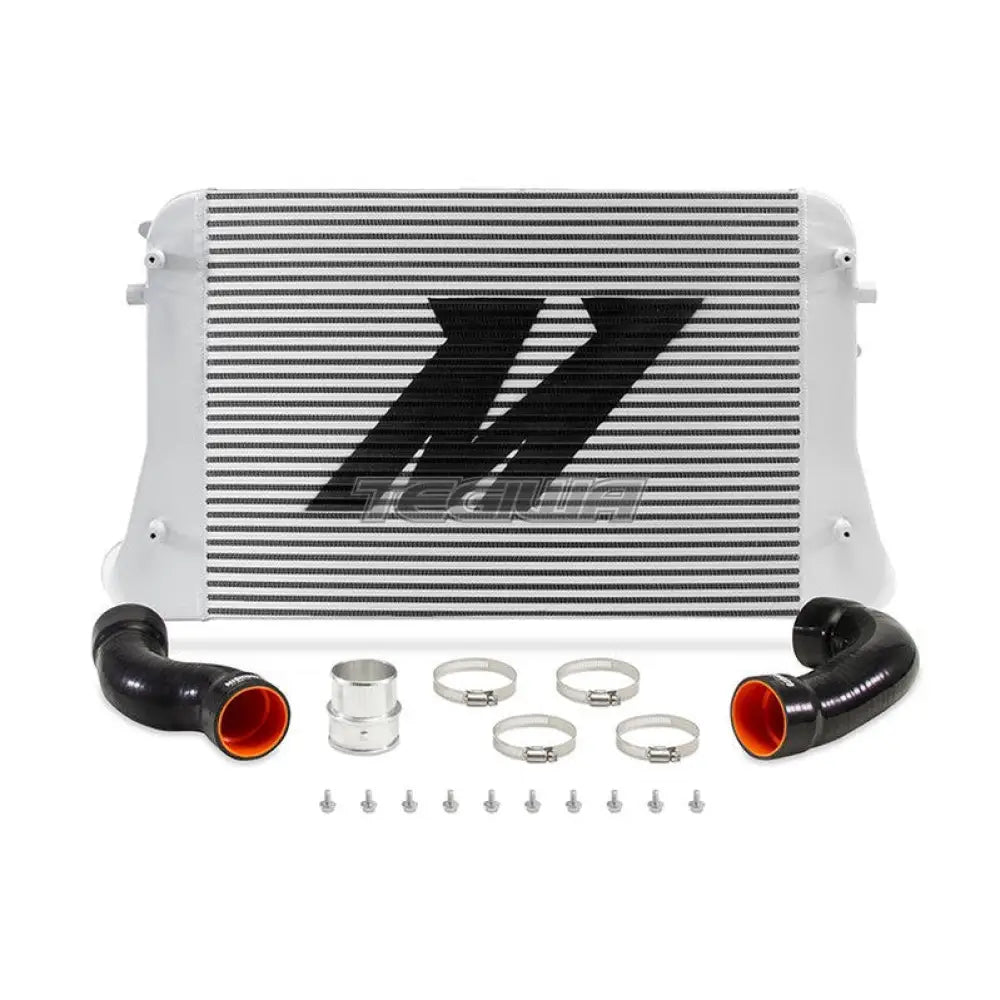

TechSpec Includes: (1) Mishimoto Performance Intercooler--(2) Silicone Intercooler Pipe Coupler--(1) CNC-Machined Aluminum Intercooler Pipe Adapter--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:Direct fit for the 2006-2014 Volkswagen GTI/Golf R and Audi A3/TT excluding CBFA vehicles
46-percent increase in core volume
97-percent increase in external fin surface area
9-percent increase in flow
Drops intercooler outlet temperature by 20F
Includes durable silicone couplers and CNC-machined adapter for a seamless installation to the stock intercooler pipes
Cast end tanks with internal diverters for optimal airflow through core
All-aluminum, TIG-welded
Bar-and-plate core construction
Mishimoto Lifetime Warranty
Install Difficulty: 4
Give your MK5 and MK6 GTI/Golf R the cooling it deserves with the Mishimoto Performance Intercooler. Volkswagen might have invented the concept of the hot-hatch, but the spicy Golf can still use a helping hand when it comes to keeping its cool. The stock intercooler system equipped in the GTI is adequate for the daily commute. However, with the popularity of boosting, a component like the tube-and-fin heat exchanger struggles to keep up. Coupled with the combination of plastic in the construction, It's only a matter of time before you start to see boost leaks. We here at Mishimoto'started from the ground up with the MK5 and MK6 GTI/Golf R Performance Intercooler. We ditched the plastic in favor of fully cast aluminum end tanks that can handle any amount of boost you can throw at them. We also incorporated an internal air diverter into our end tanks to make use of the full core. The Mishimoto MK5 and MK6 Volkswagen GTI/Golf R Performance Intercooler core replaces the lightweight tube-and-fin construction with a more robust bar-and-plate setup. This heavy-duty construction lends itself to improved durability and heat dissipation. Our core has a 46-percent increase in core volume with a 97-percent increase in external fin surface area. Combined with our improved end tanks, the complete package improves flow by 9-percent and drops 20 F from the charged air across the core. The Mishimoto MK5 and MK6 GTI Intercooler Kit also includes 5-layer silicone couplers and a CNC-machined adapter to ensure a perfect fit with the stock pipes. This intercooler is also backed by the Mishimoto Lifetime Warranty for a worry-free installation on your Volkswagen.
