Description
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.

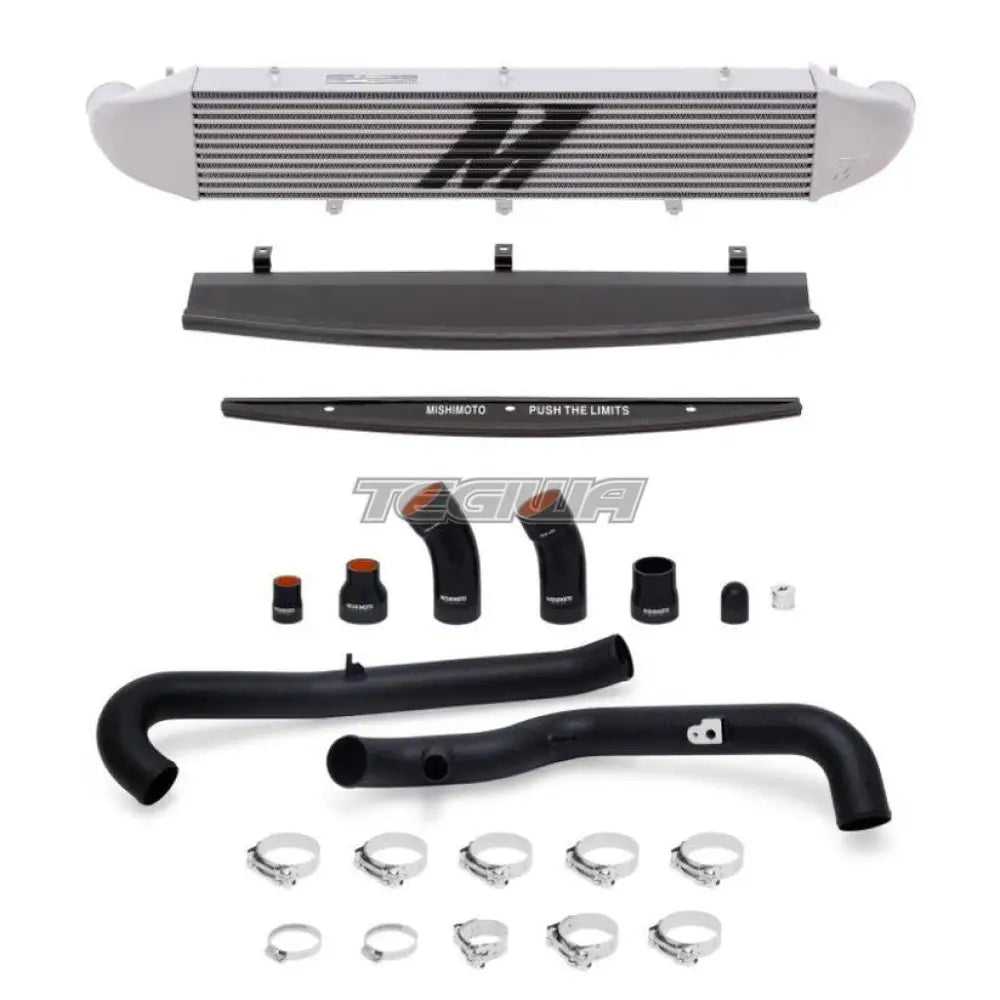

TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3

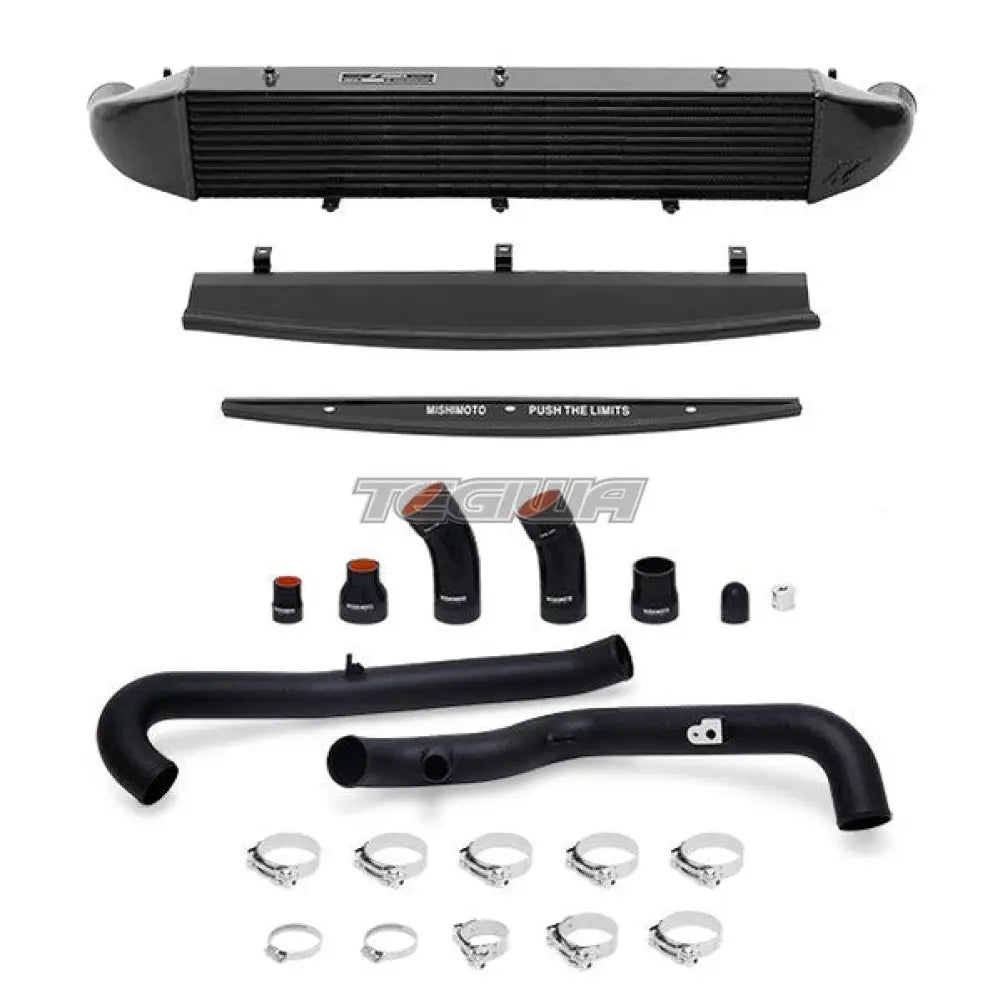

OptionLabel: Black Cooler Black Pipes
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler Black Pipes
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3

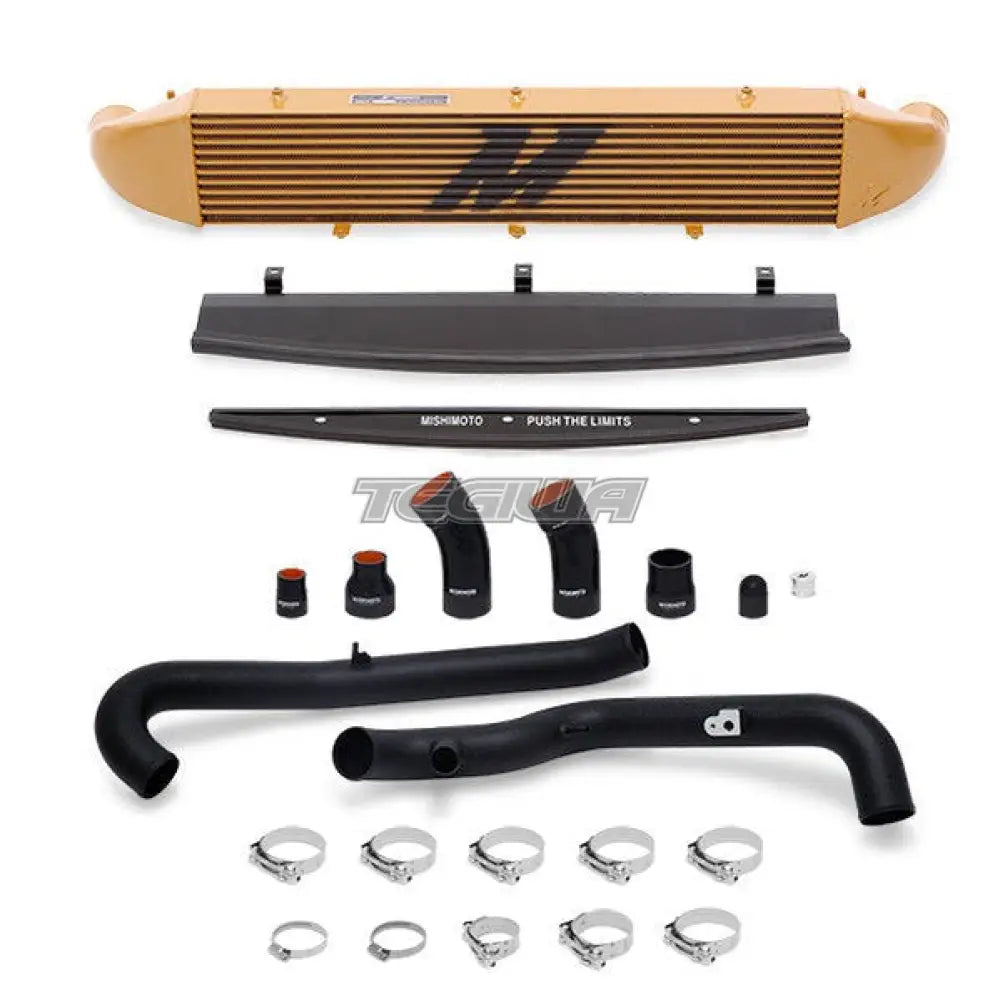

OptionLabel: Gold Cooler black Pipes
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Gold Cooler black Pipes
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3

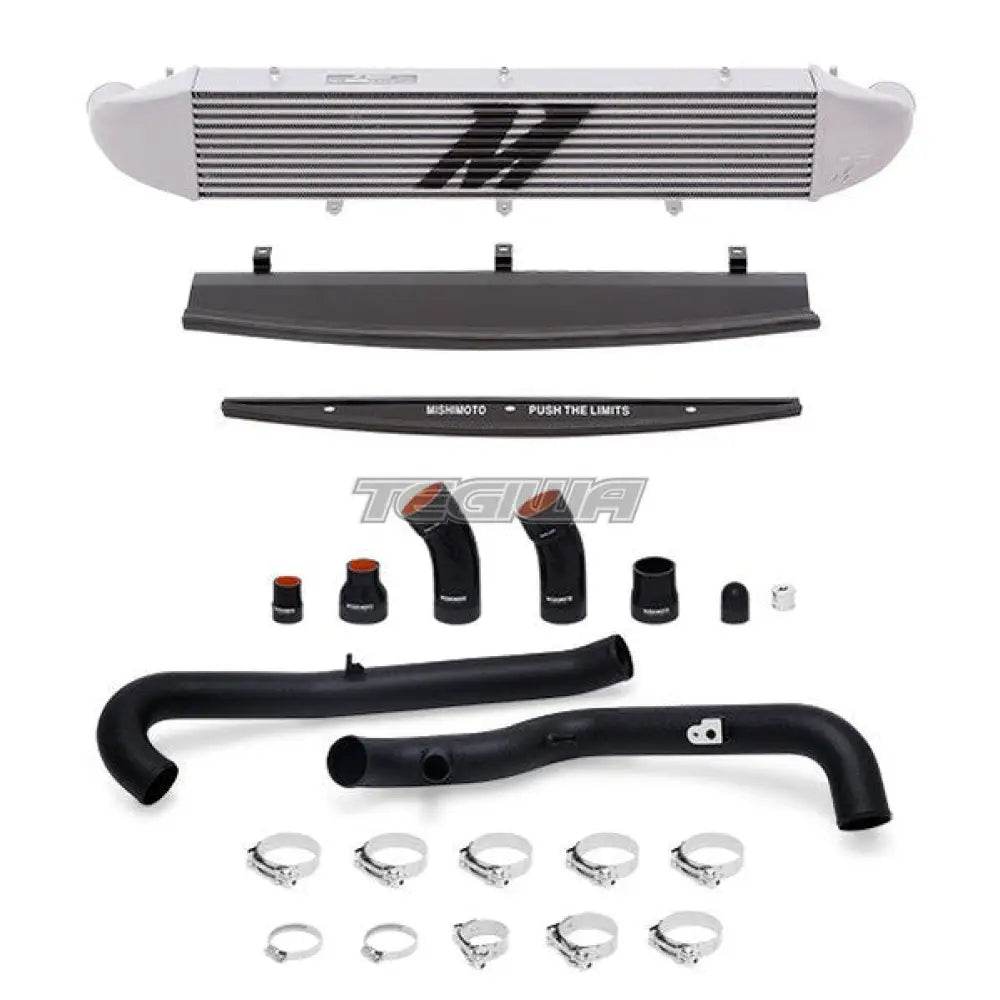

OptionLabel: Silver Cooler Black Pipes
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler Black Pipes
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3

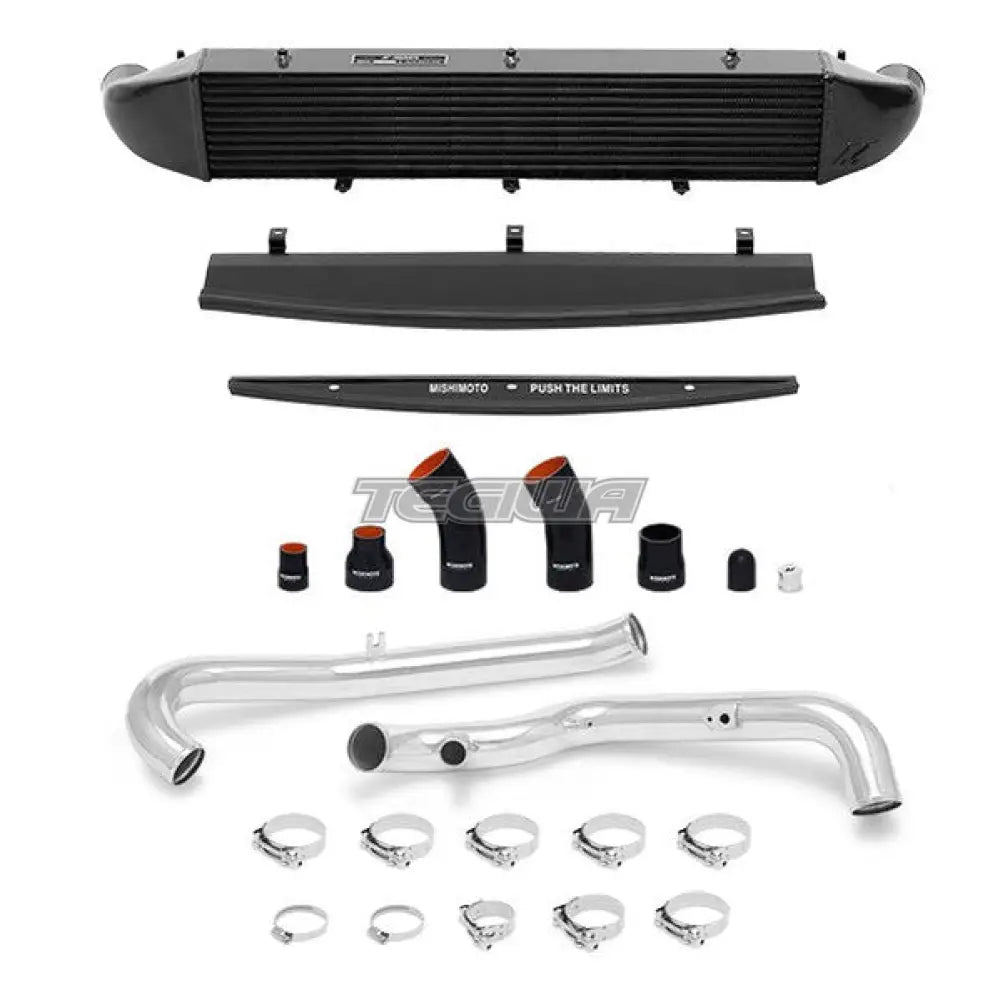

OptionLabel: Black Cooler Silver Pipes
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Black Cooler Silver Pipes
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Gold Cooler Silver Pipes
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Gold Cooler Silver Pipes
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler Silver Pipes
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.56
TechSpec Core Length (in): 40.1
TechSpec Core Height (in): 6.36
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Aluminum Pipe w/ CNC Sensor Flange--(1) Aluminum Pipe--(1) CNC Sound Symposer Plug--(4) Silicone Couplers--(1) Silicone Sound Symposer Hose--(1) 1.75-in T-bolt Clamp--(1) 2.5-in T-bolt Clamp--(6) 2.75-in T-bolt Clamps--(1) Mounting Hardware--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Replaces Hot Side and Cold Side Intercooler Pipes and Couplers
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Intercooler Pipes Available in Wrinkle Black or Polished Finish
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
Install Difficulty: 3
OptionLabel: Silver Cooler Silver Pipes
Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The Mishimoto Fiesta ST cold-side intercooler pipe features a CNC-machined sensor flange for the stock pressure sensor, a port for meth injection or a boost gauge, and a silicone hose and CNC plug to allow deletion of the stock sound symposer system. Mishimoto's Fiesta ST intercooler piping features durable silicone couplers and stainless steel T-bolt clamps for reliable holding power when you're hitting full boost on a long straight. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!
Why Buy From Us?
Worldwide shipping
1000's of items in stock
Multiple payment options
14 day returns period
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Price Match Request
Related items
Recently viewed
Loyalty Points
Earn loyalty points worth !
Free Shipping
Free UK shipping on orders over £100!
Price Match
Seen the same part cheaper? We'll match any like for like price from a UK company!
