TechSpec Applications: 2011-2014 Ford F-150 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P415
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 27.6
TechSpec Overall Height (in): 19
TechSpec Overall Width (in): 6.75
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3

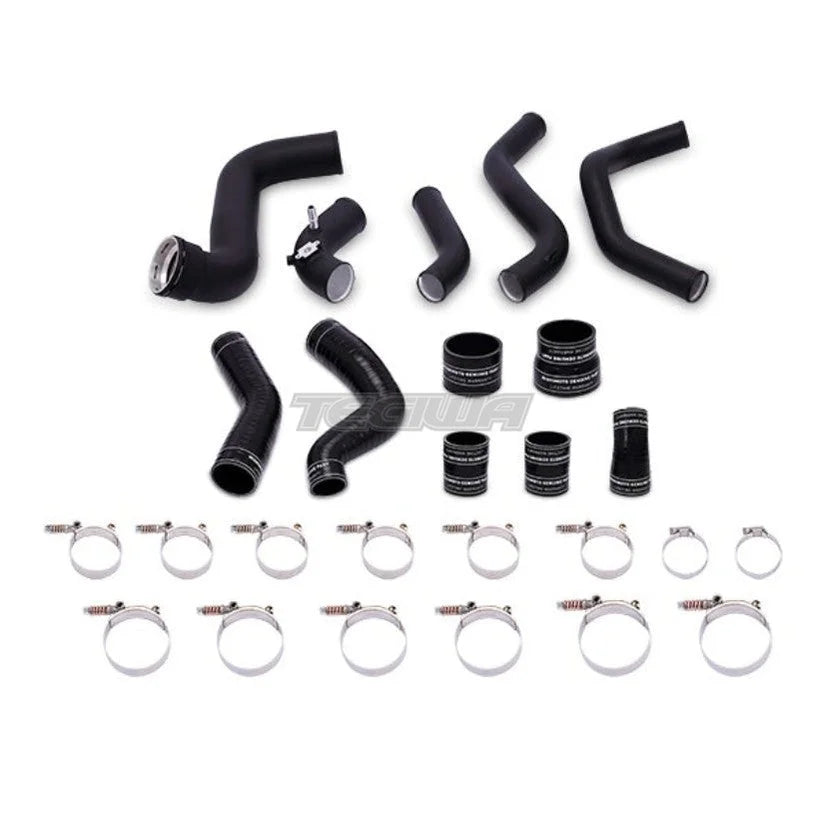

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2011-2014 Ford F-150 EcoBoost
50F (28C) reduction in AIT
88-percent increase in core size
66-percent increase in internal core volume and 40-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Features CNC Bypass Plug for 2011-2012 models
1/4-in NPT drain plug incorporated into lower mount
2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
10-percent greater flow than stock
41-percent and 34-percent increase in internal volume for hot and cold-side pipes, respectively
CNC quick-disconnect for maximum durability, perfect fitment, and ease of installation on Mishimoto intercooler
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

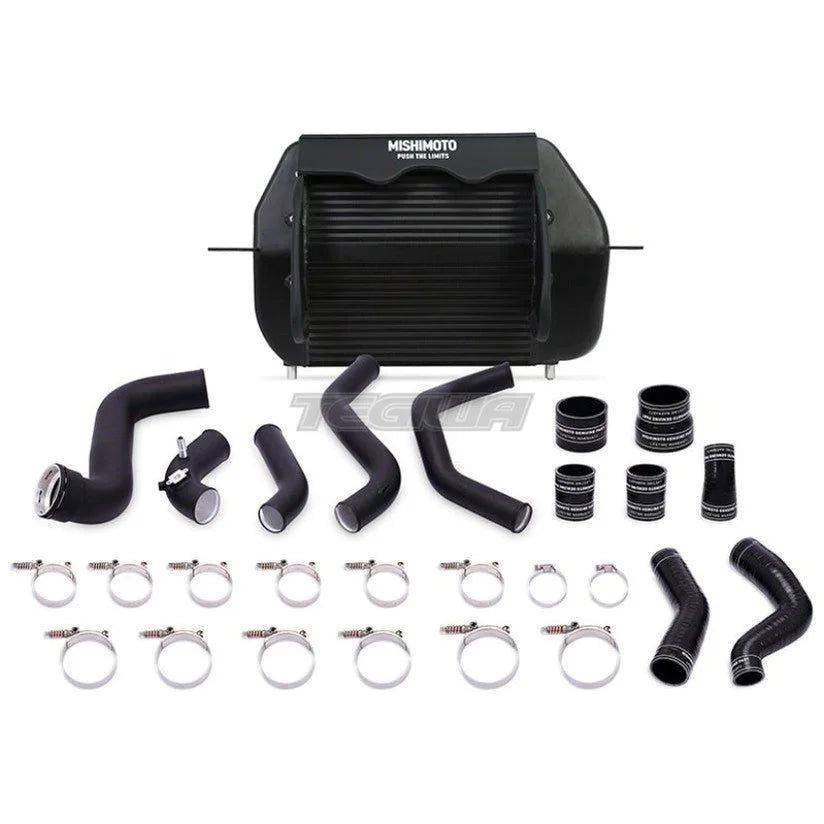

OptionLabel: Black Intercooler, Black Pipes
TechSpec Applications: 2011-2014 Ford F-150 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P415
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 27.6
TechSpec Overall Height (in): 19
TechSpec Overall Width (in): 6.75
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2011-2014 Ford F-150 EcoBoost
50F (28C) reduction in AIT
88-percent increase in core size
66-percent increase in internal core volume and 40-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Features CNC Bypass Plug for 2011-2012 models
1/4-in NPT drain plug incorporated into lower mount
2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
10-percent greater flow than stock
41-percent and 34-percent increase in internal volume for hot and cold-side pipes, respectively
CNC quick-disconnect for maximum durability, perfect fitment, and ease of installation on Mishimoto intercooler
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

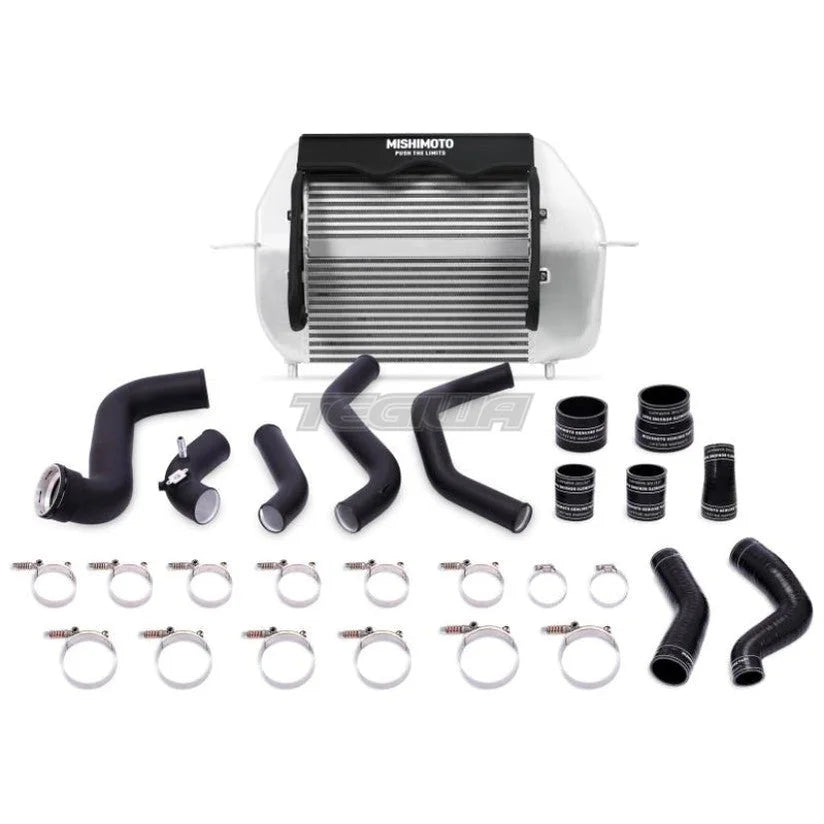

OptionLabel: Silver Intercooler, Black Pipes
TechSpec Applications: 2011-2014 Ford F-150 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P415
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 27.6
TechSpec Overall Height (in): 19
TechSpec Overall Width (in): 6.75
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2011-2014 Ford F-150 EcoBoost
50F (28C) reduction in AIT
88-percent increase in core size
66-percent increase in internal core volume and 40-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Features CNC Bypass Plug for 2011-2012 models
1/4-in NPT drain plug incorporated into lower mount
2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
10-percent greater flow than stock
41-percent and 34-percent increase in internal volume for hot and cold-side pipes, respectively
CNC quick-disconnect for maximum durability, perfect fitment, and ease of installation on Mishimoto intercooler
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

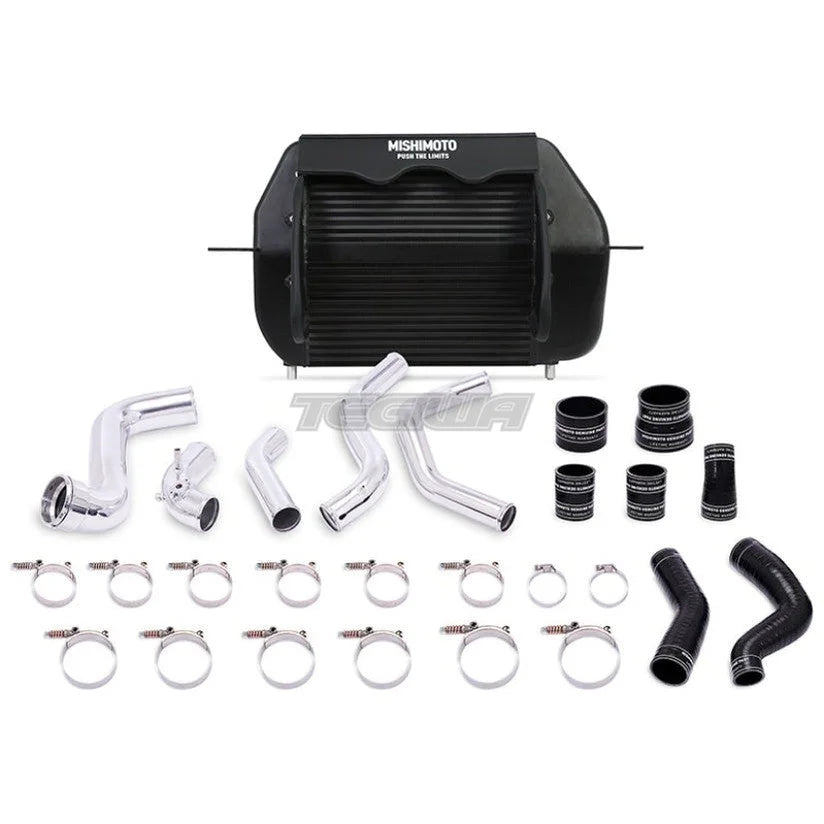

OptionLabel: Black Intercooler, Polished Pipes
TechSpec Applications: 2011-2014 Ford F-150 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P415
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 27.6
TechSpec Overall Height (in): 19
TechSpec Overall Width (in): 6.75
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for the 2011-2014 Ford F-150 EcoBoost
50F (28C) reduction in AIT
88-percent increase in core size
66-percent increase in internal core volume and 40-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Features CNC Bypass Plug for 2011-2012 models
1/4-in NPT drain plug incorporated into lower mount
2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
10-percent greater flow than stock
41-percent and 34-percent increase in internal volume for hot and cold-side pipes, respectively
CNC quick-disconnect for maximum durability, perfect fitment, and ease of installation on Mishimoto intercooler
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

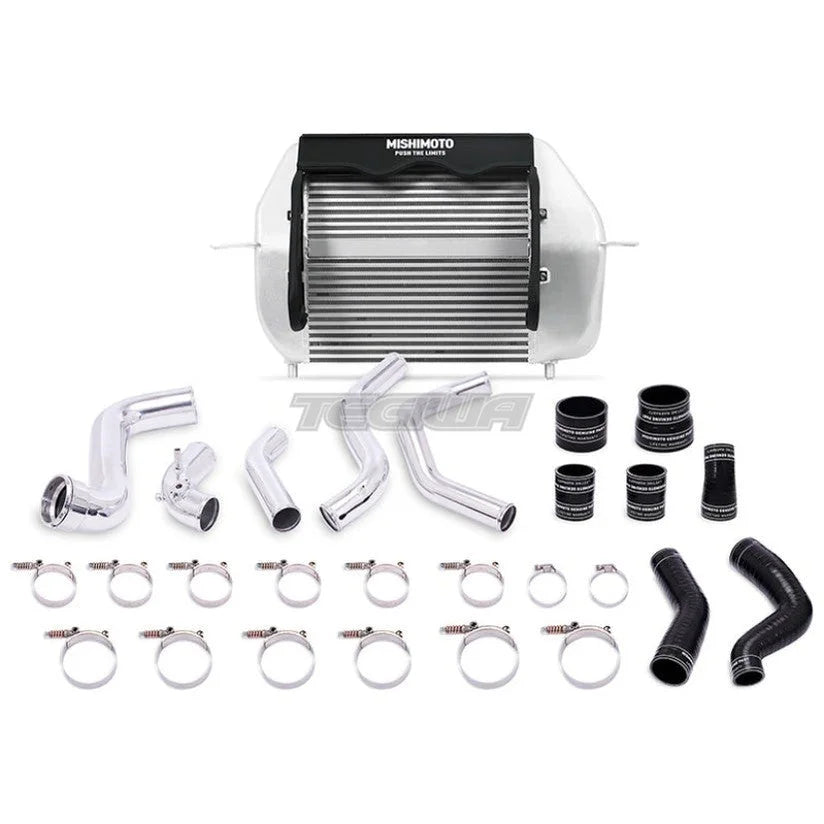

OptionLabel: Silver Intercooler, Polished Pipes

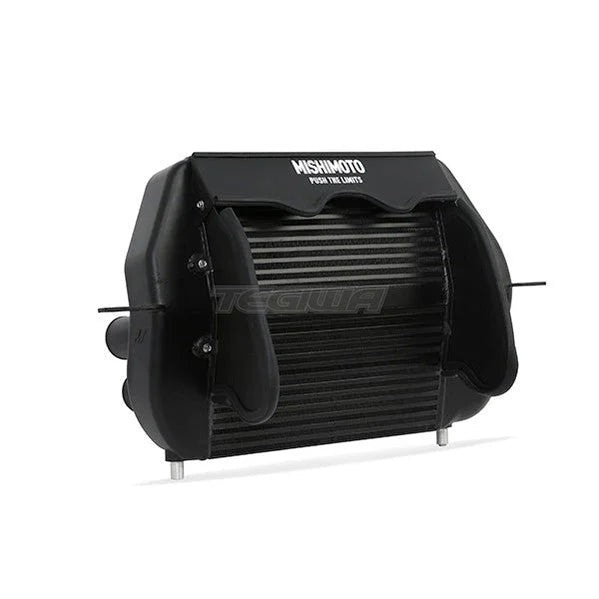

Cool down those charge air temperatures with the Mishimoto direct-fit performance intercooler and pipe kit for the 2011-2014 Ford F-150 EcoBoost. The small, factory intercooler sits in the bottom part of a spacious and unconventionally shaped cavity behind the front bumper, which means There's a lot of wasted space there that could be used for cooling improvements. That's why the Mishimoto intercooler has been cleverly engineered with a unique angled design to take full advantage of the space for maximum performance. This intercooler boasts an 88-percent increase in core size, 66-percent increase in internal core volume, and 40-percent increase in external fin surface area. The Mishimoto intercooler lowers intake temperatures by 50F (28C) compared to the factory part. But of course, no intercooler is complete without a set of pipes to complement it. This kit also includes Mishimoto 2011-2014 F-150 EcoBoost Intercooler Pipes which are an ideal upgrade in reliability and performance. Accompanied by silicone couplers with DuraCore technology, Mishimoto's F-150 EcoBoost intercooler piping is engineered to eliminate restrictive bends while improving durability and airflow. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. These pipes alone have been dyno proven to provide your truck with up to 15 more horsepower and 21 Ft/lbs more torque. Of course, this kit is backed by our Mishimoto Lifetime Warranty, so you never need to worry about buying another intercooler and pipe kit again.
