TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P552
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.7
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
24-percent total internal volume increase over the stock intercooler pipes
Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
10F (5.5C) reduction in intake air temp
77-percent increase in internal Intercooler core volume
163-percent increase in external fin surface area
All-aluminum, TIG-welded construction
Fits with stock intercooler fans without modification
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

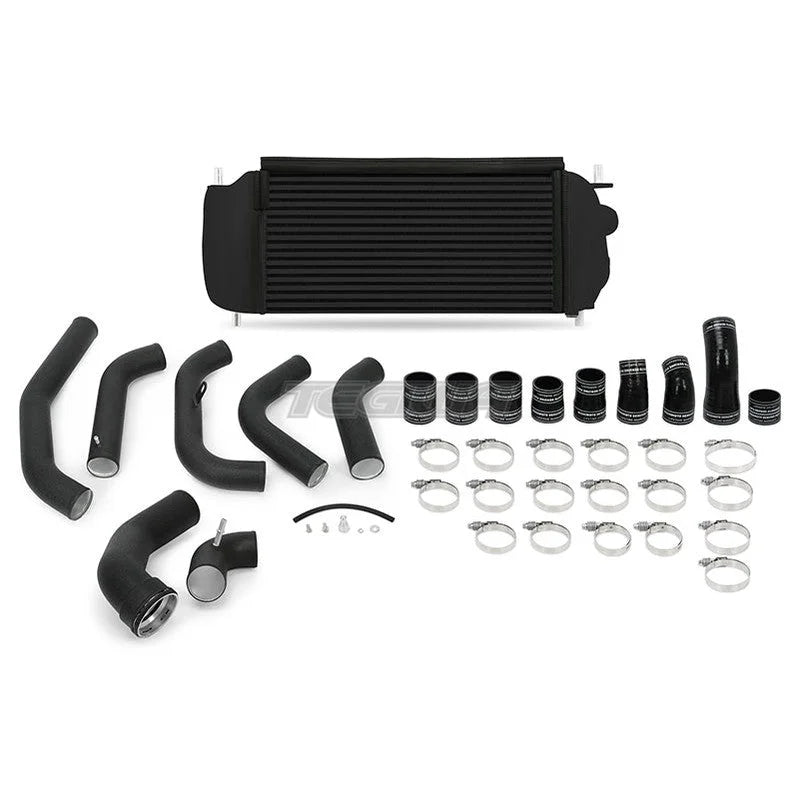

OptionLabel: Black Intercooler, Black Pipes
TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P552
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.7
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
24-percent total internal volume increase over the stock intercooler pipes
Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
10F (5.5C) reduction in intake air temp
77-percent increase in internal Intercooler core volume
163-percent increase in external fin surface area
All-aluminum, TIG-welded construction
Fits with stock intercooler fans without modification
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

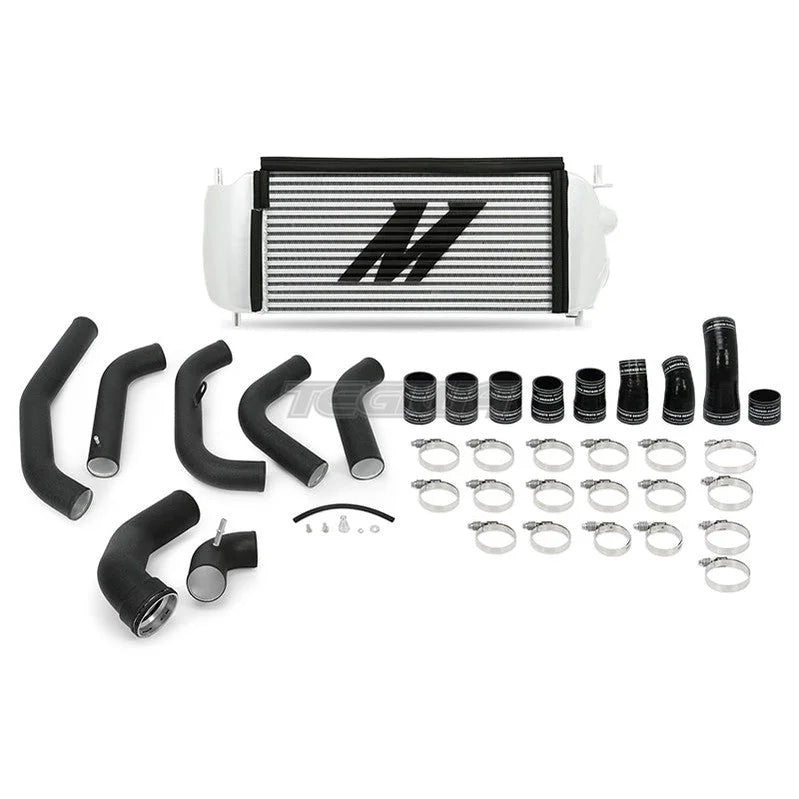

OptionLabel: Silver Intercooler, Black Pipes
TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P552
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.7
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
24-percent total internal volume increase over the stock intercooler pipes
Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
10F (5.5C) reduction in intake air temp
77-percent increase in internal Intercooler core volume
163-percent increase in external fin surface area
All-aluminum, TIG-welded construction
Fits with stock intercooler fans without modification
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

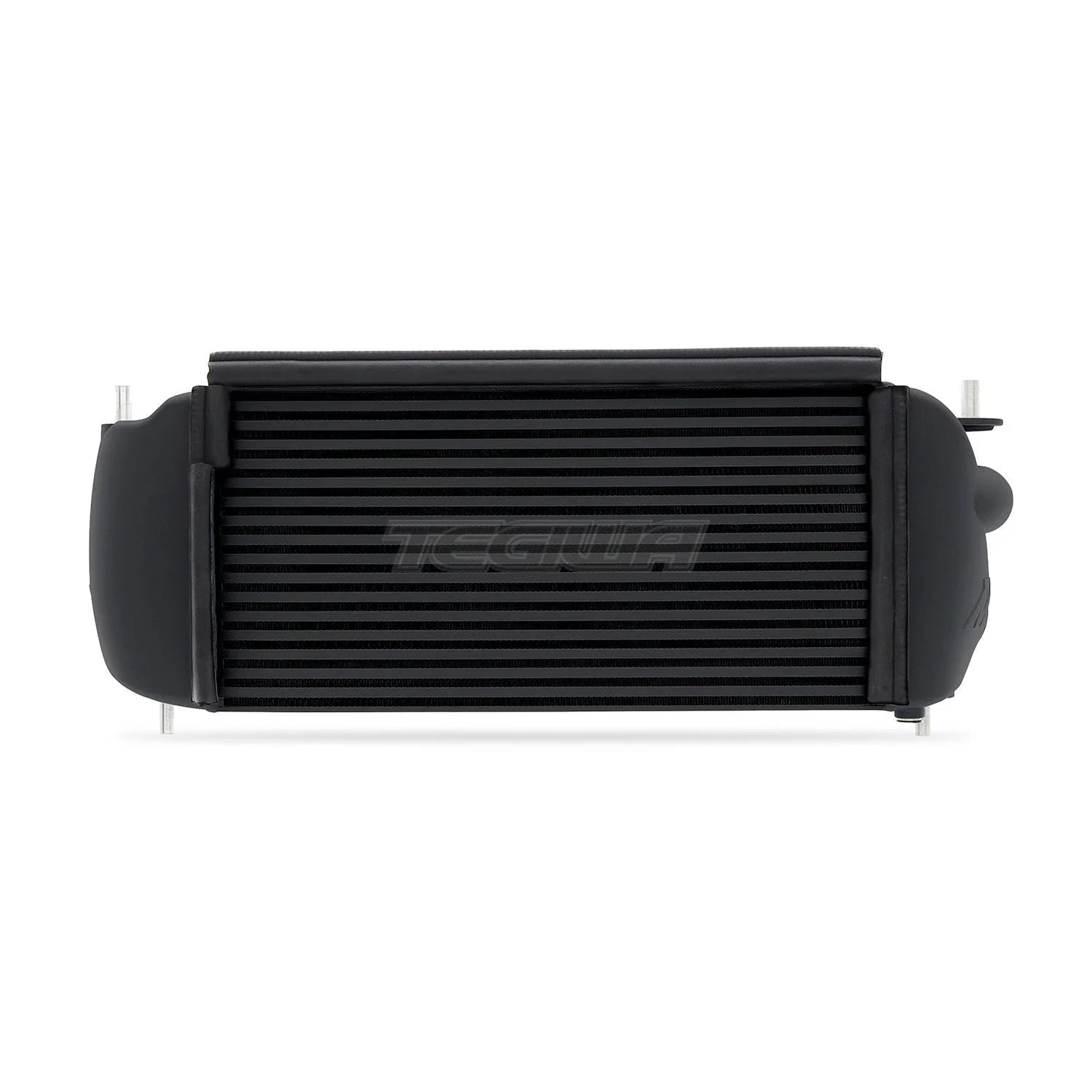

OptionLabel: Black Intercooler, Polished Pipes
TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
TechSpec Engine Codes: 3.5L V6 EcoBoost
TechSpec Chassis Codes: P552
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Overall Length (in): 29
TechSpec Overall Height (in): 9.5
TechSpec Overall Width (in): 7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 4.7
TechSpec Core Length (in): 19.6
TechSpec Core Height (in): 9.4
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 3
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
24-percent total internal volume increase over the stock intercooler pipes
Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
10F (5.5C) reduction in intake air temp
77-percent increase in internal Intercooler core volume
163-percent increase in external fin surface area
All-aluminum, TIG-welded construction
Fits with stock intercooler fans without modification
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 4

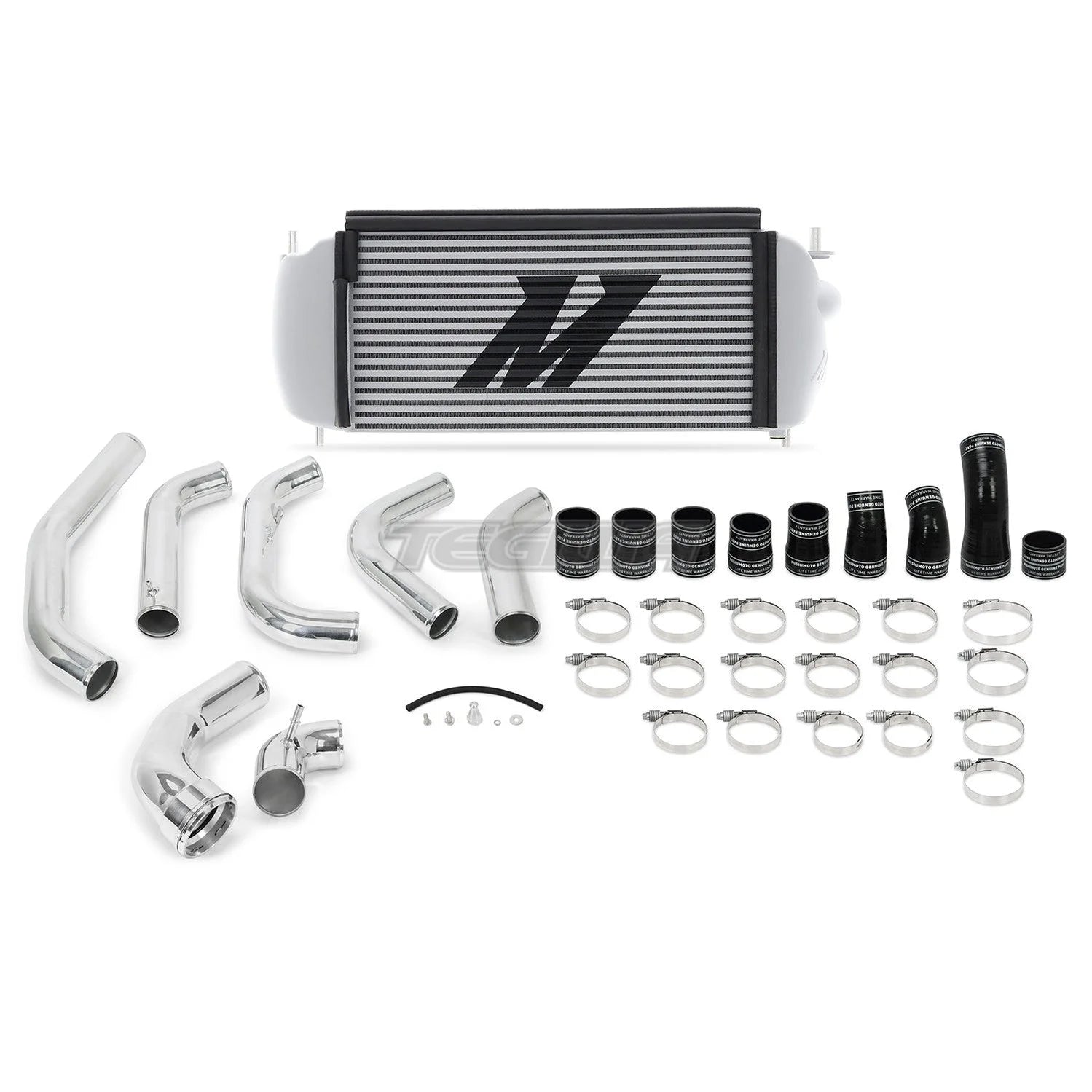

OptionLabel: Silver Intercooler, Polished Pipes
Mishimoto has developed a direct-fit 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore technology. The 24-percent larger volume of our pipes allows your 2015-2016 3.5L F-150 EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77-percent over stock and external fin surface area by 163-percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.
