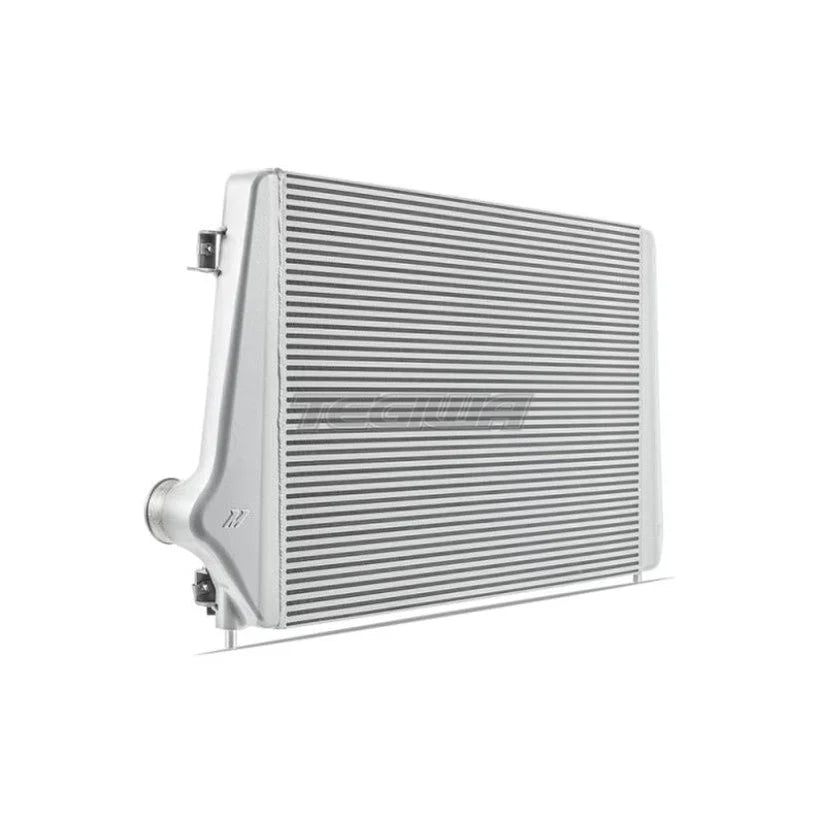

Description
TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019
TechSpec Engine Codes: L5P
TechSpec Chassis Codes: GMT K2
TechSpec Overall Length (in): 45.8
TechSpec Overall Height (in): 23.85
TechSpec Overall Width (in): 4.92
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.67
TechSpec Core Length (in): 20
TechSpec Core Height (in): 11
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3.25
TechSpec Weight (lbs): 80
Note: Some trimming of the fan shroud may be required for installation.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
Includes performance intercooler, hot and cold-side intercooler pipes, and DuraCore boots
Reduces restriction by up to 64-percent over stock intercooler system
68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators
Larger intercooler inlet and outlet reduce restriction for improved flow
Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection
Robust cast-aluminum end tanks resist cracking under high heat and pressure
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
CNC-machined quick-disconnect with new O-ring and spring clip ensures precise, leak-free fit
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in durable silver or black powder-coated finish
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 5

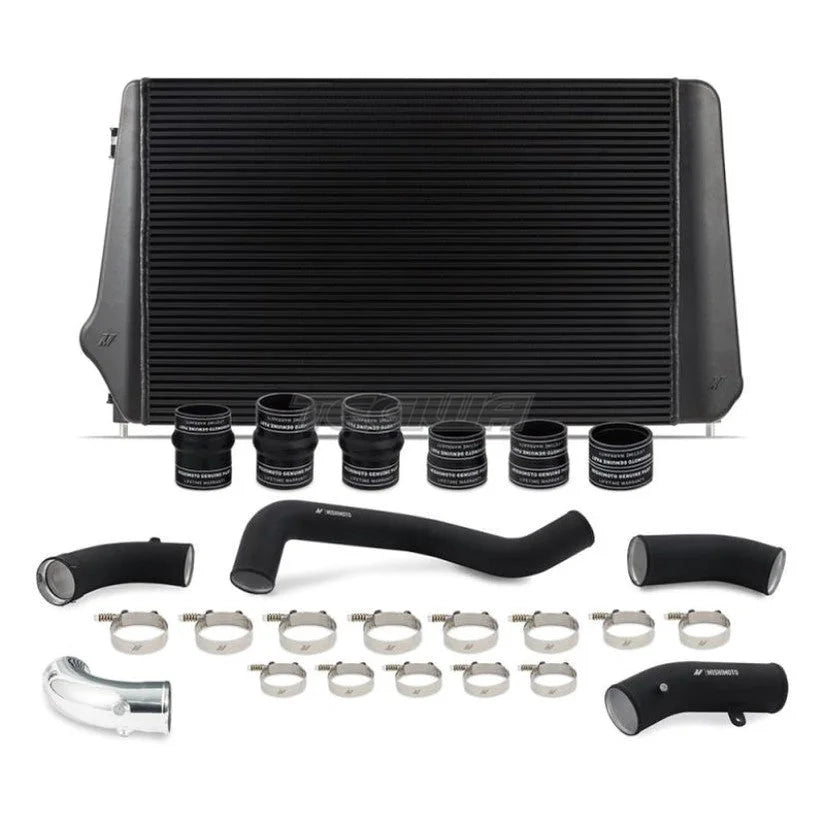

OptionLabel: Black Intercooler, Wrinkle Black Pipes
TechSpec Engine Codes: L5P
TechSpec Chassis Codes: GMT K2
TechSpec Overall Length (in): 45.8
TechSpec Overall Height (in): 23.85
TechSpec Overall Width (in): 4.92
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.67
TechSpec Core Length (in): 20
TechSpec Core Height (in): 11
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3.25
TechSpec Weight (lbs): 80
Note: Some trimming of the fan shroud may be required for installation.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
Includes performance intercooler, hot and cold-side intercooler pipes, and DuraCore boots
Reduces restriction by up to 64-percent over stock intercooler system
68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators
Larger intercooler inlet and outlet reduce restriction for improved flow
Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection
Robust cast-aluminum end tanks resist cracking under high heat and pressure
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
CNC-machined quick-disconnect with new O-ring and spring clip ensures precise, leak-free fit
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in durable silver or black powder-coated finish
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 5
OptionLabel: Black Intercooler, Wrinkle Black Pipes
TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019
TechSpec Engine Codes: L5P
TechSpec Chassis Codes: GMT K2
TechSpec Overall Length (in): 45.8
TechSpec Overall Height (in): 23.85
TechSpec Overall Width (in): 4.92
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.67
TechSpec Core Length (in): 20
TechSpec Core Height (in): 11
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3.25
TechSpec Weight (lbs): 80
Note: Some trimming of the fan shroud may be required for installation.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
Includes performance intercooler, hot and cold-side intercooler pipes, and DuraCore boots
Reduces restriction by up to 64-percent over stock intercooler system
68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators
Larger intercooler inlet and outlet reduce restriction for improved flow
Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection
Robust cast-aluminum end tanks resist cracking under high heat and pressure
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
CNC-machined quick-disconnect with new O-ring and spring clip ensures precise, leak-free fit
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in durable silver or black powder-coated finish
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 5

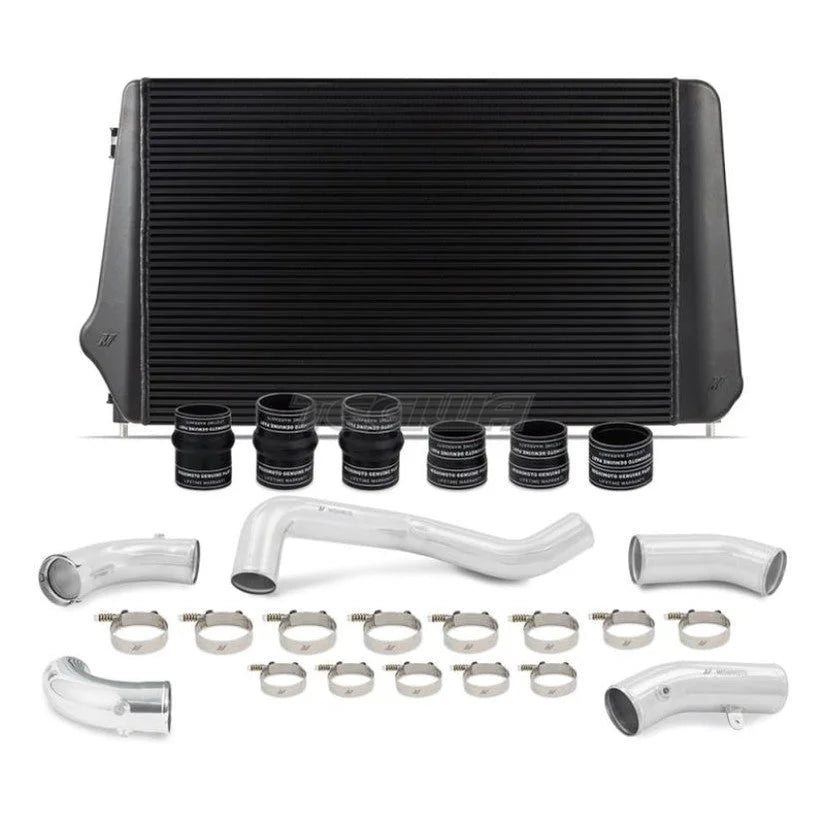

OptionLabel: Black Intercooler, Polished Pipes
TechSpec Engine Codes: L5P
TechSpec Chassis Codes: GMT K2
TechSpec Overall Length (in): 45.8
TechSpec Overall Height (in): 23.85
TechSpec Overall Width (in): 4.92
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.67
TechSpec Core Length (in): 20
TechSpec Core Height (in): 11
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3.25
TechSpec Weight (lbs): 80
Note: Some trimming of the fan shroud may be required for installation.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
Includes performance intercooler, hot and cold-side intercooler pipes, and DuraCore boots
Reduces restriction by up to 64-percent over stock intercooler system
68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators
Larger intercooler inlet and outlet reduce restriction for improved flow
Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection
Robust cast-aluminum end tanks resist cracking under high heat and pressure
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
CNC-machined quick-disconnect with new O-ring and spring clip ensures precise, leak-free fit
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in durable silver or black powder-coated finish
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 5
OptionLabel: Black Intercooler, Polished Pipes
TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019
TechSpec Engine Codes: L5P
TechSpec Chassis Codes: GMT K2
TechSpec Overall Length (in): 45.8
TechSpec Overall Height (in): 23.85
TechSpec Overall Width (in): 4.92
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 2.67
TechSpec Core Length (in): 20
TechSpec Core Height (in): 11
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3.25
TechSpec Weight (lbs): 80
Note: Some trimming of the fan shroud may be required for installation.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Features:
Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
Includes performance intercooler, hot and cold-side intercooler pipes, and DuraCore boots
Reduces restriction by up to 64-percent over stock intercooler system
68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators
Larger intercooler inlet and outlet reduce restriction for improved flow
Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection
Robust cast-aluminum end tanks resist cracking under high heat and pressure
Eliminates failure-prone stock throttle valve connector
Retains temp sensor harness mount for safe and secure wire routing
CNC-machined quick-disconnect with new O-ring and spring clip ensures precise, leak-free fit
Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
Available in durable silver or black powder-coated finish
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 5

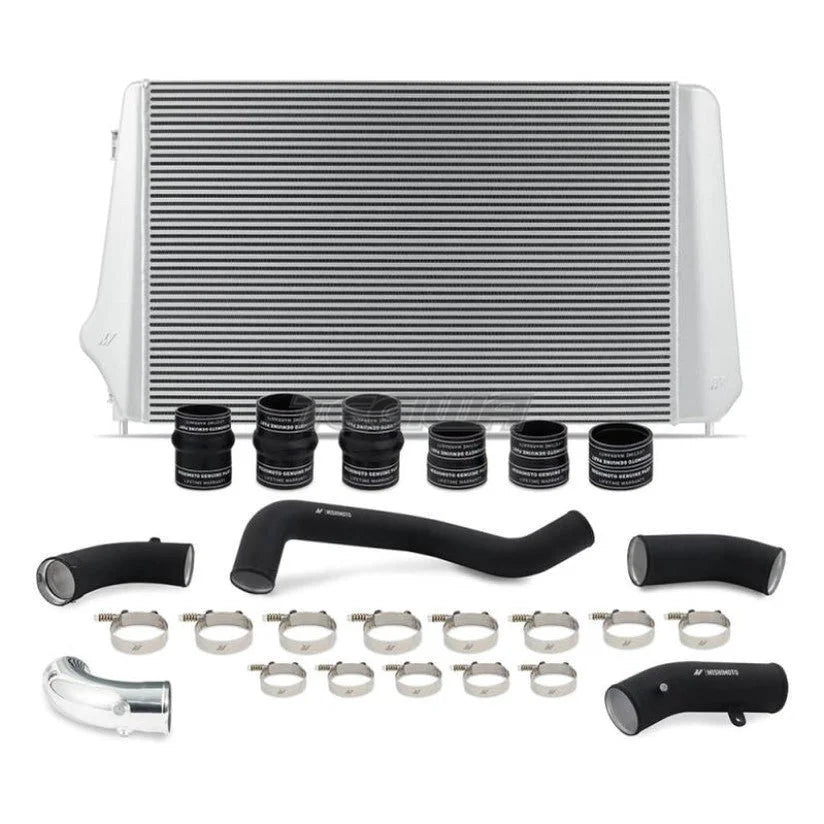

OptionLabel: Silver Intercooler, Wrinkle Black Pipes
