TechSpec Applications: 2016+ Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Maximum Recommended Horsepower: 450
TechSpec Core Thickness (in): 2
TechSpec Inlet (in): 2.4
TechSpec Outlet (in): 2.4
Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.

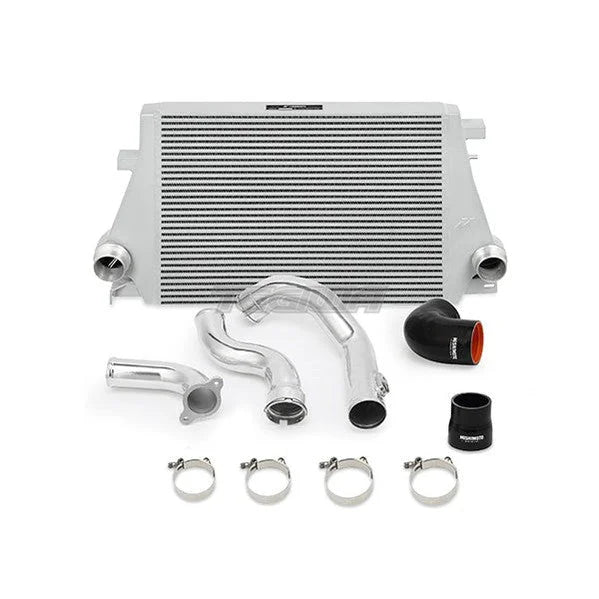

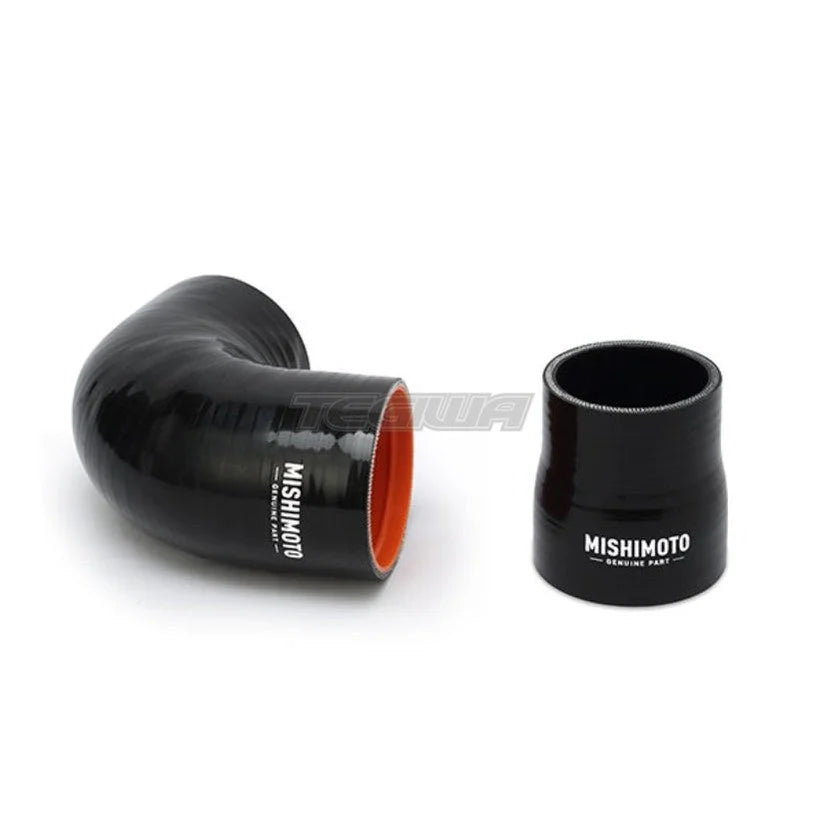

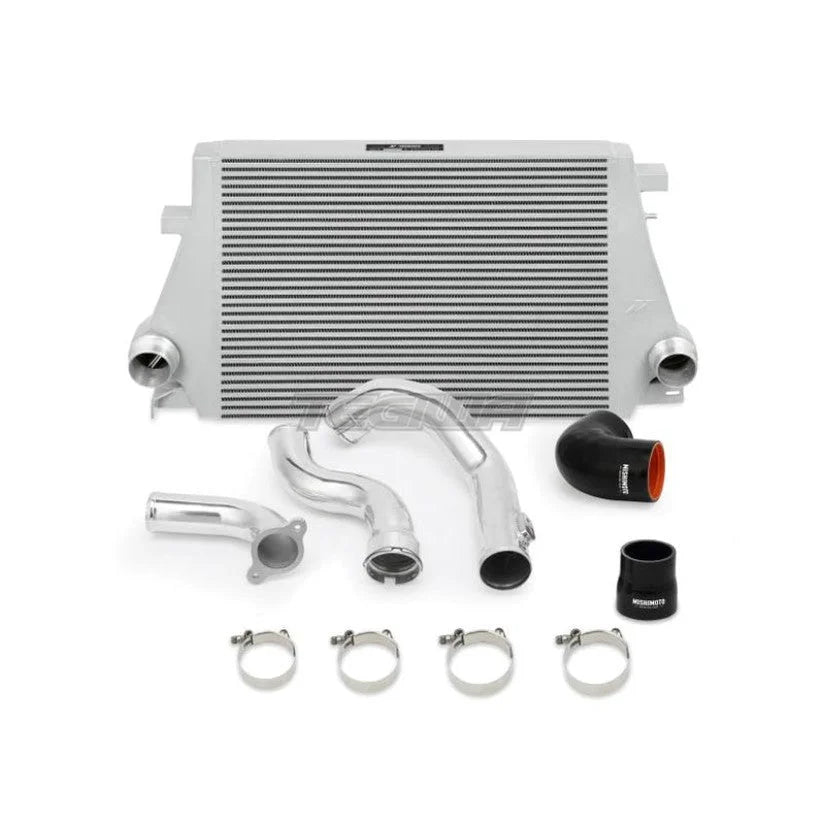

TechSpec Includes: (1) Aluminum Intercooler--(2) Aluminum Pipes w/ CNC-machined quick-disconnects--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(2) Quick-Disconnect Spring Clips--(1) 2.75-in 90-degree Silicone Coupler--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-in T-bolt Clamp--(2) 3-in T-bolt Clamps--(3) Tree Clips--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2016+ Chevrolet Camaro 2.0T and 2013+ Cadillac ATS 2.0T
2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
45-percent increase in internal core volume and 239-percent increase in external fin surface area
78-percent increase in core size
Cast end tanks with internal air diverter provide optimal airflow through intercooler
30-percent greater internal volume than stock
10-percent increase in flow
Utilizes stock quick-disconnect fittings for easy installation
Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
Piping available in polished and wrinkle black
Mishimoto Lifetime Warranty
Install Difficulty: 4

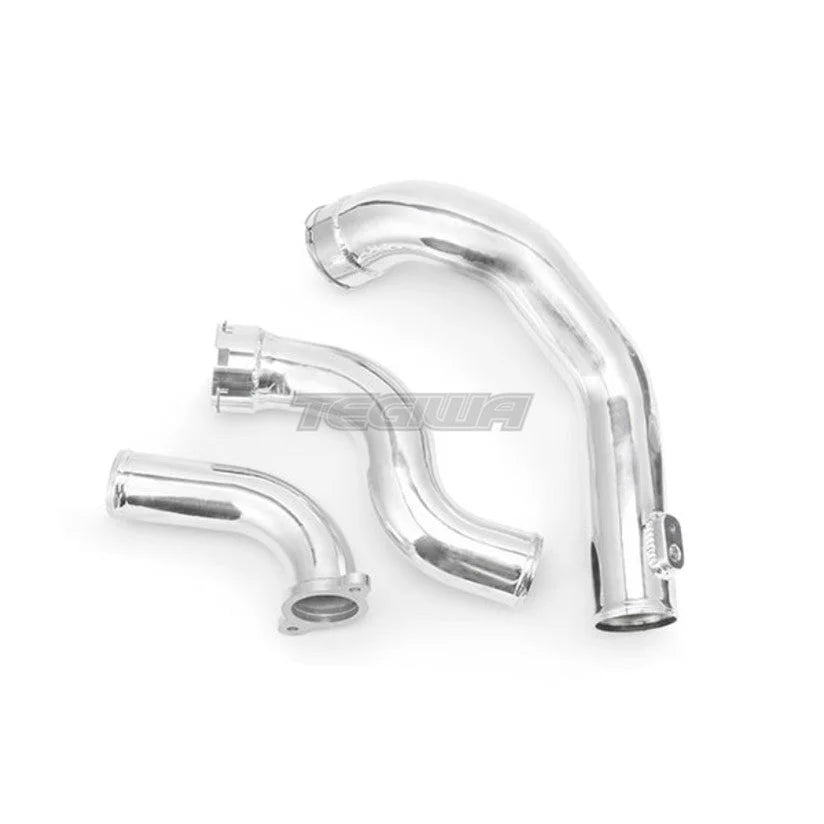

OptionLabel: Polished Piping
TechSpec Applications: 2016+ Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T
TechSpec Engine Codes: LTG
TechSpec Chassis Codes: Alpha
TechSpec Maximum Recommended Horsepower: 450
TechSpec Core Thickness (in): 2
TechSpec Inlet (in): 2.4
TechSpec Outlet (in): 2.4
Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
TechSpec Includes: (1) Aluminum Intercooler--(2) Aluminum Pipes w/ CNC-machined quick-disconnects--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(2) Quick-Disconnect Spring Clips--(1) 2.75-in 90-degree Silicone Coupler--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-in T-bolt Clamp--(2) 3-in T-bolt Clamps--(3) Tree Clips--Mishimoto Lifetime Warranty
Features:
Direct fit for the 2016+ Chevrolet Camaro 2.0T and 2013+ Cadillac ATS 2.0T
2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
45-percent increase in internal core volume and 239-percent increase in external fin surface area
78-percent increase in core size
Cast end tanks with internal air diverter provide optimal airflow through intercooler
30-percent greater internal volume than stock
10-percent increase in flow
Utilizes stock quick-disconnect fittings for easy installation
Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
Piping available in polished and wrinkle black
Mishimoto Lifetime Warranty
Install Difficulty: 4

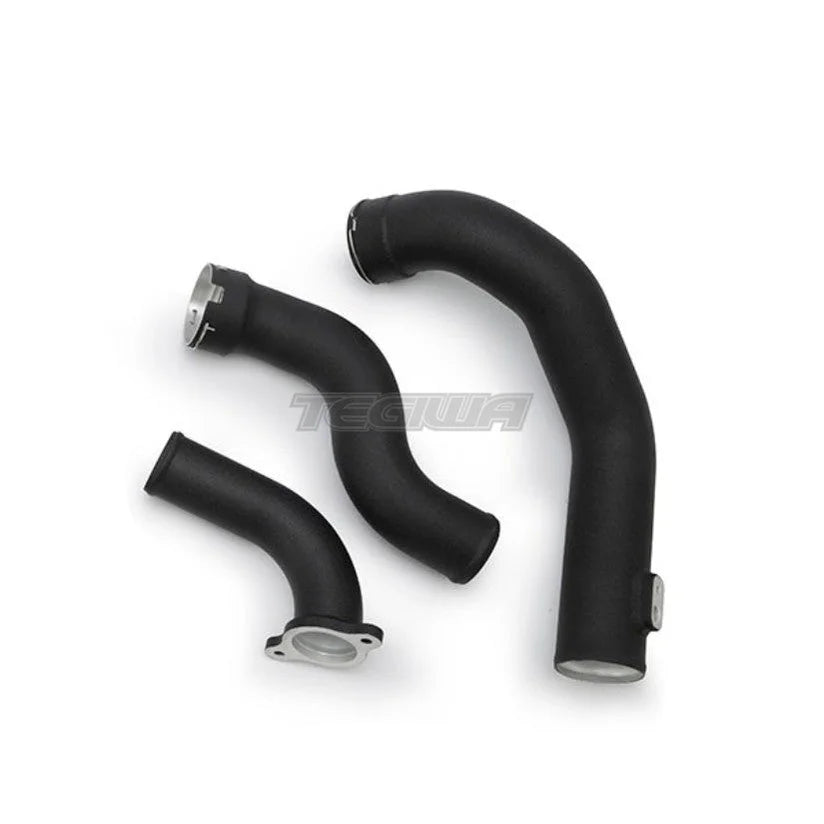

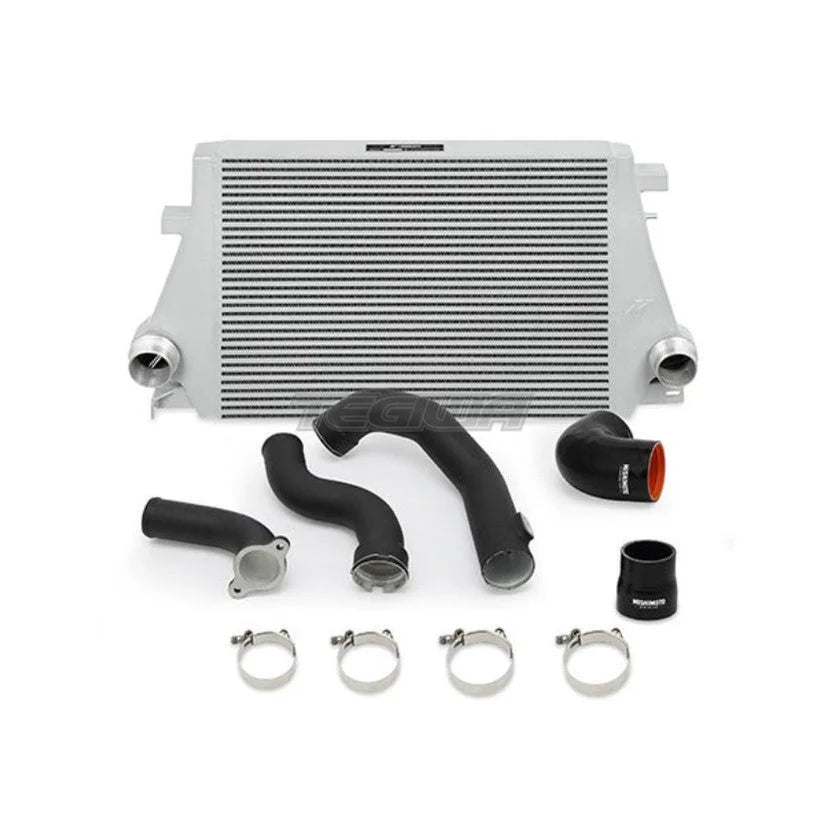

OptionLabel: Wrinkle Black Piping
It's time to give the intercooling system in your 2016+ Chevrolet Camaro 2.0T or 2013+ Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack for the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45-percent, and offers a whopping 239-percent gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible. Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75? diameters equating in a 30-percent increase in volume and 10-percent better flow of the charged air. All together, our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment, but also adding an aftermarket boost gauge or meth-injection is a breeze. The Mishimoto Performance Intercooler Kit for your 2013+ ATS or 2016+ Camaro is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.
