TechSpec Applications: Ford Focus ST, 2013-2018
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
No modification to front bumper required
CNC-machined ribbed inlet and outlet for secure coupler connections
Retains stock fog lights
Max power gains of 5 hp and 7 ft/lbs torque
Optimal core design for maximum cooling efficiency with minimal pressure drop
Provision for both US and Euro MAP sensor
Max power gains of 5 HP and 7 lb.-ft. of torque
Drops intercooler outlet temperatures by 34F
Increases core size by 128-percent and fin surface area by 32-percent
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

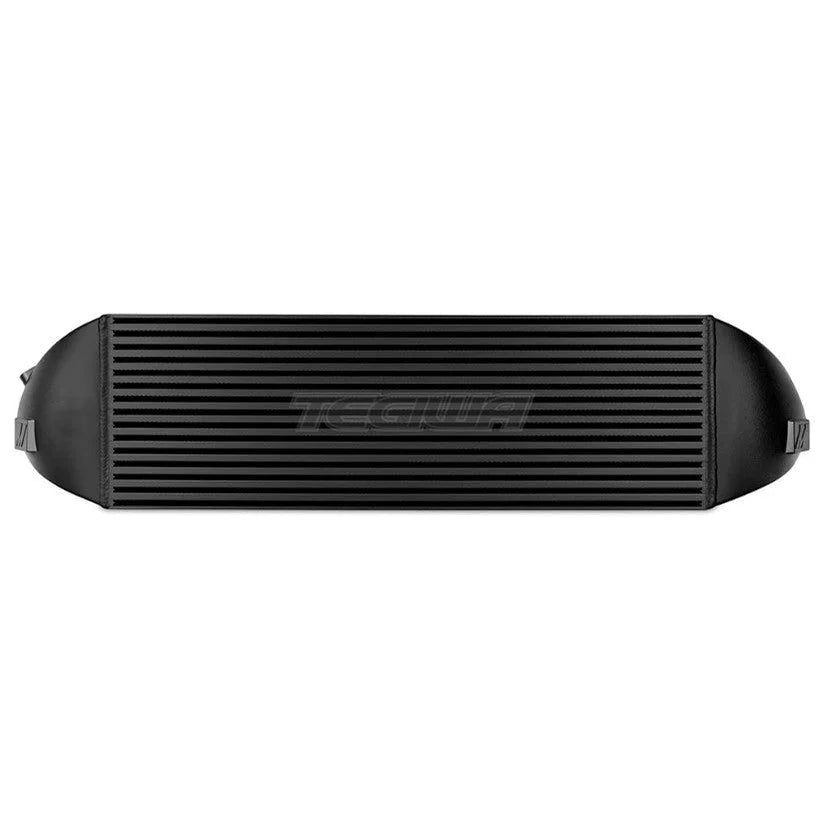

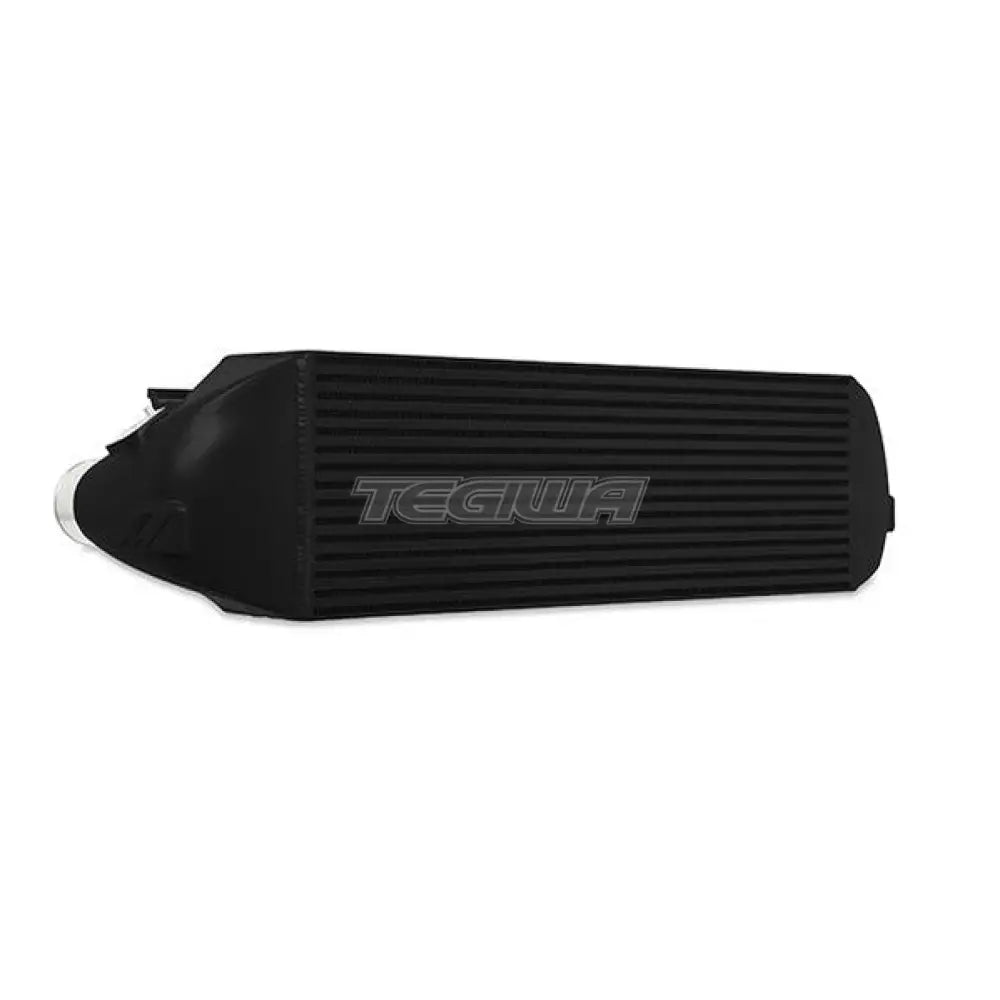

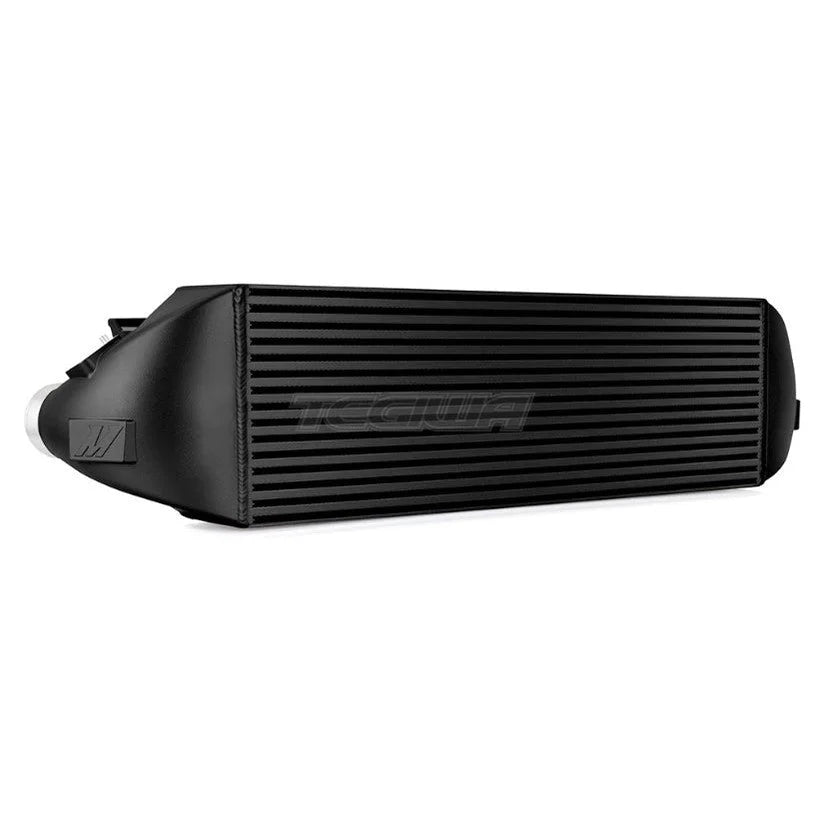

OptionLabel: Black
TechSpec Applications: Ford Focus ST, 2013-2018
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
No modification to front bumper required
CNC-machined ribbed inlet and outlet for secure coupler connections
Retains stock fog lights
Max power gains of 5 hp and 7 ft/lbs torque
Optimal core design for maximum cooling efficiency with minimal pressure drop
Provision for both US and Euro MAP sensor
Max power gains of 5 HP and 7 lb.-ft. of torque
Drops intercooler outlet temperatures by 34F
Increases core size by 128-percent and fin surface area by 32-percent
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

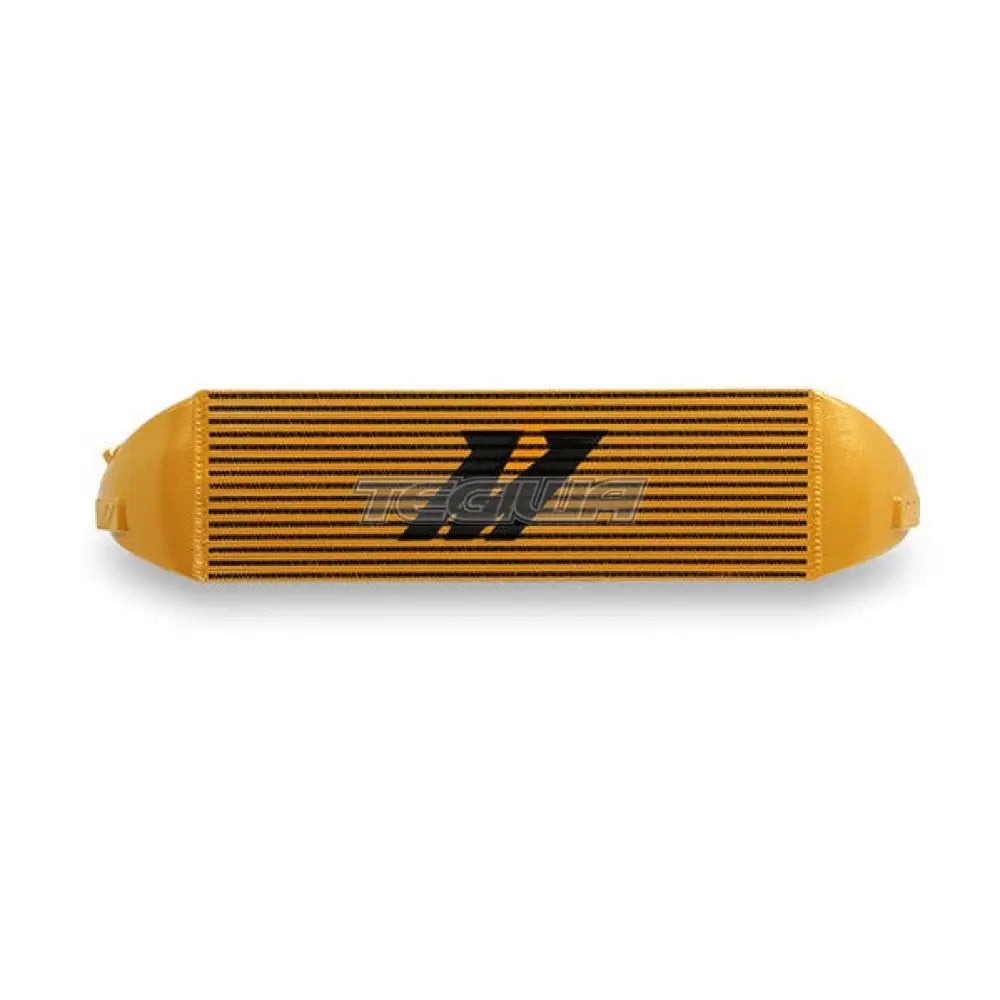

OptionLabel: Gold
TechSpec Applications: Ford Focus ST, 2013-2018
TechSpec Overall Length (in): 35.7
TechSpec Overall Height (in): 8.3
TechSpec Overall Width (in): 7.25
TechSpec Core Type: Bar-and-Plate
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.5
TechSpec Weight (lbs): 30
TechSpec Includes: (1) Mishimoto Intercooler--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Features:
Direct fit for the 2013-2018 Ford Focus ST
4.3-in thick intercooler design optimized for maximum flow
No modification to front bumper required
CNC-machined ribbed inlet and outlet for secure coupler connections
Retains stock fog lights
Max power gains of 5 hp and 7 ft/lbs torque
Optimal core design for maximum cooling efficiency with minimal pressure drop
Provision for both US and Euro MAP sensor
Max power gains of 5 HP and 7 lb.-ft. of torque
Drops intercooler outlet temperatures by 34F
Increases core size by 128-percent and fin surface area by 32-percent
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

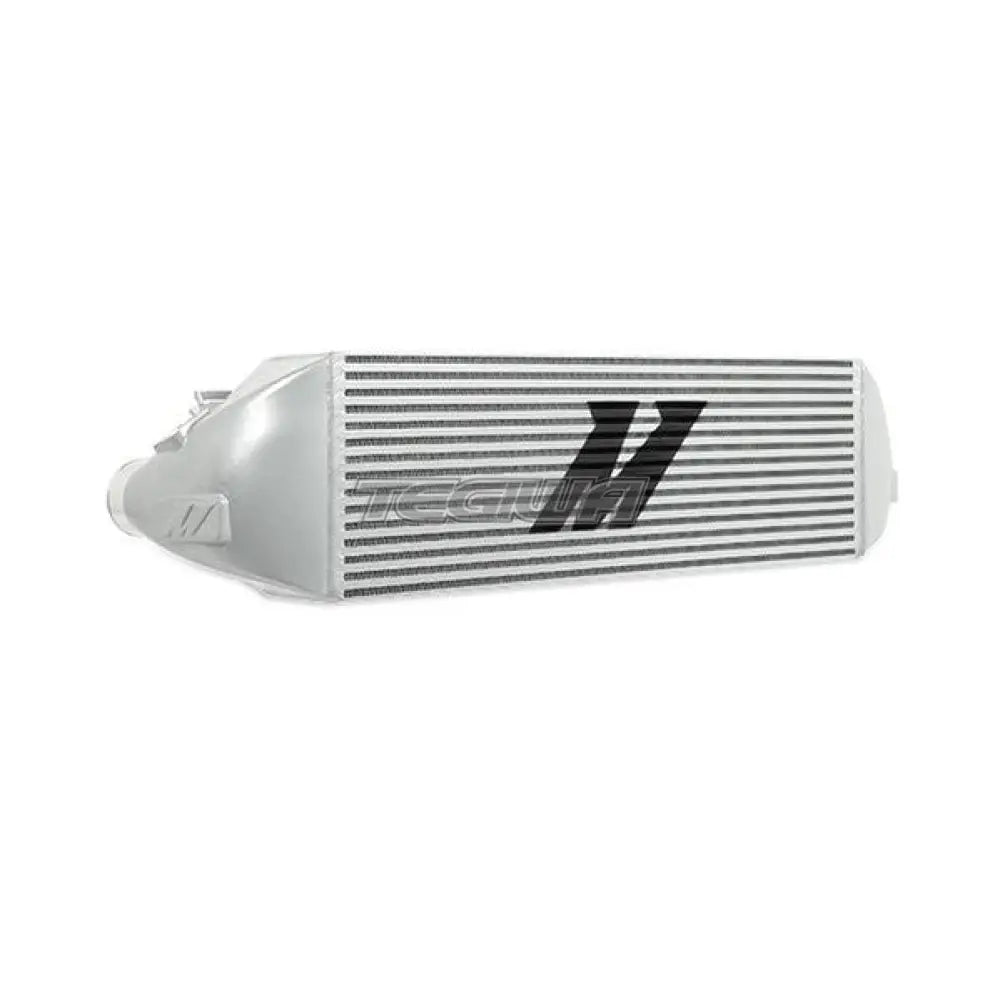

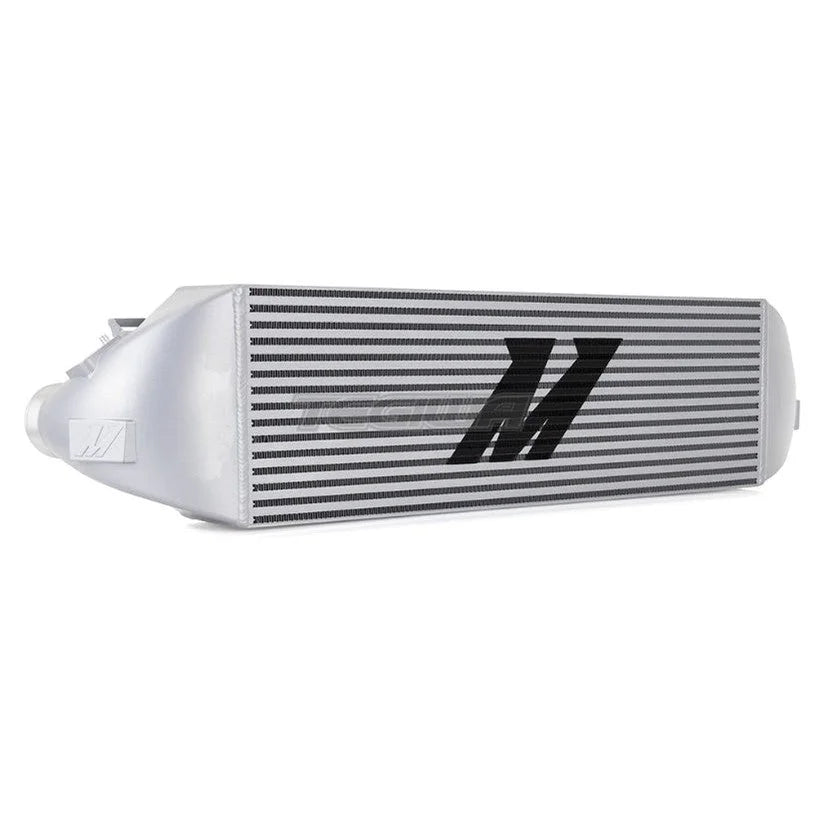

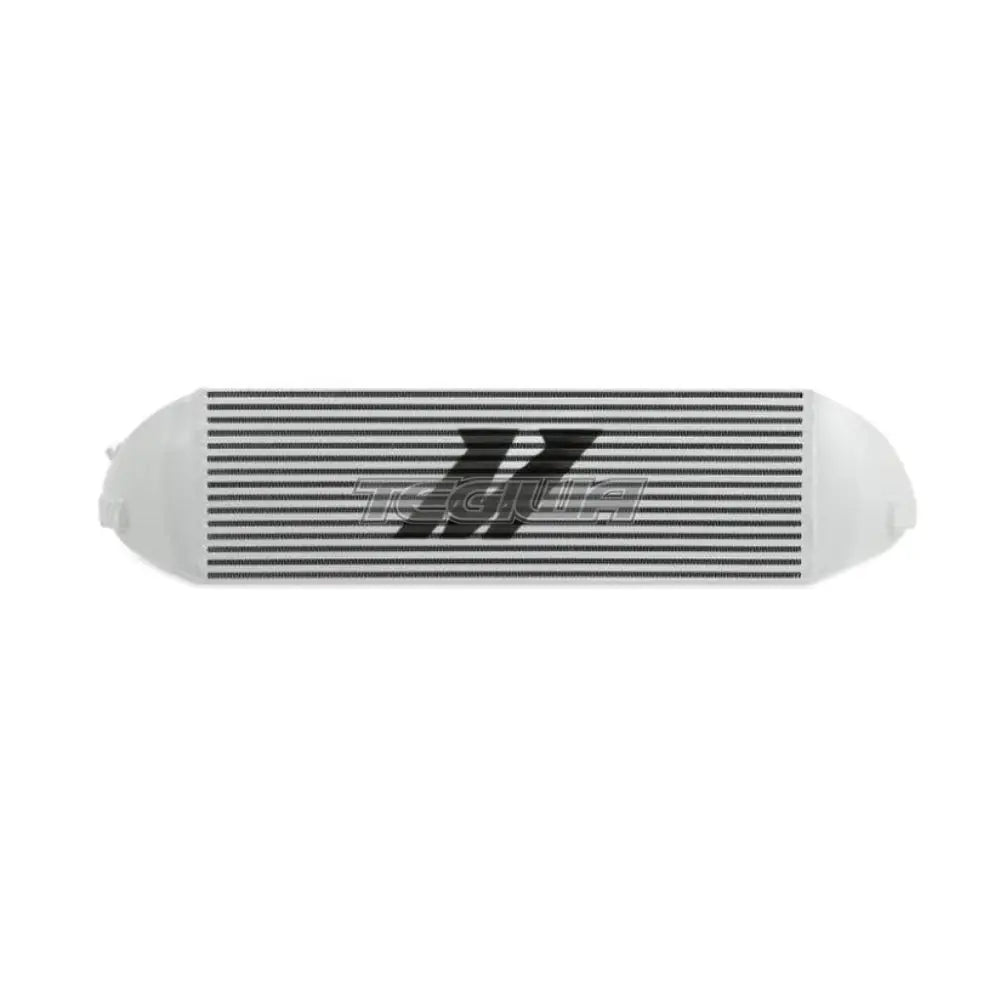

OptionLabel: Silver

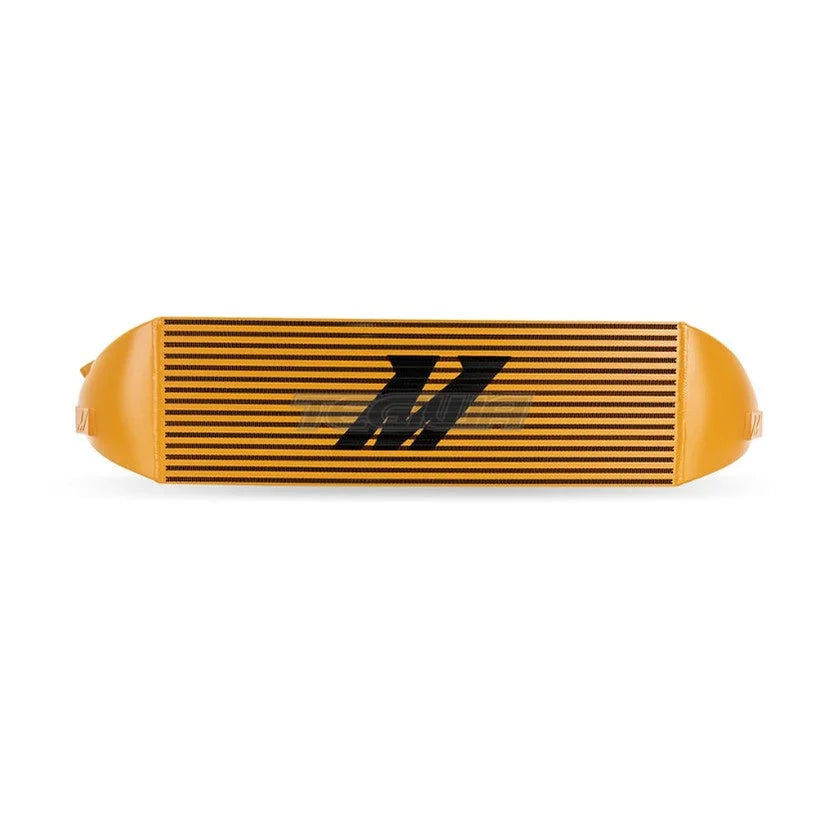

With our extensive line of Focus ST products, one more thing was needed to complete the Mishimoto arsenal ? a performance intercooler upgrade. We?d like to introduce our 2013-2018 Ford Focus ST Performance Intercooler. This intercooler brings great performance, awesome looks, and increased airflow efficiency all in one neat package. Our intercooler drops outlet temperatures by 34 degrees through a core that is 128-percent bigger than stock, along with 32-percent more external fin surface area. When it comes to power, we saw consistent improvements of an extra 5hp and 7 ft-lbs of torque over baseline. Due to space constraints, this intercooler will not fit with the active splitters, but the factory shrouding beneath the front grill can stay to keep constant airflow directed at the core. Other than the splitters, this intercooler is a direct-fit upgrade from your stock unit, and it comes with the Mishimoto Lifetime Warranty. Get yours today!
