TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.59
TechSpec Core Length (in): 28.8
TechSpec Core Height (in): 6.35
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.

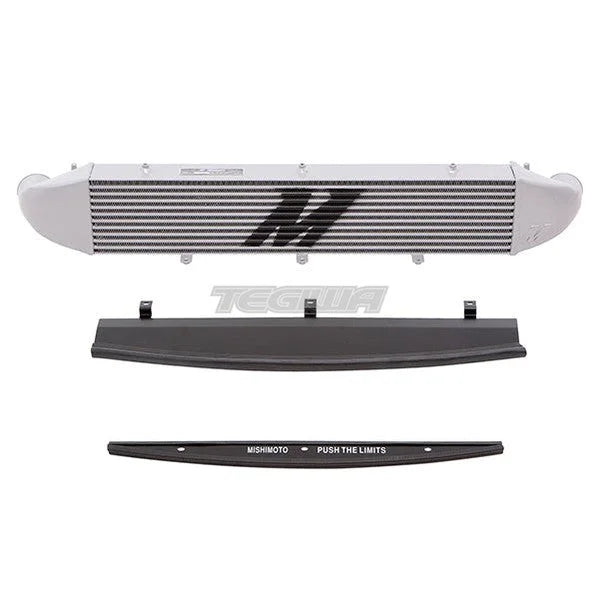

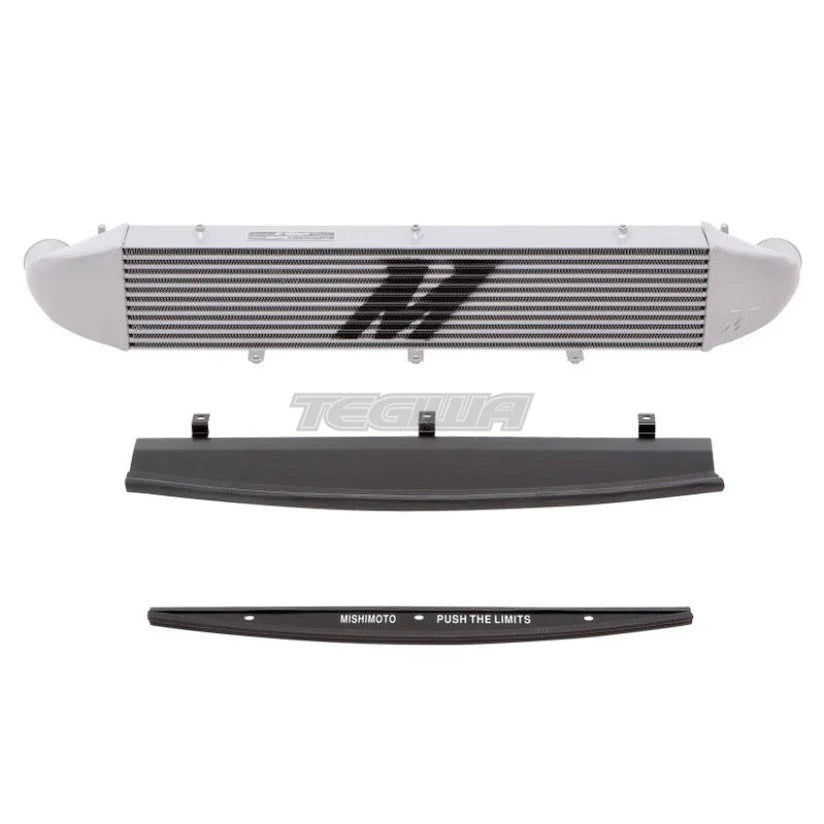

TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--Mishimoto Lifetime Warranty
Features:
Direct-fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

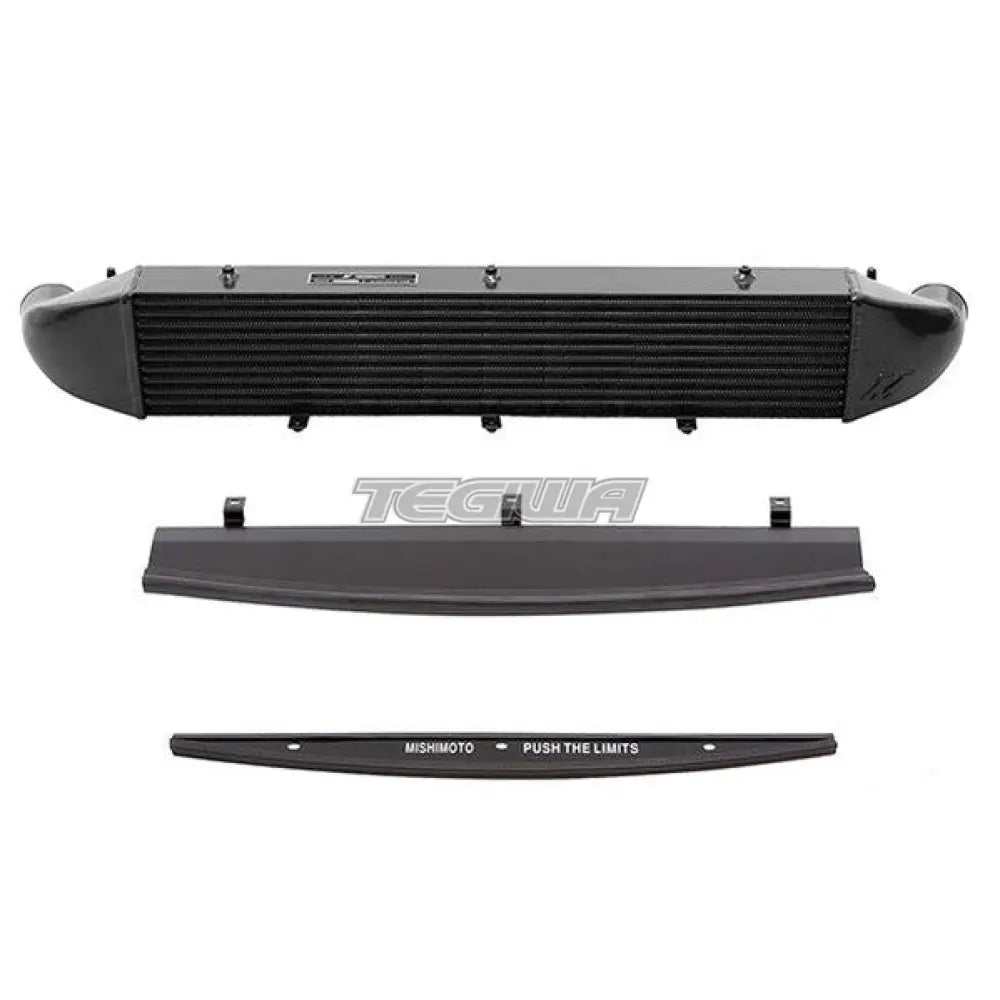

OptionLabel: Black
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.59
TechSpec Core Length (in): 28.8
TechSpec Core Height (in): 6.35
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--Mishimoto Lifetime Warranty
Features:
Direct-fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

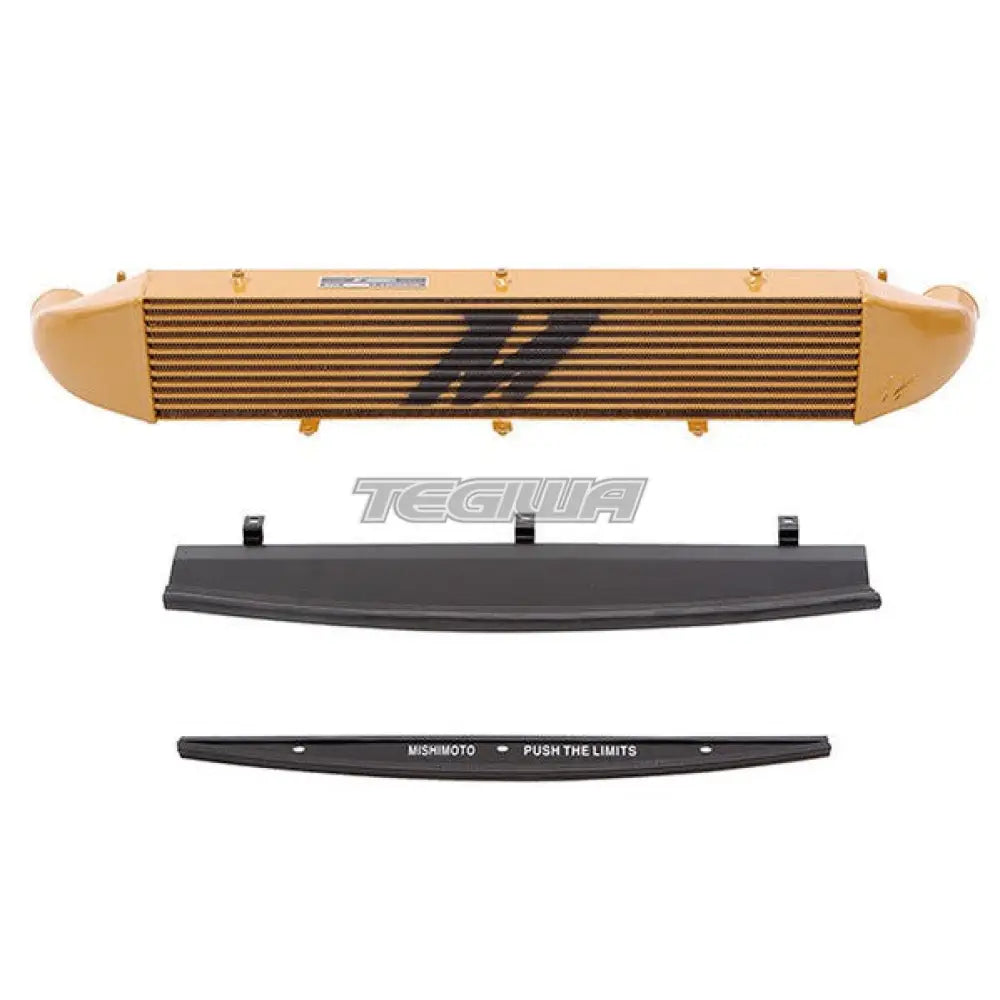

OptionLabel: Gold
TechSpec Applications: 2014-2019 Ford Fiesta ST
TechSpec Engine Codes: 1.6L Ecoboost
TechSpec Chassis Codes: B3
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 325
TechSpec Overall Length (in): 40.1
TechSpec Overall Height (in): 6.36
TechSpec Overall Width (in): 6.15
TechSpec Core Type: Tube-and-Fin
TechSpec Core Thickness (in): 2.59
TechSpec Core Length (in): 28.8
TechSpec Core Height (in): 6.35
TechSpec Inlet (in): 2.55
TechSpec Outlet (in): 2.55
TechSpec Weight (lbs): 13.4
Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--Mishimoto Lifetime Warranty
Features:
Direct-fit for the 2014-2019 Ford Fiesta ST
26F (15C) reduction in AIT
51-percent increase in core size
25-percent increase in internal core volume and 226-percent increase in external fin surface area
Includes air diversion plates to direct air through the intercooler core for maximum efficiency
Stock location prevents airflow blockage to radiator and AC condenser
Tube and fin construction for added weight reduction over bar and plate cores
All-aluminum, TIG-welded
Available in Sleek Silver or Stealth Black or Bold Gold
Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
Mishimoto Lifetime Warranty
CARB EO Number: D-759-6
Install Difficulty: 3

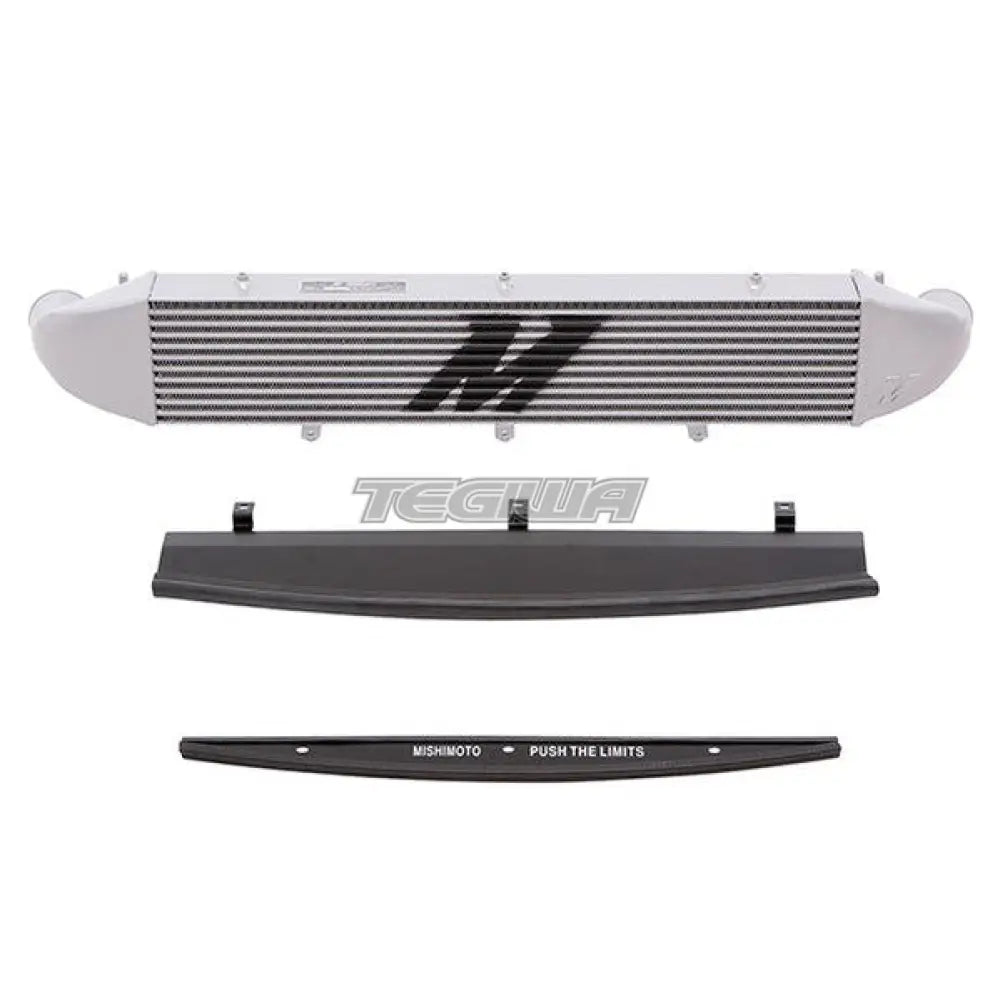

OptionLabel: Silver
Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fits with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This 2014-2017 Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!
