TechSpec Applications: 2007-2011 BMW 335i/xi Sedan--2007-2013 BMW 335i/xi/is Coupe--2007-2013 BMW 335i/xi/is Convertible--2008-2013 BMW 135i/is Coupe--2008-2013 BMW 135i/is Convertible--2011 BMW 1M Coupe--2009-2013 BMW Z4 sDrive 35i/is--2012+ BMW X1 xDrive35i
TechSpec Engine Codes: N54--N55
TechSpec Chassis Codes: E90--E92--E93--E82
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Overall Length (in): 27.8
TechSpec Overall Height (in): 6.8
TechSpec Overall Width (in): 8.7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 5.12
TechSpec Core Length (in): 20.47
TechSpec Core Height (in): 5.12
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Weight (lbs): 15.8
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the E9X Chassis with N54/N55 engines
20 hp increase
35 F (19.45 C) reduction in AIT
22-percent increase in core size
Includes CNC-machined quick-disconnect fittings to mate with OEM pipes
Easy install-under an hour
Direct fit-no modifications required
Bar-and-plate construction
100-percent aluminum, TIG-welded with cast end tanks
CARB EO number: D-759
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 2
OptionLabel: Silver
TechSpec Applications: 2007-2011 BMW 335i/xi Sedan--2007-2013 BMW 335i/xi/is Coupe--2007-2013 BMW 335i/xi/is Convertible--2008-2013 BMW 135i/is Coupe--2008-2013 BMW 135i/is Convertible--2011 BMW 1M Coupe--2009-2013 BMW Z4 sDrive 35i/is--2012+ BMW X1 xDrive35i
TechSpec Engine Codes: N54--N55
TechSpec Chassis Codes: E90--E92--E93--E82
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Overall Length (in): 27.8
TechSpec Overall Height (in): 6.8
TechSpec Overall Width (in): 8.7
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 5.12
TechSpec Core Length (in): 20.47
TechSpec Core Height (in): 5.12
TechSpec Inlet (in): 3
TechSpec Outlet (in): 3
TechSpec Weight (lbs): 15.8
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
Features:
Direct fit for the E9X Chassis with N54/N55 engines
20 hp increase
35 F (19.45 C) reduction in AIT
22-percent increase in core size
Includes CNC-machined quick-disconnect fittings to mate with OEM pipes
Easy install-under an hour
Direct fit-no modifications required
Bar-and-plate construction
100-percent aluminum, TIG-welded with cast end tanks
CARB EO number: D-759
Mishimoto Lifetime Warranty
CARB EO Number: D-759
Install Difficulty: 2
OptionLabel: Black

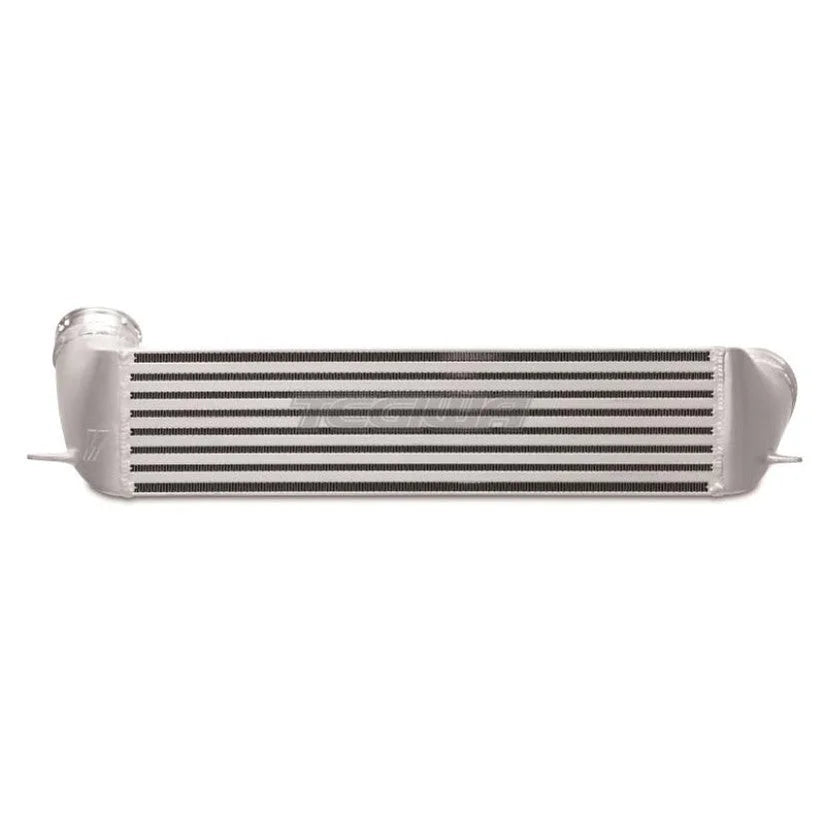

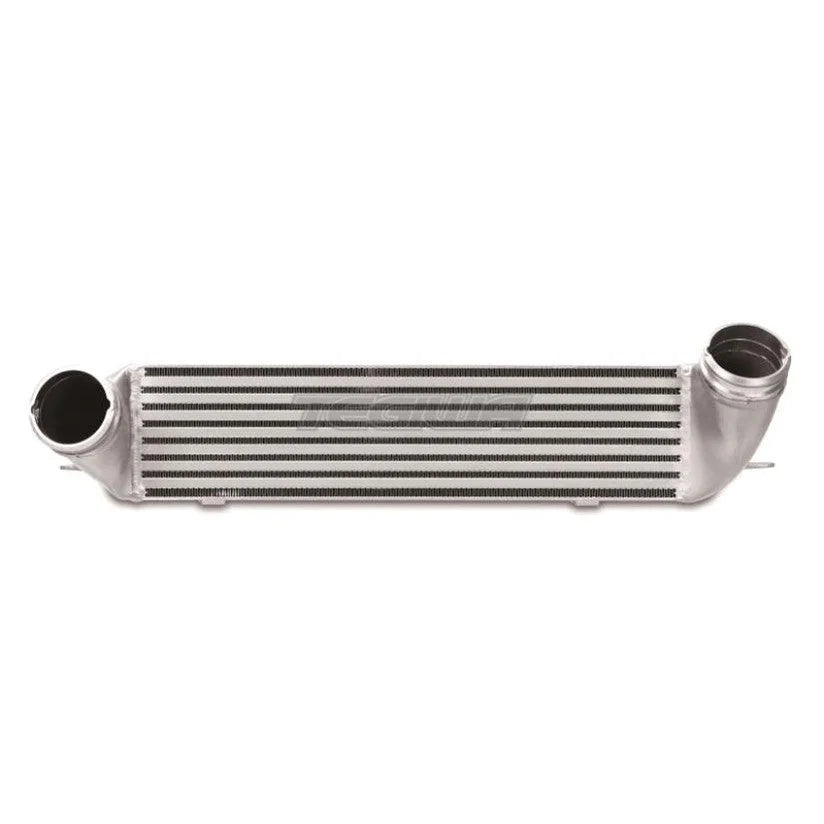

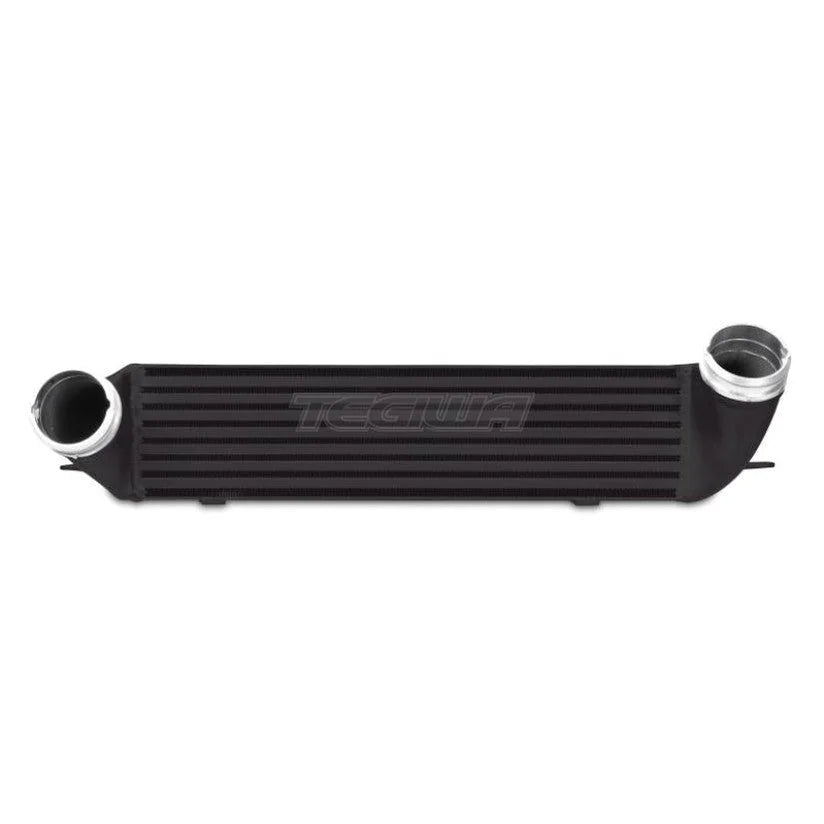

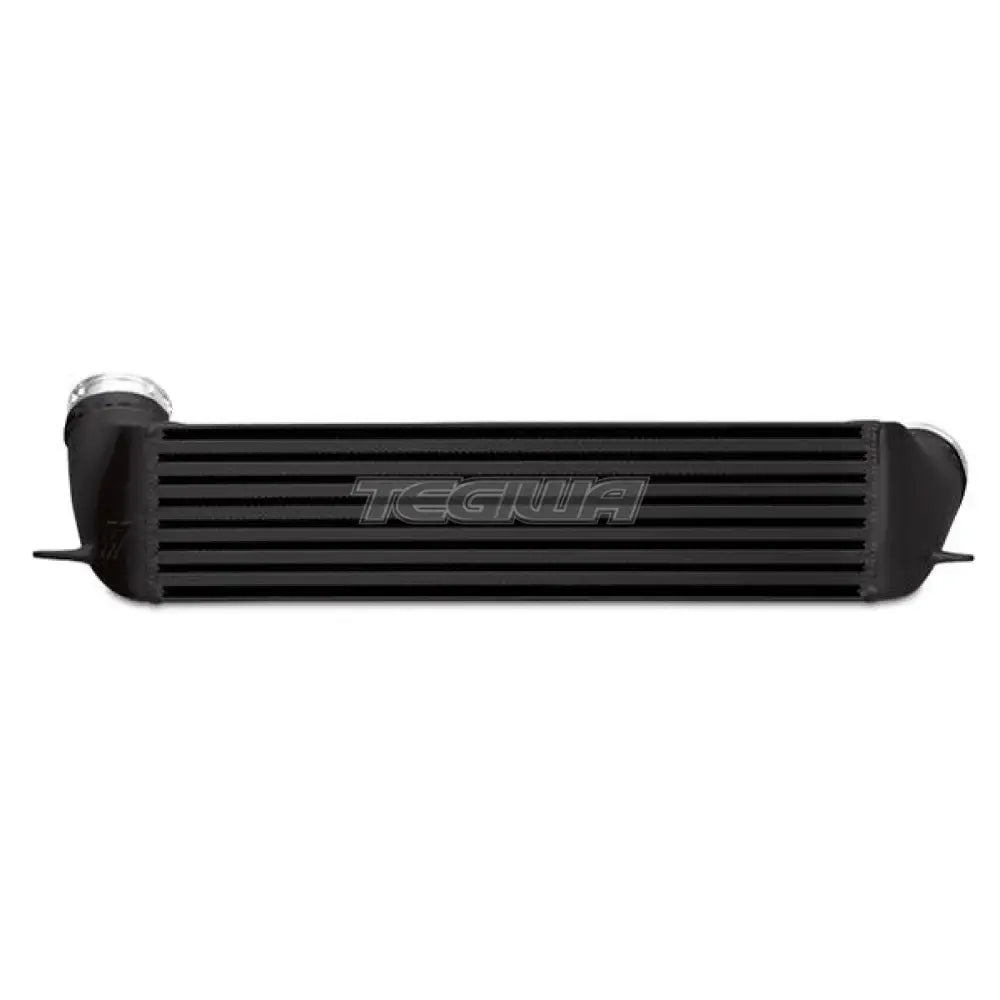

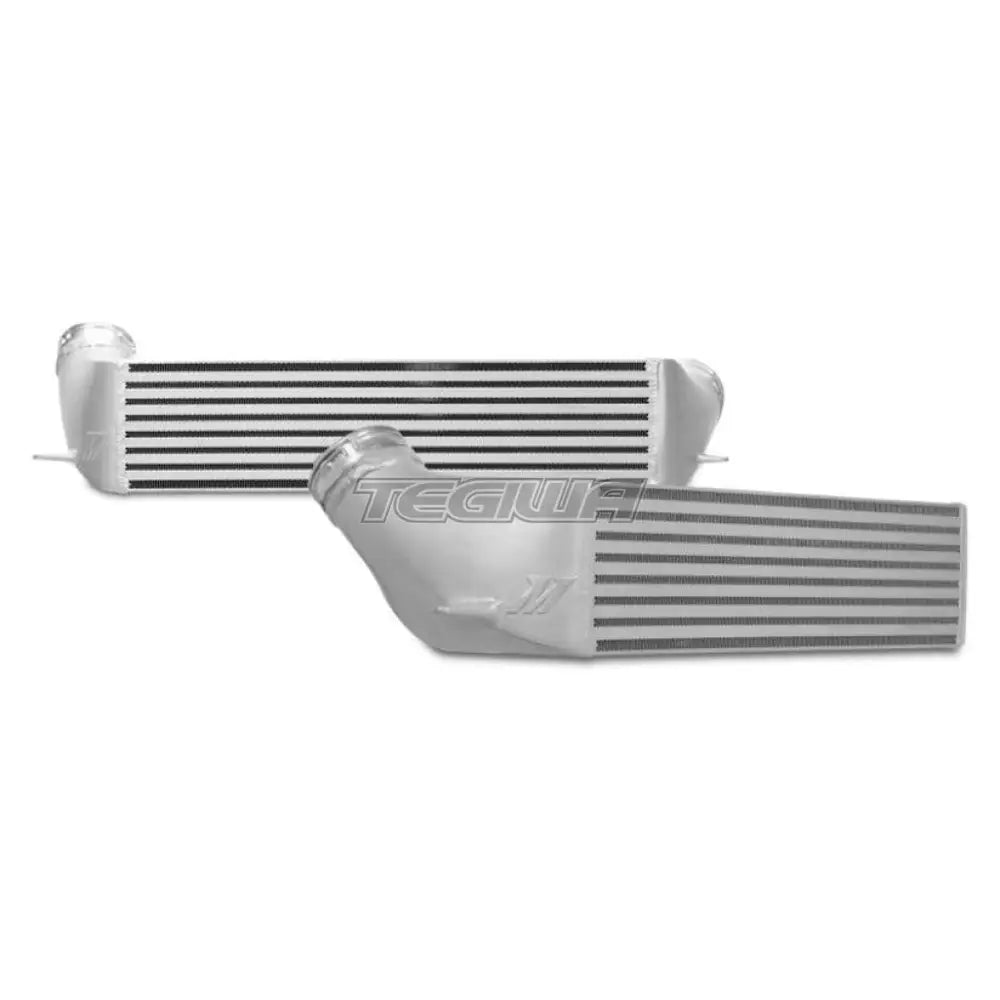

The E90 BMW is a great platform for soaking up highway miles during the weekday and taking to the track on the weekend.With some minor modifications, the straight six is capable of producing substantial power.Added power will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak.Mishimoto has developed a highly efficient bar-and-plate intercooler engineered specifically for the BMW 335i/335xi/135i.The Mishimoto intercooler is a direct-fit unit and features a 22-percent increase in core volume while requiring no modification to your vehicle.This cooler is constructed with cast end tanks and precision CNC-machined aluminum quick disconnects for use with the factory intercooler piping.The Mishimoto BMW 335i/335xi/135i performance intercooler reduces intake temperatures by 35 F and provides an increase of 20+ hp while retaining factory boost pressure across the core.This intercooler features precision TIG welding and is available with a silver or black finish.With a one-hour installation, substantial power and temperature benefits, and a lifetime warranty, the Mishimoto BMW 335i/335xi/135i performance intercooler is the perfect upgrade for your stock cooler!
