TechSpec Fluid Capacity (gal): 0.6
TechSpec Rows: 1
TechSpec Material: Aluminum
TechSpec Applications: 2015-2018 BMW M3 Sedan--2015-2020 BMW M4 Coupe--2015-2020 BMW M4 Convertible--2016 BMW M4 GTS Coupe--2019-2020 BMW M4 CS Coupe--2019-2020 BMW M2 Competition
TechSpec Engine Codes: S55
TechSpec Chassis Codes: F80--F82--F83--F87
TechSpec Includes: Performance Heat Exchanger-- Stone Guard-- Magnetic Drain Plug-- CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
Features:Direct fit for the 2015-2020 BMW M3, M4, and M2 Competition
10F drop in global intercooler coolant temperatures over stock
60-percent increase in core volume
Includes durable stainless-steel stone guard for maximum protection against road debris
180-percent increase in external fin surface area
Increases intercooler coolant capacity by 0.6 gallons
Full aluminum, TIG-welded construction
Dual-pass design for maximum cooling
Variable fin-pitch design for improved airflow to DCT cooler
Patent D940,013
Mishimoto Lifetime Warranty
CARB EO Number: D-759-13
Install Difficulty: 4

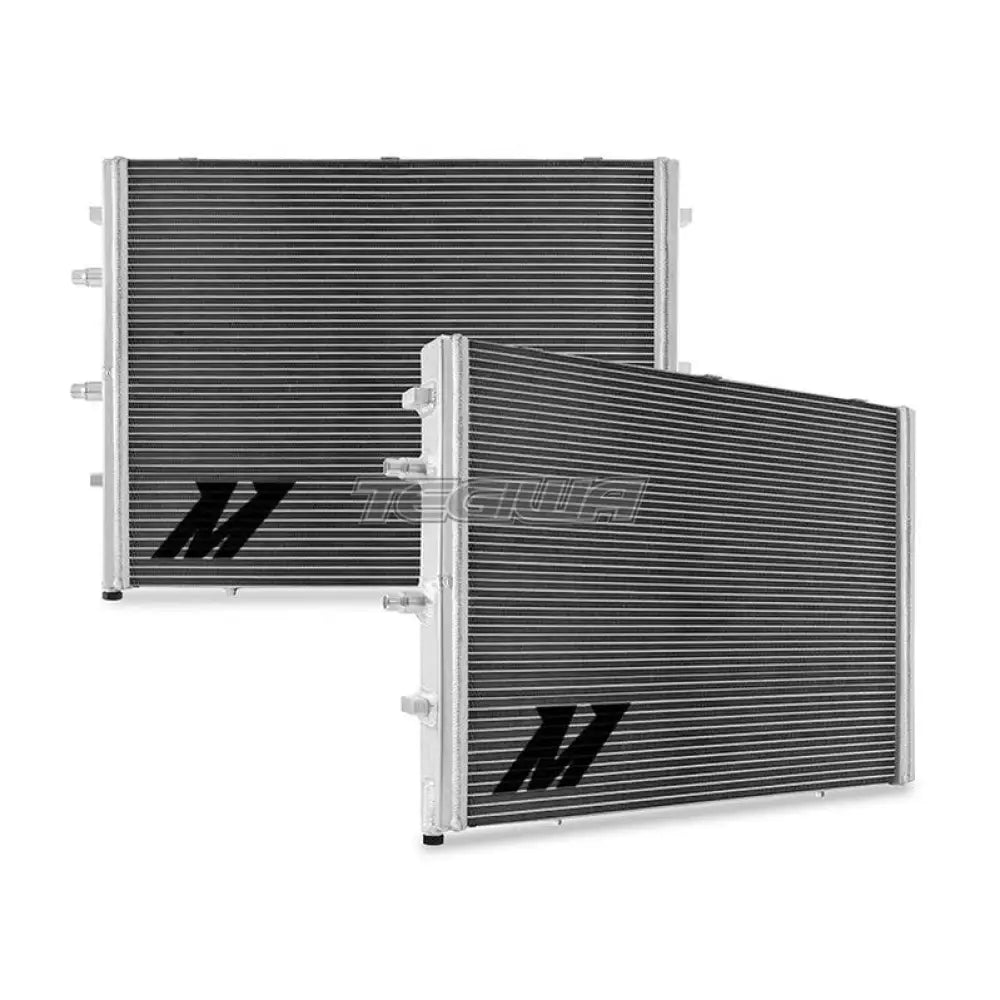

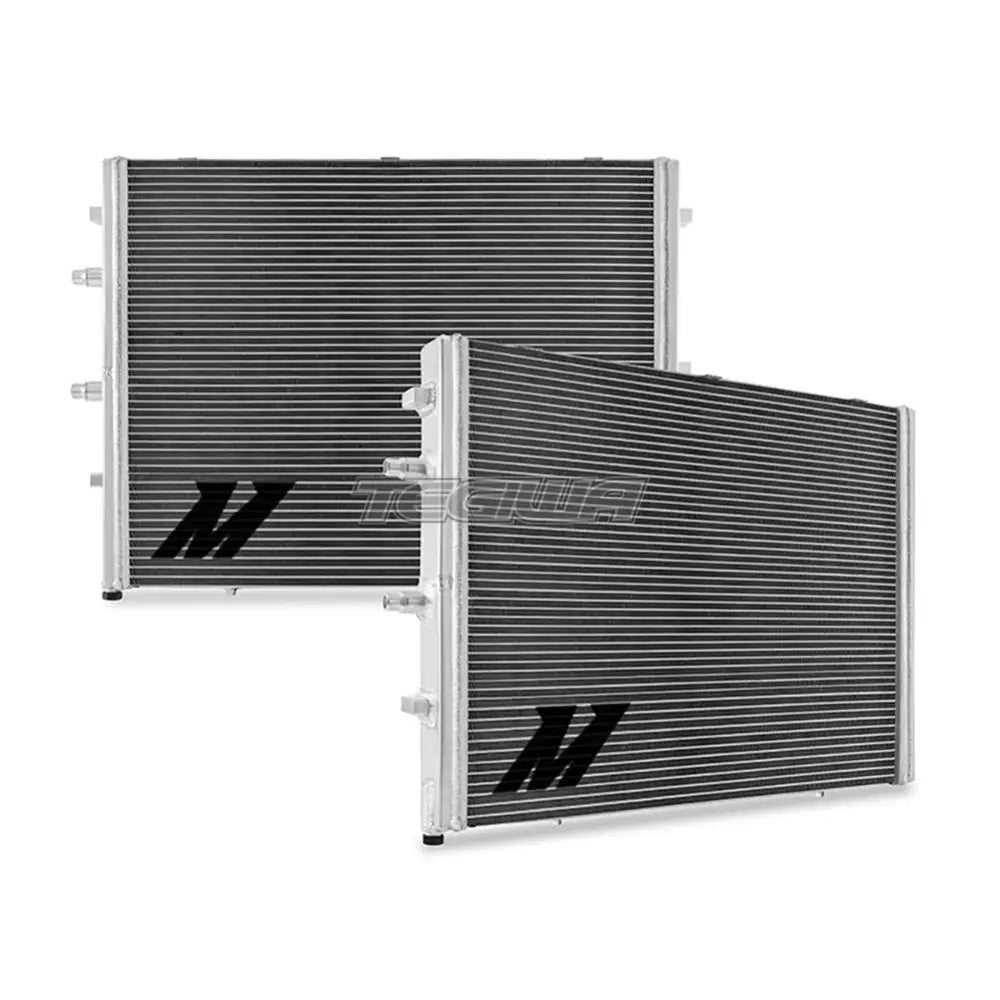

Improve the cooling capacity on your 2015-2020 BMW M3 or M4 with the Mishimoto Performance Heat Exchanger. Air-to-water intercooling is the means of more efficient heat transfer from the charged air, but it now requires an additional heat exchanger mounted to the front of the vehicle in order to dissipate the transferred heat. The S55 powering the F8X generation of the M?s packs quite a punch and while the BMW engineers laid a solid foundation for dissipating the heat from the intercooling system, but we saw some room to improve. We started by eliminating any bits of plastic from the design, and replacing the end tanks, and ports with durable aluminum. We kept the dual-pass flow through the core for maximum cooling properties, while expanding the core into the available space. Our new design features a 42mm thick core while extending the height by 150mm totaling in a 60-percent increase in core volume and adding 180-percent to the external fin surface area. The end result of our improvements is a 9 F drop in global intercooling system temperatures over the stock unit. Size isn?t the only thing that matters with this heat exchanger. Since the heat exchanger sits front and center in the M3 and M4?s cooling stack, It's susceptible to damage from road debris. To keep your air-to-water system safe, our heat exchanger comes equipped with a steel mesh stone guard for an added layer of protection for the fins. We also incorporated a variable fin pitch for the lower 12 rows on the core in order to facilitate cooling to DCT equipped M?s. Finally, our 2015-2020 BMW F8X M3/M4 Performance Heat Exchanger also includes the Mishimoto Lifetime Warranty for a worry-free install.
