TechSpec Applications: Ford Explorer ST V6 (3.0L) 2020+
TechSpec Engine Codes: 3.0L V6 EcoBoost
TechSpec Chassis Codes: CD6
TechSpec Maximum Recommended Horsepower: 625
TechSpec Overall Length (in): 18.5
TechSpec Overall Width (in): 37
TechSpec Core Type: Bar-and-Plate
TechSpec Core Length (in): 25.98
TechSpec Core Height (in): 16.52
TechSpec Inlet (in): 2.42
TechSpec Outlet (in): 2.42
TechSpec Weight (lbs): 32.6
Note: Requires minor trimming of intercooler shrouding

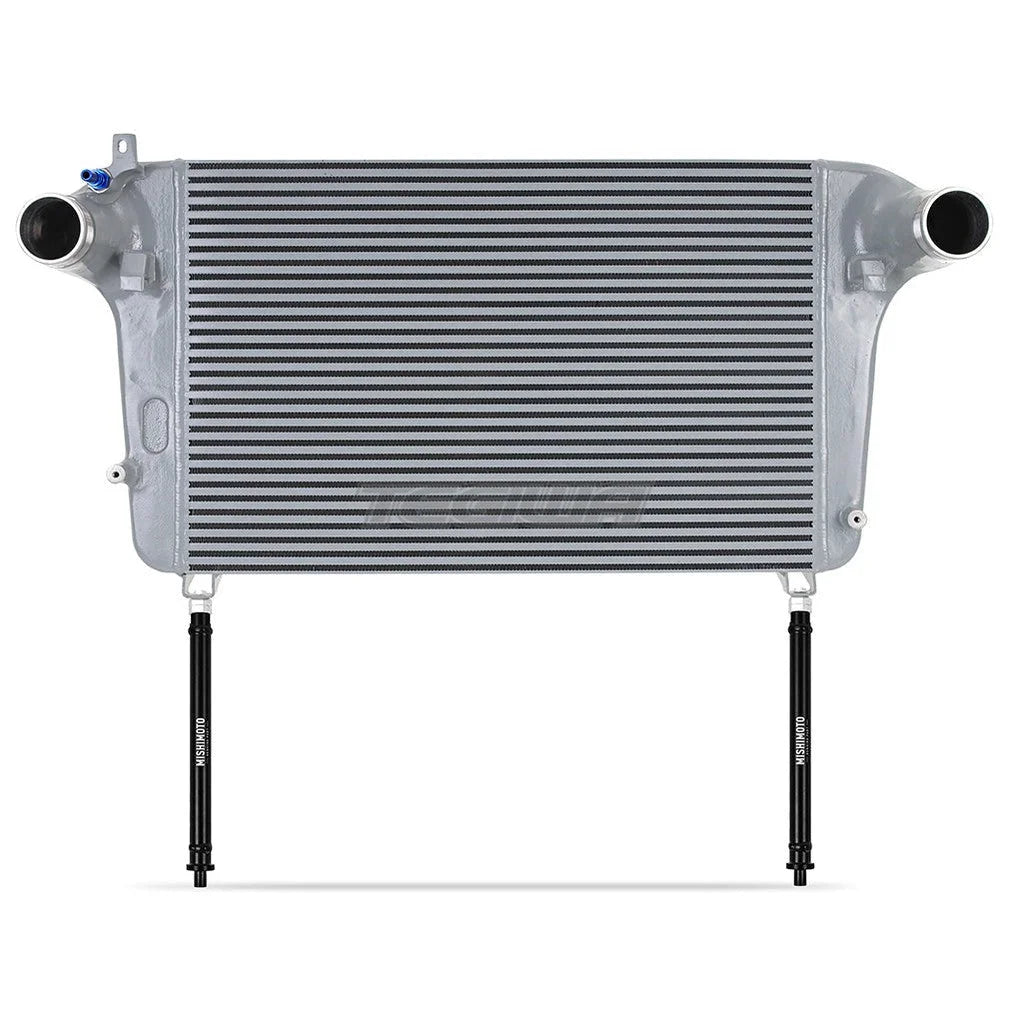

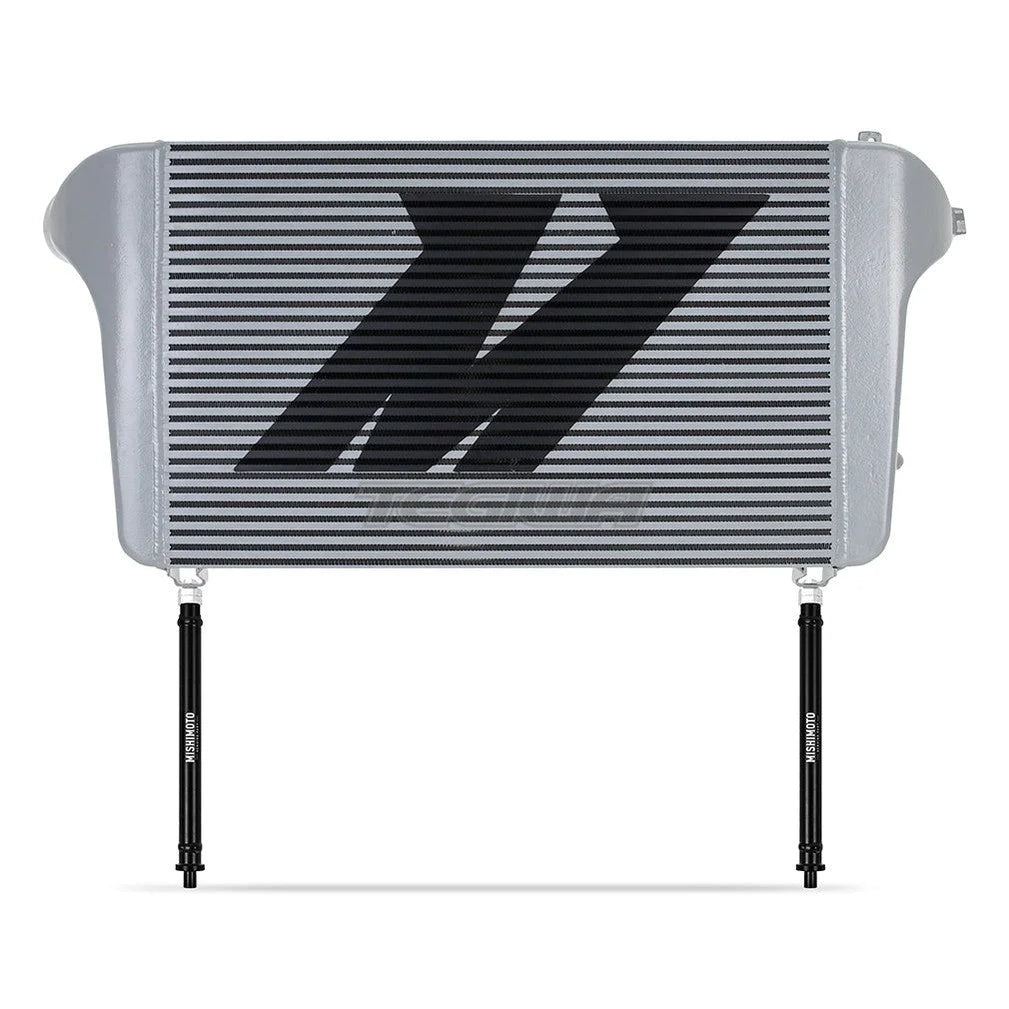

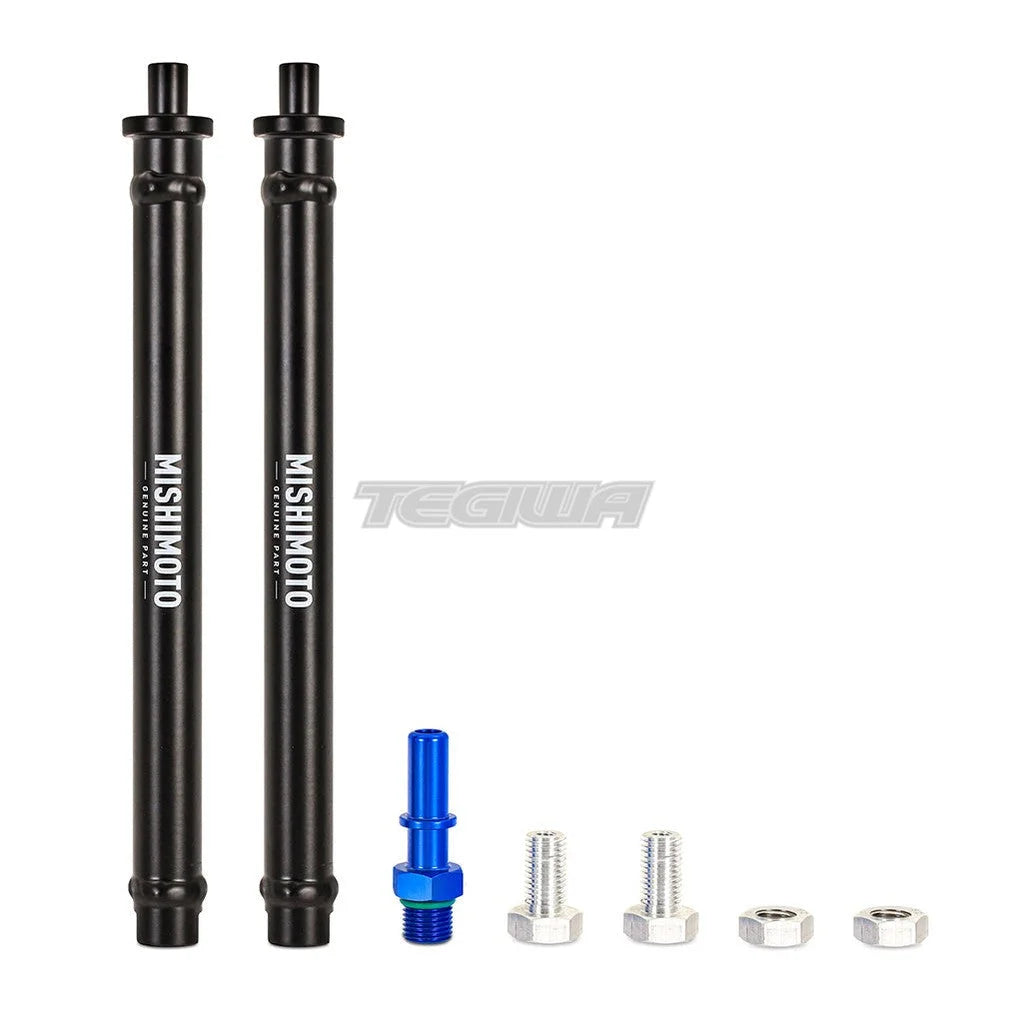

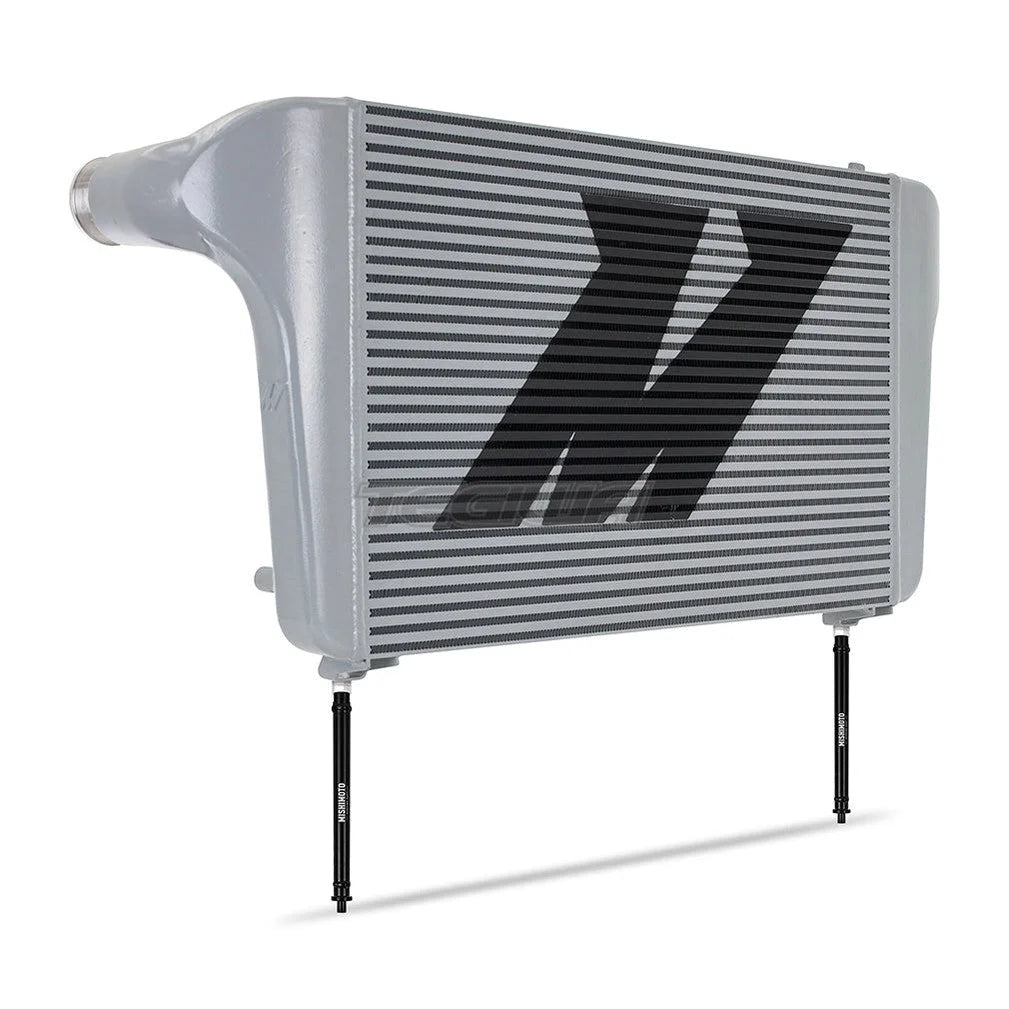

TechSpec Includes: (1) Mishimoto Performance Front Mount Intercooler--(2) Adjustable Lower Support Struts--(2) Mounting Grommets--(1) CNC-Machined EVAP Fitting--Mishimoto Lifetime Warranty
Features:Fits 2020+ Ford Explorer ST
Dyno-proven power gains of up to 65 HP and 12 lb.-ft of torque with tune
Reduces outlet temps by over 115F compared to stock
Safe for use on stock tune for gains of 34 HP and 7 lb.-ft. of torque
Provides ample cooling to support larger turbos
19-percent Less restrictive than stock intercooler with less than 1 psi pressure drop
130-percent increase in core volume over stock for maximum flow and cooling
168-percent increase in external fin surface area enables fast and efficient heat transfer
Durable bar-and-plate core for high-efficiency cooling and heat soak resistance
In-tank air diverters ensure even flow throughout the core for improved cooling
Cast and CNC-machined aluminum end tanks withstand high boost pressures

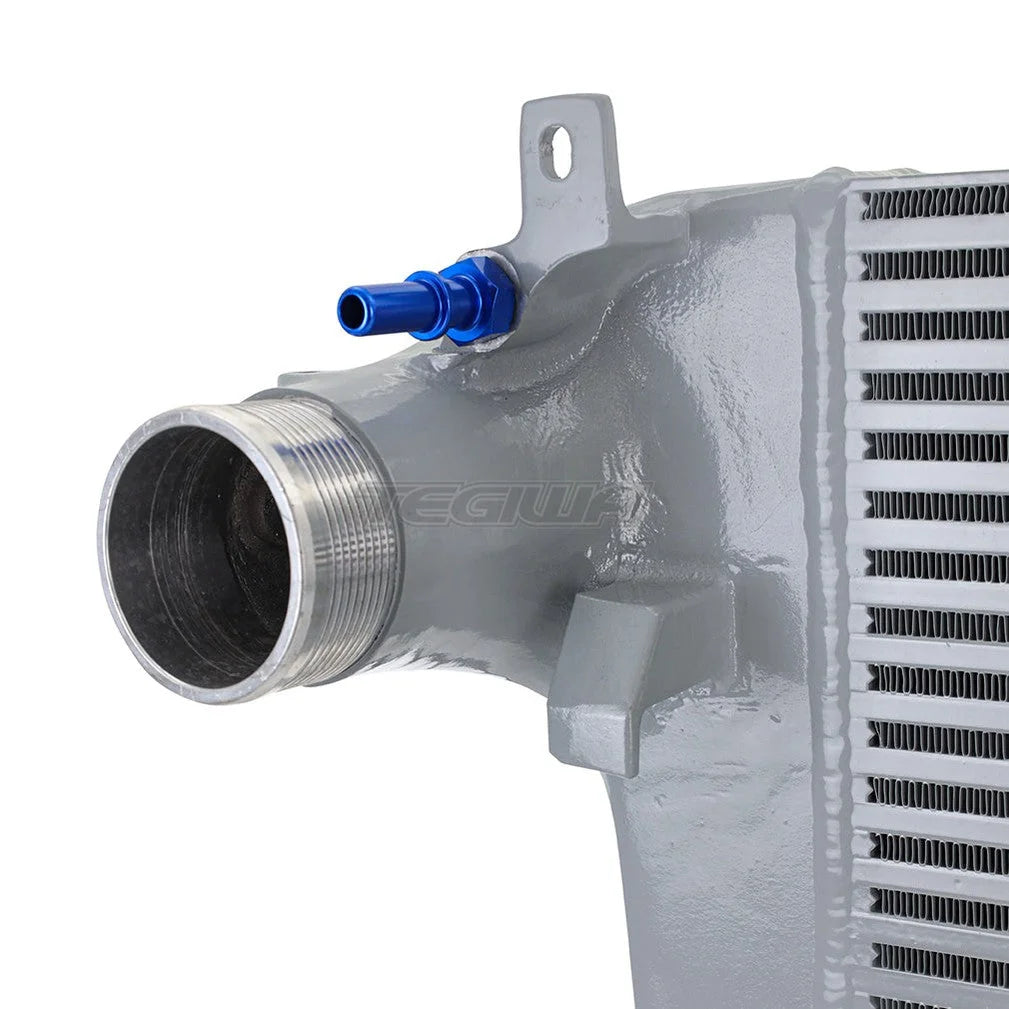

CNC-machined barbed inlet and outlet for secure coupler connections
Sleek silver powder coated finish resists corrosion
Patent Pending
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: Performance Front Mount Intercooler Kit, Fits Ford Explorer ST 2020+
Gone are the days when you had to choose between hauling the family to the mall or having fun on the way. The 2020+ Ford Explorer ST is the ultimate vehicle for anybody who loves to go fast but needs space for 7 people, dogs, or a week's camping trip worth of gear. But what if 400 HP and 415 lb.-ft of torque isn't enough for you and your 7 dogs? That's where Mishimoto's performance front mount intercooler for the 2020+ Explorer ST comes in. Our robust bar-and-plate intercooler boasts a massive 130-percent increase in core volume over the stock unit, with a 168-percent increase in fin surface area. Those increases result in better flow, better cooling, and, most importantly, more power. In dyno testing, our intercooler proved its worth by adding 34 HP 7 lb.-ft of torque at the wheels on the stock tune. But, where the Mishimoto intercooler really shines is when the turbos are pushed to their limits with a tune. With a stage one tune, our intercooler added a huge 65 HP and 12 lb.-ft of torque over the stock intercooler on the same tune. Even with the turbos spitting out superheated air at over 300F, our intercooler kept outlet air within 10F of ambient, versus over 200F outlet temps with the stock intercooler. All of this is achieved while being 19-percent less restrictive than stock. Performance is useless if you can only use it once. That's why our intercoolers also focus on reliability. This 2020+ Explorer ST intercooler utilizes a durable bar-and-plate core that's precision TIG-welded to the cast and CNC-machined aluminum end tanks. To ensure this intercooler stays firmly in place, we also include two adjustable lower support struts. To add an extra layer of corrosion resistance and tie it all together, we've finished our intercooler in a durable sleek silver powder coat. Like all Mishimoto Explorer ST products, this performance front mount intercooler is backed by our Mishimoto Lifetime Warranty.
