Color: Silver
Finish: Brushed Aluminum
Installation Difficulty: 4
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
TechSpec Includes: (1) Aluminum Fan Shroud--(1) 16-inch Mishimoto Slim Electric Fan--(1) Aluminum Overflow Reservoir Bracket--(1) Aluminum Power Steering Reservoir Bracket--Hardware Kit--Optional: Mishimoto Fan Controller, 1/8-inch NPT or Probe--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1850
Note: This fan shroud is compatible with stock radiator and Mishimoto’s Jeep Wrangler Performance Radiator.----This fan shroud is compatible with stock overflow tank and power steering reservoir.----Electric fan comes attached to the shroud.----Stock plastic fan shroud components must be removed for installation.----Overflow Reservoir Bracket is used for 1997-2006 4 and 6 cylinder applications----Power Steering Bracket 1997-2006 4 cylinder applications
TechSpec Height (in): 18
TechSpec Length (in): 23.6
TechSpec Width (in): 3.5
TechSpec Applications: 1987-1995 Jeep Wrangler (YJ)--1997-2006 Jeep Wrangler (TJ)--2004-2006 Jeep Wrangler Unlimited (TJ)
TechSpec Engine Codes: 2.5L I-4 Engine--4.0L I-6 Engine
TechSpec Chassis Codes: YJ--TJ
Features:
Direct fit for the 1987-2006 Jeep Wrangler TJ/YJ with 2.5L/4.0L engine
Includes 16-in High-Flow Electric Fan that provides over 1850 cfm of airflow
Optional fan controller provides complete control of coolant temperatures at idle
Fits with both stock and Mishimoto Jeep Wrangler Performance Radiator
Accommodates stock coolant overflow tank and power steering reservoir
Drain ports on bottom of shroud allow for water drainage during off-road conditions
Slim profile with a maximum thickness of just 3.5-in
Brushed aluminum finish
Includes all mounting hardware for installation
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: No Controller
Color: Silver
Finish: Brushed Aluminum
Installation Difficulty: 4
Material: Aluminum
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
TechSpec Engine Codes: 2.5L I-4 Engine--4.0L I-6 Engine
TechSpec Chassis Codes: YJ--TJ

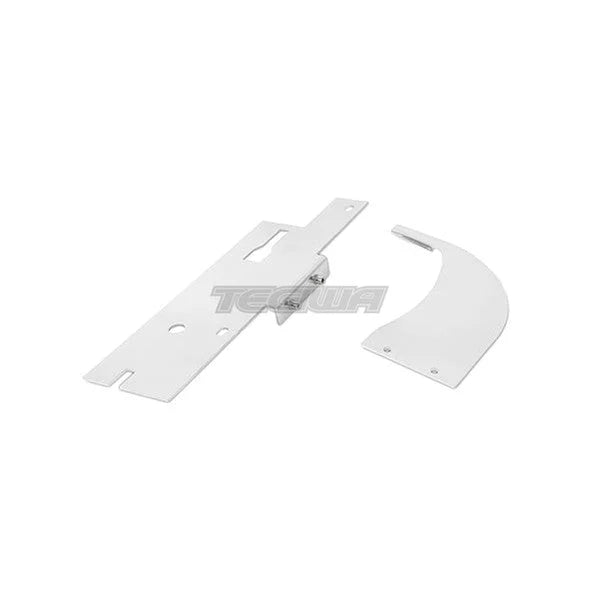

TechSpec Includes: (1) Aluminum Fan Shroud--(1) 16-inch Mishimoto Slim Electric Fan--(1) Aluminum Overflow Reservoir Bracket--(1) Aluminum Power Steering Reservoir Bracket--Hardware Kit--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
TechSpec CFM (Each Fan): 1850
Note: This fan shroud is compatible with stock radiator and Mishimoto’s Jeep Wrangler Performance Radiator.----This fan shroud is compatible with stock overflow tank and power steering reservoir.----Electric fan comes attached to the shroud.----Stock plastic fan shroud components must be removed for installation.----Overflow Reservoir Bracket is used for 1997-2006 4 and 6 cylinder applications----Power Steering Bracket 1997-2006 4 cylinder applications
TechSpec Height (in): 18
TechSpec Length (in): 23.6
TechSpec Width (in): 3.5
TechSpec Applications: 1987-1995 Jeep Wrangler (YJ)--1997-2006 Jeep Wrangler (TJ)--2004-2006 Jeep Wrangler Unlimited (TJ)
Features:
Direct fit for the 1987-2006 Jeep Wrangler TJ/YJ with 2.5L/4.0L engine
Includes 16-in High-Flow Electric Fan that provides over 1850 cfm of airflow
Optional fan controller provides complete control of coolant temperatures at idle
Fits with both stock and Mishimoto Jeep Wrangler Performance Radiator
Accommodates stock coolant overflow tank and power steering reservoir
Drain ports on bottom of shroud allow for water drainage during off-road conditions
Slim profile with a maximum thickness of just 3.5-in
Brushed aluminum finish
Includes all mounting hardware for installation
Mishimoto Lifetime Warranty
Install Difficulty: 4
OptionLabel: w/ Fan Controller

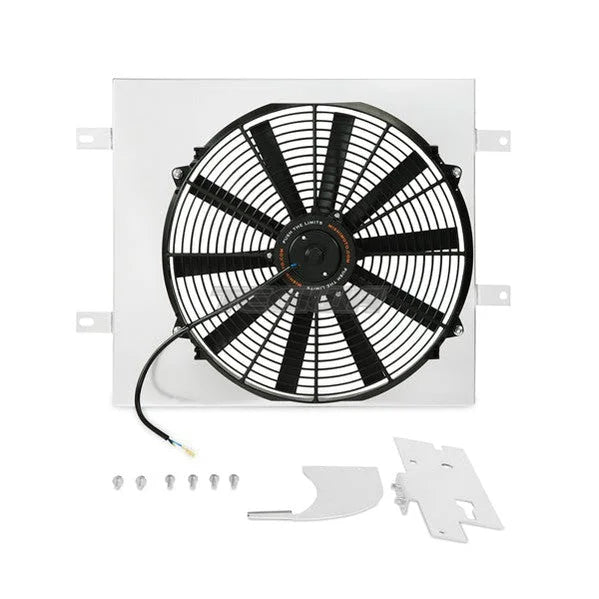

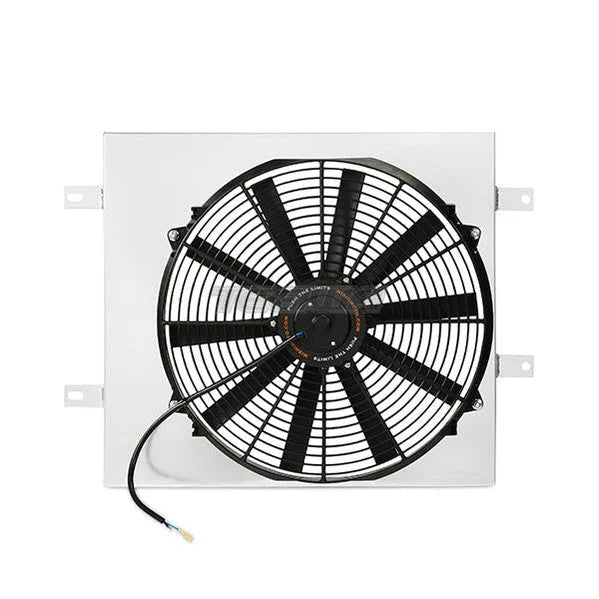

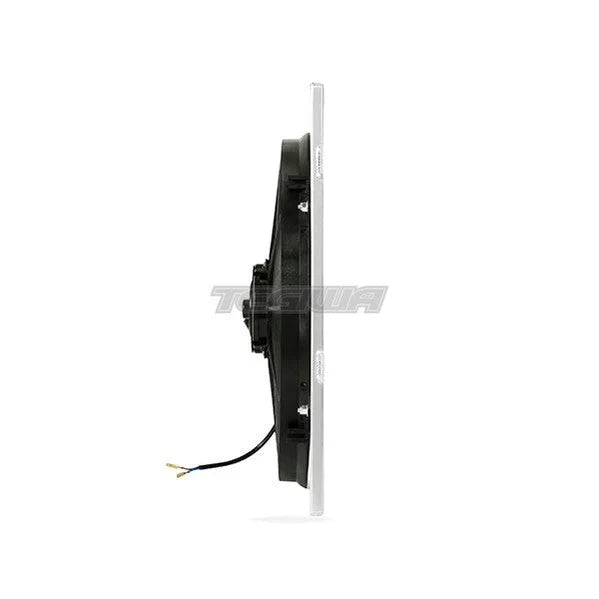

Keep your Jeep Wrangler YJ and Wrangler TJ cool with the Mishimoto Performance Fan Shroud Kit! This direct-fit electric fan shroud setup completely eliminates the stock mechanical fan. The fan shroud mounts directly to the stock radiator and Mishimoto Jeep Wrangler Performance Radiator and includes a 16 High-Flow Electric Fan that produces over 1850 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. The Engineers at Mishimoto designed drain ports on the bottom of the shroud to allow for water drainage during off-road conditions. The Mishimoto Jeep Wrangler YJ and TJ Fan Shroud Kit includes all hardware and brackets required for installation and is compatible with the stock expansion tank and power steering reservoir. Whether you have a 2.5L I-4 or 4.0L I6, all brackets are included with this kIt'so you don't need to order additional components! This fan shroud has a brushed finish that provides a subtle accent for your engine bay. As with all our performance Wrangler parts, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.in
