TechSpec Overall Height (in): 31.57
TechSpec Overall Length (in): 19.76
TechSpec Overall Width (ins): 4.68
TechSpec Core Length (in): 24.92
TechSpec Core Height (in): 17.24
TechSpec Fluid Capacity (gal): 3.97
TechSpec Rows: 2
TechSpec Inlet (in): 1.57
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2139
TechSpec Material: Aluminum
TechSpec Applications: 1997-2001 Ford Mustang Cobra--2002-2004 Ford Mustang SVT Cobra--2001 Ford Mustang Bullitt--2003-2004 Ford Mustang Mach 1
TechSpec Engine Codes: 289ci (4.6L)
TechSpec Chassis Codes: SN-95
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
Features:Direct fit for the 1997-2004 Ford Mustang 4.6L with manual transmission
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Perfect for use on the street or strip
Efficient temperature regulation for both stock and modified vehicles

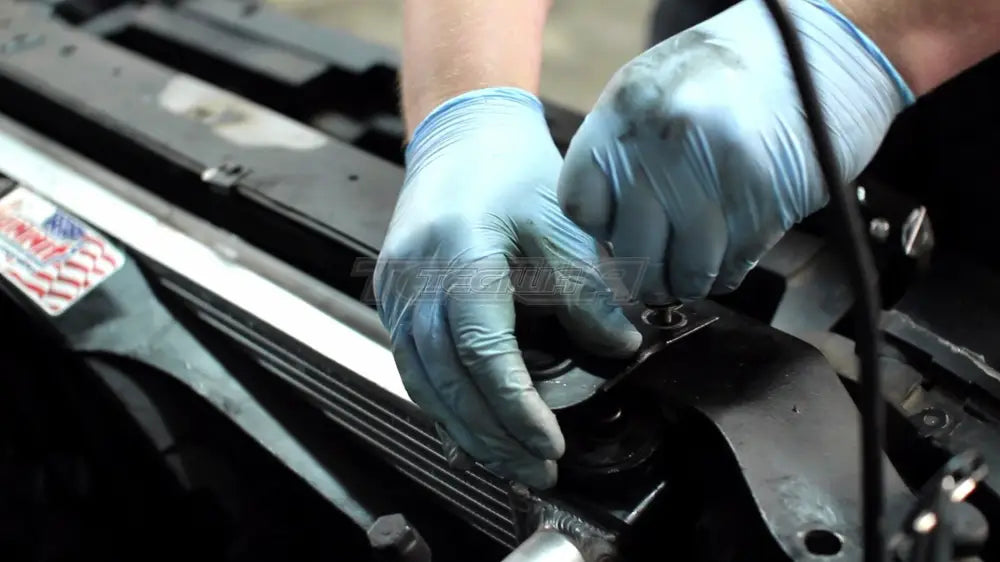

Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
U.S. Patent numberD703,126
Mishimoto Lifetime Warranty
Install Difficulty: 3

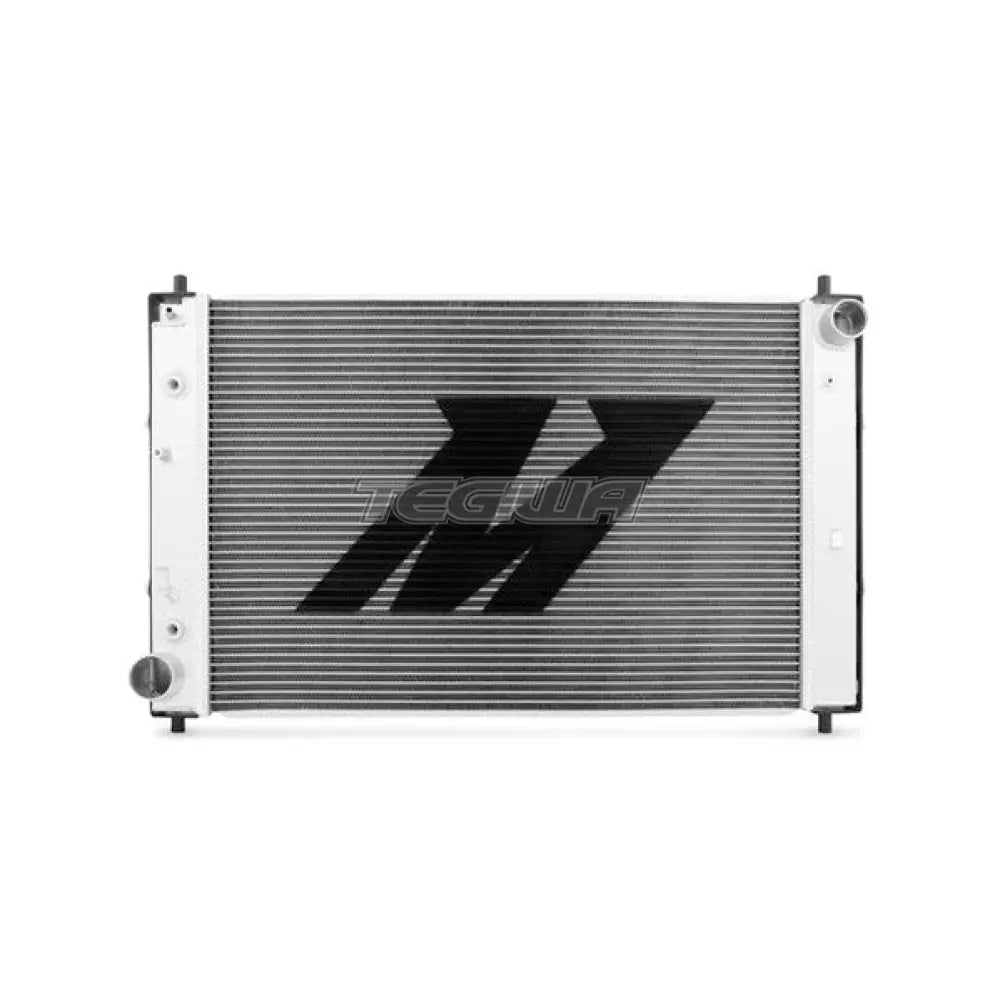

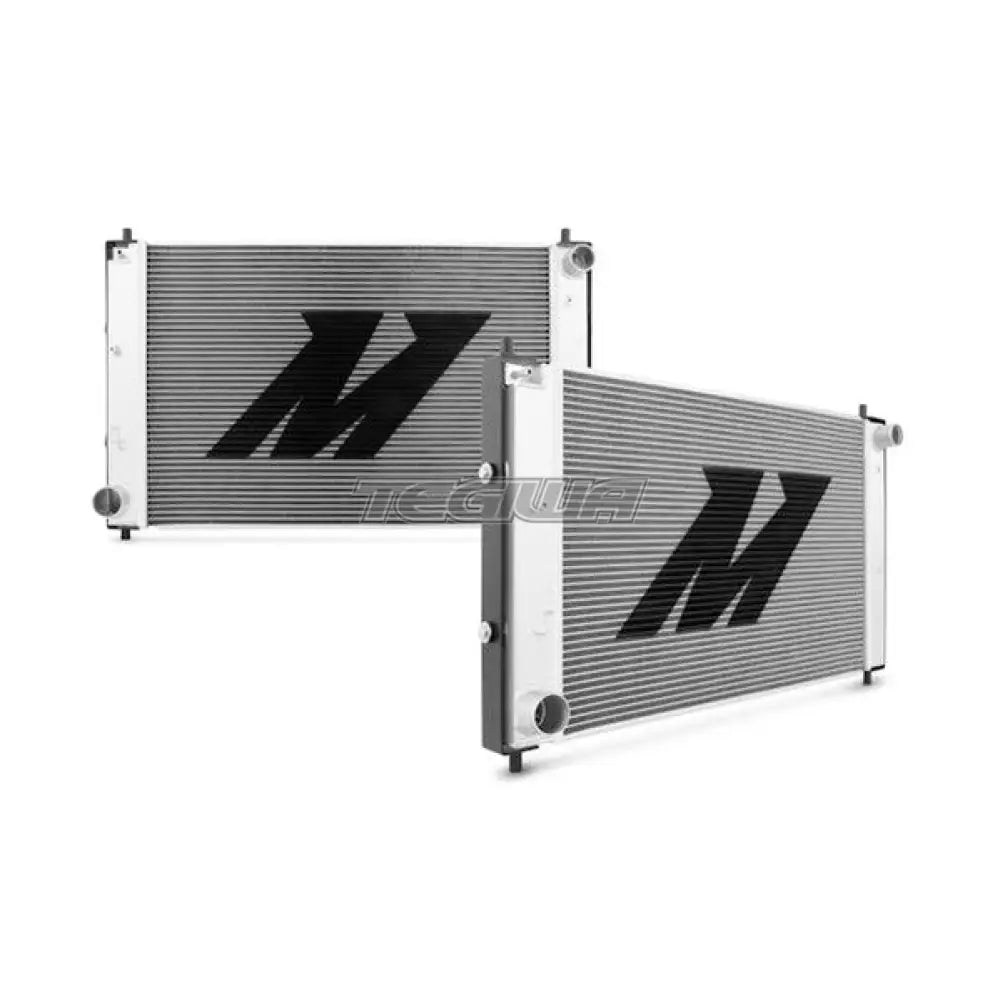

Mishimoto has released a revolutionary new radiator for the 1997-2004 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patented floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
