TechSpec Overall Height (in): 34.8
TechSpec Overall Length (in): 19.2
TechSpec Overall Width (ins): 4.2
TechSpec Core Length (in): 24.02
TechSpec Core Height (in): 15.28
TechSpec Fluid Capacity (gal): 3.97
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1775
TechSpec Material: Aluminum
TechSpec Applications: 1996 Ford Mustang Cobra
TechSpec Engine Codes: 289ci (4.6L)
TechSpec Chassis Codes: SN-95
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
Features:Direct fit for the 1996 Ford Mustang 4.6L with manual transmission
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Perfect for use on the street or strip
Efficient temperature regulation for both stock and modified vehicles
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Patent numberD703,126
Mishimoto Lifetime Warranty
Install Difficulty: 3

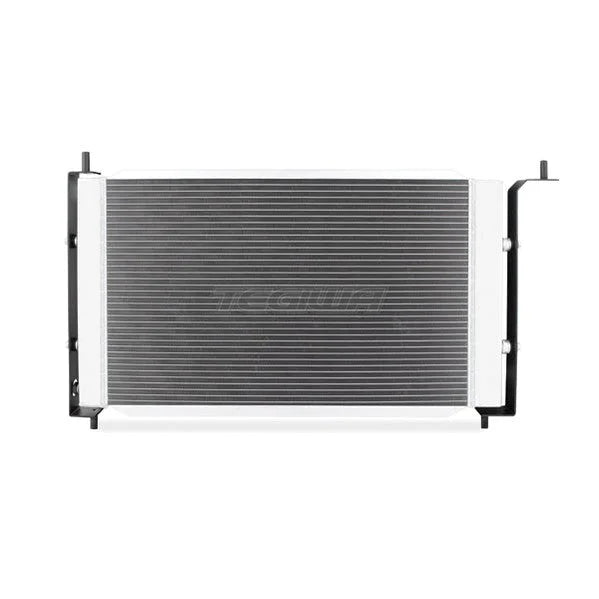

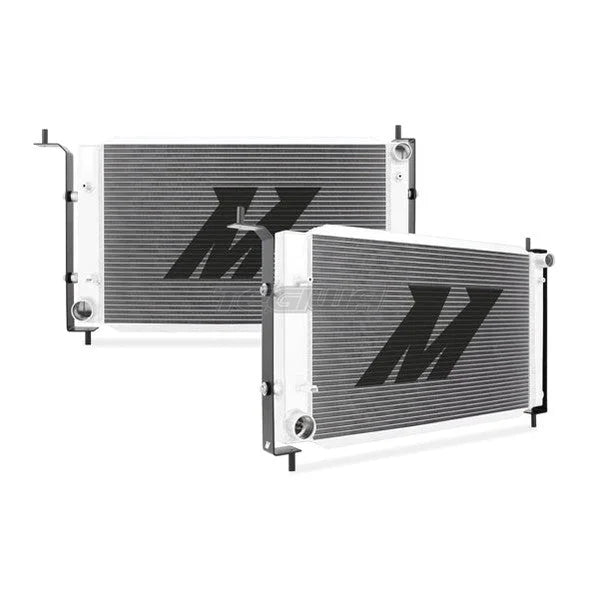

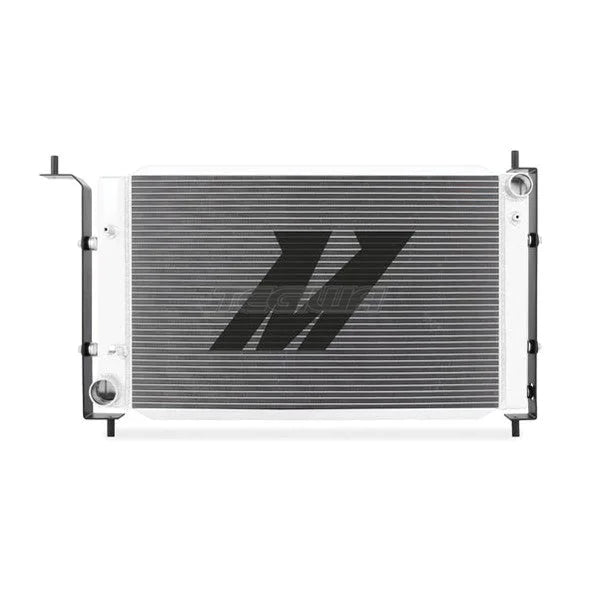

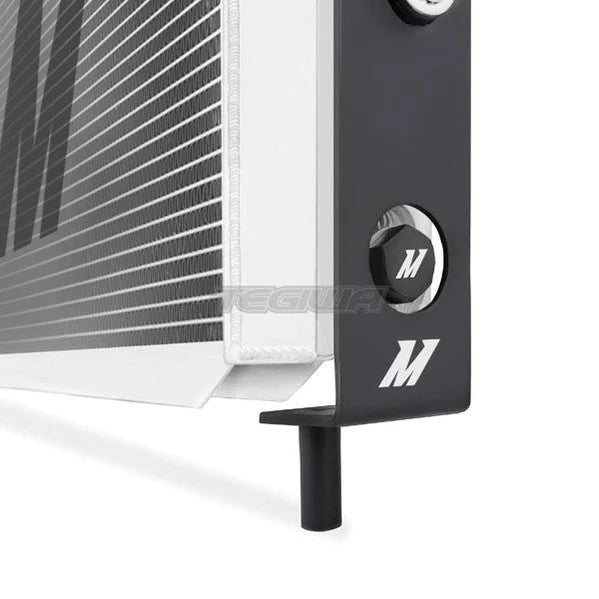

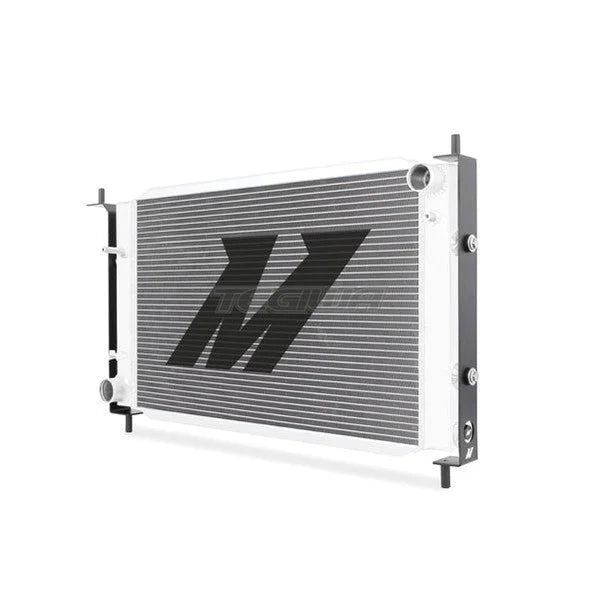

Mishimoto has released a revolutionary new radiator for the 1996 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
