TechSpec Overall Height (in): 17.7
TechSpec Overall Length (in): 28
TechSpec Overall Width (ins): 4.3
TechSpec Fluid Capacity (gal): 2.3
TechSpec Rows: 3
TechSpec Core Thickness (in): 2.2
TechSpec Material: Aluminum
TechSpec Applications: 1996-2001 Toyota Chaser--2000-2007 Toyota Mk.II
TechSpec Engine Codes: 1G-FE--1JZ-GTE--2JZ-GE
TechSpec Chassis Codes: JZX100--JZX110
Note: This item is for Manual Transmission vehicles. Vehicles equipped with an automatic transmission will require the installation of a Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Aluminum Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 1996-2001 Toyota Chaser JZX100
Full aluminum construction including durable, TIG-welded end tanks
107-percent increase in core volume over stock
Features a three-row, 2.2-in thick, efficiently brazed aluminum core
Provides efficient temperature reduction on the street, track, and drag strip
Increased fluid capacity and optimal heat dissipation
Efficient temperature regulation for both stock and modified vehicles
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

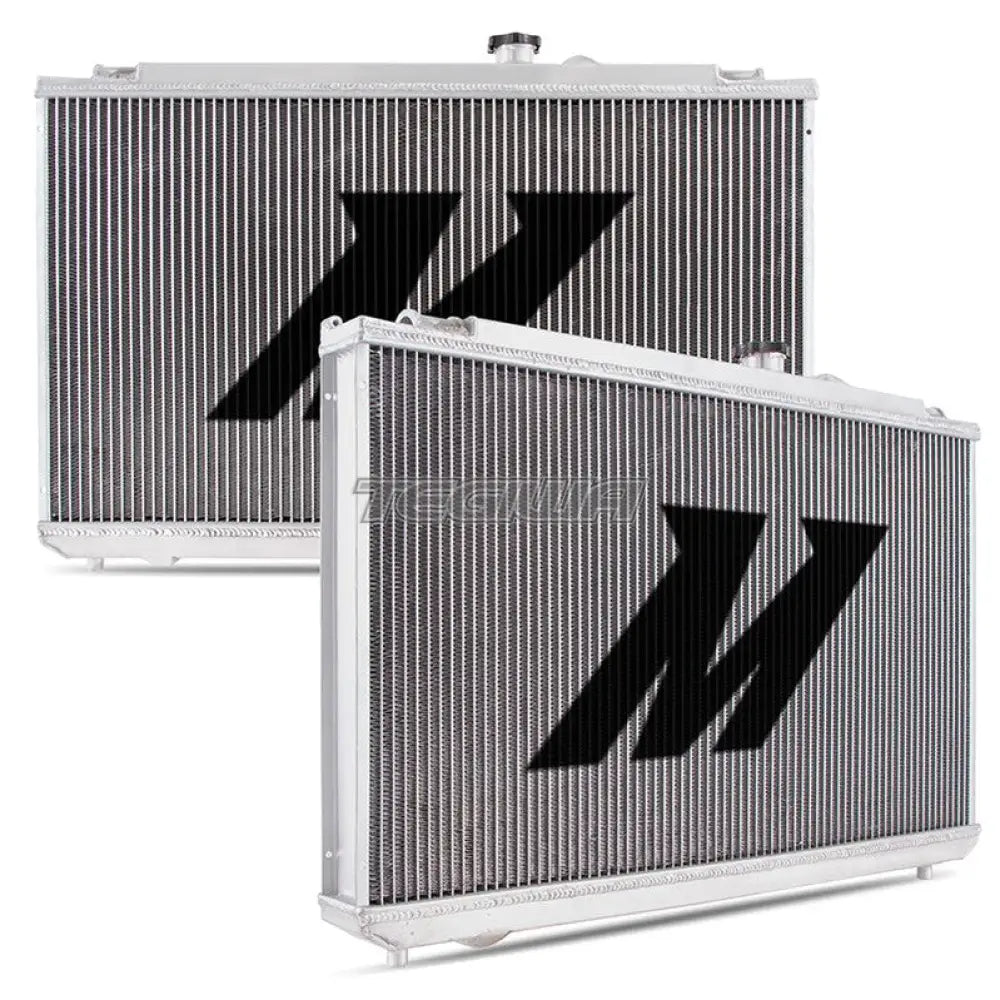

Give some extra cooling power to the JZ under the hood of your 1996-2001 Toyota Chaser with the Mishimoto JZX100 Performance aluminum Radiator. Our radiator design swaps out the thin core and plastic end tanks for full aluminum construction, TIG-welded for maximum durability. The Mishimoto design also features a 2.2in thick, 3-row core for maximum cooling, no matter where ever you drive your Chaser. The Mishimoto 1996-2001 Toyota Chaser Performance Aluminum Radiator is available in a polished finish and includes the Mishimoto Lifetime Warranty for a worry-free installation.
