TechSpec Overall Height (in): 28.1
TechSpec Overall Length (in): 17.3
TechSpec Overall Width (ins): 2.54
TechSpec Core Length (in): 12.52
TechSpec Core Height (in): 27.5
TechSpec Fluid Capacity (gal): 1.94
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 2.04
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1174
TechSpec Material: Aluminum
TechSpec Engine Codes: 3S-GTE
TechSpec Chassis Codes: ST185
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty

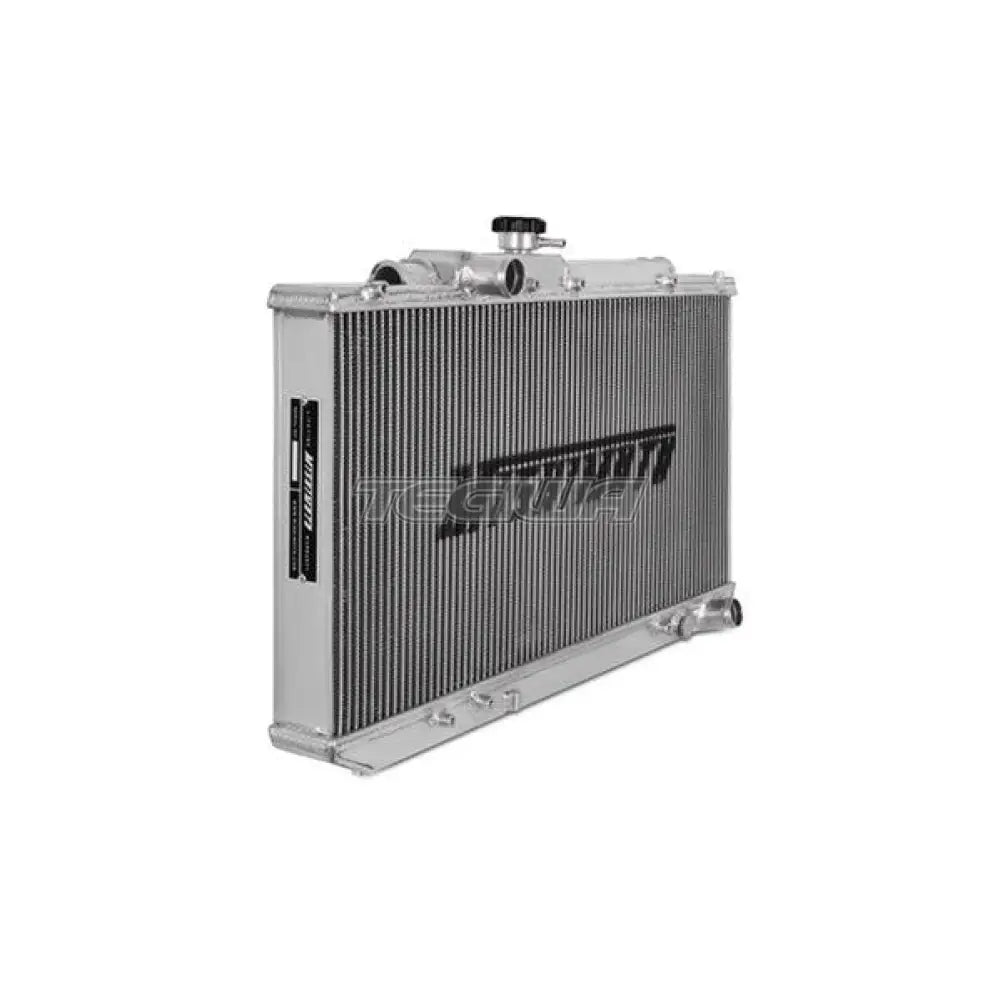

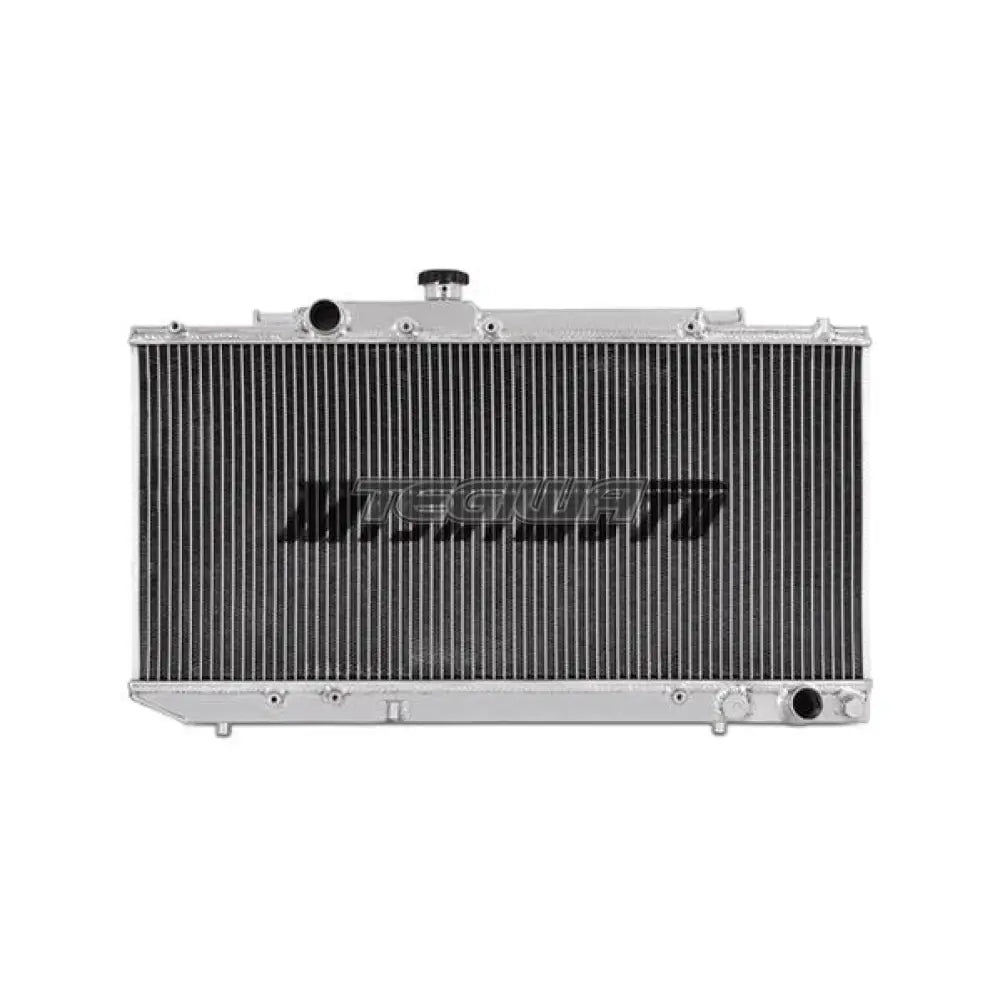

Features:Direct fit for the 1989-1994 Toyota Celica GT-Four/All-trac
Full aluminum design featuring robust TIG-welded construction
Ideal replacement for the failure-prone stock plastic end tank radiator
Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction

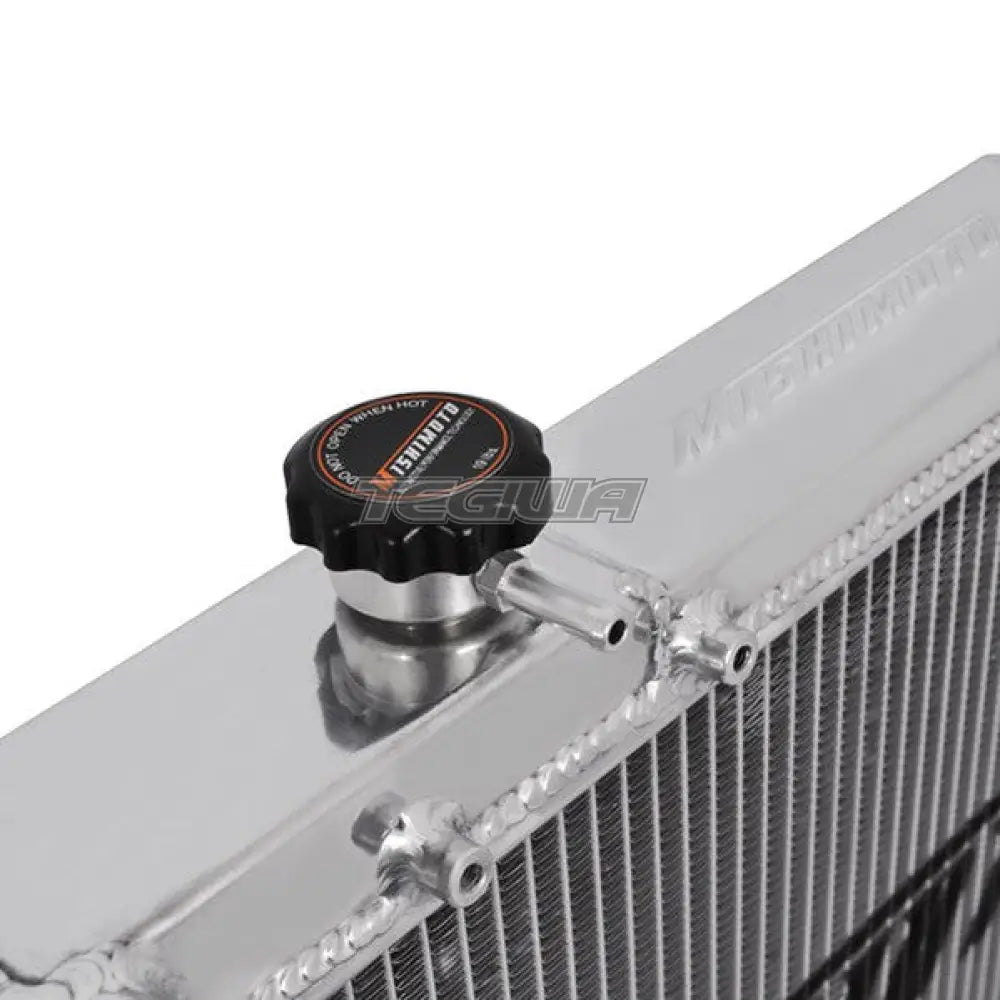

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Perfect for use under stressful driving conditions such as autocross, rallycross, or track events
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system

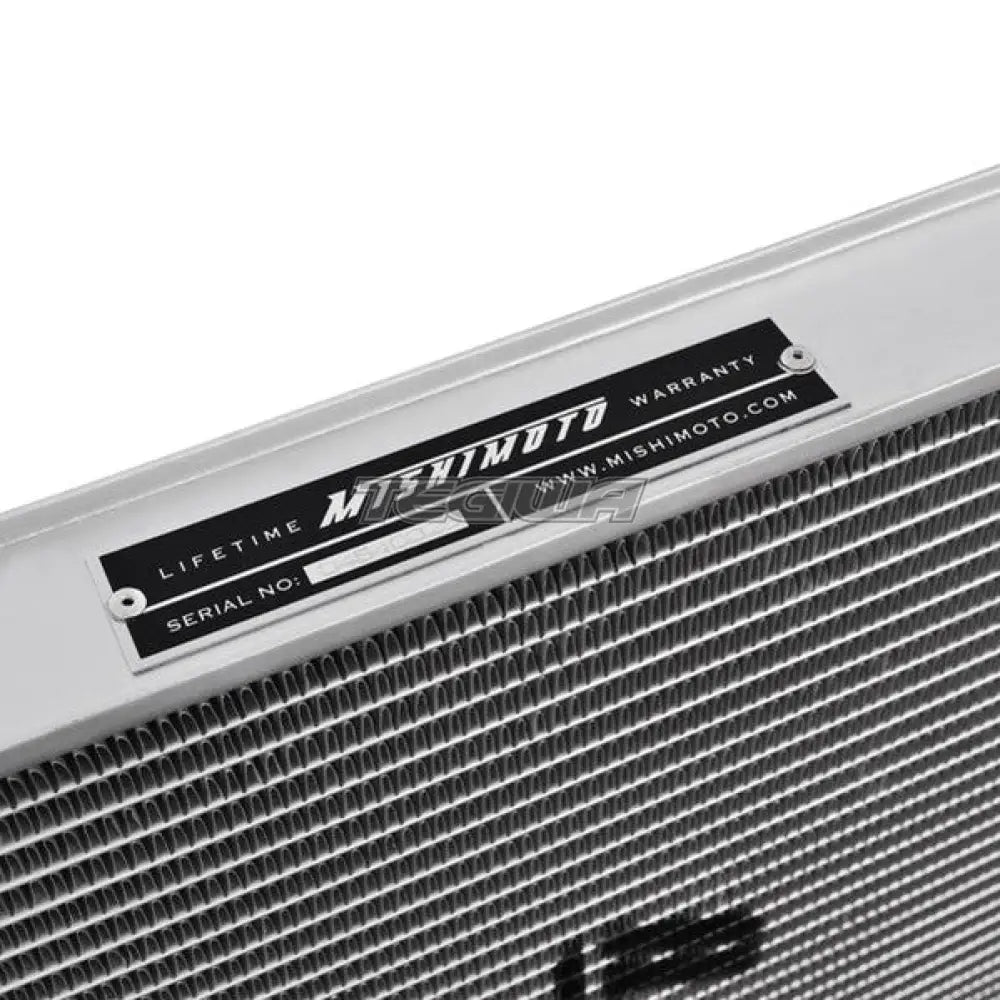

Mishimoto Lifetime Warranty
Install Difficulty: 3
The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
