TechSpec Overall Height (in): 21.8
TechSpec Overall Length (in): 28.1
TechSpec Overall Width (ins): 3.3
TechSpec Core Length (in): 27.41
TechSpec Core Height (in): 13.39
TechSpec Fluid Capacity (gal): 2.45
TechSpec Rows: 2
TechSpec Inlet (in): 1.54
TechSpec Outlet (in): 1.54
TechSpec Core Thickness (in): 1.34
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Applications: 2015-2021 Subaru WRX--2010-2014 Subaru Legacy (non-turbo)--2010-2014 Subaru Outback
TechSpec Engine Codes: FA20DIT
TechSpec Chassis Codes: VA
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--(4) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
Features:Direct fit for 2015-2021 Subaru WRX
Reduces coolant temperatures by 20 F (11 C)
117-percent increase in coolant capacity
42-percent increase in coolant surface area (tubes)
34-percent increase in air surface area (fins)
15-percent more efficient than stock
100-percent brazed aluminum core
TIG-welded to perfection
Included High-Pressure 1.3 Bar Radiator Cap raises the boiling point of engine coolant to provide a safer and more efficient system
Includes Magnetic Drain Plug
Mishimoto Lifetime Warranty
Install Difficulty: 3

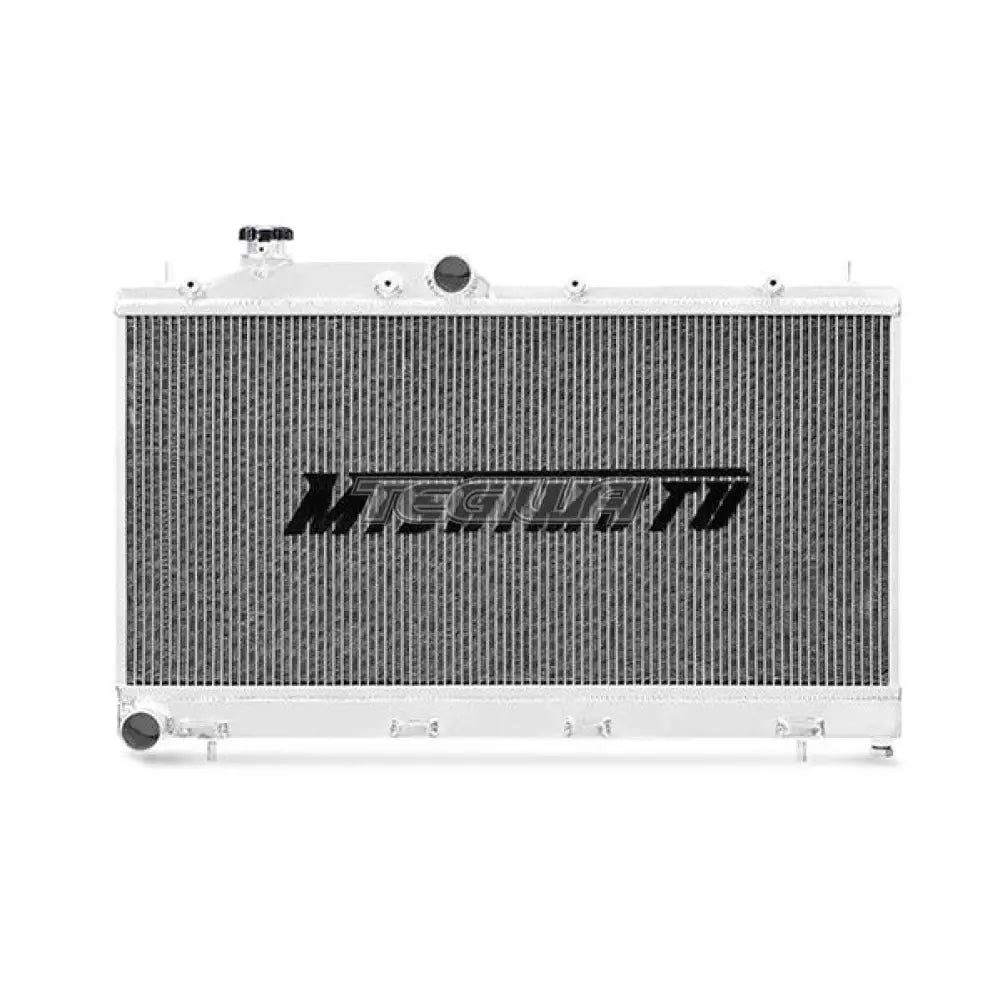

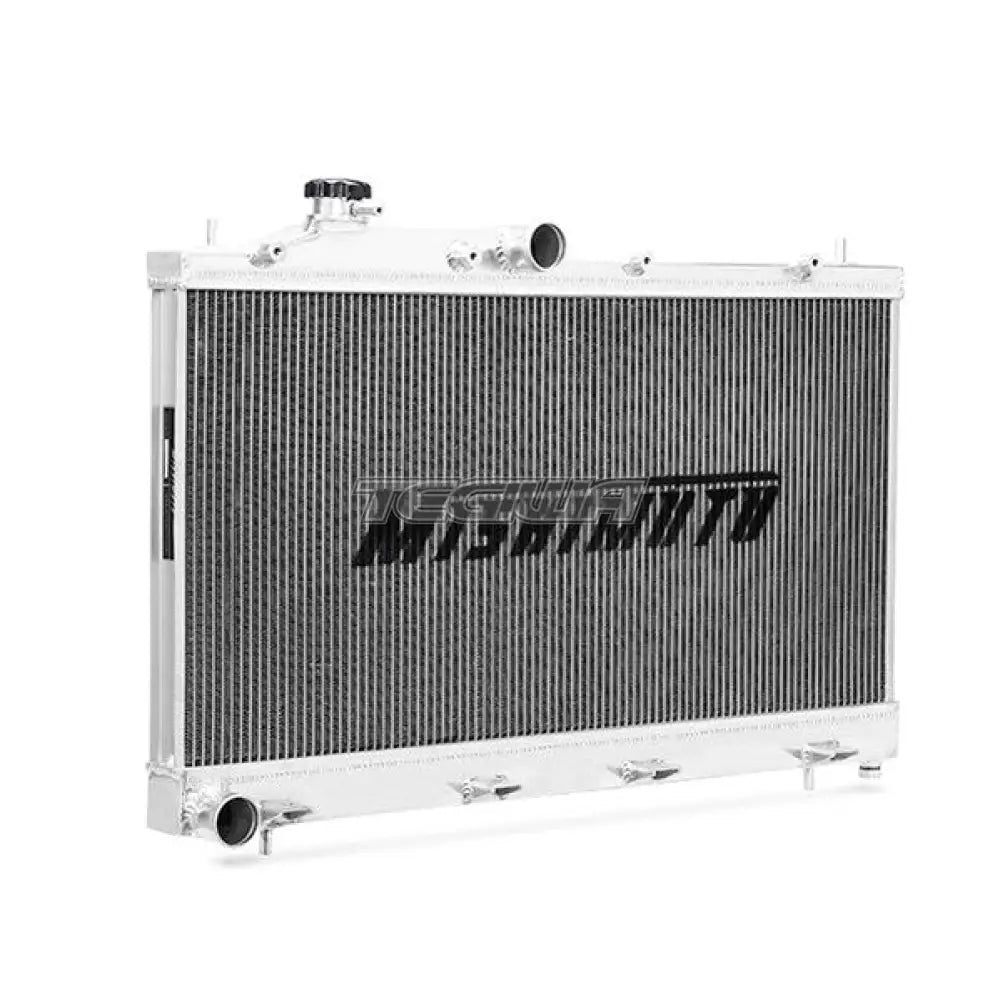

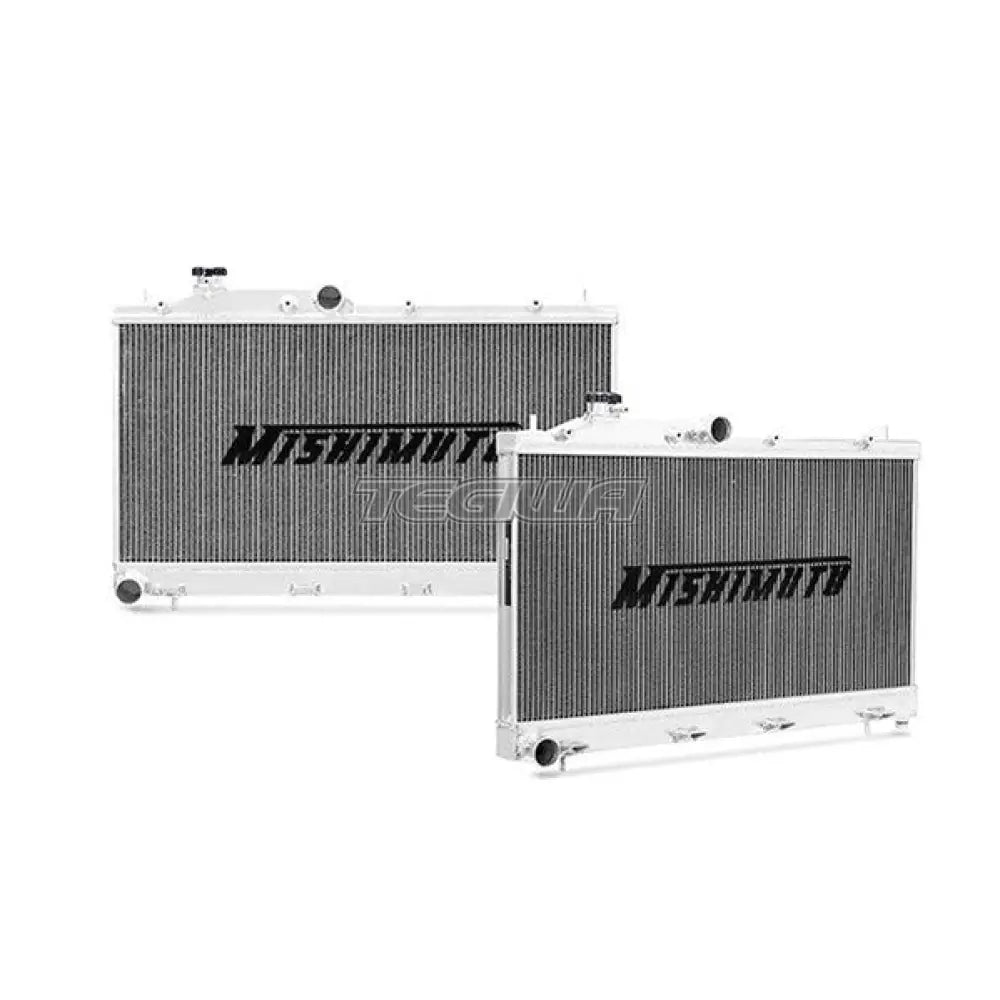

The Mishimoto 2015-2021 Subaru WRX Performance Aluminum Radiator is designed and engineered to reduce coolant temperatures by +20 Degrees Fahrenheit (+11 Degrees Celsius ), maximize cooling efficiency by up to 15-percent, and most importantly to protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator, whether you drive your vehicle daily or take it for track runs. The Mishimoto 2015+ Subaru WRX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. The engineers at Mishimoto designed this radiator with a 117-percent increase in coolant capacity, 42-percent increase in coolant surface area, and 34-percent increase in air surface area, making it an ideal upgrade to keep your new FA20-DIT running cool! Every Mishimoto aluminum radiator is a direct stock fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and the Mishimoto Lifetime Warranty, including accident protection.
