TechSpec Overall Height (in): 21.8
TechSpec Overall Length (in): 28
TechSpec Overall Width (ins): 2.15
TechSpec Core Length (in): 27.08
TechSpec Core Height (in): 13.39
TechSpec Fluid Capacity (gal): 2.21
TechSpec Rows: 2
TechSpec Inlet (in): 1.54
TechSpec Outlet (in): 1.54
TechSpec Core Thickness (in): 1.65
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13091/13093
TechSpec Applications: 2008-2014 Subaru WRX--2008-2019 Subaru STI--2009-2013 Subaru Forester XT--2005-2009 Subaru Outback XT--2005-2009 Subaru Legacy GT
TechSpec Engine Codes: EJ255--EJ257
TechSpec Chassis Codes: GE--GH
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.----Caution:--The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.----It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.----Use small fitting for:--2008-2009 Subaru WRX--2008-2019 Subaru STI----Use large fitting for:--2010-2014 Subaru WRX--2005-2009 Subaru Legacy GT--2005-2009 Subaru Outback XT--2009-2013 Subaru Forester XT
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Overflow Nipples - 2--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2008-2019 Subaru WRX/STI
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.65-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

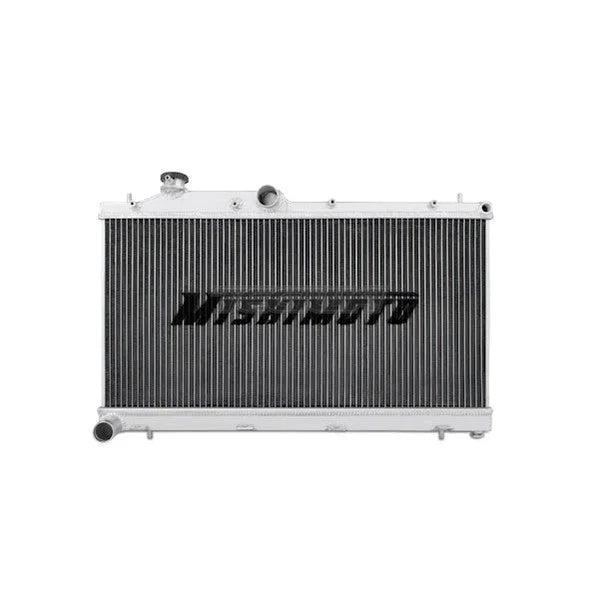

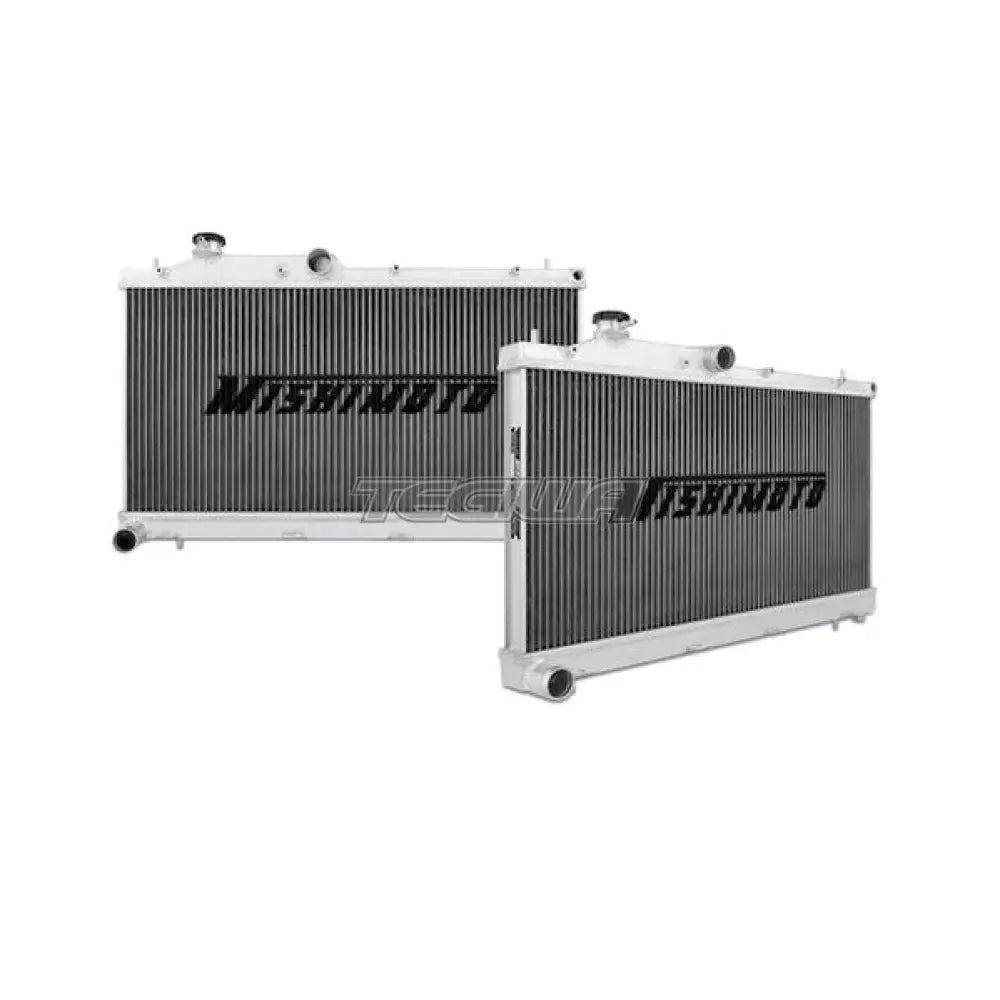

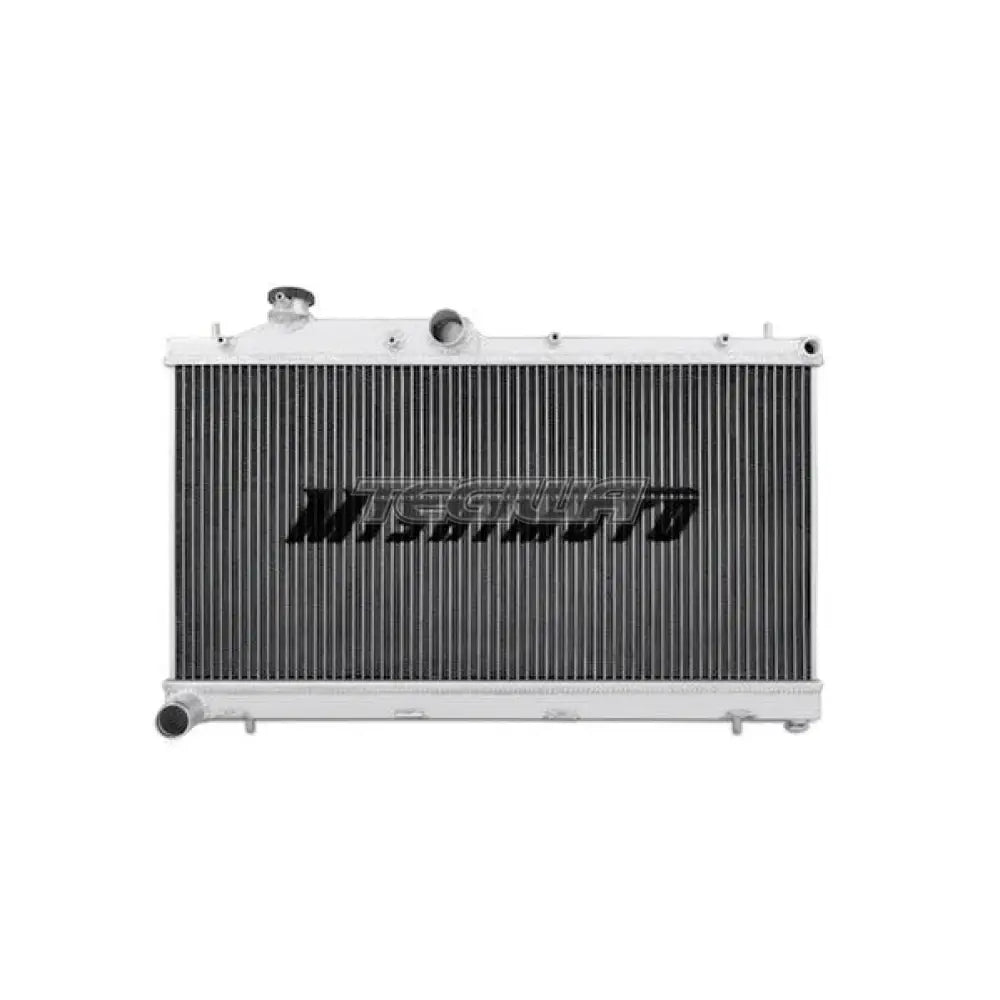

The Mishimoto performance aluminum radiator for the 2008-2014 Subaru WRX/STI is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto 2008-2014 Subaru WRX/STI radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
