TechSpec Overall Height (in): 27.7
TechSpec Overall Length (in): 17.4
TechSpec Overall Width (ins): 2.2
TechSpec Core Length (in): 14.1
TechSpec Core Height (in): 27
TechSpec Fluid Capacity (gal): 2.21
TechSpec Rows: 2
TechSpec Inlet (in): 1.57
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.65
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2812
TechSpec Engine Codes: EJ255
TechSpec Chassis Codes: SG5
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.--------Caution--The following applies to Subarus. Not all vehicles will have this issue. The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--1/16-inch NPT Overflow Plug--Mishimoto Lifetime Warranty

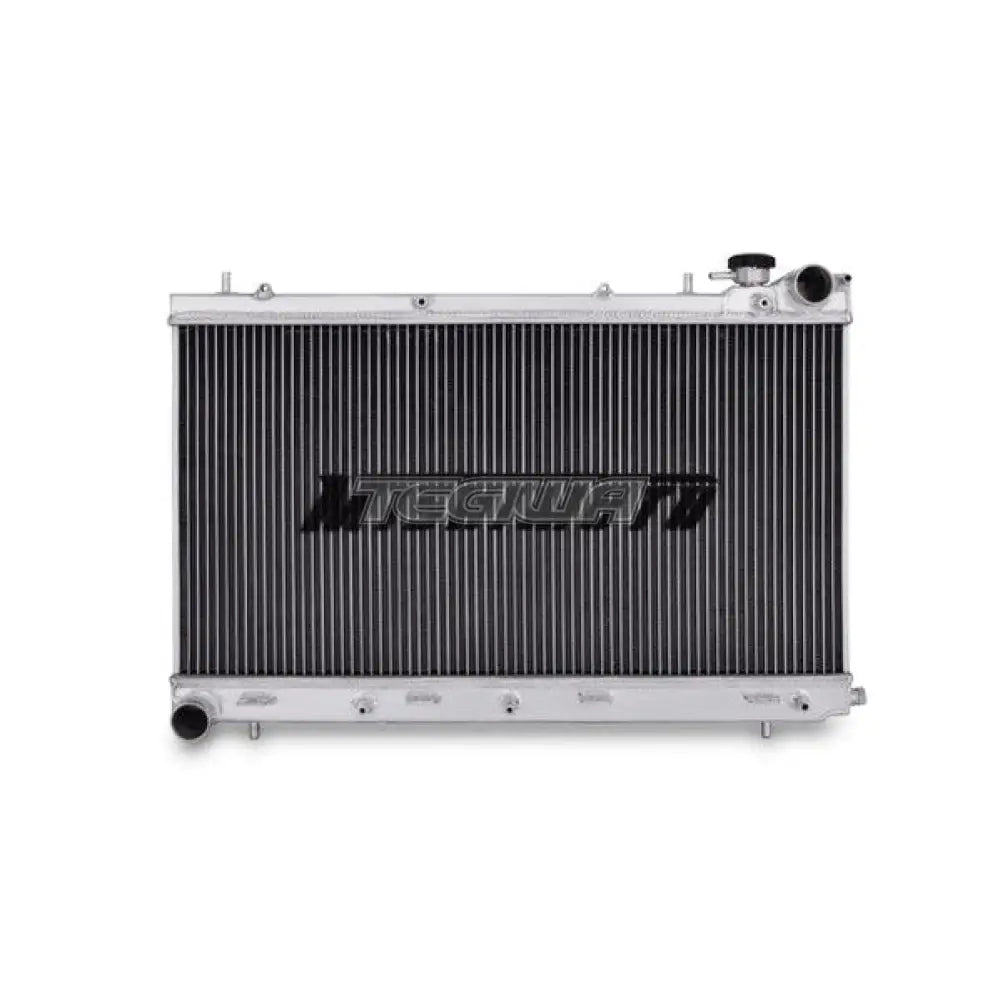

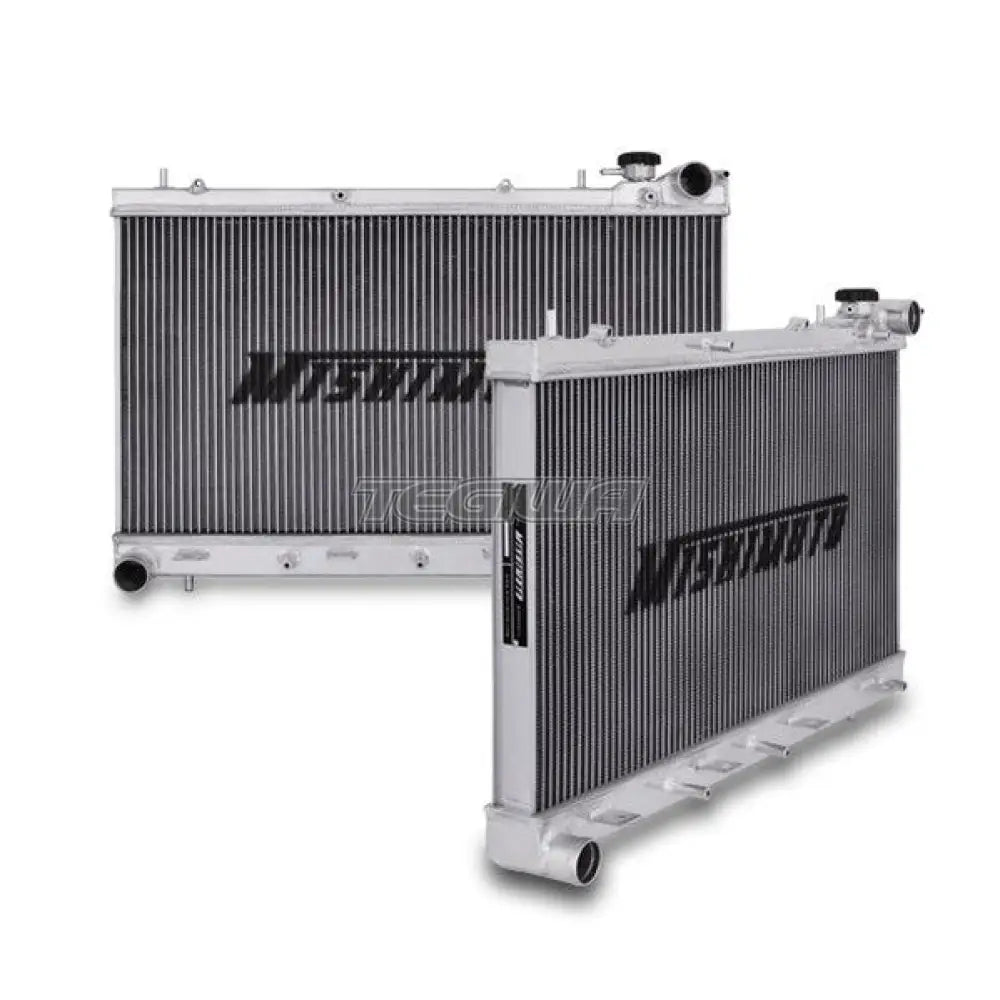

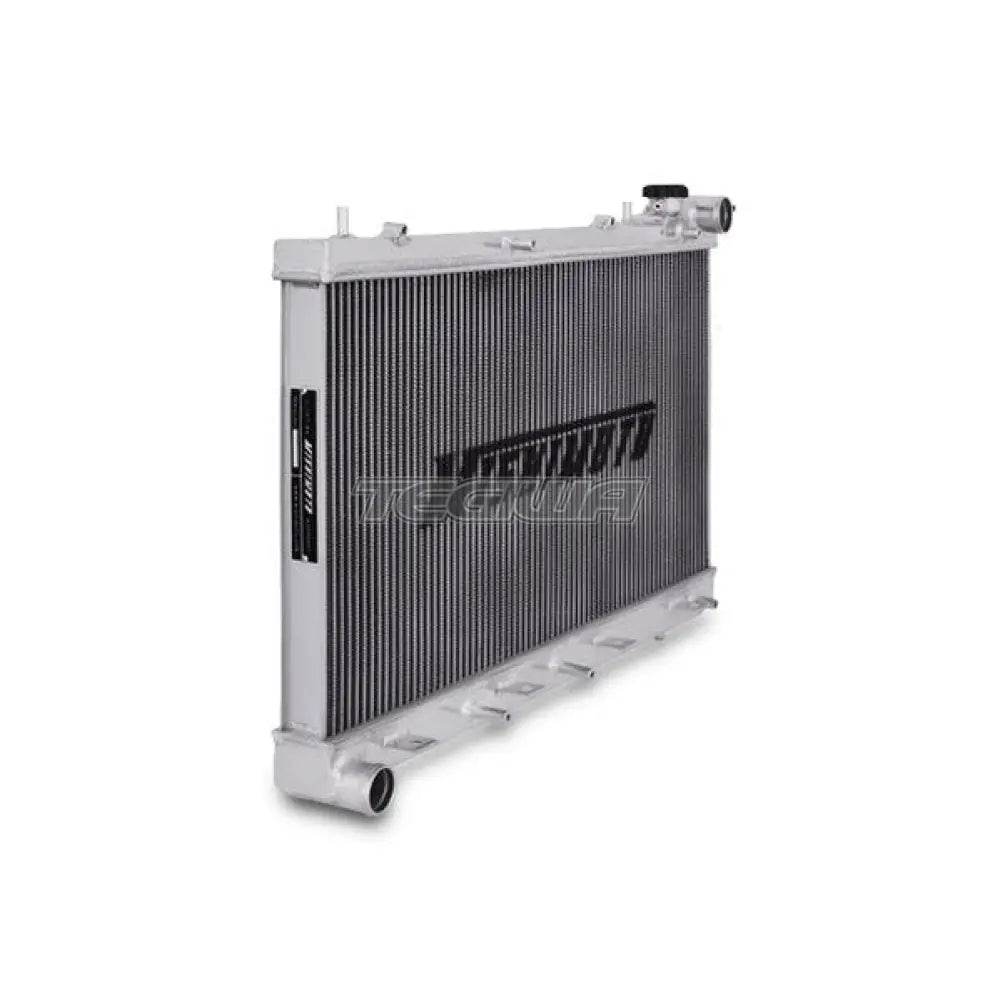

Features:Direct fit for the 2004-2008 Subaru Forester XT
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 1.65-in thick efficient brazed aluminum core, providing ideal fluid temperature reduction
Increased fluid capacity and superior heat dissipation
Perfect upgrade to the failure prone stock plastic end tank radiator
Ideal for use on the street, track, or rallycross course

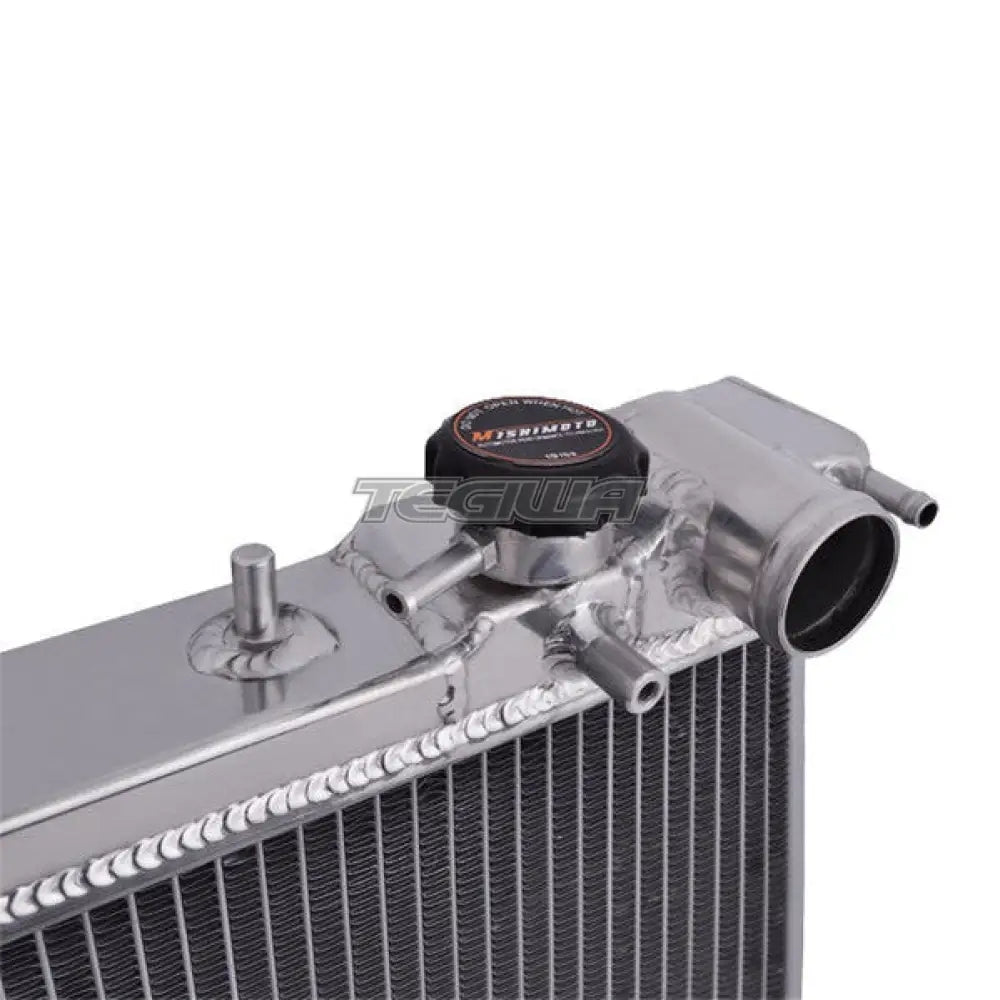

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

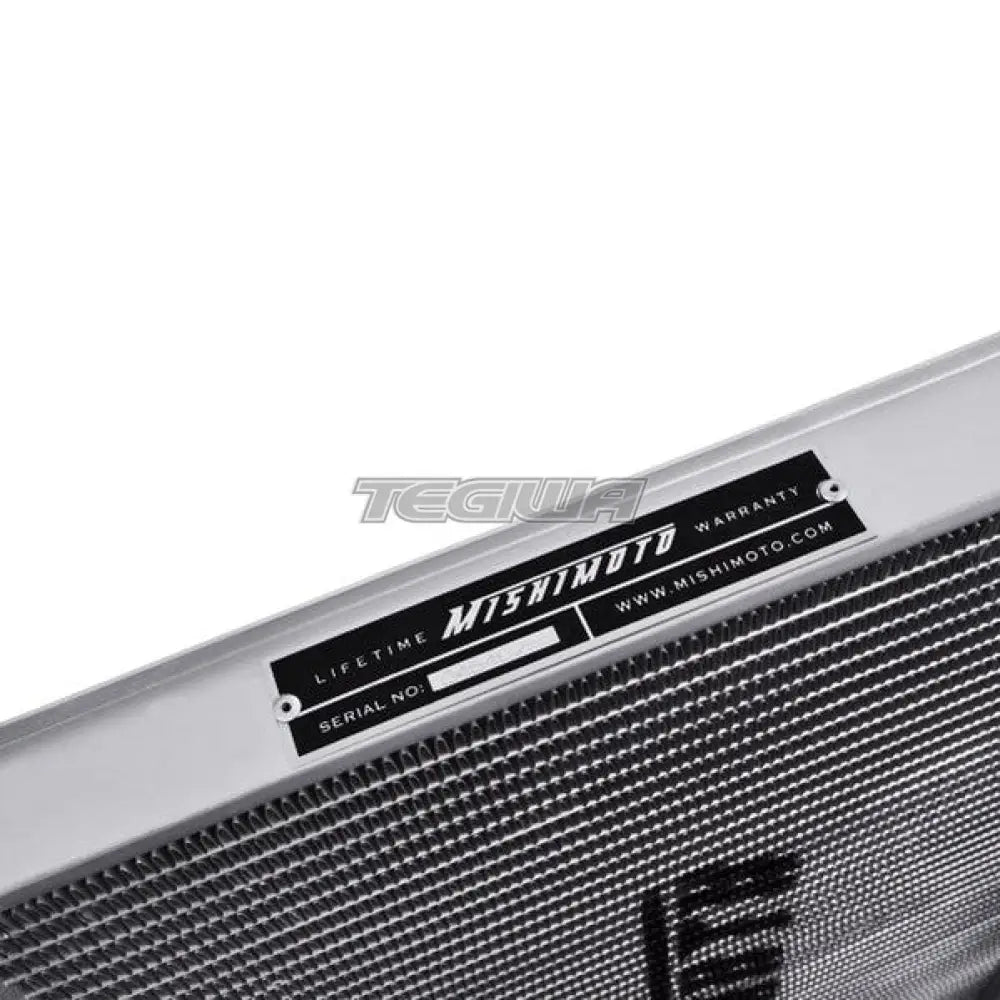

Mishimoto Lifetime Warranty
Install Difficulty: 3
By replacing your current Subaru Forester XT 2.5L radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine.The Mishimoto Subaru Forester XT 2.5L Turbo radiator is made with a lightweight two row core made of 100-percent brazed aluminum and polished aluminum tank end tanks.Installing a direct OEM fit Mishimoto radiator is effortless with no cutting or additional modifications required.
