TechSpec Overall Height (in): 16.25
TechSpec Overall Length (in): 30.13
TechSpec Overall Width (ins): 4.3
TechSpec Core Length (in): 25.6
TechSpec Core Height (in): 14
TechSpec Fluid Capacity (gal): 2.15
TechSpec Rows: 2
TechSpec Inlet (in): 1.57
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.37
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Applications: 2013+ Subaru BRZ--2013-2016 Scion FR-S--2017+Toyota GT86
TechSpec Engine Codes: FA20--4U-GSE
TechSpec Chassis Codes: ZC6--ZN6
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Additional Mounting Hardware--Mishimoto Lifetime Warranty
Features:Increased cooling capacity
Direct fit for the 2013+ Subaru BRZ
100-percent brazed aluminum core

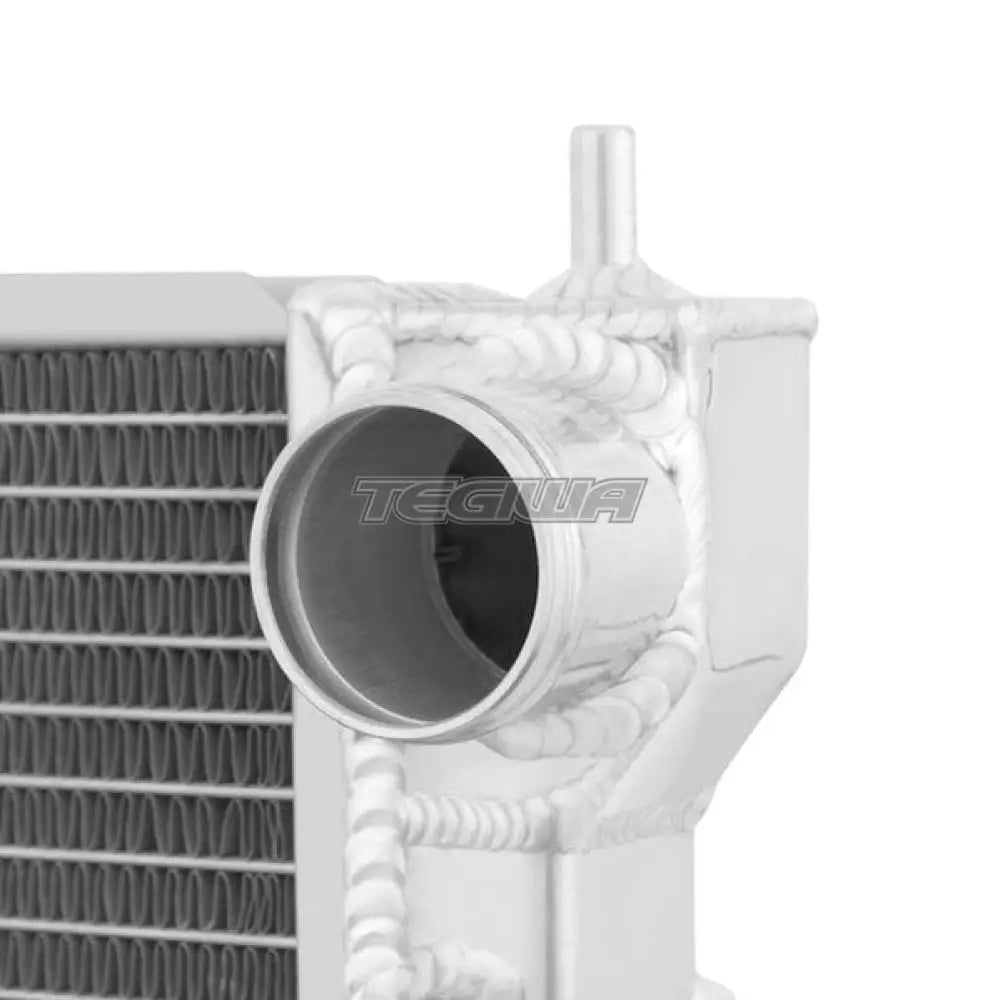

TIG-welded to perfection

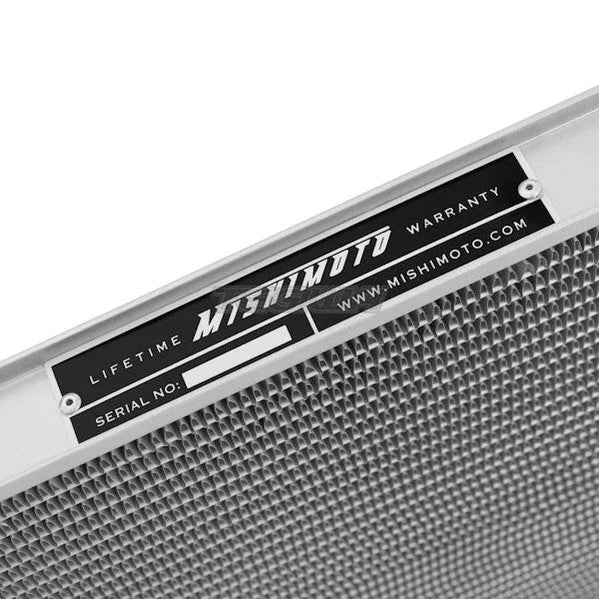

Lifetime warranty
Install Difficulty: 3

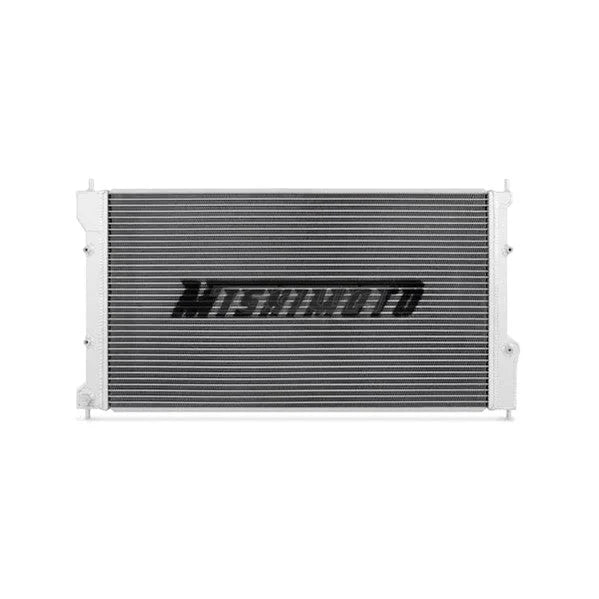

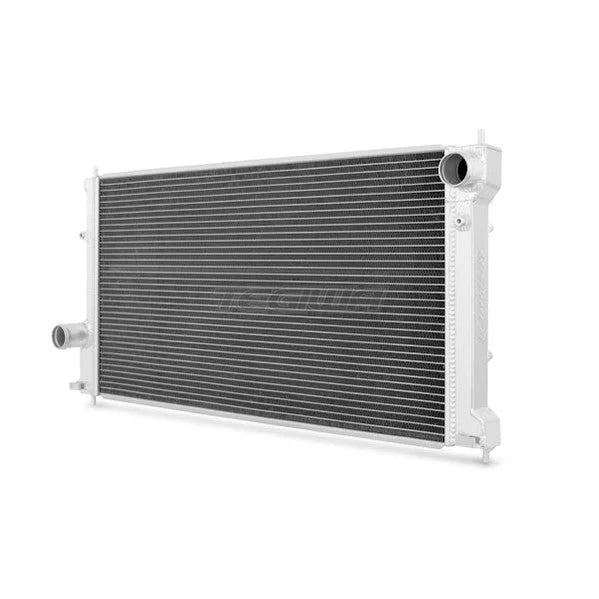

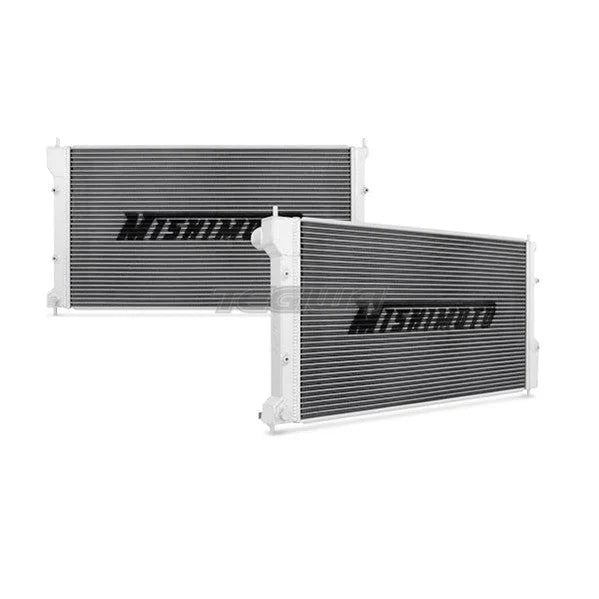

The 2013+ Subaru BRZ / Scion FR-S is the perfect car for tearing up back roads or hitting the autocross course.Aggressive driving results in increased engine temperatures necessitating an effective solution for keeping your flat four cool.Mishimoto has the perfect upgrade, the 2013+ Subaru BRZ / Scion FR-S performance aluminum radiator, to eliminate rising temperatures.The Mishimoto 2013+ Subaru BRZ / FR-S radiator features all-aluminum construction with TIG-welded end tanks and a 100-percent brazed aluminum core.This radiator is constructed from high-quality aircraft aluminum with a polished finish for the perfect combination of performance and style.The Mishimoto 2013+ Subaru BRZ / FR-S radiator is precision engineered for flawless drop-in fitment while providing increased cooling capacity and efficiency.As with all our products, this radiator includes the Mishimoto lifetime warranty.
