TechSpec Overall Height (in): 30.5
TechSpec Overall Length (in): 18.2
TechSpec Overall Width (ins): 2.07
TechSpec Core Length (in): 23.62
TechSpec Core Height (in): 16.06
TechSpec Fluid Capacity (gal): 2.03
TechSpec Rows: 2
TechSpec Inlet (in): 1.34
TechSpec Outlet (in): 1.34
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2776
TechSpec Material: Aluminum
TechSpec Applications: 2007-2008 Scion tC SPEC
TechSpec Engine Codes: 2AZFE
TechSpec Chassis Codes: ANT20
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2005-2010 Scion tC 2.4L
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for use on the street or track
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Engineered for use with both stock and highly modified vehicles
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

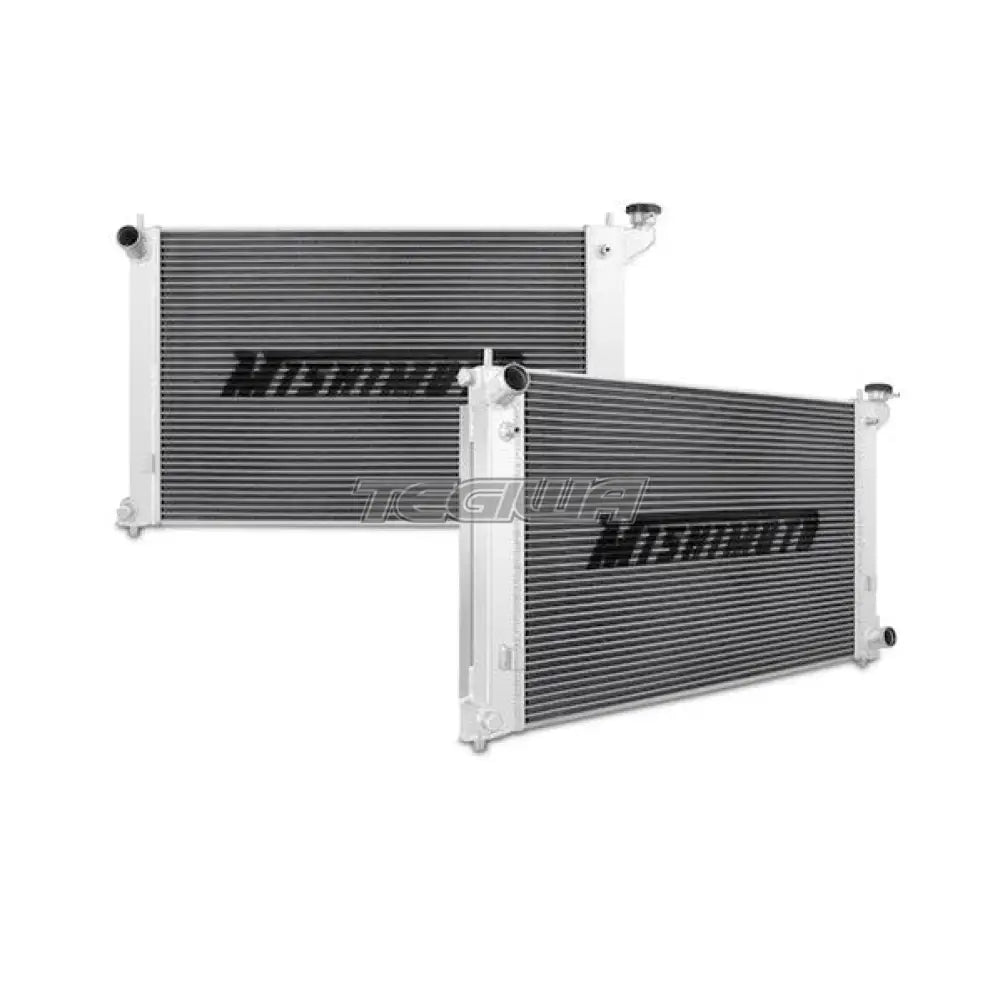

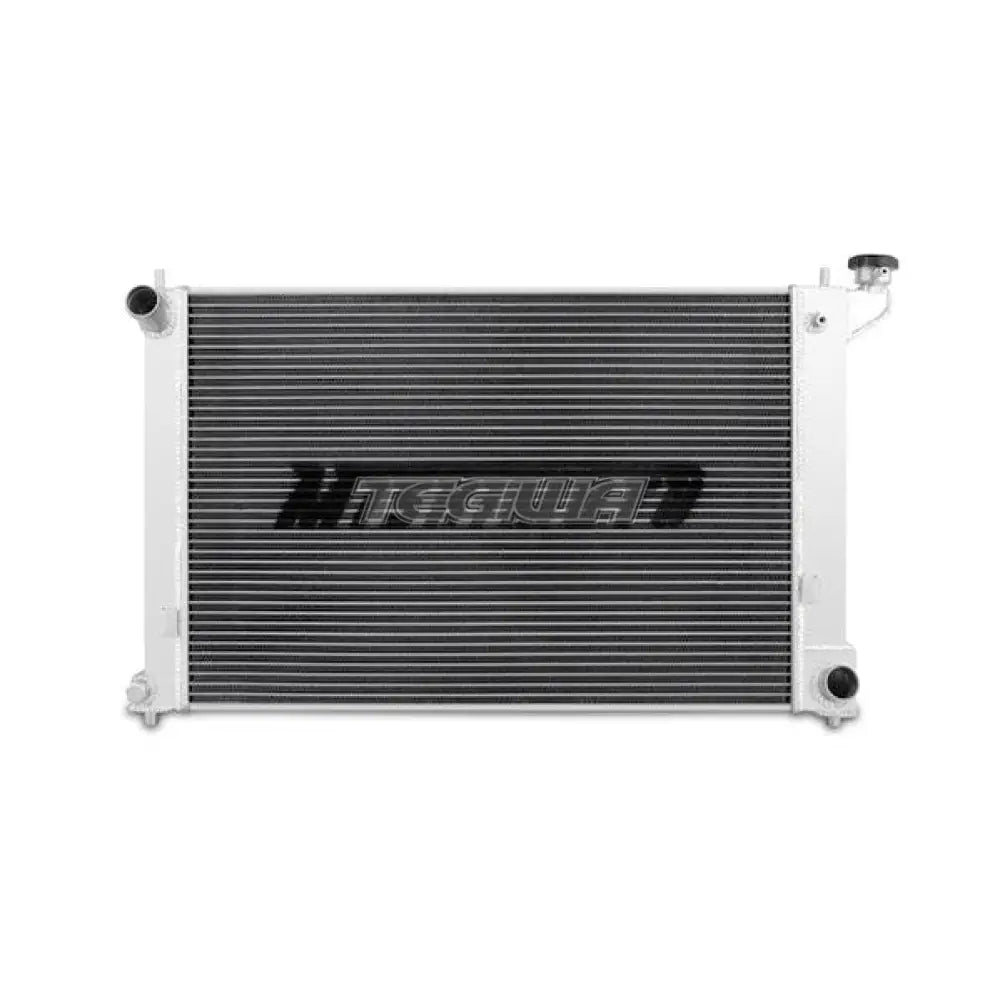

The Mishimoto Performance Aluminum Radiator for the Scion tC has been designed and engineered to maximize cooling efficiency by up to 30-percent and protect your car from overheating.Mishimoto now offers the first performance radiator available for the 2005-2010 Scion tC featuring a lightweight dual core, 100-percent brazed aluminum, and polished end tanks.Every Mishimoto performance radiator is designed for a direct OEM fit making installation effortless with no cutting or modification required.This is the perfect upgrade to your stock Scion tC radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection! For even more cooling efficiency check out the Mishimoto'scion tC hose kit.
