TechSpec Overall Height (in): 31.95
TechSpec Overall Length (in): 19.65
TechSpec Overall Width (ins): 6.38
TechSpec Core Length (in): 26.55
TechSpec Core Height (in): 17
TechSpec Fluid Capacity (gal): 3.58
TechSpec Rows: 2
TechSpec Inlet (in): 1.375
TechSpec Outlet (in): 1.375
TechSpec Core Thickness (in): 1.96
TechSpec Drain Plug Thread Size: M12
TechSpec DPI: 2987
TechSpec Applications: 2005-2006 Vauxhall Monaro (5.7L/6.0L)--2005-2006 Holden Monaro (6.0L Engine Only)
TechSpec Engine Codes: LS-2 (6.0L)

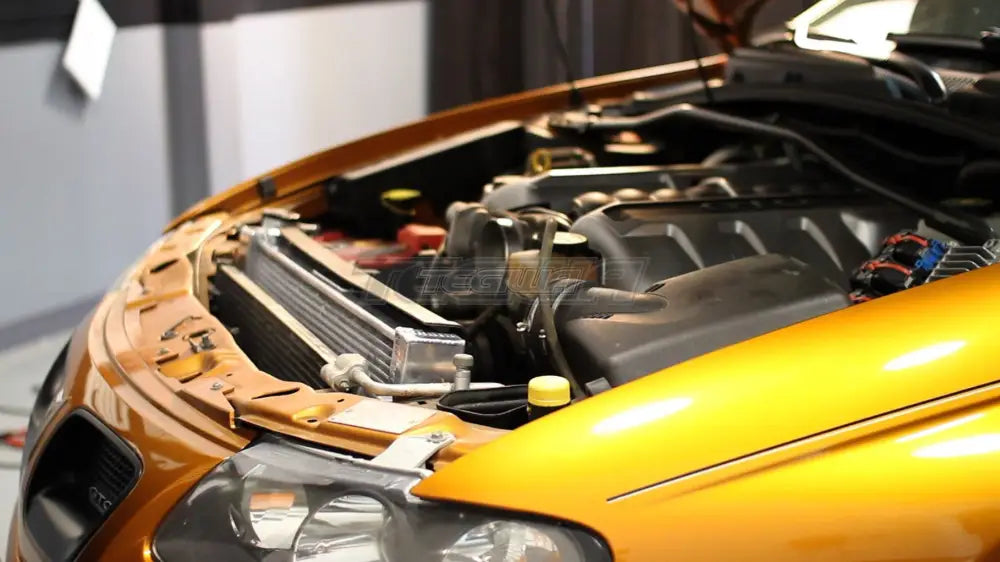

Note: This item is for manual and automatic transmission vehicles. This radiator will fit with Svede and other aftermarket OTR cold-air intakes.----Due to the added thickness of the Mishimoto radiator, the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2005-2006 Pontiac GTO
Reduces coolant temperatures by 15 F (6 C)
Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
Applicable for both manual and automatic vehicles
Includes magnetic drain plug and 1.3 bar high-pressure radiator cap
Mishimoto Lifetime Warranty
Install Difficulty: 3

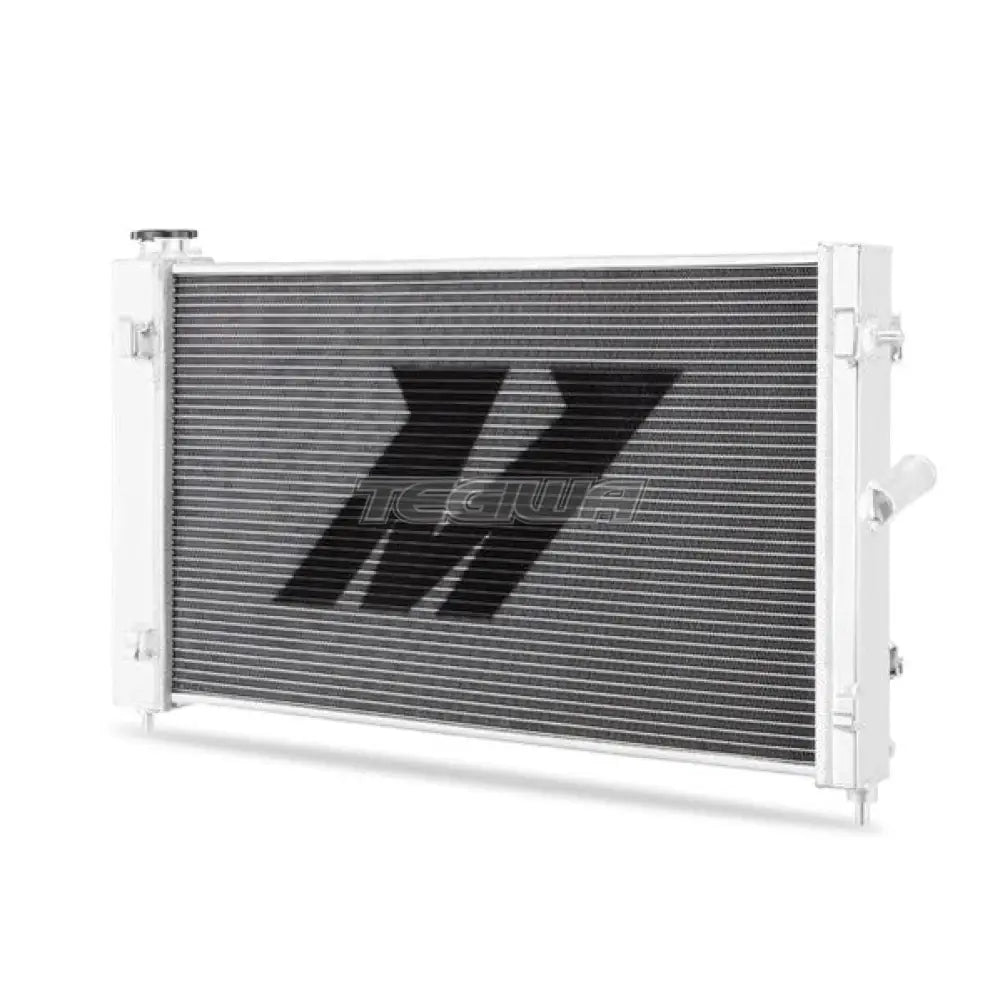

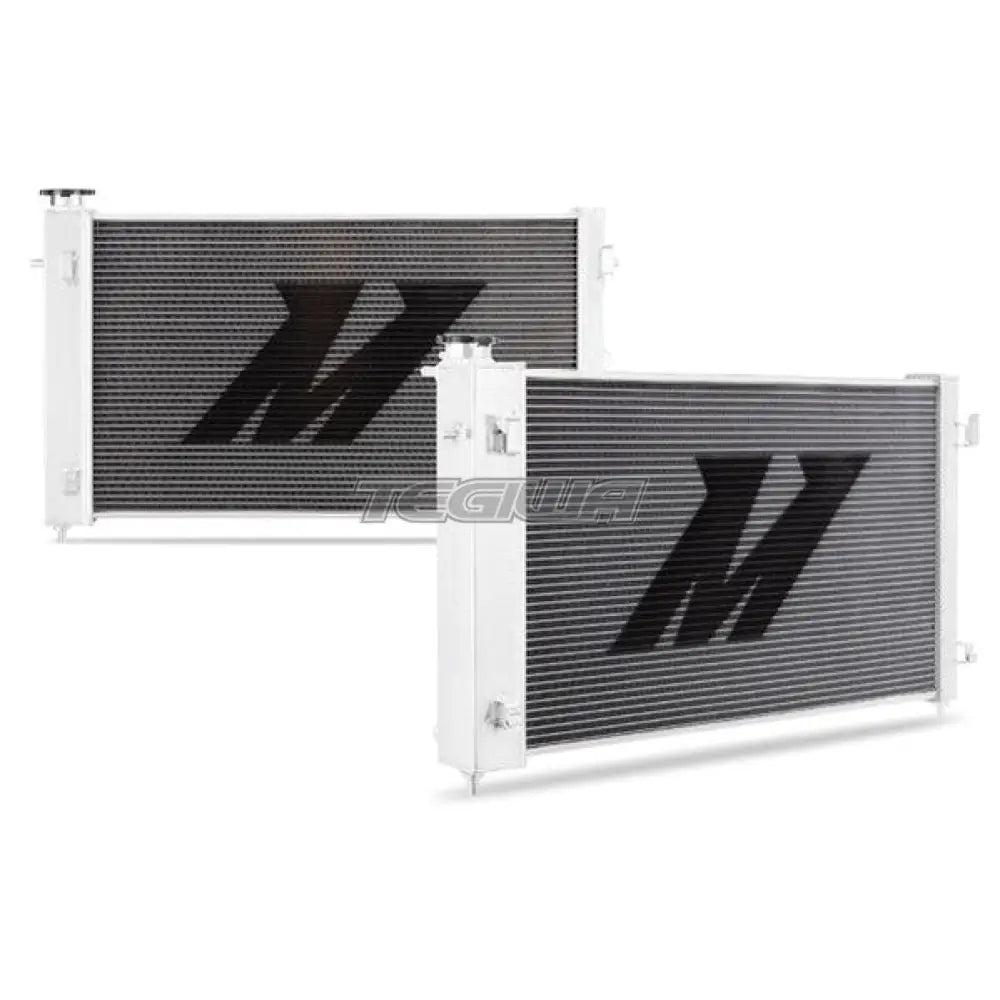

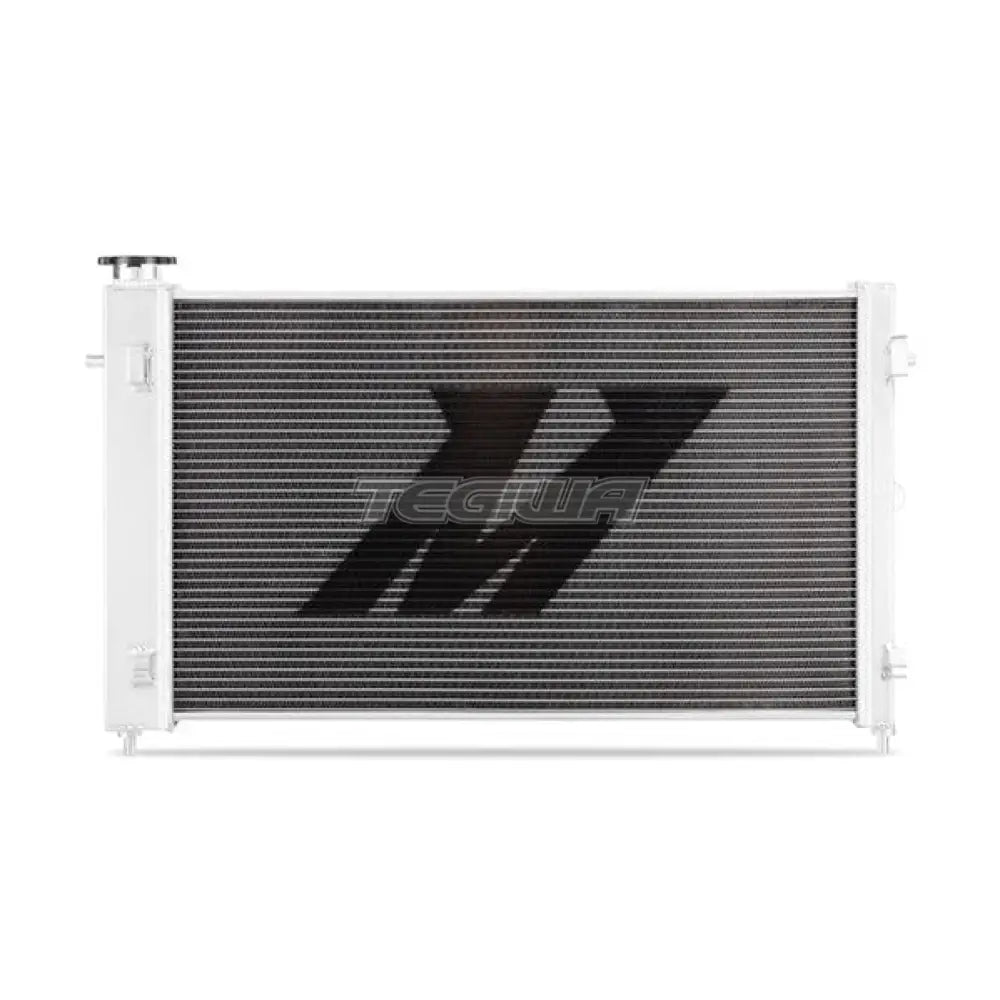

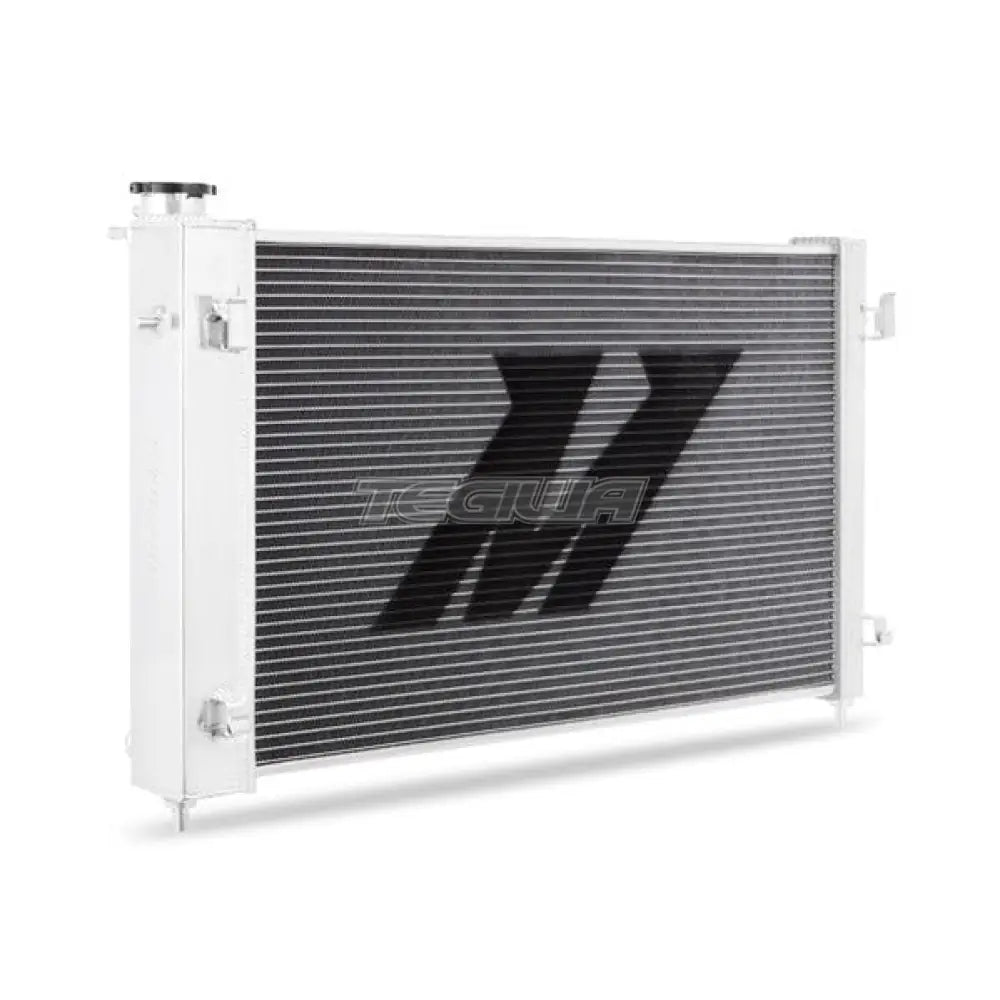

Keep your Pontiac GTO on the road and out of the shop by upgrading to the Mishimoto Pontiac GTO Performance Aluminum Radiator. Stock plastic radiators are prone to significant wear from constant temperature variation. Our radiator is constructed from high-quality aluminum for optimal heat dissipation and superior reliability. This radiator features a large, efficient, and robust 2-row brazed aluminum core which provides optimal coolant temperatures on the street and track. The Mishimoto Pontiac GTO Performance Aluminum Radiator features an in-tank transmission fluid cooler compatible with stock transmission cooler lines, making this a true bolt-on performance radiator. This radiator includes a Mishimoto Magnetic Oil Drain Plug M12 x 1.5 which removes any metal fragments from your coolant system. For further cooling system protection this radiator includes the Mishimoto 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of your coolant, providing a safer and more efficient system. This radiator also features an increase in capacity of 0.64 L of fluid and provides a proven reduction in coolant temperatures of 15 degrees Fahrenheit. Whether you are making a pull down the highway or cruising through the mountains, the Mishimoto Pontiac GTO Performance Aluminum Radiator will keep your GTO cool. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
