TechSpec Overall Height (in): 26.4
TechSpec Overall Length (in): 17.2
TechSpec Overall Width (ins): 2.07
TechSpec Core Length (in): 12.44
TechSpec Core Height (in): 25.51
TechSpec Fluid Capacity (gal): 1.85
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.38
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1152/1178/1317/1426
TechSpec Material: Aluminum
TechSpec Applications: 1991-1994 Nissan Sentra SE-R--1995-1998 Nissan 200sx
TechSpec Engine Codes: SR20DE--SR20DET
TechSpec Chassis Codes: B13--B14
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 1991-1999 Nissan Sentra SE-R
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.57-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for use on the street, track, or autocross course
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

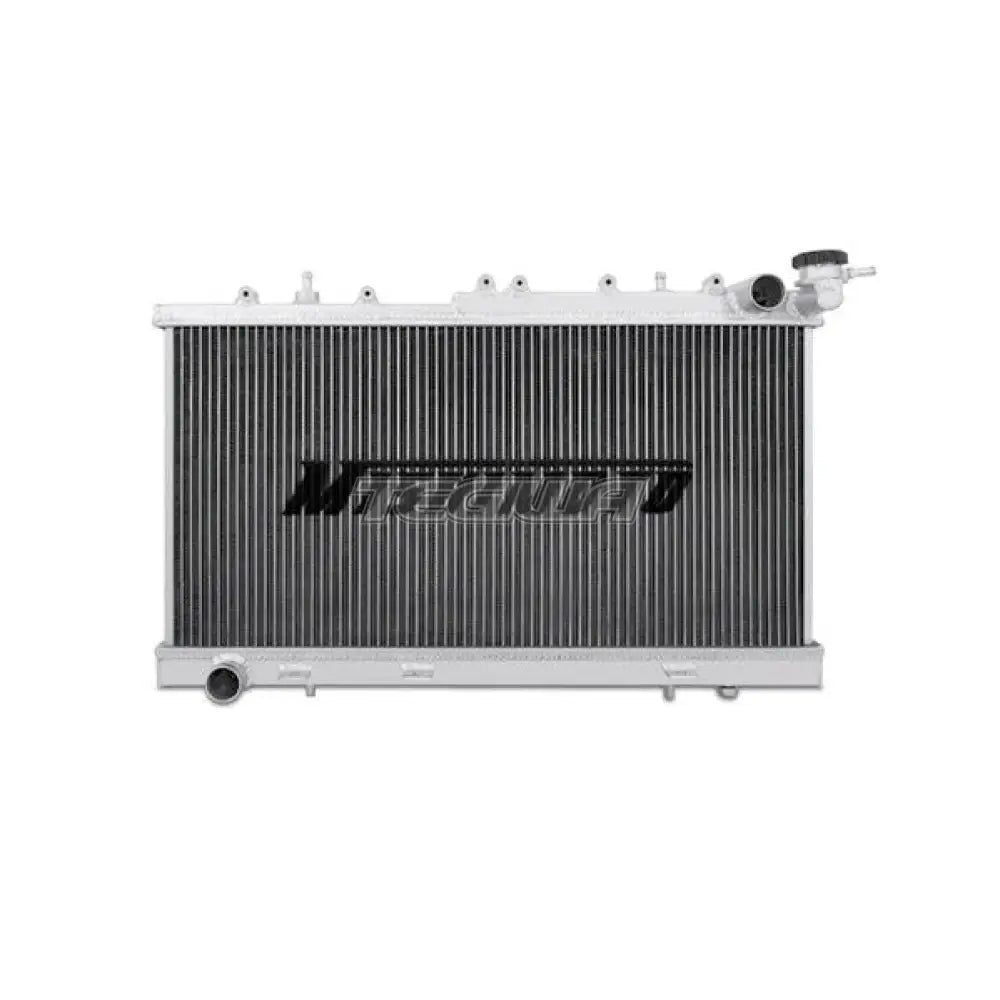

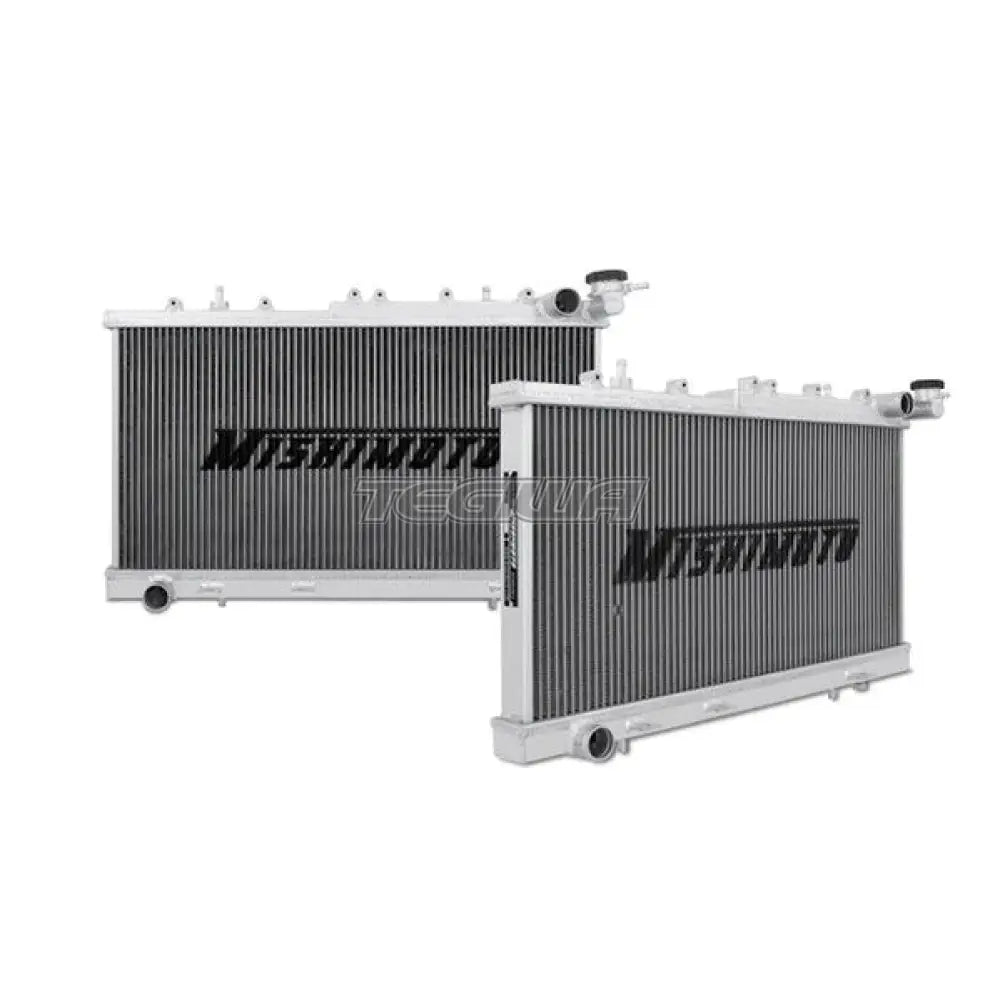

The Mishimoto performance aluminum radiator for the Nissan Sentra w/ SR20 is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and protect your car from overheating.The Mishimoto 1991-1999 Nissan Sentra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
