TechSpec Overall Height (in): 28
TechSpec Overall Length (in): 19.8
TechSpec Overall Width (ins): 1.92
TechSpec Core Length (in): 14.37
TechSpec Core Height (in): 27.08
TechSpec Fluid Capacity (gal): 2.03
TechSpec Rows: 2
TechSpec Inlet (in): 1.4
TechSpec Outlet (in): 1.4
TechSpec Core Thickness (in): 1.42
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2469
TechSpec Material: Aluminum
TechSpec Applications: 2002-2006 Nissan Sentra SE-R--2002-2006 Nissan Sentra Spec-V--2003 Nissan Sentra Limited Edition
TechSpec Engine Codes: QR25DE
TechSpec Chassis Codes: B15
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2002-2006 Nissan Sentra SE-R/Spec-V
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.42-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for street and/or track use
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

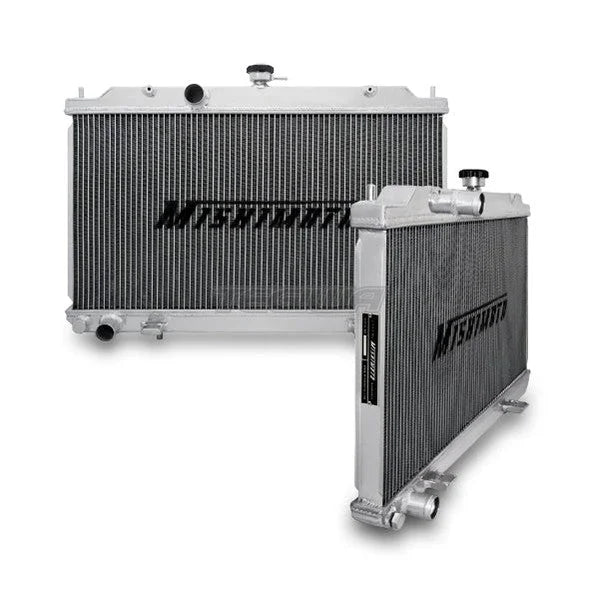

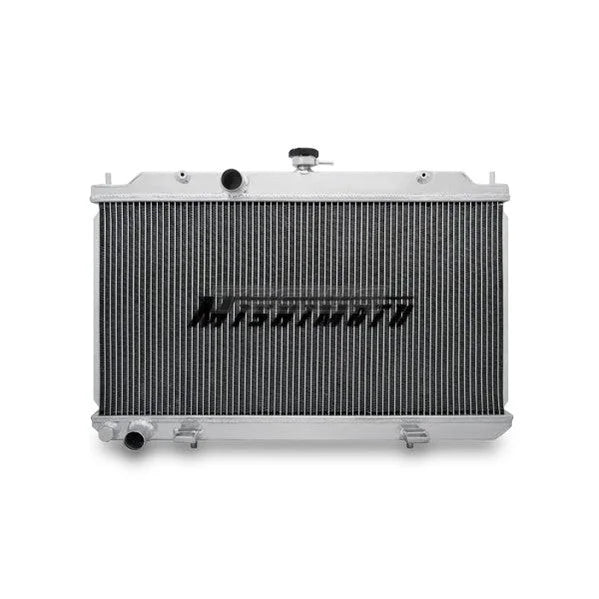

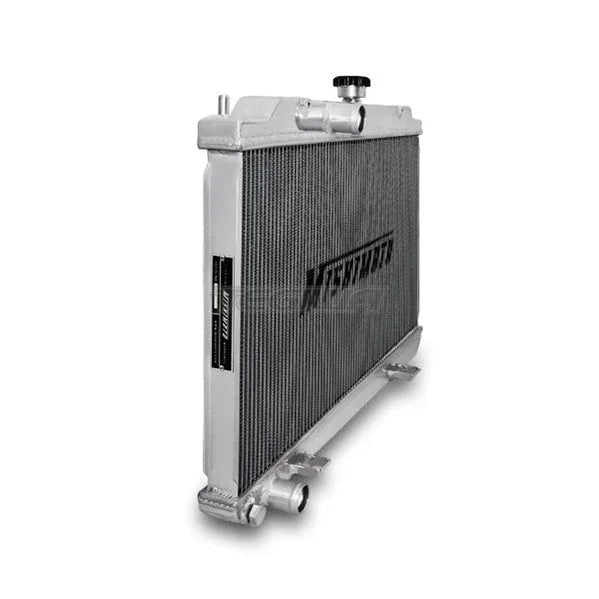

The Mishimoto performance aluminum radiator for the Nissan Sentra SE-R/Spec-V is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum 2002-2005 Sentra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Sentra radiator.
