TechSpec Overall Height (in): 29.69
TechSpec Overall Length (in): 20.28
TechSpec Overall Width (ins): 1.92
TechSpec Core Length (in): 28.15
TechSpec Core Height (in): 15.75
TechSpec Fluid Capacity (gal): 2.54
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.38
TechSpec Core Thickness (in): 1.42
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2415/13005
TechSpec Material: Aluminum
TechSpec Applications: 2004 Maxima--2005-2008 Maxima SE--2005-2008 Maxima SL--
TechSpec Engine Codes: V Q35DE
TechSpec Chassis Codes: A34
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase the optional Mishimoto Universal Transmission Cooler Kit.TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2004-2008 Nissan Maxima 3.5L
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.42-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Perfect for use on the street, strip, or track
Ideal replacement for an aging and/or clogged stock radiator
Efficient temperature regulation for both stock and modified vehicles
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

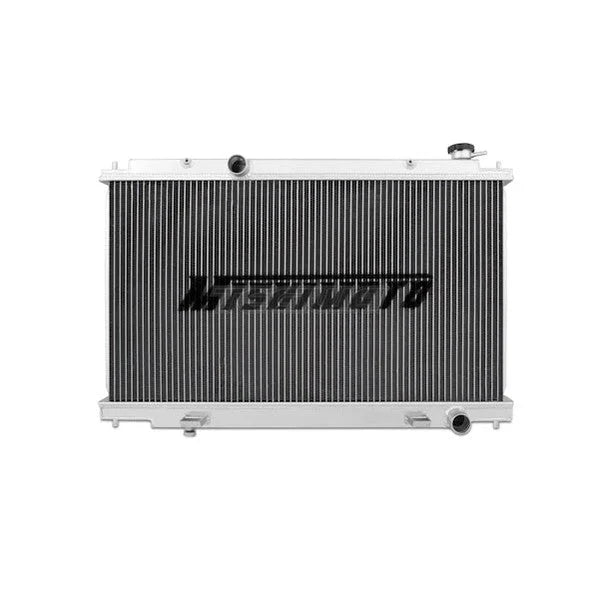

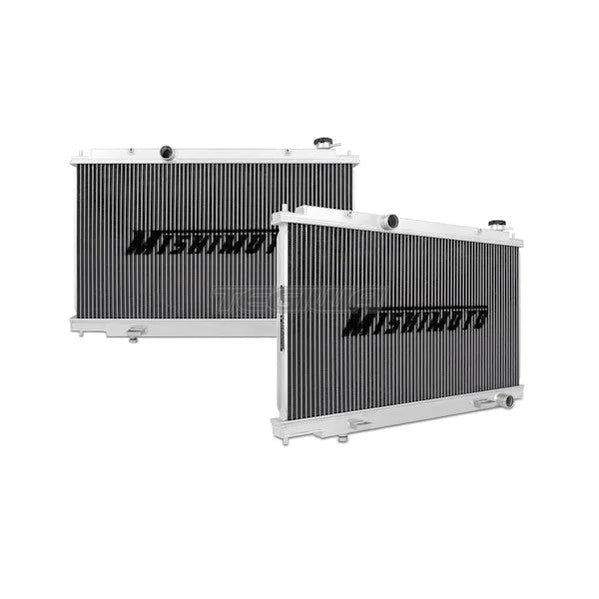

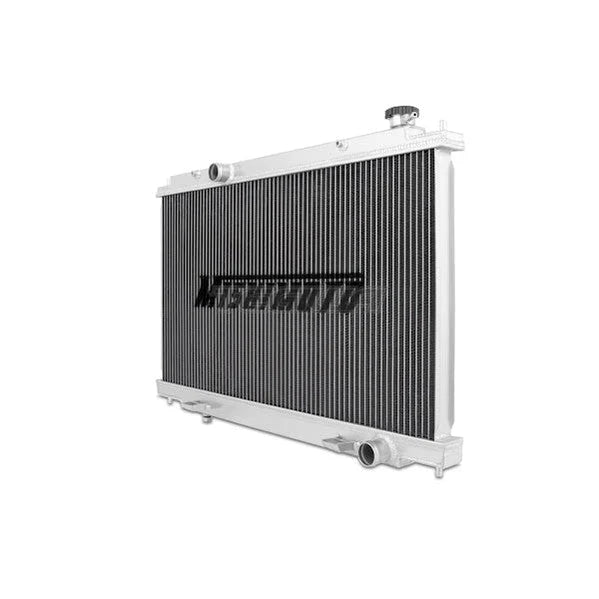

The Mishimoto performance aluminum radiator for the Nissan Maxima is designed and engineered to maximize cooling efficiency, boost engine functions, and protect your car from overheating.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan Maxima radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
