TechSpec Overall Height (in): 19.5
TechSpec Overall Length (in): 26.4
TechSpec Overall Width (ins): 2.47
TechSpec Core Length (in): 25.12
TechSpec Core Height (in): 14.13
TechSpec Fluid Capacity (gal): 2.09
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.97
TechSpec Drain Plug Thread Size: M10 x 1.25
TechSpec Applications: 1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE
TechSpec Engine Codes: SR20DE SR20DET
TechSpec Chassis Codes: S13
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 1989-1994 Nissan 240SX S13 with SR20 engine swap
Provides a bolt-in cooling solution which simplifies the engine-swap process
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.97-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for street and/or track use
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

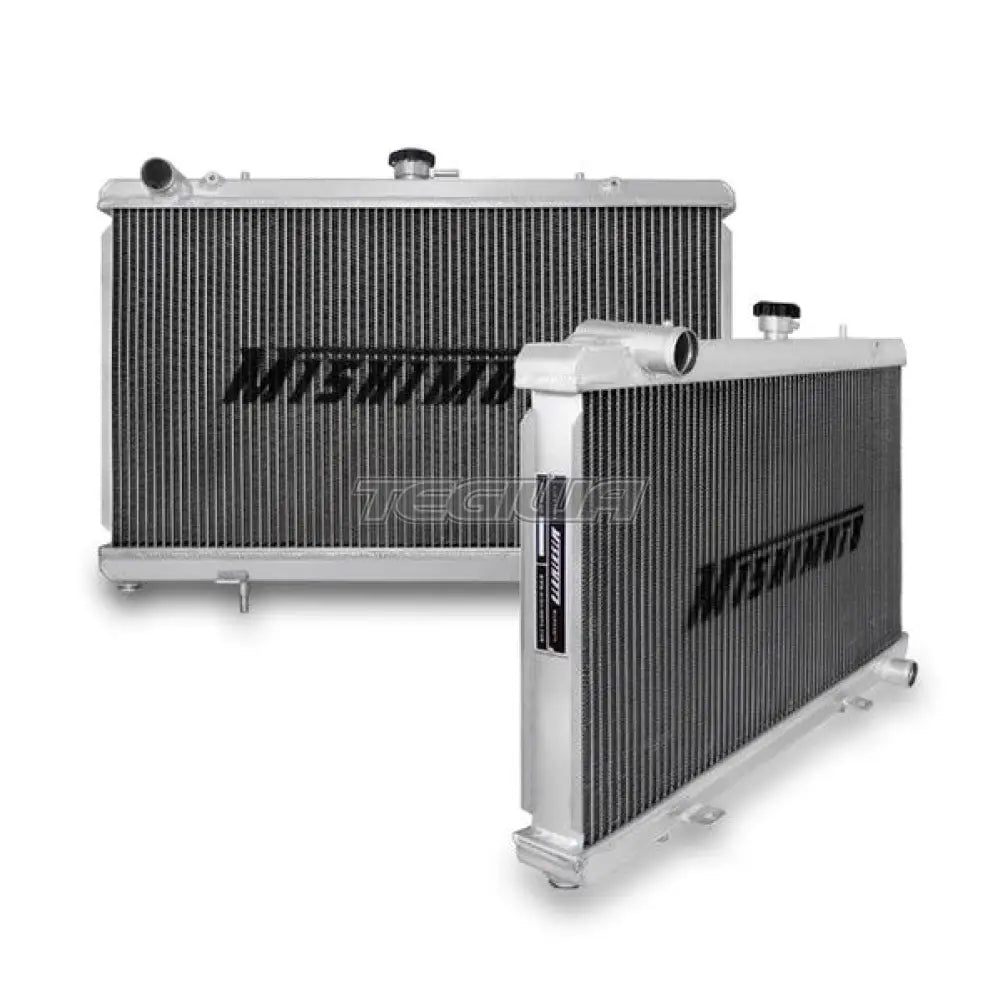

The Mishimoto performance aluminum radiator for the 1989-1994 Nissan 240SX with SR20 Engine is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan 240SX radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.For even more cooling efficiency check out the S13 fan shroud kit.
