TechSpec Overall Height (in): 28.1
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (ins): 2.55
TechSpec Core Length (in): 14.8
TechSpec Core Height (in): 27.24
TechSpec Fluid Capacity (gal): 1.79
TechSpec Rows: 2
TechSpec Inlet (in): 1.4
TechSpec Outlet (in): 1.4
TechSpec Core Thickness (in): 2.05
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 4G63T
TechSpec Chassis Codes: CN9A (4) CP9A (5/6)
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Robotic TIG-welding

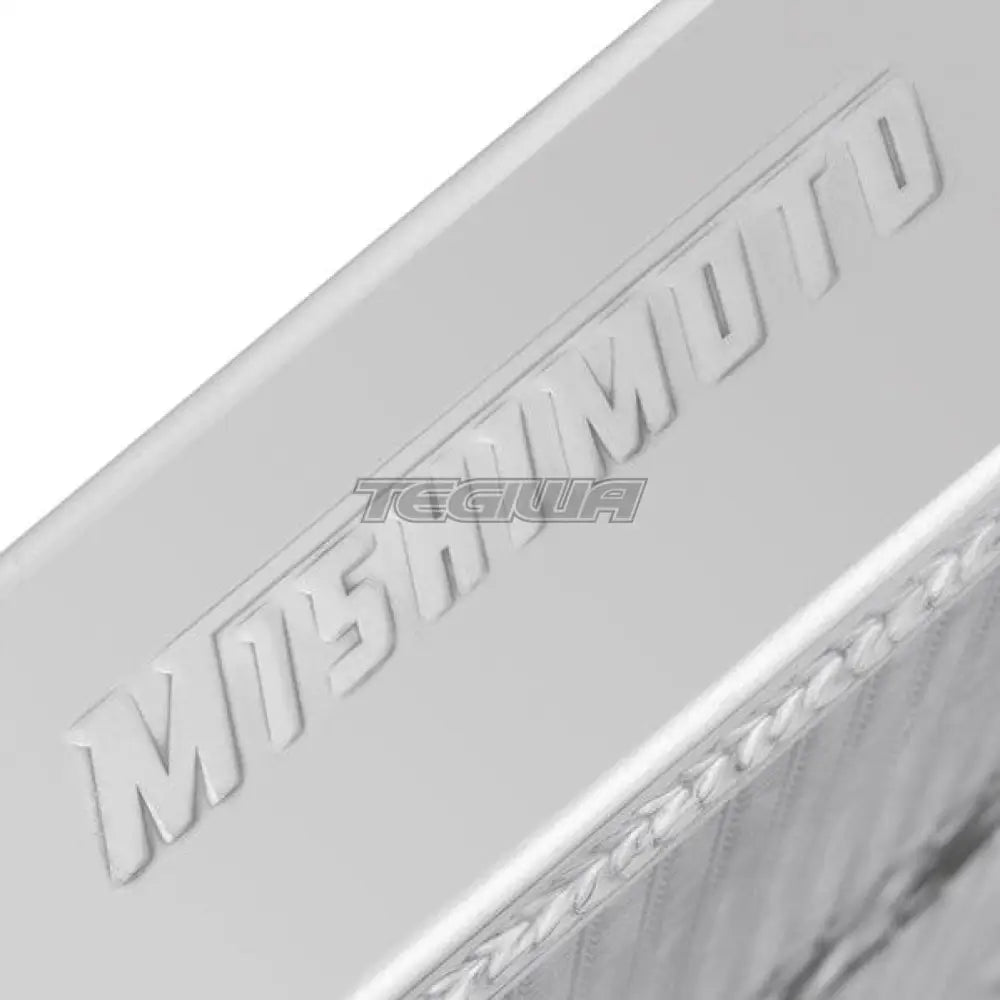

Brushed aluminum finish
Includes magnetic drain plug with dowty seal

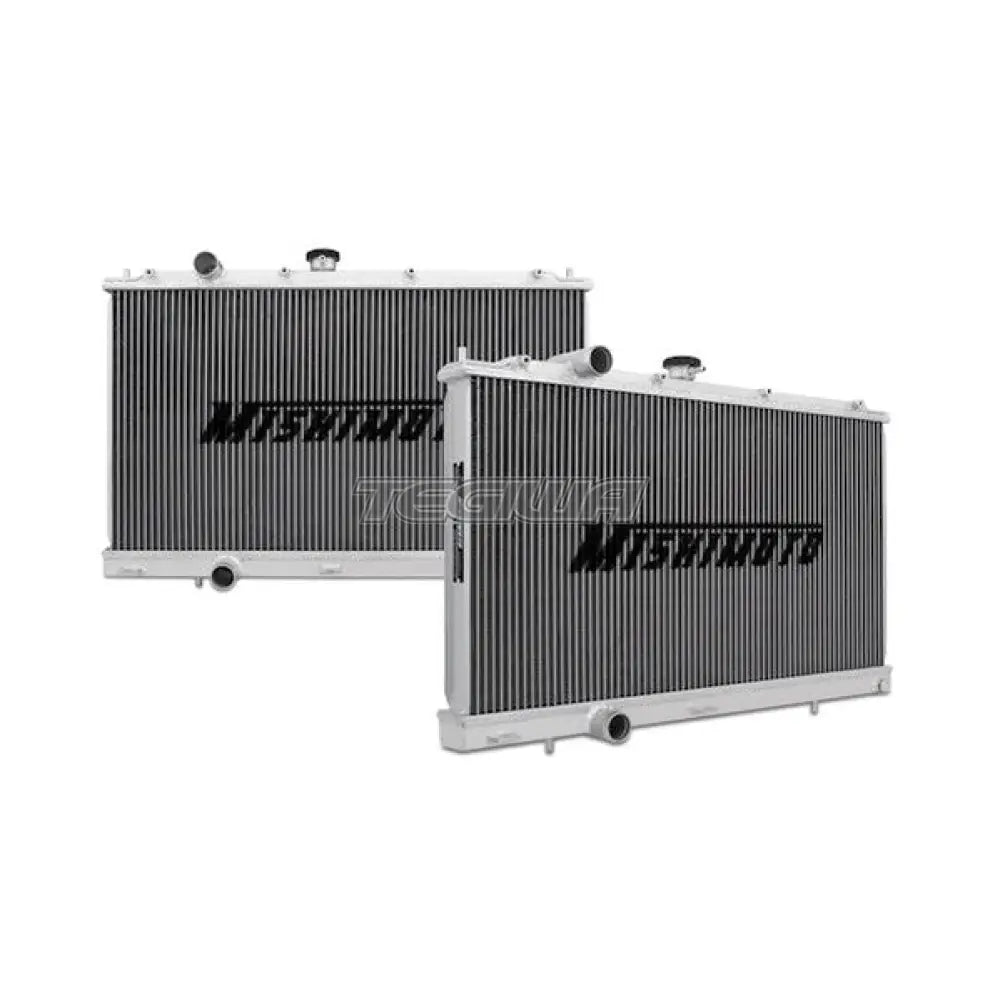

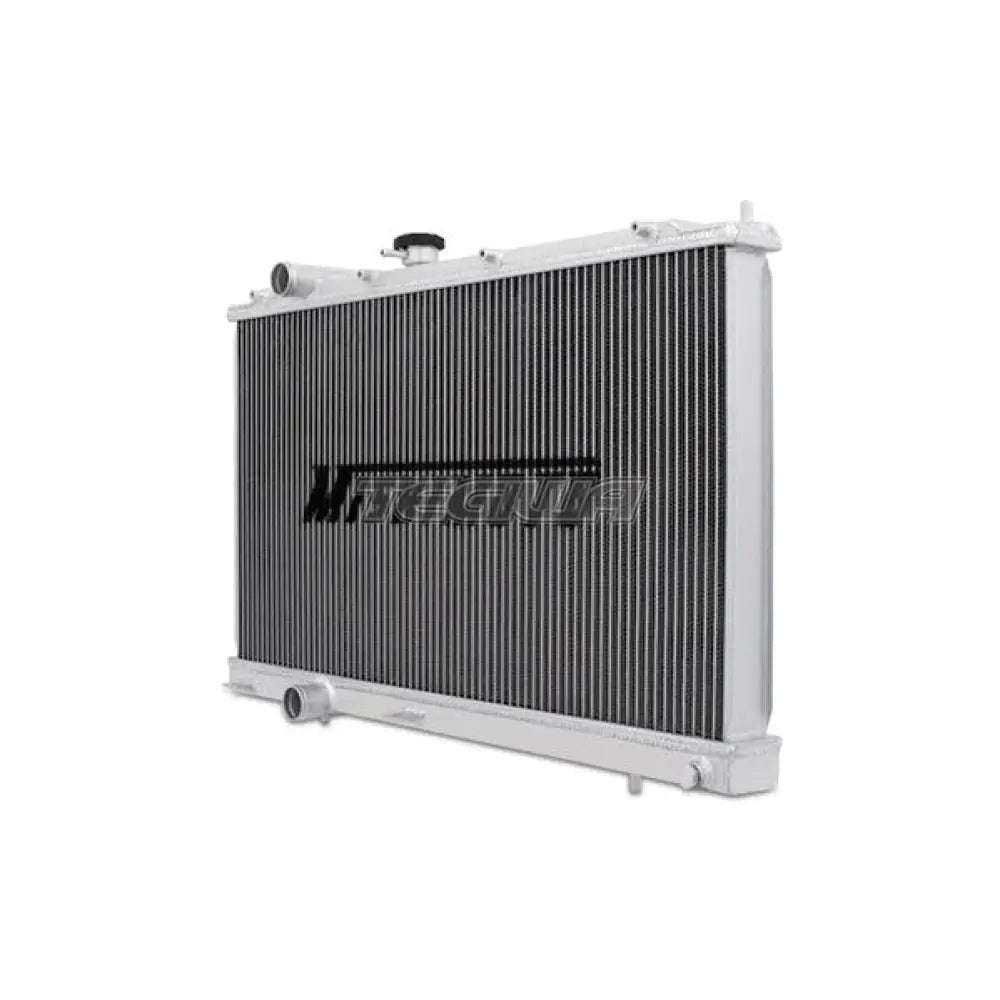

Direct fit for the 1996-2000 Mitsubishi Lancer Evolution

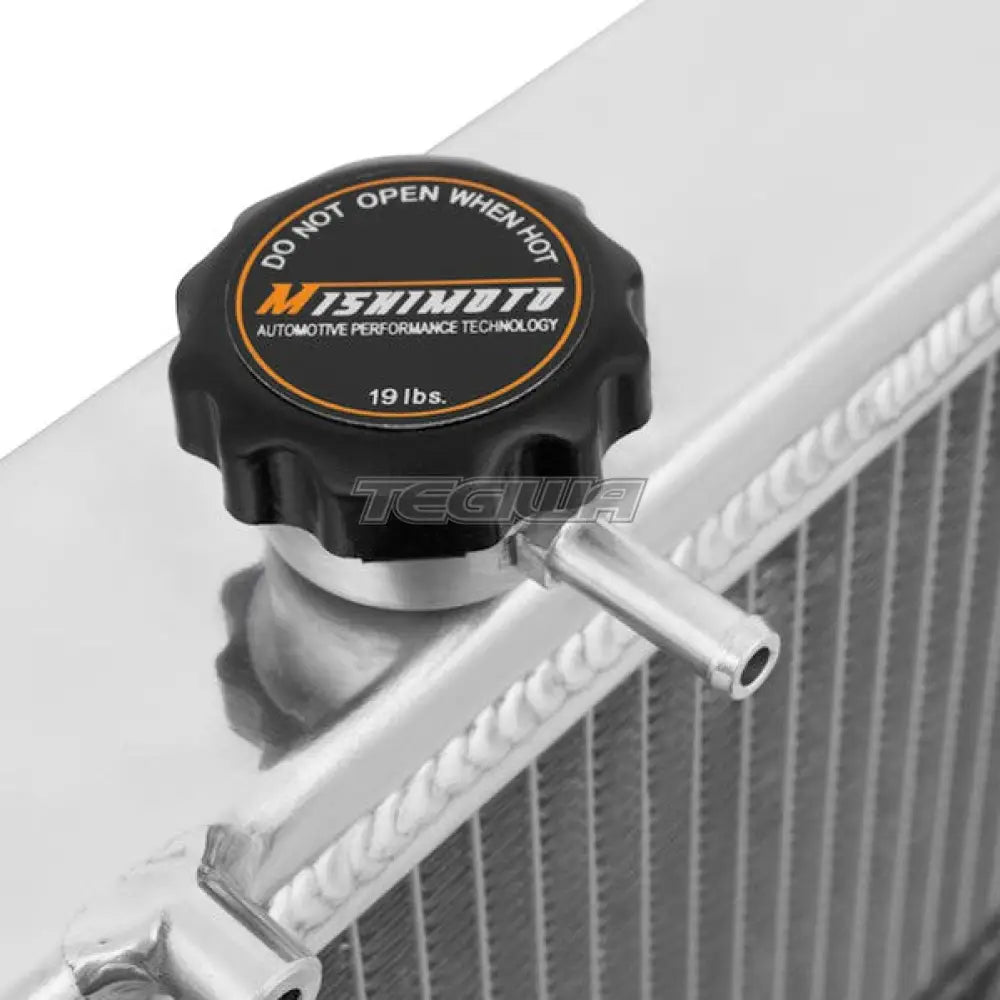

Includes 1.3 bar high-pressure radiator cap
Includes 1/8-in NPT port for use with additional temperature sensors
Lifetime Warranty
Install Difficulty: 3
Having a turbo set up in your vehicle produces a great amount of heat.By replacing your current stock Evolution radiator with a top of the line Mishimoto performance radiator, you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Evolution performance aluminum radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from the overheating.With its lightweight dual core, 100-percent brazed aluminum, and polished tank ends, installation is effortless with a direct OEM fit, no cutting or modification is required.
