TechSpec Overall Height (in): 17.2
TechSpec Overall Length (in): 25.5
TechSpec Overall Width (ins): 5.12
TechSpec Core Length (in): 24.9
TechSpec Core Height (in): 12.3
TechSpec Fluid Capacity (gal): 2.6
TechSpec Rows: 1
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 1.03
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1725
TechSpec Engine Codes: 13B
TechSpec Chassis Codes: FD3S
TechSpec Includes: Mishimoto Radiator--Mishimoto Lifetime Warranty--Magnetic Drain Plug
Features:100-percent all-aluminum construction
Increased core size for additional cooling capacity over OEM

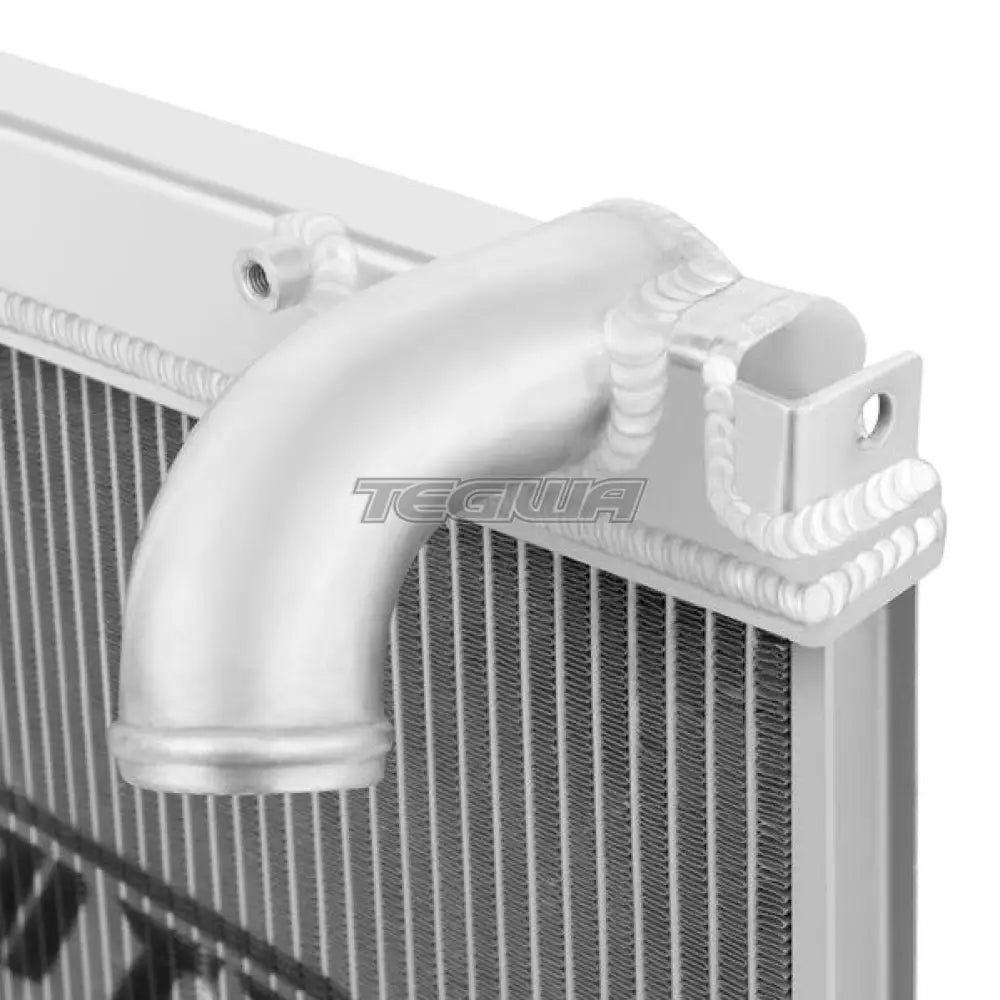

TIG-welded for increased durability
Retains OEM fitment
Brazed aluminum core
Polished aluminum end tanks
Lifetime Warranty
Install Difficulty: 3

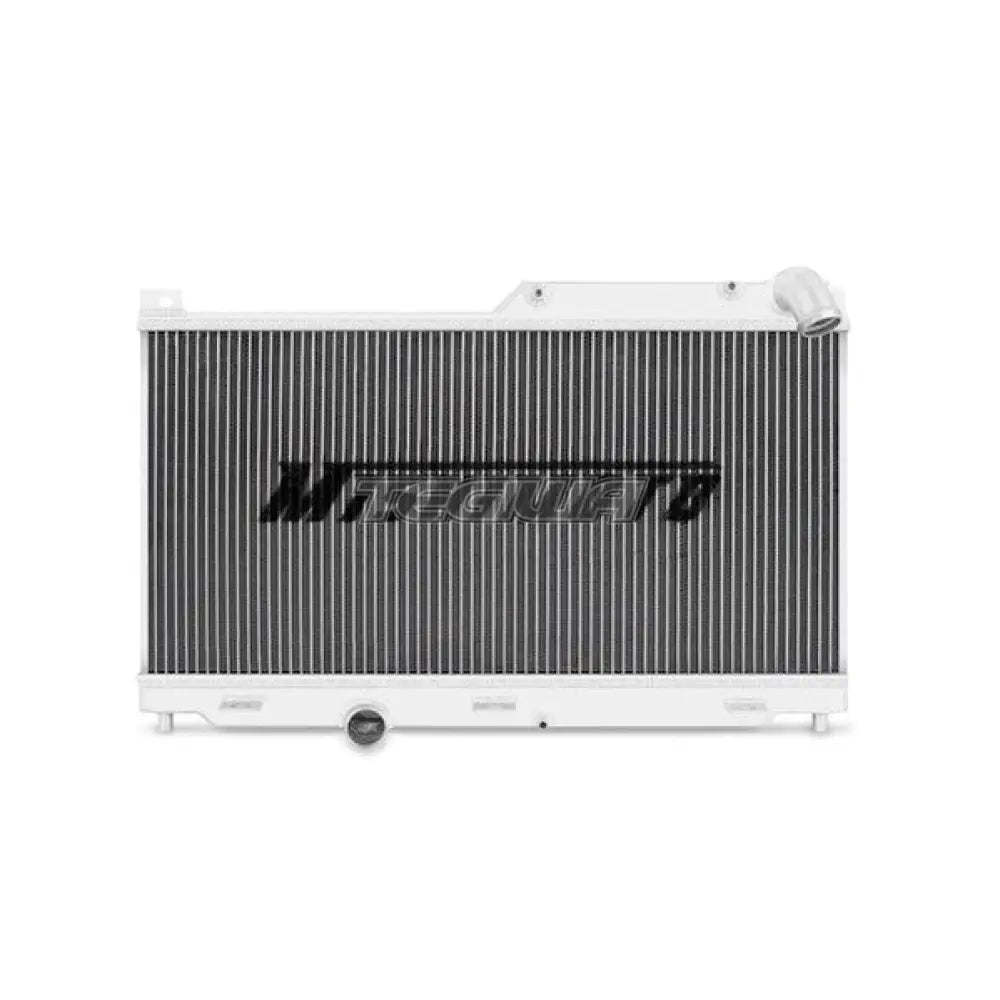

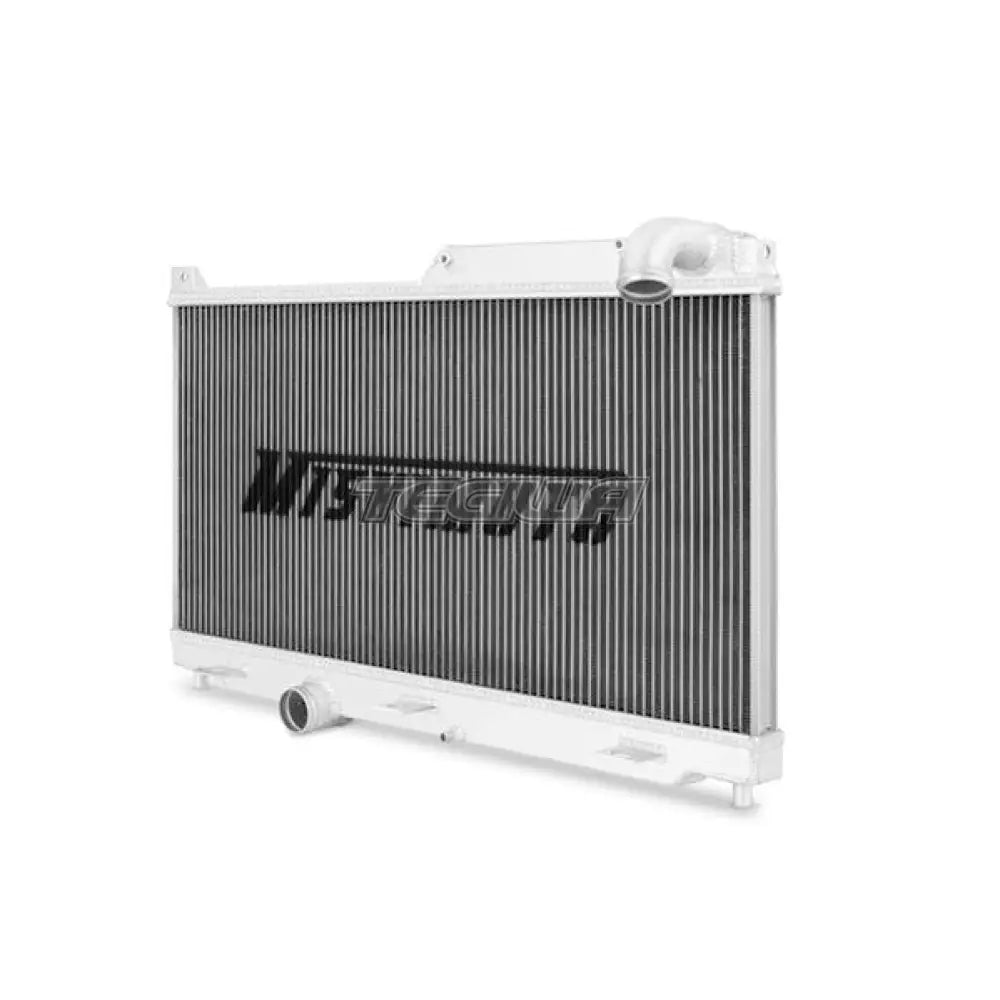

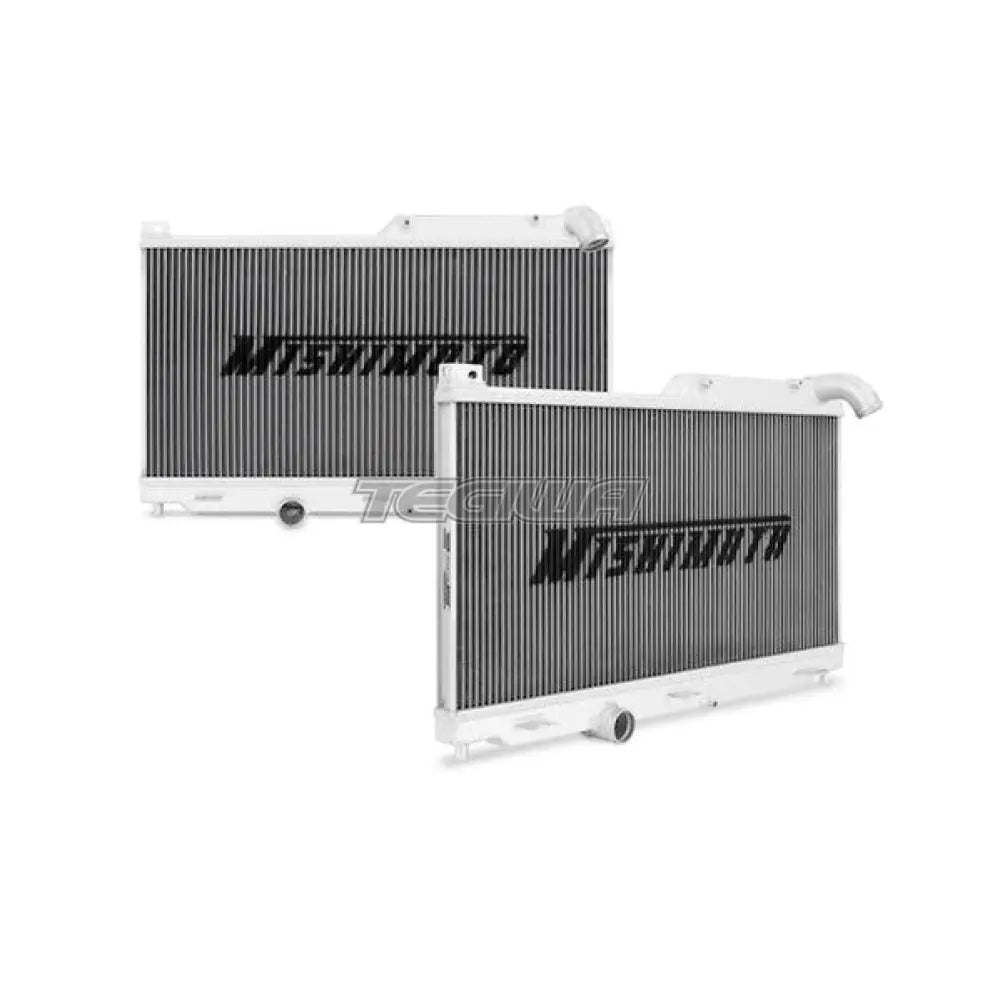

The FD RX-7 is a unique sports car combining gorgeous body lines, a well-balanced chassis, and a high-revving rotary engine.Rotary engines are known to produce extreme temperatures under the hood, necessitating a reliable and efficient cooling system.Mishimoto has developed an all-new aluminum radiator specifically engineered for the 1993in2002 Mazda RX-7.Mishimoto radiators are constructed from durable aircraft-quality aluminum and feature 100-percent brazed aluminum cores.This radiator features TIG-welded end tanks polished to a flawless finish, producing a perfect blend of performance and style.The Mishimoto RX-7 radiator improves cooling efficiency and heat dissipation for the ultimate upgrade to extend the life of your 13B.This radiator exhibits factory fitment for an easy installation and includes the Mishimoto lifetime warranty.
