TechSpec Overall Height (in): 18
TechSpec Overall Length (in): 27.8
TechSpec Overall Width (ins): 2.55
TechSpec Core Length (in): 25.12
TechSpec Core Height (in): 12.6
TechSpec Fluid Capacity (gal): 1.79
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.97
TechSpec Drain Plug Thread Size: M10x1.25
TechSpec DPI: 1140
TechSpec Chassis Codes: NA6(8)C
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty

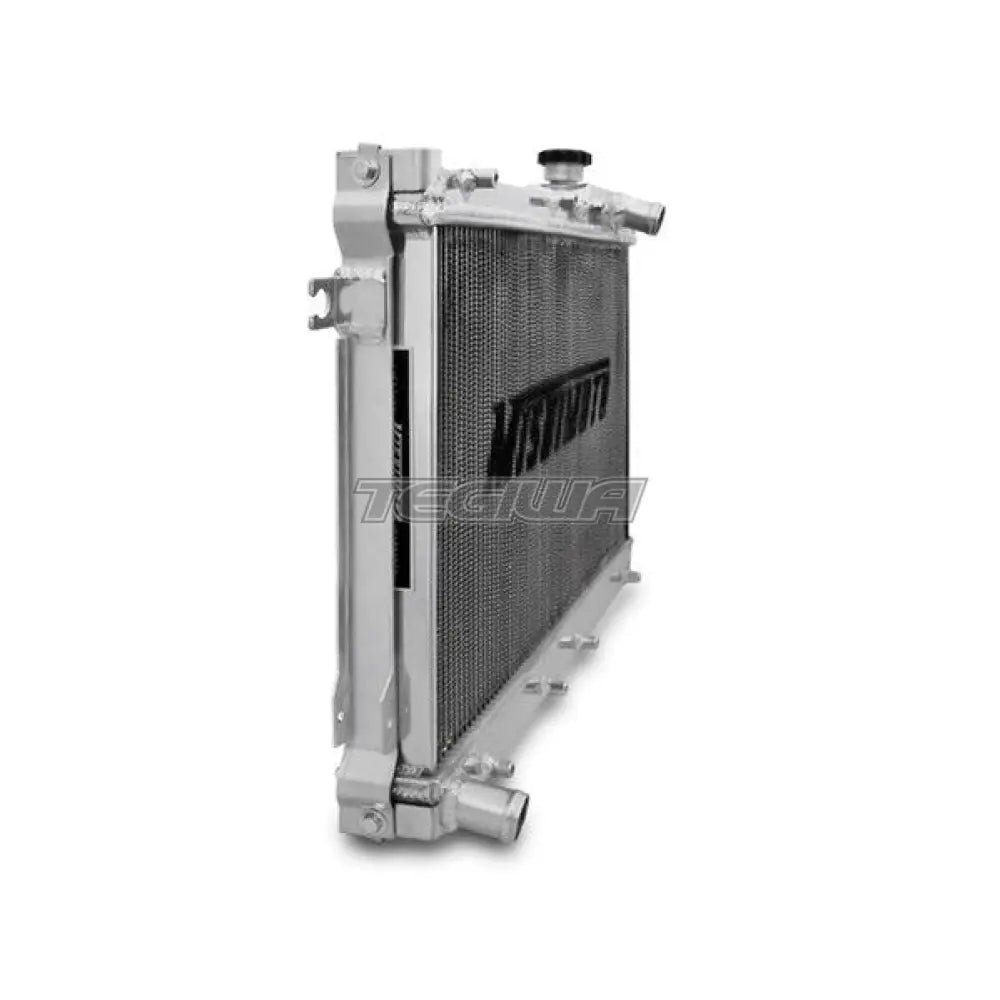

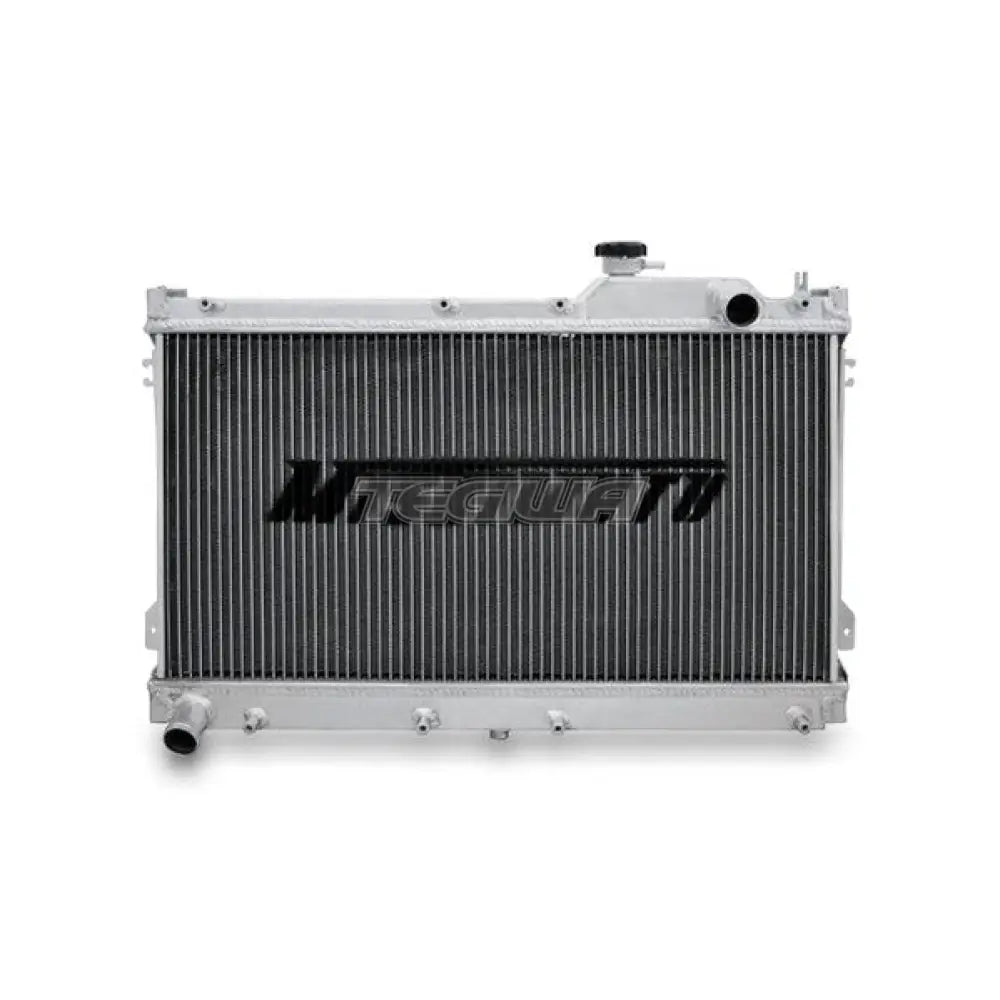

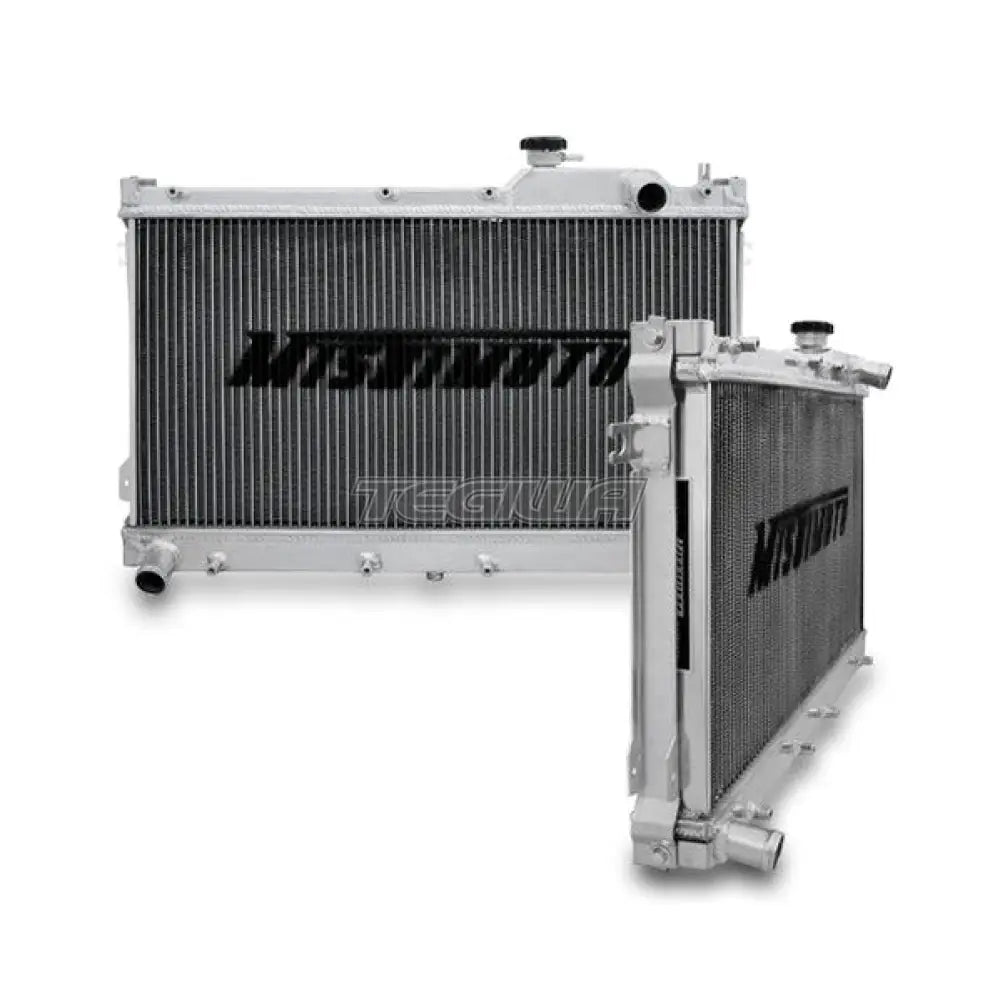

Features:Direct fit for the 1990-1997 Mazda Miata 1.6L/1.8L
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.97-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Ideal replacement for the failure-prone stock radiator
Perfect for use on the street, track, or autocross course

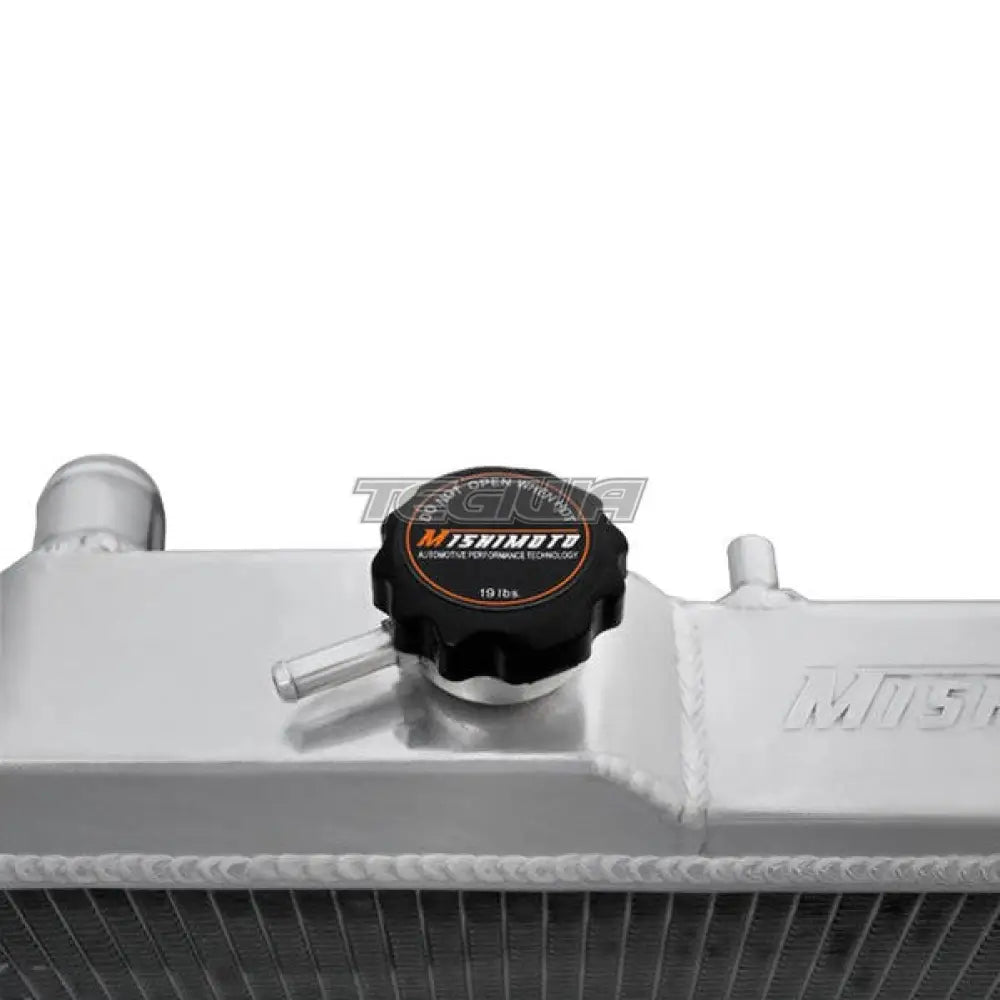

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 4
By replacing your current Miata radiator with a Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.All Mishimoto Mazda Miata performance aluminum radiators are designed and engineered to maximize cooling efficiency, protect your car from the overheating, and boost overall engine functions.With its lightweight dual core, 100-percent brazed aluminum, and polished tank ends installing a direct OEM fit Mishimoto radiator is effortless, no cutting or modification is required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.Check out the Mazda Miata hose kit, for even greater cooling efficiency.
