TechSpec Overall Height (in): 21.9
TechSpec Overall Length (in): 29.6
TechSpec Overall Width (ins): 6.2
TechSpec Core Length (in): 22
TechSpec Core Height (in): 20.66
TechSpec Rows: 1
TechSpec Inlet (in): 1.6
TechSpec Outlet (in): 1.6
TechSpec Core Thickness (in): 1.26
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 2007-2018 Jeep Wrangler JK w/ HEMI conversion
TechSpec Chassis Codes: JK
Note: Correct hoses for your specific conversion must be purchased separately. Please refer to your conversion manufacturer for recommended part numbers.
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(2) Rubber Isolator Bushings--Mounting Hardware--Mishimoto Lifetime Warranty
Features:Direct fit for the 2007-2018 Jeep Wrangler JK with HEMI conversion
Extruded tubes with internal struts for increased strength and pressure tolerance
18-percent increase in core volume, fin surface area, and external tube area over stock Wrangler radiator
13-percent increase in coolant capacity over stock Wrangler radiator
Dual-pass for effective cooling
100-percent brazed aluminum core
TIG-welded to perfection
Includes 19 psi high-pressure radiator cap, effectively raising the boiling point of engine coolant and providing a safer, more efficient system
Includes magnetic drain plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

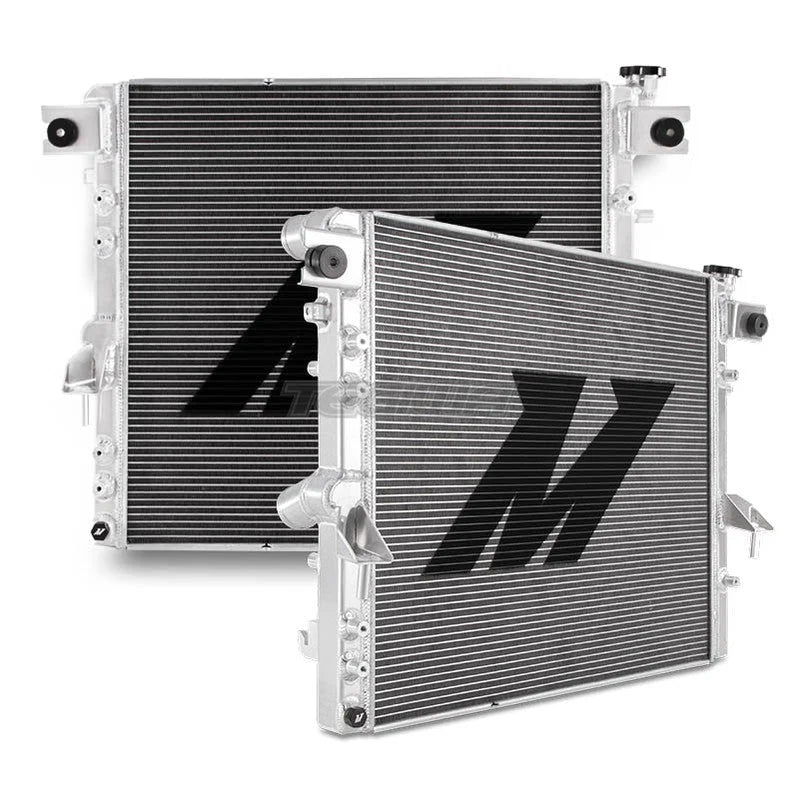

What's better than a Wrangler JK that can go anywhere any time? A JK that can go anywhere, anytime, with a HEMI under the hood. And even better than a JK with a HEMI under the hood, is a JK with a cool HEMI under the hood. That's why We've developed a performance aluminum radiator for your HEMI-swapped 2007-2018 Jeep Wrangler JK. This radiator includes all the benefits of our direct-fit JK aluminum performance radiator, including an 18-percent greater core volume, fin area, and external tube area, and a 13-percent increase in coolant capacity over the stock radiator. For even more cooling, this radiator utilizes a dual-pass design to keep coolant in the radiator longer. Of course, reliability is also a major concern for any Wrangler owner. Mishimoto has devoted countless hours of RandD to bring the JK market a stronger, more reliable radiator. Our HEMI conversion radiator features extruded, internally strutted tubes to help combat flex within the core. These strutted tubes provide the radiator with greater rigidity and durability, reducing the potential for cracks and leaks. Just like our other Wrangler JK products, this radiator is a direct fit and accommodates the stock JK radiator fan, A/C condenser, and transmission cooler. As with all our products, this 2007-2018 Jeep Wrangler JK HEMI Conversion Performance Aluminum Radiator is backed by Mishimoto's Lifetime Warranty for unparalleled peace of mind.
