TechSpec Overall Height (in): 33.1
TechSpec Overall Length (in): 20.9
TechSpec Overall Width (ins): 5.4
TechSpec Core Length (in): 25.12
TechSpec Core Height (in): 19.21
TechSpec Fluid Capacity (gal): 2.87
TechSpec Rows: 2
TechSpec Inlet (in): 1.46
TechSpec Outlet (in): 1.46
TechSpec Core Thickness (in): 1.34
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13059
TechSpec Material: Aluminum
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8L V6
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Chassis Codes: BK
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Bleeder Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2010-2012 Hyundai Genesis Coupe 3.8
Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 1.34-in thick, efficient brazed aluminum core
Increased fluid capacity and superior heat dissipation
Proven 50-percent increase in radiator efficiency compared to the stock unit
Provides optimal heat exchange for both stock and forced induction vehicles
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

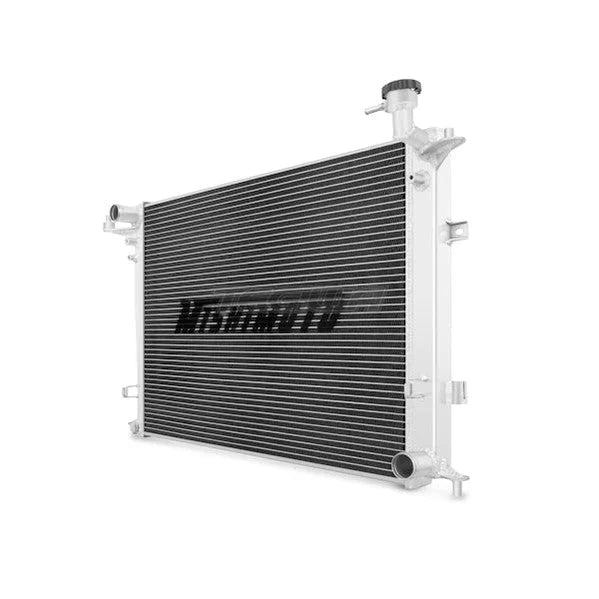

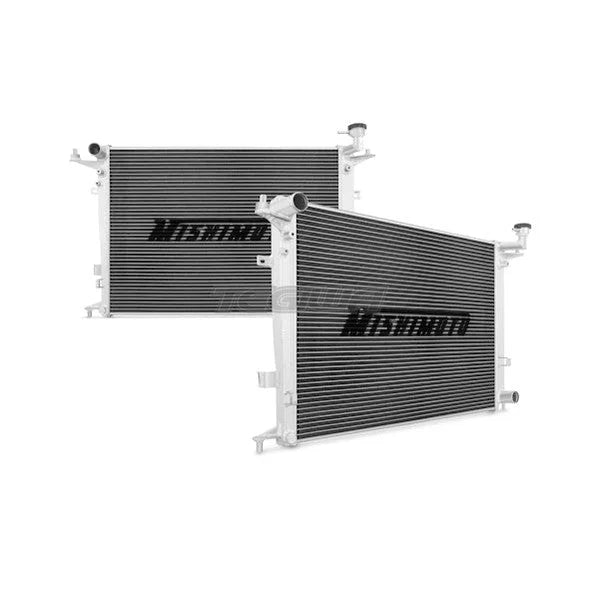

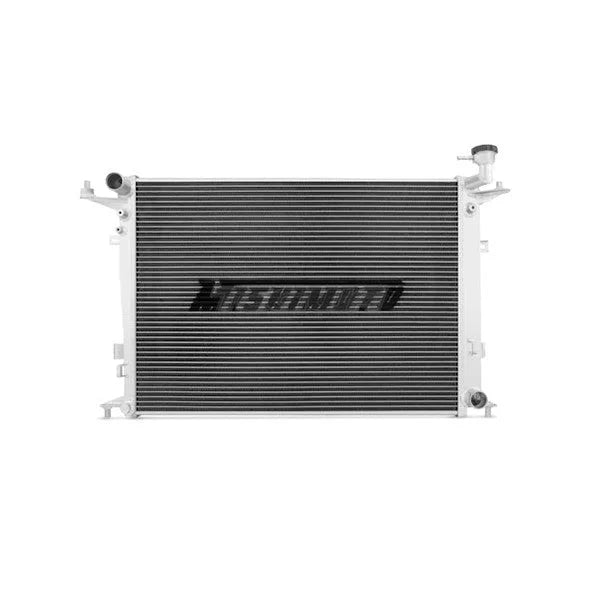

Mishimoto has developed a performance aluminum radiator available for the 2010-2012 Hyundai Genesis Coupe 3.8. This is the ideal upgrade to your stock 2010-2012 Hyundai Genesis Coupe 3.8 radiator. Having a high-displacement V6 produces a great amount of heat by replacing your current 2010-2012 Hyundai Genesis Coupe 3.8 radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.Our testing showed a 30 degree decrease in temperatures over stock.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
