TechSpec Overall Height (in): 32.48
TechSpec Overall Length (in): 17.8
TechSpec Overall Width (ins): 2.47
TechSpec Core Length (in): 25.5
TechSpec Core Height (in): 12.5
TechSpec Fluid Capacity (gal): 1.64
TechSpec Rows: 2
TechSpec Inlet (in): 1.4
TechSpec Outlet (in): 1.4
TechSpec Core Thickness (in): 1.97
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13120
TechSpec Material: Aluminum
TechSpec Applications: 2010-2012 Hyundai Genesis Coupe 2.0T
TechSpec Chassis Codes: BK
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U)
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T
Full aluminum construction with durable, TIG-welded end tanks
Functions with both stock and aftermarket front-mount intercoolers
Features a two-row, 1.97-in thick, efficient brazed aluminum core
Increased fluid capacity and superior heat dissipation
Provides optimal heat exchange for both stock and highly modified vehicles

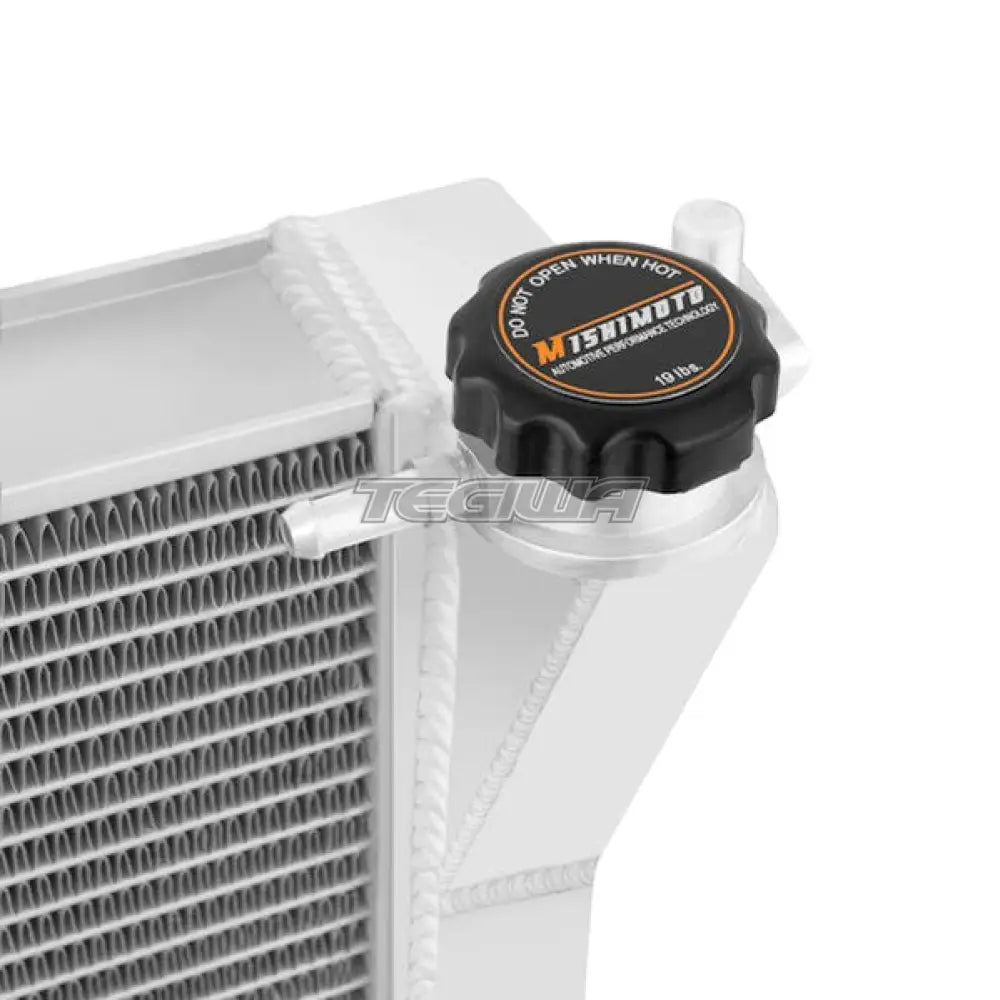

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

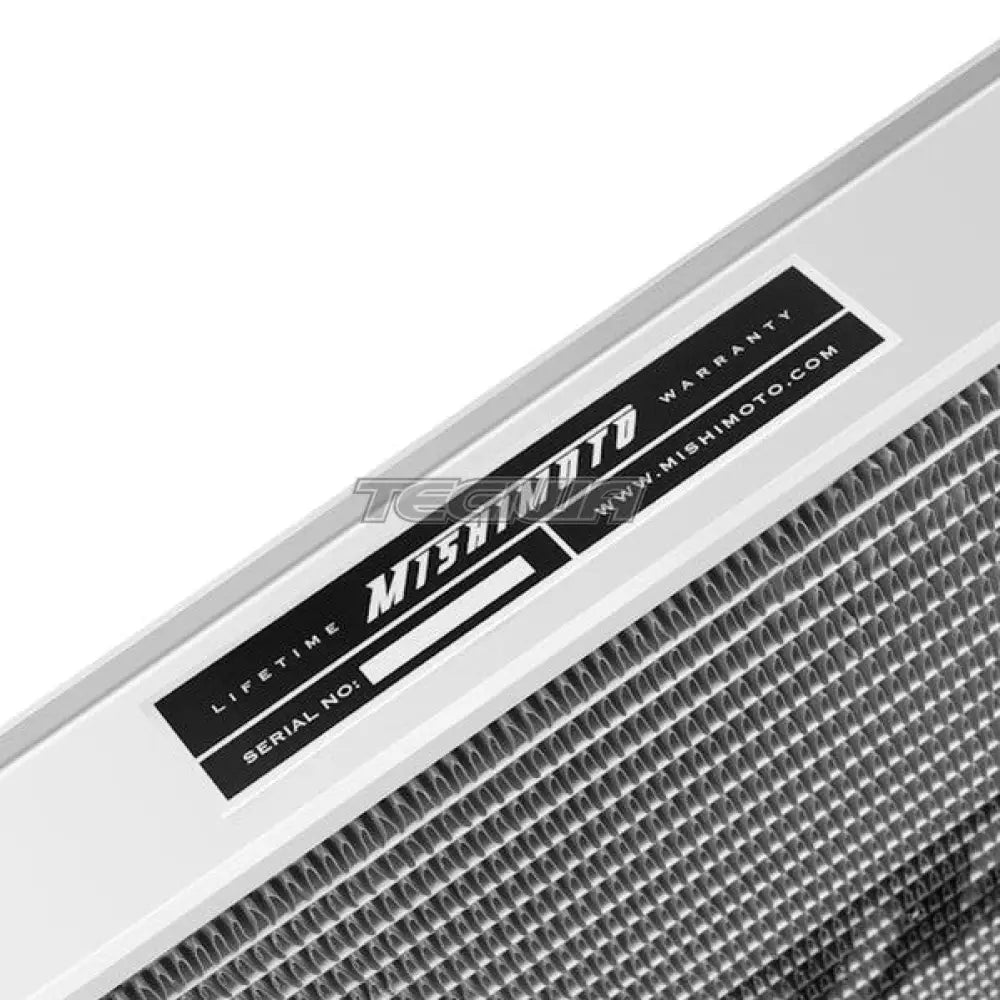

Mishimoto Lifetime Warranty
Install Difficulty: 4

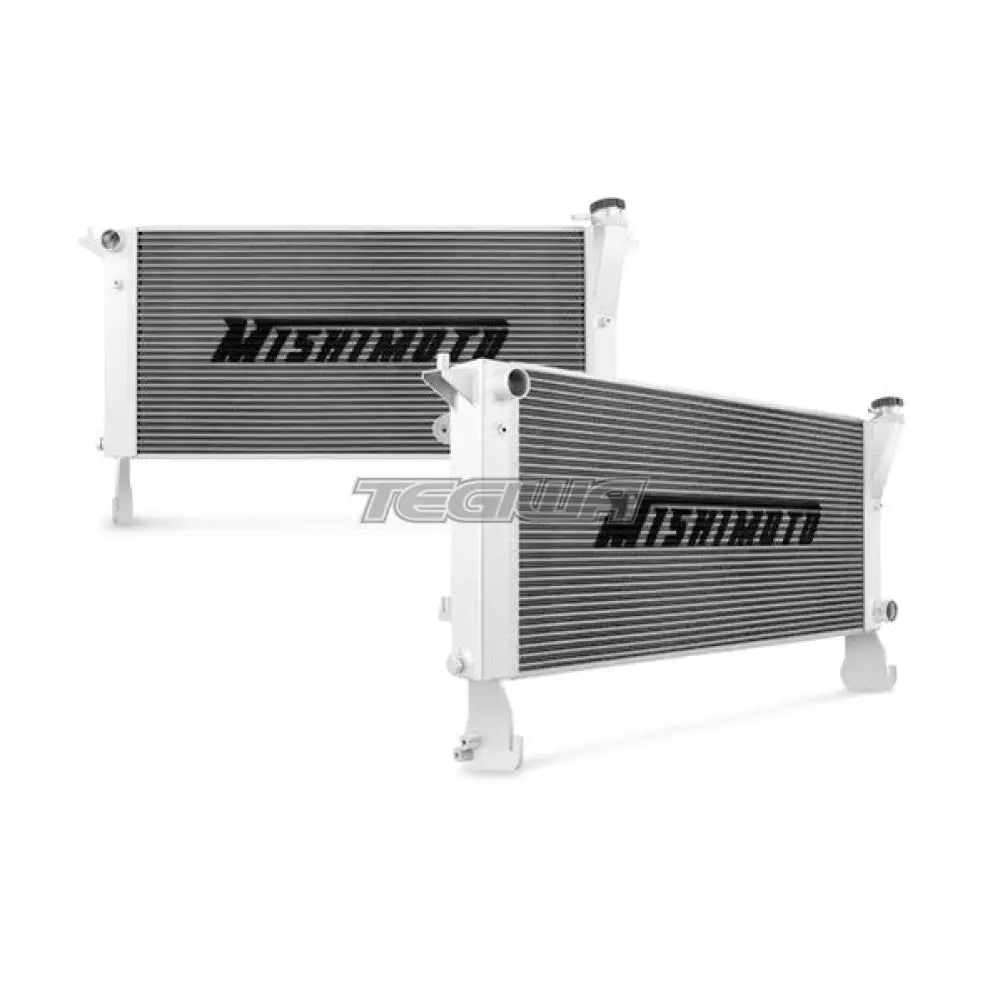

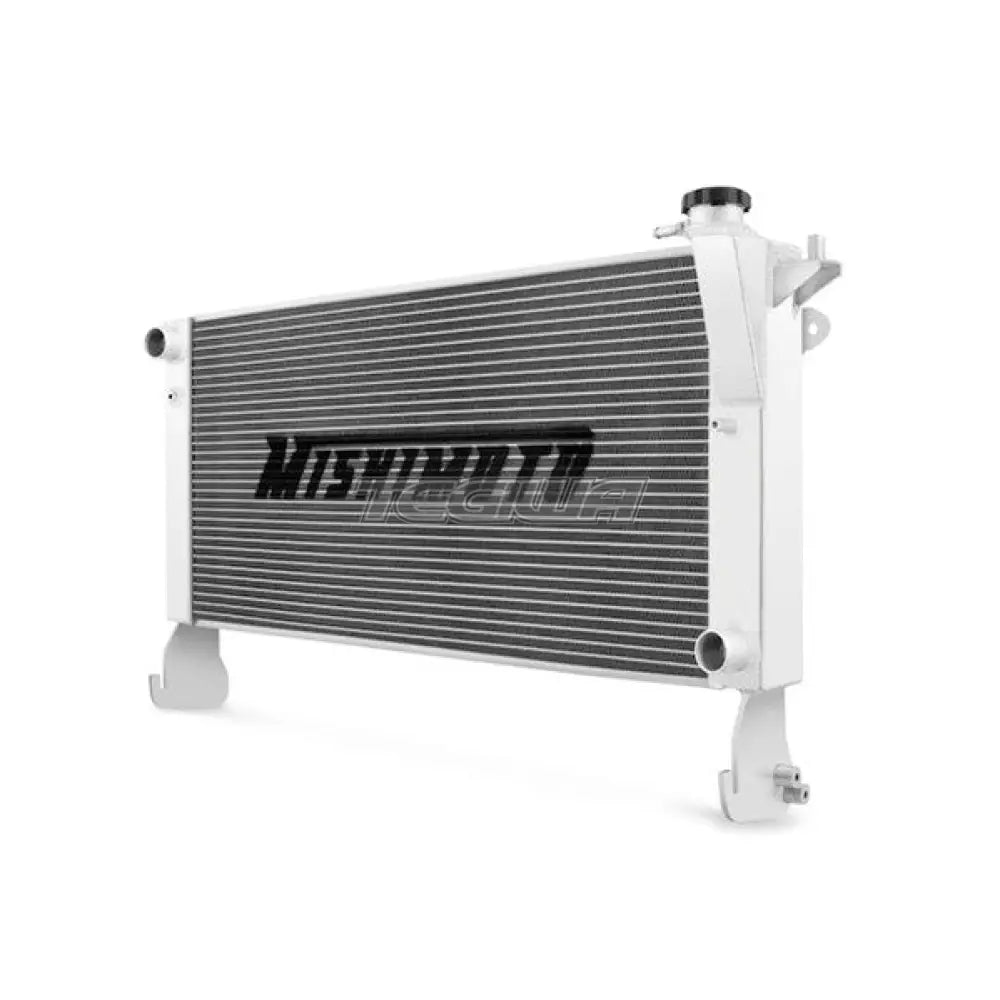

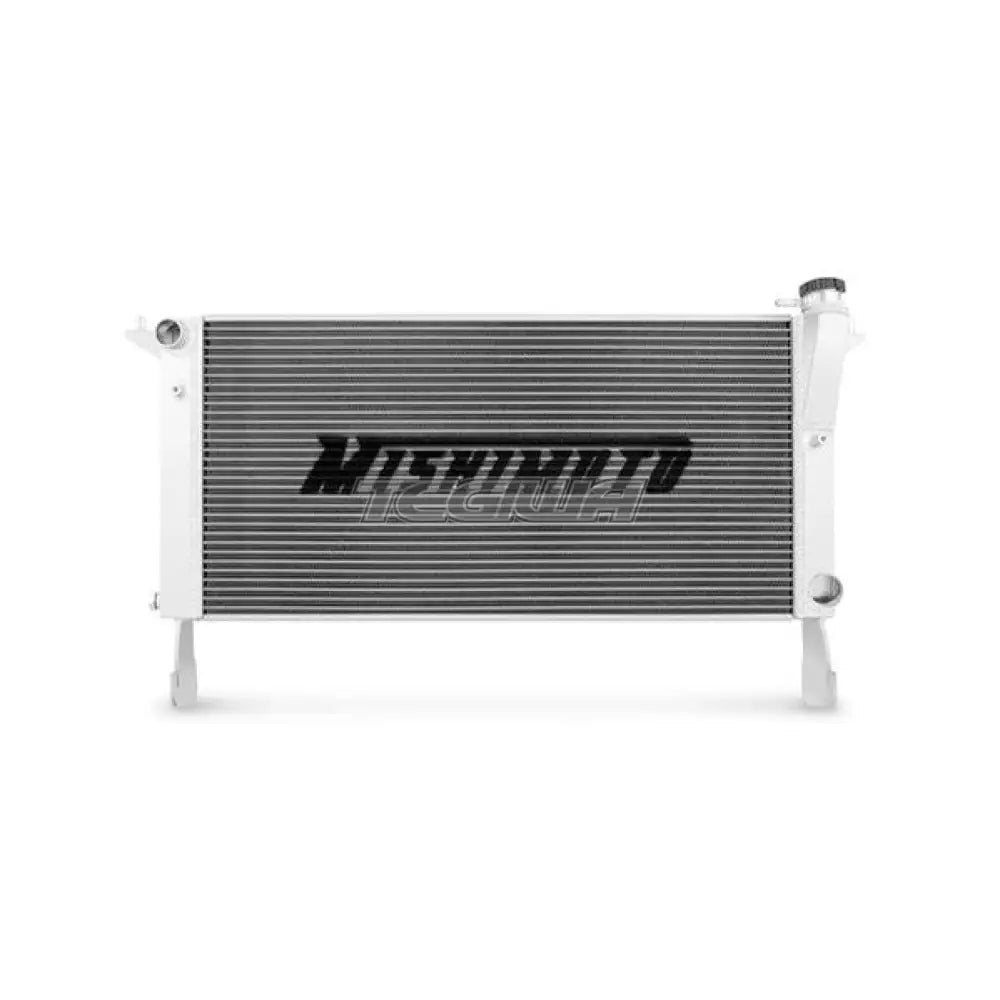

Mishimoto has developed a performance aluminum radiator available for the 2010-2012 Hyundai Genesis Coupe 2.0T. This is the ideal upgrade to your stock 2010-2012 Hyundai Genesis Coupe 2.0T radiator.Having a turbo set up produces a great amount of heat by replacing your current 2010-2012 Hyundai Genesis Coupe 2.0T radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
