TechSpec Overall Height (in): 18.8
TechSpec Overall Length (in): 27.6
TechSpec Overall Width (ins): 1.9
TechSpec Core Length (in): 27.52
TechSpec Core Height (in): 13.75
TechSpec Fluid Capacity (gal): 1.91
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.25
TechSpec Core Thickness (in): 1.4
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2412
TechSpec Applications: 2002-2006 Honda RSX Type S
TechSpec Engine Codes: K20a3--K20a1--K20z1
TechSpec Chassis Codes: DC5
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:2002-2006 Honda RSX
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.4-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for both street and track use
Efficient temperature regulation for both stock and modified vehicles
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

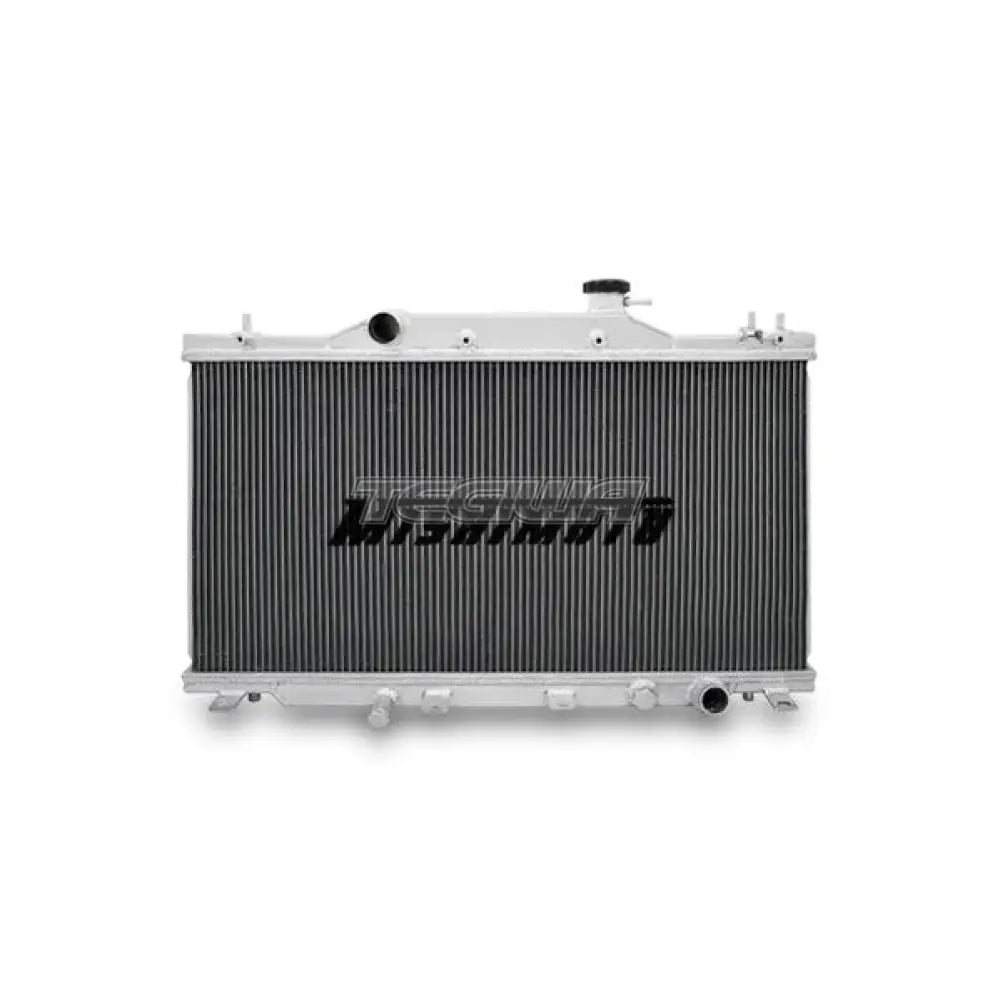

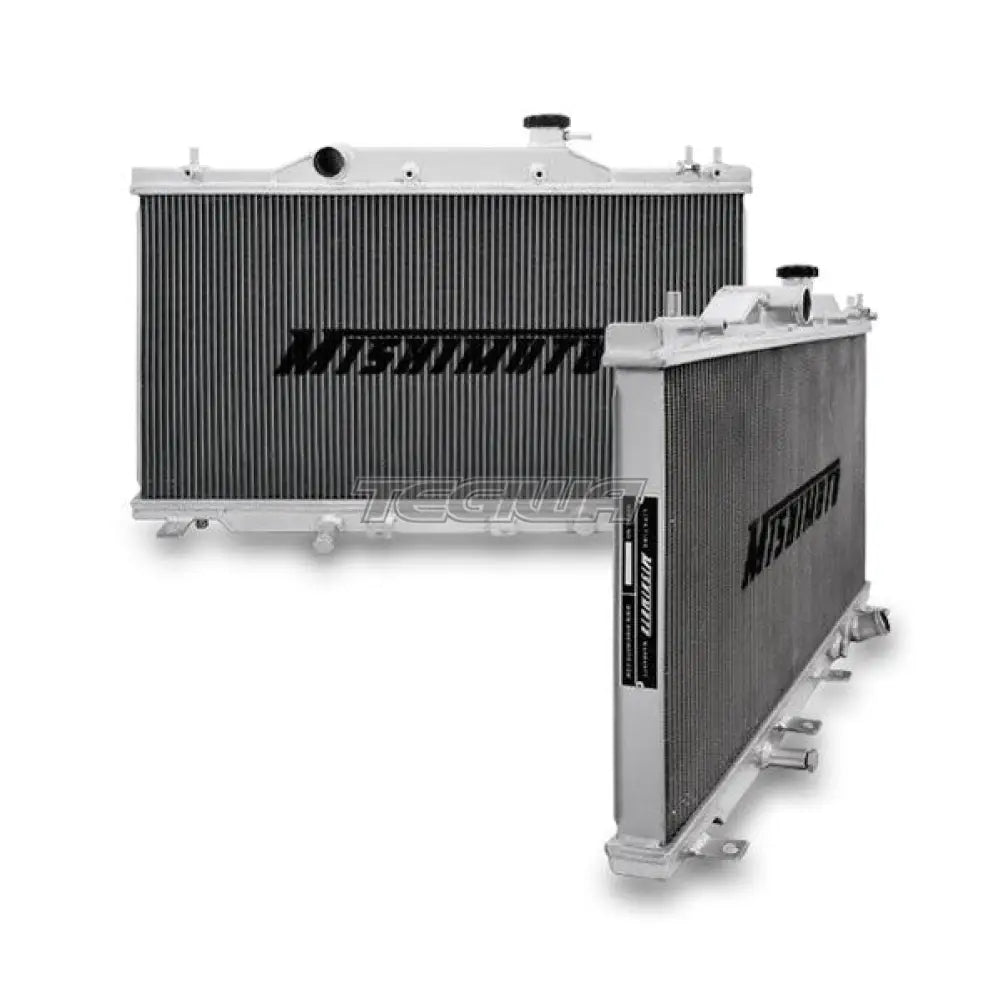

By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator, you will immediately notice a cooler more efficient running engine.All Mishimoto Honda RSX radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core, 100-percent brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap, magnetic drain plug and an excellent warranty.
